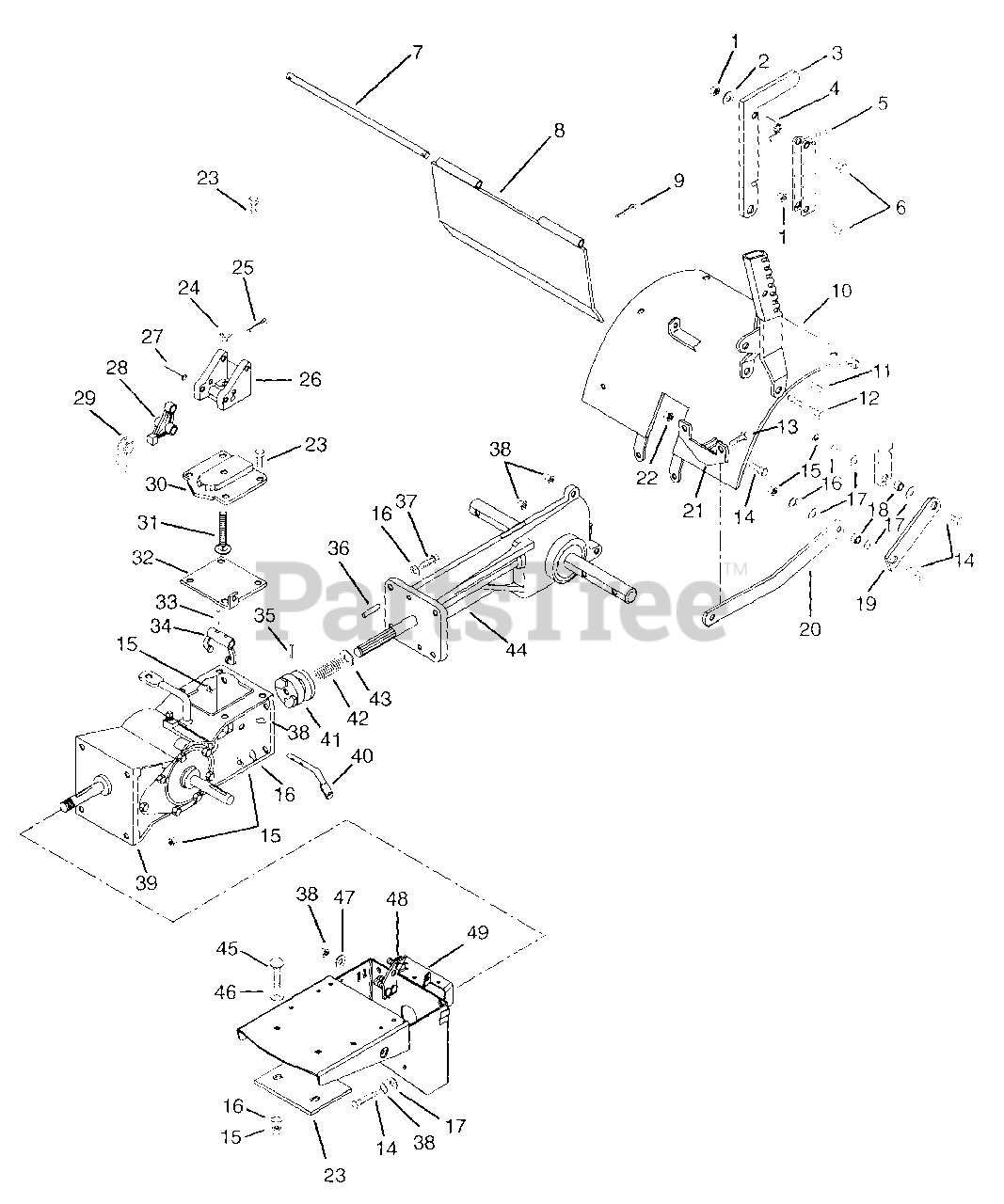

901429 (RT 8020) - Ariens 20" Rear Tine Tiller, 8hp Briggs & Stratton (SN: 000101 & Above) > Parts Diagrams (9) > Frame And Transmissions

  • Title
06529700

1

@NUT-LK-CTR .25-20 YWZC

Part# 06529700

OEM Warranty Repair Part for Ariens

Not available

06437300

2

@WSHR-FL-STL.281X.62X.065 YWZC

Part# 06437300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

00142859

3

HANDLE WELDMENT

Part# 00142859

OEM Warranty Repair Part for Ariens

Not available

08321800

4

SG-TORS .050X.25X2.33

Part# 08321800

OEM Warranty Repair Part for Ariens

Not available

00142559

5

TRIGGER

Part# 00142559

OEM Warranty Repair Part for Ariens

Not available

05947400

6

@BLT-HEX .25-20X1.25 GR5 YWZC

Part# 05947400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

00103700

7

TAILBOARD PIN

Part# 00103700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $58.98

00143759

8

TAIL BOARD WELDMENT

Part# 00143759 (Superseded to 00158959)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $86.03

06707400

9

@PIN-CTR .09X.50 EXTPRSQCT YWZ

Part# 06707400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

50102200

10

TINE HOOD W/DECAL

Part# 50102200

OEM Warranty Repair Part for Ariens

Not available

05947500

11

@BLT-HEX .31-18X1.25 GR5 YWZC

Part# 05947500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

05948000

12

@BLT-HEX .31-18X3.50 GR5 YWZC

Part# 05948000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

05962900

13

@BLT-HEX .38-16X2.25 GR5 YWZC

Part# 05962900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

05958000

14

@BLT-HEX .38-16X1.25 GR5 YWZC

Part# 05958000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06529400

15

@NUT-HEX .38-16 YWZC

Part# 06529400 (Superseded to 06500917)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06308800

16

@WSHR-LK .38X.094 REG YWZC

Part# 06308800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06436200

17

@WSHR-FL-STL.406X.812X.065 YWZ

Part# 06436200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

00144100

18

SPACER BUSHING .63 X .38 X .27

Part# 00144100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $11.12

00146000

19

CHISEL POINT

Part# 00146000 (Superseded to 00146051)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.54

00146100

20

DRAG LINK

Part# 00146100 (Superseded to 00146151)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $33.48

00142700

21

PIVOT BRACKET

Part# 00142700 (Superseded to 00142751)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.65

06529600

22

@NUT-LK-CTR .38-16 YWZC

Part# 06529600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

00129559

23

WEIGHT, WAFER

Part# 00129559

OEM Warranty Repair Part for Ariens

Not available

06505000

24

NUT-SL .50-13

Part# 06505000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

06711700

25

PIN-COTR .120X1.0 YWZC

Part# 06711700 (Superseded to 06707100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

00110600

26

HANDLEBAR BRACKET

Part# 00110600 (Superseded to 00158800)

OEM Warranty Repair Part for Ariens

Not available

05801300

27

PIN-ROLL .313X2.00

Part# 05801300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $2.18

00102600

28

LATCH

Part# 00102600

OEM Warranty Repair Part for Ariens

Not available

08300300

29

SG-TORS .109X.88X2.25

Part# 08300300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $33.48

00129000

30

PIVOT CAP

Part# 00129000

OEM Warranty Repair Part for Ariens

Not available

00107700

31

SWIVEL BOLT

Part# 00107700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $34.38

00136200

32

PIVOT BRACKET

Part# 00136200

OEM Warranty Repair Part for Ariens

Not available

05801600

33

PIN-ROLL .188X1.00

Part# 05801600 (Superseded to 02470401)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

00100800

34

CLUTCH FORK

Part# 00100800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $49.14

05800900

35

PIN-ROLL .125X1.00

Part# 05800900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

05802000

36

PIN-GRV .375X1.00 TP C

Part# 05802000

OEM Warranty Repair Part for Ariens

Not available

05958500

37

@BLT-HEX .38-16X1.75 GR5 YWZC

Part# 05958500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06529800

38

@NUT-LK-CTR .31-18 YWZC

Part# 06529800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

50103100

39

TRANSMISSION GEARCASE ASSY

Part# 50103100

OEM Warranty Repair Part for Ariens

Not available

00102300

40

TINE ENGAGING FORK SHAFT

Part# 00102300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.85

00103900

41

TILLER JAW CLUTCH

Part# 00103900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $116.22

08300500

42

SG-COMP .080X.97X2.18 WLD14

Part# 08300500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $14.48

06403300

43

WSHR-FL-STL .755X1.375X.125

Part# 06403300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

50102900

44

TILLER GEAR CASE - C.I.

Part# 50102900

OEM Warranty Repair Part for Ariens

Not available

06200500

45

BLT-RDHDSQNK .38-16X2.25 SHTPL

Part# 06200500 (Superseded to 06213400)

OEM Warranty Repair Part for Ariens

Not available

06436100

46

WSHR-FL-STL .630X1.005X.062 YZ

Part# 06436100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06437200

47

@WSHR-FL-STL.344X.688X.065YWZC

Part# 06437200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

00133200

48

BELT FINGER BRACKET

Part# 00133200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

00157100

49

FRAME

Part# 00157100

OEM Warranty Repair Part for Ariens

Not available
