901429 (RT 8020) - Ariens 20" Rear Tine Tiller, 8hp Briggs & Stratton (SN: 000101 & Above)

20" Rear Tine Tiller, 8hp Briggs & Stratton

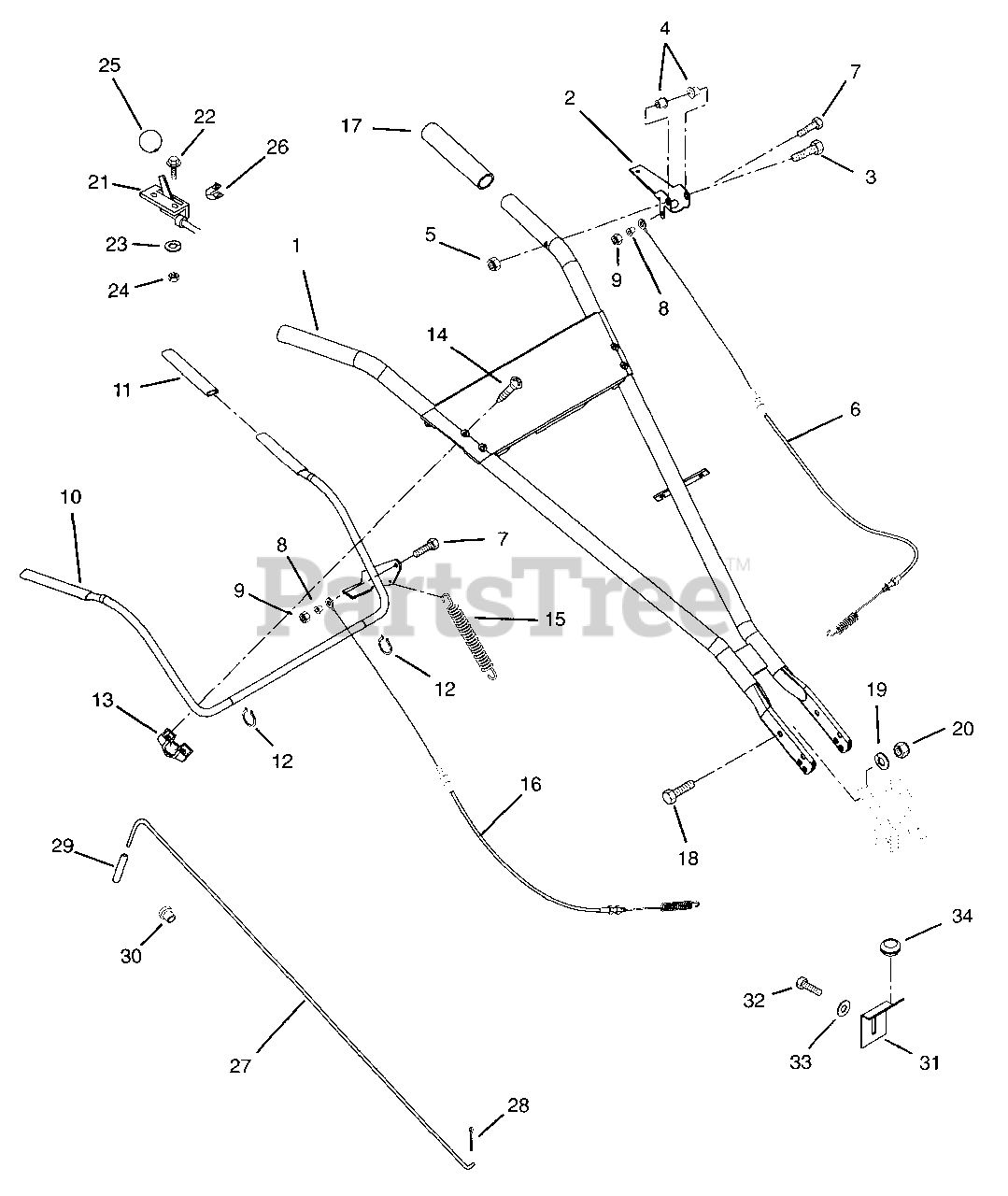

901429 (RT 8020) - Ariens 20" Rear Tine Tiller, 8hp Briggs & Stratton (SN: 000101 & Above) > Parts Diagrams (9) > Handlebar And Upper Controls

  • Title
00156200

1

HANDLEBAR- 8 HP TILLER

Part# 00156200 (Superseded to 00156251)

OEM Warranty Repair Part for Ariens

Not available

00156400

2

HANDLE, REVERSE

Part# 00156400 (Superseded to 00156451)

OEM Warranty Repair Part for Ariens

Not available

05963700

3

@BLT-HEX .31-18X2.25 GR5 YWZC

Part# 05963700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

05516200

4

BSHG-FLG .325X.465X.333X.685

Part# 05516200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $16.71

06529800

5

@NUT-LK-CTR .31-18 YWZC

Part# 06529800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06938200

6

CABLE, REV 8HP

Part# 06938200

OEM Warranty Repair Part for Ariens

Not available

05947700

7

@BLT-HEX .25-20X1.00 GR5 YWZC

Part# 05947700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

05530200

8

BSHG-FLG .253X.373X.385X.500

Part# 05530200

OEM Warranty Repair Part for Ariens

Not available

06529700

9

@NUT-LK-CTR .25-20 YWZC

Part# 06529700

OEM Warranty Repair Part for Ariens

Not available

00156700

10

BAIL, FWD

Part# 00156700

OEM Warranty Repair Part for Ariens

Not available

07529300

11

GRIP, TILLER - OPC

Part# 07529300

OEM Warranty Repair Part for Ariens

Not available

05710200

12

RG-RTNG-EXT .500X.042 (E)

Part# 05710200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

00156600

13

PIVOT, BAIL

Part# 00156600

OEM Warranty Repair Part for Ariens

Not available

07411800

14

SCR-TAP 12-24X1.50 CROVH YZ BT

Part# 07411800

OEM Warranty Repair Part for Ariens

Not available

08325500

15

SG-TENS .051X.50X5.12 WLD 10.4

Part# 08325500 (Superseded to 08335400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $14.48

06938100

16

CABLE, FWD

Part# 06938100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $51.37

07507700

17

HANDLEGRIP

Part# 07507700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

05948700

18

@BLT-HEX .38-16X1.00 GR5 YWZC

Part# 05948700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06308800

19

@WSHR-LK .38X.094 REG YWZC

Part# 06308800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06529600

20

@NUT-LK-CTR .38-16 YWZC

Part# 06529600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06937400

21

THROTTLE CONTROL B&S RT8020

Part# 06937400 (Superseded to 06938700)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $39.07

06105700

22

SCR-MCH 10-24X.50 SLRH BL

Part# 06105700

OEM Warranty Repair Part for Ariens

Not available

06308100

23

@WSHR-LK #10X.047 REG YWZC

Part# 06308100

OEM Warranty Repair Part for Ariens

Not available

06536600

24

@NUT-HEX 10-24 YWZC

Part# 06536600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

07510100

25

KNOB, CONTROL-THROTTLE

Part# 07510100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

00751000

26

OUTPUT GEAR

Part# 00751000

OEM Warranty Repair Part for Ariens

Not available

00157600

27

ROD, POSITION

Part# 00157600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.07

06707300

28

@PIN-CTR .12X.75 EXTPRSQCT YWZ

Part# 06707300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

07514600

29

GRIP - 5/16 ID X 2 7/8 - BLACK

Part# 07514600 (Superseded to 07530200)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.73

07511200

30

SNAP BUSHING

Part# 07511200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

00156800

31

PIVOT FEED

Part# 00156800 (Superseded to 00156851)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

05946800

32

@BLT-HEX .25-20X.75 GR5 YWZC

Part# 05946800

OEM Warranty Repair Part for Ariens

Not available

06437300

33

@WSHR-FL-STL.281X.62X.065 YWZC

Part# 06437300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

07530600

34

GRMT .75X1.06X1.38

Part# 07530600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30
