901429 (RT 8020) - Ariens 20" Rear Tine Tiller, 8hp Briggs & Stratton (SN: 000101 & Above)

20" Rear Tine Tiller, 8hp Briggs & Stratton

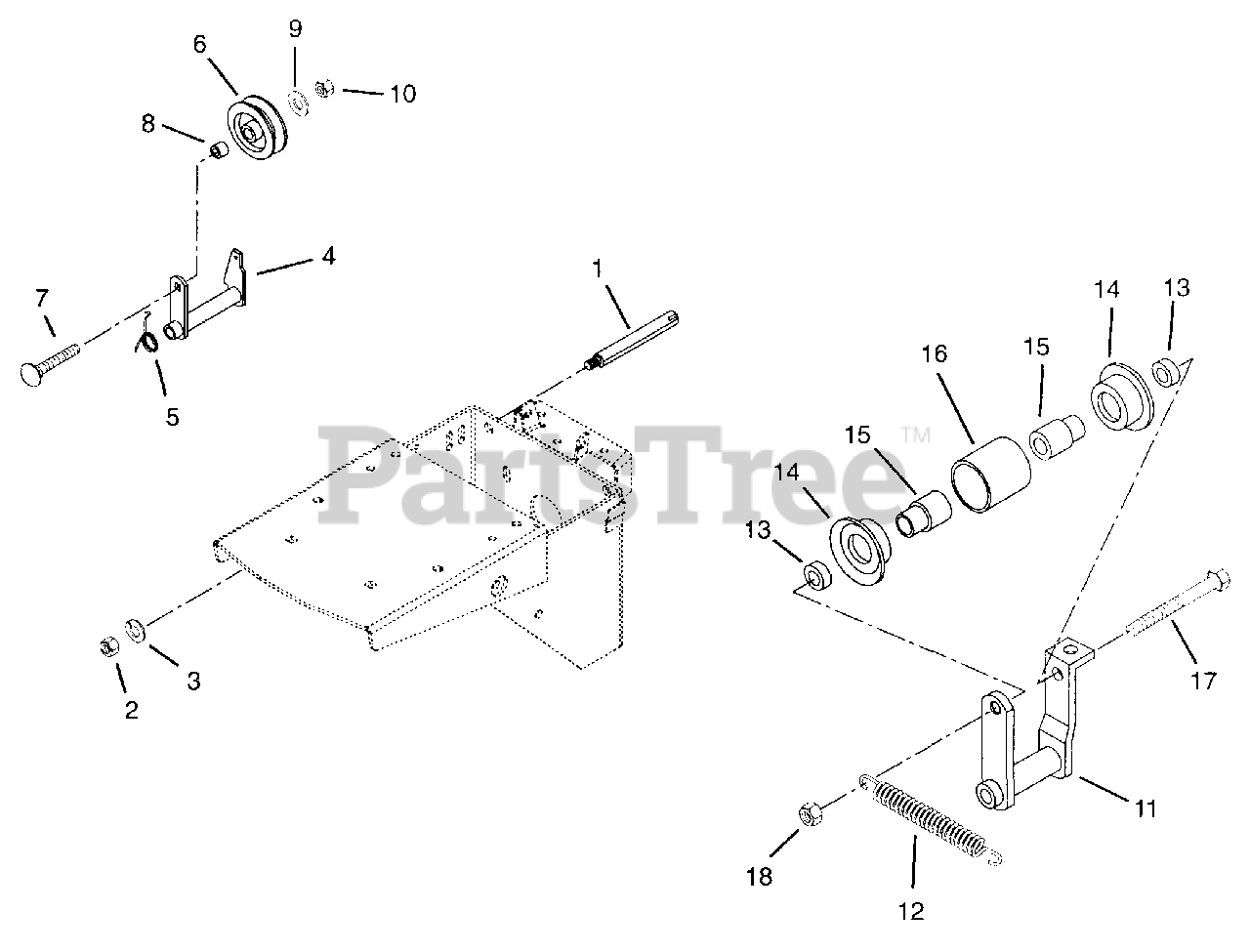

901429 (RT 8020) - Ariens 20" Rear Tine Tiller, 8hp Briggs & Stratton (SN: 000101 & Above) > Parts Diagrams (9) > Idlers

  • Title
00135500

1

IDLER PIN

Part# 00135500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

06529400

2

@NUT-HEX .38-16 YWZC

Part# 06529400 (Superseded to 06500917)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06308800

3

@WSHR-LK .38X.094 REG YWZC

Part# 06308800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

00156900

4

ARM, REVERSE IDLER

Part# 00156900 (Superseded to 00156951)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.12

08333100

5

SG-TORS

Part# 08333100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

02457400

6

IDLER

Part# 02457400 (Superseded to 52007000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $42.43

05947500

7

@BLT-HEX .31-18X1.25 GR5 YWZC

Part# 05947500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

01213100

8

SPCR, BRG .315X.50X.688X.281

Part# 01213100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

06435700

9

@WSHR-FL-STL.38X.875X.083 YWZC

Part# 06435700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06501500

10

NUT-HEX .312-18

Part# 06501500 (Superseded to 06529200)

OEM Warranty Repair Part for Ariens

Not available

00135200

11

IDLER ARM

Part# 00135200

OEM Warranty Repair Part for Ariens

Not available

08302600

12

SG-TENS .063X.44X2.81 WLD 18

Part# 08302600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.07

00211100

13

BSHG, SPCR.500X.750X.321 PM

Part# 00211100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

00212500

14

IDLER

Part# 00212500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $42.99

00130300

15

BEARING SPACER

Part# 00130300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.07

00132800

16

SLEEVE

Part# 00132800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $25.77

05963200

17

@BLT-HEX .31-18X4.00 GR5 YWZC

Part# 05963200

OEM Warranty Repair Part for Ariens

Not available

06529800

18

@NUT-LK-CTR .31-18 YWZC

Part# 06529800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85
