901429 (RT 8020) - Ariens 20" Rear Tine Tiller, 8hp Briggs & Stratton (SN: 000101 & Above)

20" Rear Tine Tiller, 8hp Briggs & Stratton

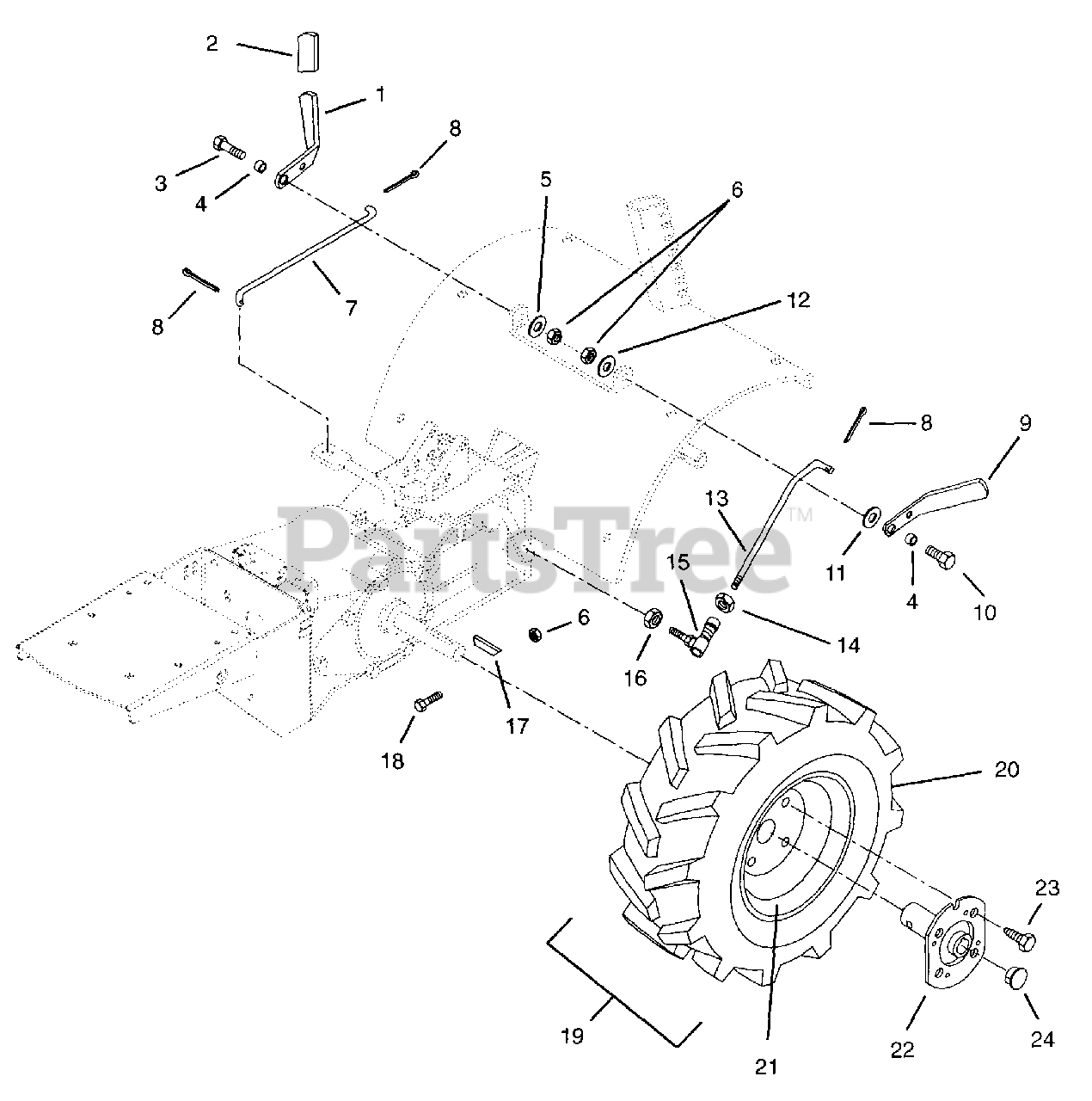

901429 (RT 8020) - Ariens 20" Rear Tine Tiller, 8hp Briggs & Stratton (SN: 000101 & Above) > Parts Diagrams (9) > Lower Controls And Wheels

  • Title
00104259

1

DRIVE CLUTCH HANDLE

Part# 00104259

OEM Warranty Repair Part for Ariens

Not available

07509400

2

GRIP

Part# 07509400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $7.98

05947500

3

@BLT-HEX .31-18X1.25 GR5 YWZC

Part# 05947500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

00607100

4

SPACER BUSHING .5 X .32 X .21

Part# 00607100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

06435700

5

@WSHR-FL-STL.38X.875X.083 YWZC

Part# 06435700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06529800

6

@NUT-LK-CTR .31-18 YWZC

Part# 06529800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

00111500

7

DRIVE CLUTCH ROD

Part# 00111500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $35.61

06706900

8

@PIN-CTR .09X.75 EXTPRSQCT YWZ

Part# 06706900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

00104359

9

TILLER CLUTCH HANDLE

Part# 00104359

OEM Warranty Repair Part for Ariens

Not available

05947000

10

@BLT-HEX .31-18X.75 GR5 YWZC

Part# 05947000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

02513500

11

SPACER .344X1.000X.375

Part# 02513500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

06439700

12

WSHR-FL-STL .344X1.375X.075YWZ

Part# 06439700 (Superseded to 06446900)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

00104400

13

TILLER CLUTCH ROD

Part# 00104400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $39.30

06503100

14

NUT-HEX .312-24 PL

Part# 06503100 (Superseded to 06529500)

OEM Warranty Repair Part for Ariens

Not available

00306000

15

SNAP IN BALL JOINT

Part# 00306000

OEM Warranty Repair Part for Ariens

Not available

06537000

16

NUT-CTRLK .31-24 YWZC

Part# 06537000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06601000

17

KEY-FTHR .25X1.875X.25 SAE

Part# 06601000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

05957200

18

@BLT-HEX .31-18X2.00 GR5 YWZC

Part# 05957200

OEM Warranty Repair Part for Ariens

Not available

07121900

19

T/WHL ASSY 4.80-8

Part# 07121900 (Superseded to 07100017)

Note: (Contains One ea. of Items 20,21)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $111.74

07107600

20

WHL

Part# 07107600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $58.70

07121800

21

TIRE 4.80-8 NHS

Part# 07121800

OEM Warranty Repair Part for Ariens

Not available

00132700

22

WHEEL HUB

Part# 00132700 (Superseded to 00132751)

OEM Warranty Repair Part for Ariens

Not available

07412200

23

SCR-TAP .500-20X.62 HH YWZC

Part# 07412200 (Superseded to 07416900)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $14.48

07529500

24

HOLE PLUG 1.00"

Part# 07529500

OEM Warranty Repair Part for Ariens

Not available
