901429 (RT 8020) - Ariens 20" Rear Tine Tiller, 8hp Briggs & Stratton (SN: 000101 & Above)

20" Rear Tine Tiller, 8hp Briggs & Stratton

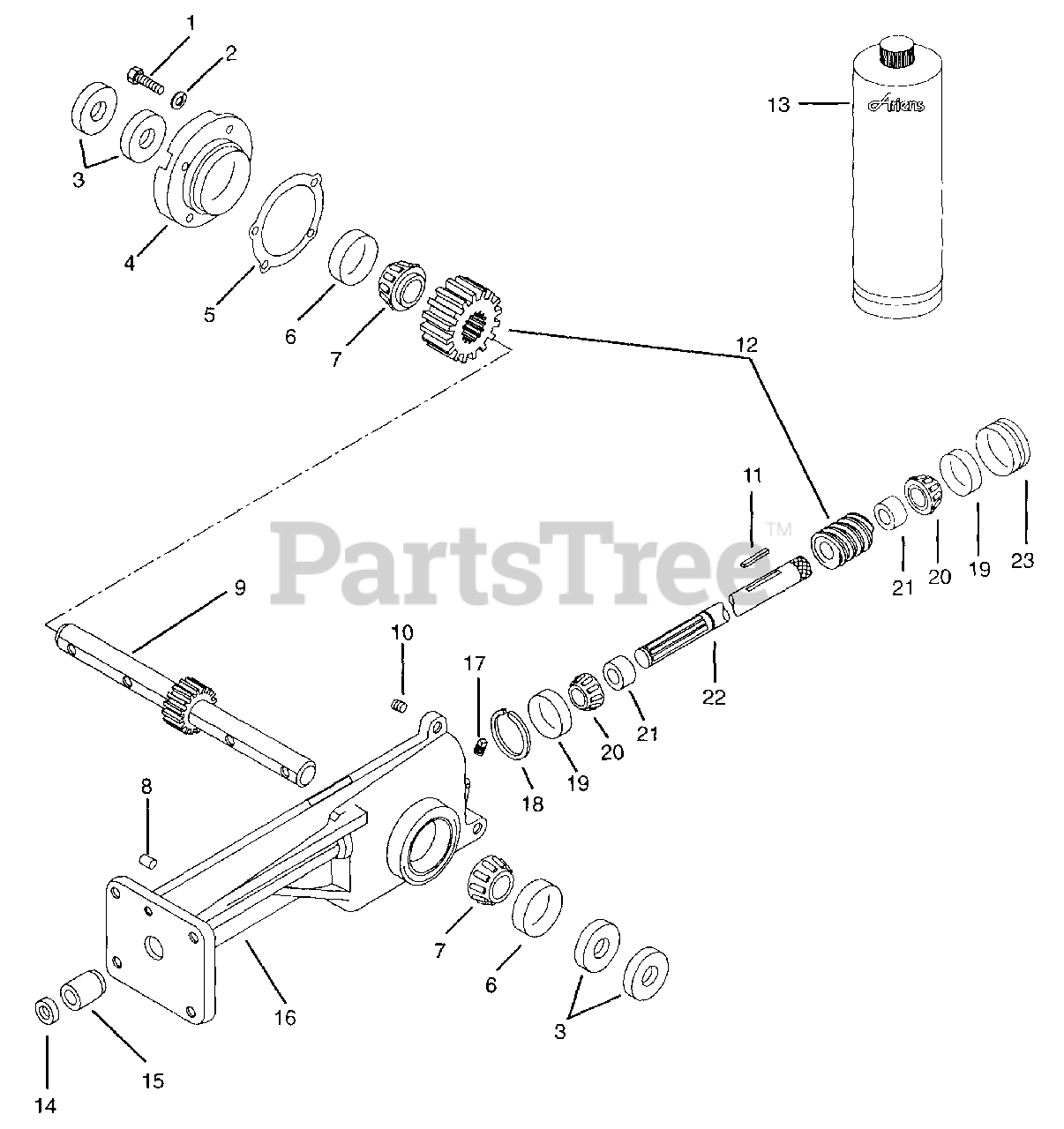

901429 (RT 8020) - Ariens 20" Rear Tine Tiller, 8hp Briggs & Stratton (SN: 000101 & Above) > Parts Diagrams (9) > Tiller Gearcase

  • Title
05948700

1

@BLT-HEX .38-16X1.00 GR5 YWZC

Part# 05948700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06308800

2

@WSHR-LK .38X.094 REG YWZC

Part# 06308800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

05602400

3

SEAL 1.250X2.00X.250

Part# 05602400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

00132200

4

BEARING FLANGE

Part# 00132200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $78.20

50101000

5

SERVICE KIT

Part# 50101000

Note: (Shim Pack)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $44.66

05404600

6

BRG-CUP 2.328X.465

Part# 05404600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $13.36

05404700

7

BRG-CONE 1.25X.66

Part# 05404700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $16.71

00200900

8

BREATHER

Part# 00200900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

00132100

9

TINE SHAFT

Part# 00132100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $233.40

06005400

10

SCR-SET .25-20X.25 SKHCUPDL

Part# 06005400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

06602800

11

KEY-WDRF .188X1.00X.438 SAE13

Part# 06602800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

50101400

12

WORM AND WORM GEAR ASSEMBLY

Part# 50101400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $234.72

00008000

13

ARIENS 16 OZ.BOTTLE OF L2 LUBE

Part# 00008000 (Superseded to 00068800)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $17.83

05604300

14

SEAL .750X1.000X.125

Part# 05604300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

05402200

15

BRG-NEEDLE .750X1.0X.62

Part# 05402200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $20.07

00131900

16

TILLER GEARCASE - C.I.

Part# 00131900

OEM Warranty Repair Part for Ariens

Not available

00113800

17

PIPE PLUG

Part# 00113800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

05707500

18

RG-RTNG-INT 1.781X.062

Part# 05707500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

05404400

19

BRG-CUP 1.781X.475

Part# 05404400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

05404500

20

BRG-CONE .750X.61

Part# 05404500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $13.36

00200500

21

BSHG, SPCR .755X1.12X.50 PM

Part# 00200500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $6.65

00102900

22

WORM SHAFT

Part# 00102900 (Superseded to 50103600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $156.46

00107600

23

ADJUSTMENT PLUG

Part# 00107600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $56.52
