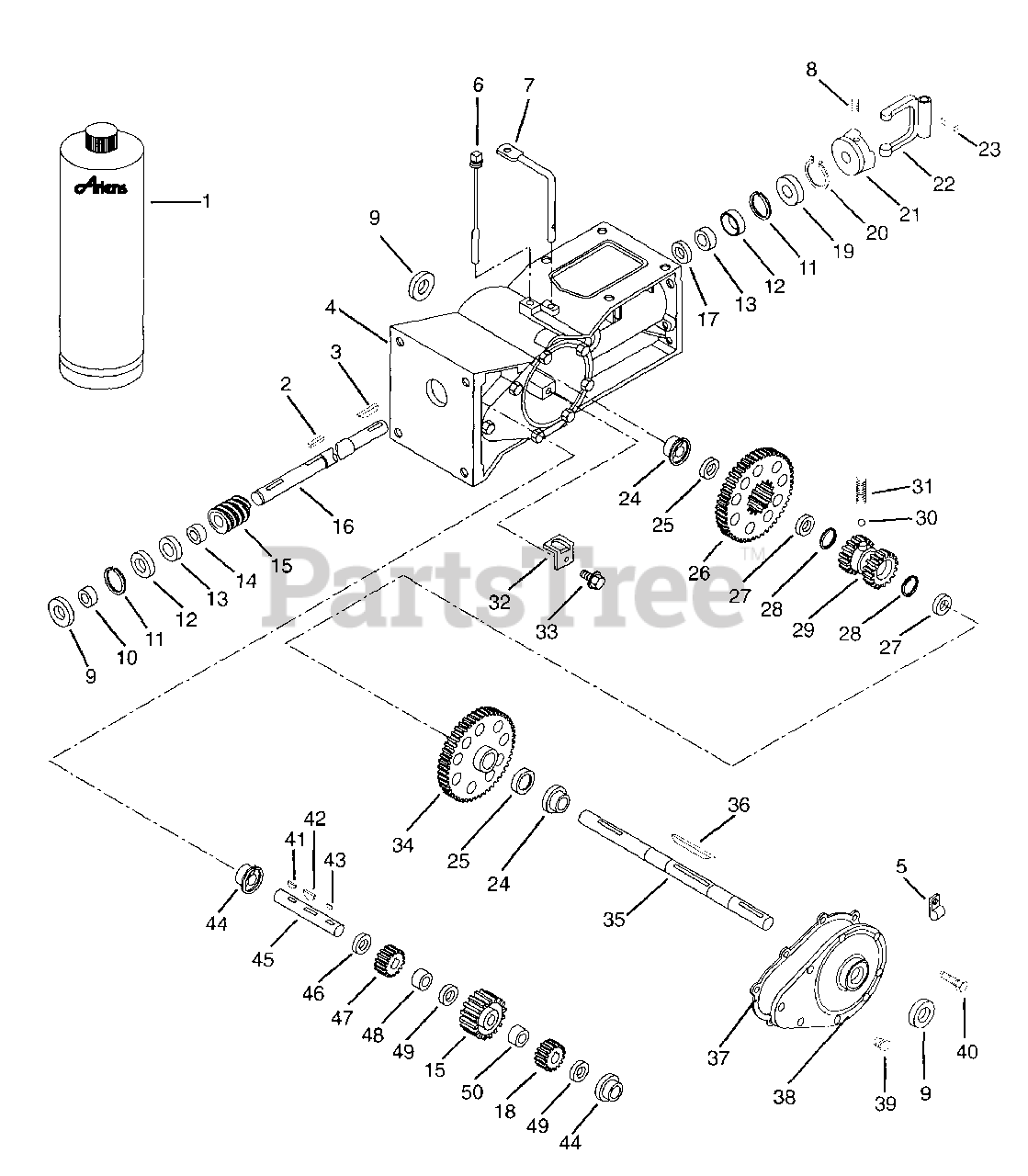

901429 (RT 8020) - Ariens 20" Rear Tine Tiller, 8hp Briggs & Stratton (SN: 000101 & Above) > Parts Diagrams (9) > Transmission Gearcase

  • Title
00008000

1

ARIENS 16 OZ.BOTTLE OF L2 LUBE

Part# 00008000 (Superseded to 00068800)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $17.83

06601300

2

KEY-SQ .188X1.0X.188 SAE 8630

Part# 06601300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06601100

3

KEY-FTHR .188X1.25X.187 SAE

Part# 06601100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

00127700

4

TRANSMISSION HOUSING

Part# 00127700

OEM Warranty Repair Part for Ariens

Not available

06918200

5

CLAMP, CUSHIONED STEEL

Part# 06918200

OEM Warranty Repair Part for Ariens

Not available

00157000

6

DIP STICK

Part# 00157000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.07

00110900

7

HIGH-LOW SHIFT LEVER

Part# 00110900

OEM Warranty Repair Part for Ariens

Not available

06001200

8

SCR-SET .32-18X.38 SKHCUPNL OH

Part# 06001200 (Superseded to 06005500)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

05605200

9

SEAL 1.000X1.785X.250

Part# 05605200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $14.48

00108100

10

SPACER BUSHING .99 X .75 X .50

Part# 00108100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $22.30

05707700

11

RG-RTNG-INT 1.781X.052

Part# 05707700 (Superseded to 05702100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

05404400

12

BRG-CUP 1.781X.475

Part# 05404400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

05404500

13

BRG-CONE .750X.61

Part# 05404500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $13.36

00200500

14

BSHG, SPCR .755X1.12X.50 PM

Part# 00200500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $6.65

50101100

15

WORM AND WORM GEAR

Part# 50101100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $209.01

00131700

16

WORM SHAFT

Part# 00131700

OEM Warranty Repair Part for Ariens

Not available

06403300

17

WSHR-FL-STL .755X1.375X.125

Part# 06403300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

00120500

18

LOW PINION

Part# 00120500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $47.91

05605000

19

SEAL .750X1.781X.250

Part# 05605000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $20.07

05704900

20

RG-RTNG-EXT .750X.078

Part# 05704900 (Superseded to 05714600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

00103800

21

TILLER DRIVING JAW

Part# 00103800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $102.80

00109300

22

SHIFT YOKE

Part# 00109300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $41.86

05800600

23

PIN-ROLL .250X1.00

Part# 05800600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

05512400

24

BSHG-FLG 1.000X1.25X1.000X1.50

Part# 05512400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $11.12

06416600

25

WSHR-HRD-THRS 1.007X1.542X.062

Part# 06416600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.47

50103000

26

HIGH GEAR ASSY

Part# 50103000

OEM Warranty Repair Part for Ariens

Not available

00407400

27

SHIM

Part# 00407400

OEM Warranty Repair Part for Ariens

Not available

05707300

28

RG-RTNG-EXT 1.00X.078

Part# 05707300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

00109200

29

CLUTCH HUB

Part# 00109200

OEM Warranty Repair Part for Ariens

Not available

00113900

30

STEEL BALL

Part# 00113900

OEM Warranty Repair Part for Ariens

Not available

08315000

31

SG-COMP .047X.31X.593 WLD11

Part# 08315000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.07

00128500

32

RETAINER CLIP

Part# 00128500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $10.51

07413000

33

SCR-TAP 10-24X.75 HWH TR YWZC

Part# 07413000

OEM Warranty Repair Part for Ariens

Not available

00120600

34

LOW GEAR

Part# 00120600

OEM Warranty Repair Part for Ariens

Not available

00131200

35

AXLE SHAFT

Part# 00131200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $167.64

06601600

36

KEY-FTHR .25X2.75X.25 SAE1035

Part# 06601600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

00128300

37

GASKET

Part# 00128300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

00128400

38

TRANSMISSION COVER

Part# 00128400

OEM Warranty Repair Part for Ariens

Not available

00113800

39

PIPE PLUG

Part# 00113800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

07414300

40

SCR-TAP .312-18X1.00 HWH YWZC

Part# 07414300

OEM Warranty Repair Part for Ariens

Not available

06604200

41

KEY-WDRF .188X.625X.31 SAE9MOD

Part# 06604200 (Superseded to 06608700)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06603700

42

KEY-WDRF .25X.687X.375

Part# 06603700 (Superseded to 06600800)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

06600300

43

KEY-WDRF .188X.75X.313 SAE 9

Part# 06600300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

05511200

44

BSHG-FLG .750X1.000X.750X1.250

Part# 05511200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

00131100

45

SHAFT, PINION

Part# 00131100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $61.43

06413300

46

WSHR-HDND-THRST .760X1.25X.094

Part# 06413300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

00131500

47

HIGH PINION

Part# 00131500

OEM Warranty Repair Part for Ariens

Not available

00128100

48

SPACER 1.25 X .75 X .75

Part# 00128100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $33.48

06413400

49

WSHR-HDND-THRST .758X1.23X.031

Part# 06413400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

00128100

50

SPACER 1.25 X .75 X .75

Part# 00128100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $33.48
