9020 (1690072) - Simplicity Power Max Garden Tractor, 19.5hp Transmission Group - Hydrostatic (3506I15) Parts Diagram

Power Max Garden Tractor, 19.5hp

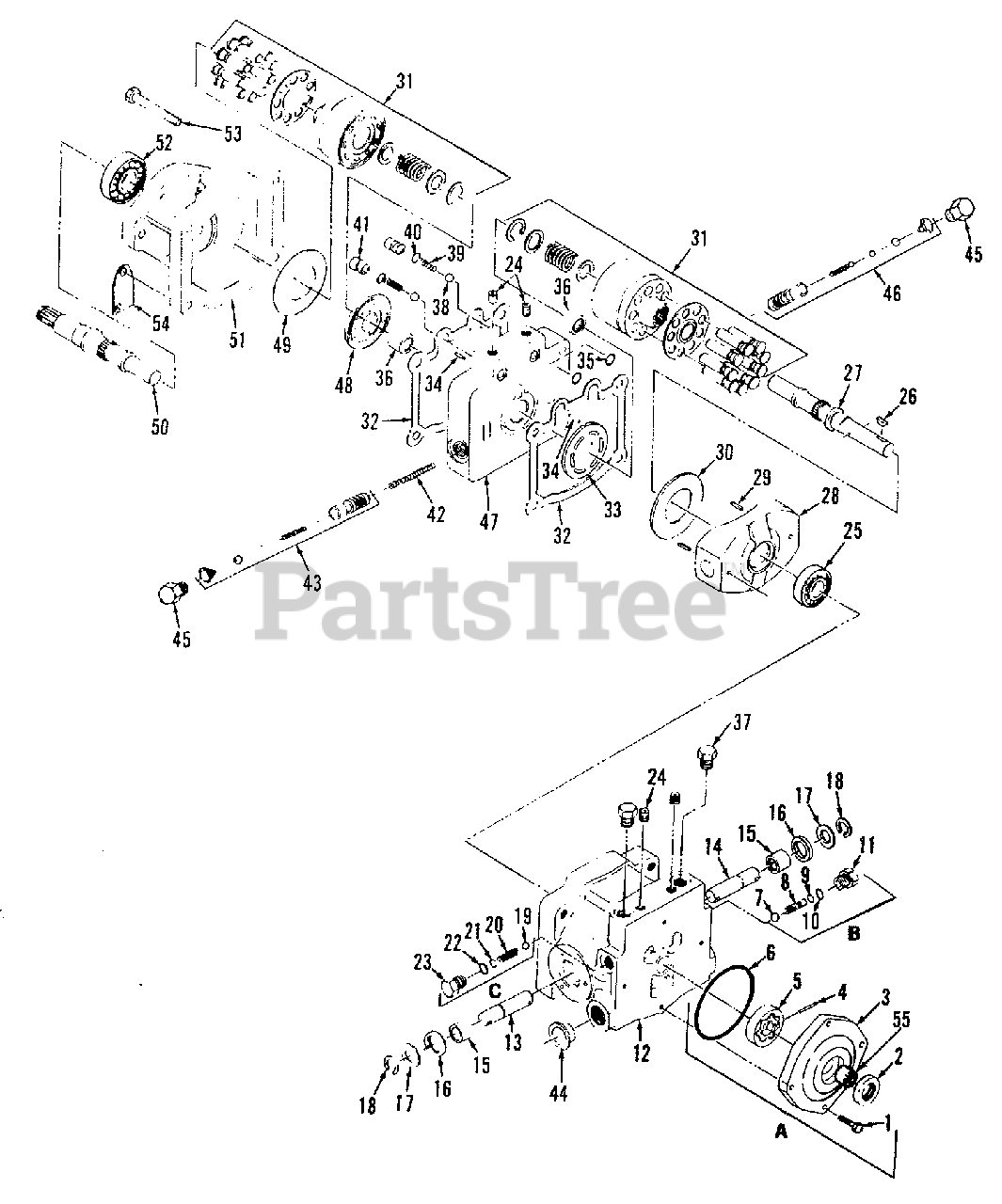

Transmission Group - Hydrostatic (3506I15) Parts Diagram

  • Title

1

Simplicity 1921977SM

CAPSCREW, Hex Head
(Superseded to 703570)

$4.99

$

In Stock, Qty 11

0

2

Simplicity 1612093SM

SEAL, Lip

$10.99

$

In Stock, Qty 6

0

3

Simplicity 1652241

CHARGE PUMP HOUSING

$

$

Not available

4

Simplicity 2817723SM

PIN, Headless

$5.99

$

Usually ships in 2-12 days

0

5

Simplicity 1652243SM

GEROTOR ASSEMBLY

$461.99

$

In Stock, only 1 left!

0

6

Simplicity 2829828SM

O-RING

$6.49

$

Usually ships in 2-12 days

0

7

Simplicity 1652214SM

IMPELLER RELIEF VALVE

$

$

Not available

8

Simplicity 1652246

IMPELLER RELIEF VALVE SPRING

$

$

Not available

9

Simplicity 1652216SM

SHIM PACK

$54.99

$

Usually ships in 2-12 days

0

10

Simplicity 2821884SM

RING, "O"

$3.99

$

In Stock, only 3 left!

0

11

Simplicity 1652247

PLUG, Hex Head

$

$

Not available

12

Simplicity 1652248

PUMP HOUSING

$

$

Not available

13

Simplicity 1652249SM

SHAFT, Trunnion

$151.99

$

Usually ships in 2-12 days

0

14

Simplicity 1652194SM

SHAFT, Trunnion

$86.99

$

Usually ships in 2-12 days

0

15

Simplicity 1652251SM

NEEDLE BEARING

$20.99

$

Usually ships in 2-12 days

0

16

Simplicity 1652234SM

LIP, Seal

$

$

Not available

17

Simplicity 1652235SM

WASHER

$8.49

$

Usually ships in 2-12 days

0

18

Simplicity 1652192SM

RING, Retaining

$6.99

$

Usually ships in 2-12 days

0

19

Simplicity 2817579SM

BALL

$3.99

$

In Stock, only 1 left!

0

20

Simplicity 1652253SM

CHANGE RELEIF VALVE SPRING

$3.99

$

Usually ships in 2-12 days

0

21

Simplicity 1652216SM

SHIM PACK

$54.99

$

Usually ships in 2-12 days

0

22

Simplicity 2821884SM

RING, "O"

$3.99

$

In Stock, only 3 left!

0

23

Simplicity 1652217SM

PLUG, Hex Head

$21.99

$

Usually ships in 2-12 days

0

24

Simplicity 2860625SM

PLUG, Pipe

$1.99

$

Usually ships in 2-12 days

0

25

Simplicity 1652231SM

BALL BEARING

$60.99

$

Usually ships in 2-12 days

0

26

Simplicity 1652256

WOODRUFF KEY

$

$

Not available

27

Simplicity 1652257

PUMP SHAFT

$

$

Not available

28

Simplicity 1652258SM

SWASH PLATE

$352.99

$

Usually ships in 2-12 days

0

29

Simplicity 1652226SM

COILED SPRING PIN

$5.99

$

Usually ships in 2-12 days

0

30

Simplicity 1673532SM

PLATE, Thrust

$24.99

$

Usually ships in 2-12 days

0

31

Simplicity 1673535SM

CYLINDER BLOCK KIT

$1017.99

$

Usually ships in 2-12 days

0

32

Simplicity 1652260SM

GASKET

$15.99

$

Usually ships in 2-12 days

0

33

Simplicity 1652261

PLATE, Valve

$

$

Not available

34

Simplicity 1652224SM

PIN, Headless

$

$

Not available

35

Snapper 1652262SM

O-RING

$5.49

$

Usually ships in 2-12 days

0

36

Simplicity 1652222SM

BEARING, Needle

$34.99

$

Usually ships in 2-12 days

0

37

Simplicity 1652264

PLUG, Plastic

$

$

Not available

38

Simplicity 2817579SM

BALL

$3.99

$

In Stock, only 1 left!

0

39

Simplicity 1652265

CHECK VALVE SPRING

$

$

Not available

40

Simplicity 1923701SM

RING, "O"
(Superseded to 703589)

$4.49

$

In Stock, Qty 10

0

41

Simplicity 1652266

CHECK VALVE SPRING

$

$

Not available

42

Simplicity 1652267

ACCELERATION SPRING

$

$

Not available

43

Simplicity 1652268

ACCELERATION VALVE

$

$

Not available

44

Simplicity 1652269

PLUG, Plastic

$

$

Not available

45

Simplicity 1652270

PLUG, Hex Head

$

$

Not available

46

Simplicity 1652271

ACCELERATION VALVVE

$

$

Not available

47

Simplicity 1652272

CENTER SECTION

$

$

Not available

48

Simplicity 1652273

PLATE, Valve

$

$

Not available

49

Simplicity 1673532SM

PLATE, Thrust

$24.99

$

Usually ships in 2-12 days

0

50

Simplicity 1652275

SHAFT, Motor

$

$

Not available

51

Simplicity 1652276

HOUSING, Motor

$

$

Not available

52

Simplicity 1652181SM

BEARING, Ball

$

$

Not available

53

Simplicity 1921973SM

CAPSCREW, Hex Head

$5.49

$

Usually ships in 2-12 days

0

54

Simplicity 1652278

PLATE, Name

$

$

Not available

55

Simplicity 1685409SM

BEARING, Needle

$

$

Not available
