9020 (1690145) - Simplicity Power Max Garden Tractor, 19.5hp Electrical Group (3506I14) Parts Diagram

Power Max Garden Tractor, 19.5hp

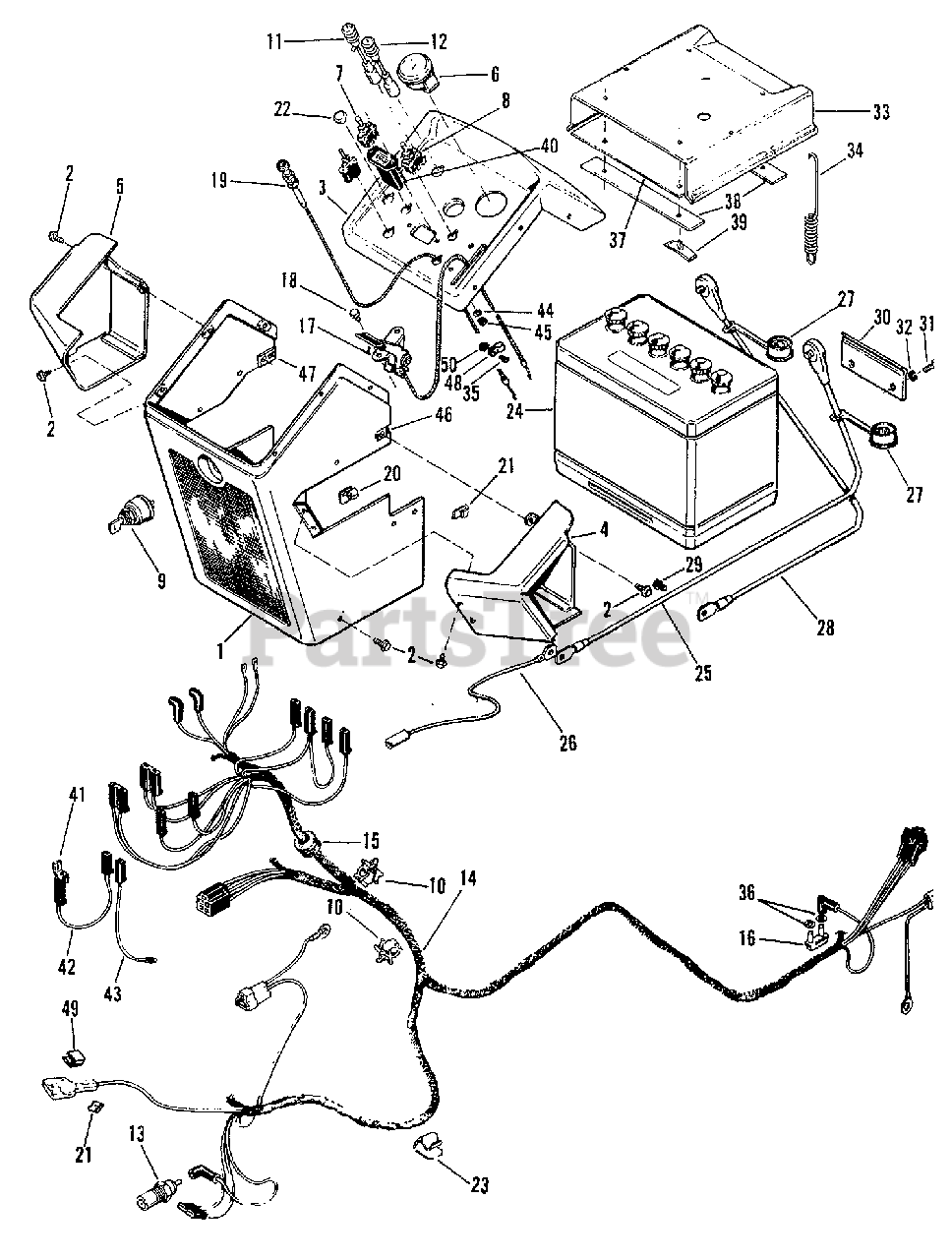

Electrical Group (3506I14) Parts Diagram

  • Title

1

Simplicity 176357

BODY SUPPORT ASSEMBLY

$

$

Not available

2

Simplicity 7151224

SCREW, Thread Forming, 1/4"-20 x 3/8" Lg.

$

$

Not available

3

Simplicity 176361

PANEL ASSEMBLY

$

$

Not available

4

Simplicity 172188

PANEL ASSEMBLY, R.H.

$

$

Not available

5

Simplicity 172189

PANEL ASSEMBLY, L.H.

$

$

Not available

6

Simplicity 1603189SM

AMMETER

$33.99

$

Usually ships in 2-12 days

0

7

Simplicity 2173016SM

SWITCH

$50.99

$

In Stock, only 3 left!

0

8

Simplicity 2122184SM

SWITCH

$22.99

$

Usually ships in 2-12 days

0

9

Simplicity 2171491SM

SWITCH, Ignition

$

$

Not available

10

Simplicity 176655

CLIP

$

$

Not available

11

Simplicity 172916

LIGHT, Indicator, Hot

$

$

Not available

12

Simplicity 173237

LIGHT, Indicator, Oil

$

$

Not available

13

Simplicity 171498

LIGHT, Indicator, Switch

$

$

Not available

14

Simplicity 1651513

HARNESS, Wiring

$

$

Not available

15

Simplicity 2173420

GROMMET

$

$

Not available

16

Simplicity 2172163

BREAKER, Circuit

$

$

Not available

17

Simplicity 2176647SM

THROTTLE, Control

$

$

Not available

18

Simplicity 2715077

SCREW, Thread Forming, 1/4"-20 x 5/8" Lg.

$

$

Not available

19

Simplicity 176646

CONTROL, Choke

$

$

Not available

20

Simplicity 2165073SM

CLIP

$2.99

$

Usually ships in 2-12 days

0

21

Simplicity 1733783

CLIP, Speed

$

$

Not available

22

Simplicity 173429

BUTTON, Plug

$

$

Not available

23

Simplicity 173769

CLIP

$

$

Not available

24

Simplicity 175105

BATTERY

$

$

Not available

25

Simplicity 173124

CABLE, Positive

$

$

Not available

26

Simplicity 173574

WIRE

$

$

Not available

27

Simplicity 173419

CAP

$

$

Not available

28

Simplicity 173123

CABLE, Negative

$

$

Not available

29

Simplicity 2828729

SCREW, Taptite, 5/16-18 x 3/8" Lg.

$

$

Not available

30

Simplicity 168236

CLAMP

$

$

Not available

31

Simplicity 2817397

CAPSCREW, Hex, 5/16-18 x 3/4" Lg.

$

$

Not available

32

Simplicity 1917356SM

LOCKWASHER, 5/16"
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

33

Simplicity 174980

COVER

$

$

Not available

34

Simplicity 2159181SM

SPRING

$7.49

$

In Stock, only 2 left!

0

35

Simplicity 930611

SCREW, Thread Form

$

$

Not available

36

Simplicity 1607608

WASHER, Paper

$

$

Not available

37

Simplicity 176526

LINER

$

$

Not available

38

Simplicity 176525

STRAP

$

$

Not available

39

Simplicity 1765224

CLIP, Speed

$

$

Not available

40

Simplicity 2172993

METER, Hour

$

$

Not available

41

Simplicity 2172996

ADAPTOR, Two-Way

$

$

Not available

42

Simplicity 172997

WIRE (to Ignition Switch)

$

$

Not available

43

Simplicity 172998

WIRE (to Ground)

$

$

Not available

44

Simplicity 921880

LOCKWASHER, External 1/4"

$

$

Not available

45

Simplicity 2816622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 3 left!

0

46

Simplicity 2826018

NUT, Speed

$

$

Not available

47

Simplicity 2830662

NUT, Speed

$

$

Not available

48

Simplicity 2158475SM

CLIP

$5.49

$

In Stock, only 4 left!

0

49

Simplicity 122183

CLIP

$

$

Not available

50

Simplicity 2822711

WASHER, Shake-Proof

$

$

Not available
