9020 (1690145) - Simplicity Power Max Garden Tractor, 19.5hp Main Drive Group (3506I08) Parts Diagram

Power Max Garden Tractor, 19.5hp

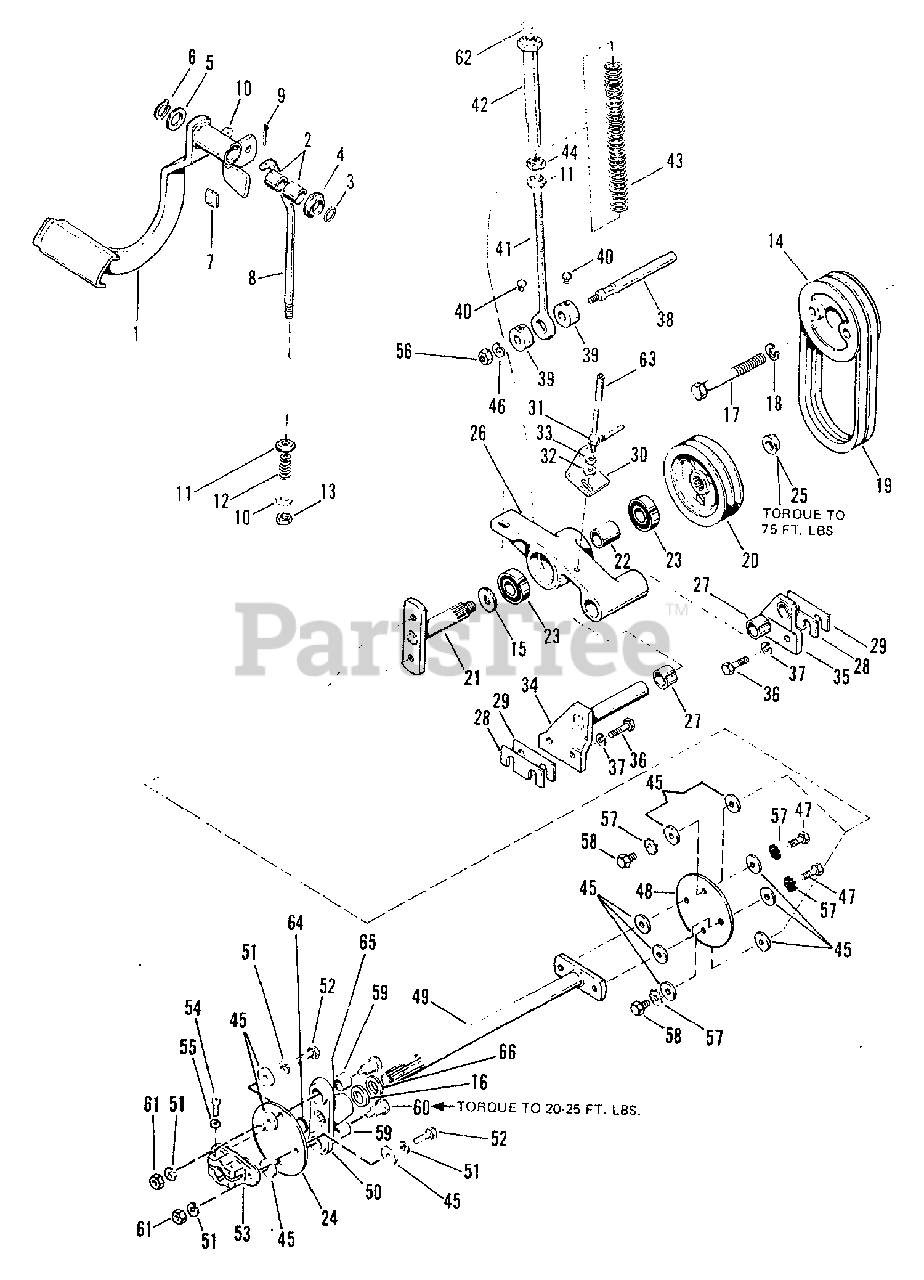

Main Drive Group (3506I08) Parts Diagram

  • Title

1

Simplicity 168122

LEVER ASSEMBLY

$

$

Not available

2

Simplicity 168140

SLEEVE, Bearing

$

$

Not available

3

Simplicity 2118134SM

RING, Retaining

$

$

Not available

4

Simplicity 154462

WASHER

$

$

Not available

5

Simplicity 2101022

WASHER

$

$

Not available

6

Simplicity 168152

RING, Retaining

$

$

Not available

7

Simplicity 171005

BUMPER

$

$

Not available

8

Simplicity 1651150

ROD, Clutch

$

$

Not available

9

Simplicity 2818447

PIN, Cotter

$

$

Not available

10

Simplicity 1924940SM

WASHER, Plain, 3/8"
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

11

Simplicity 171007

SPACER, Clutch

$

$

Not available

12

Simplicity 172868

SPRING

$

$

Not available

13

Simplicity 2823428

NUT, Hex, Lock, 3/8-16

$

$

Not available

14

Simplicity 172541

PULLEY, Input

$

$

Not available

15

Simplicity 176219

WASHER

$

$

Not available

16

Simplicity 177141

WASHER, Felt

$

$

Not available

17

Simplicity 930581

CAPSCREW, Hex, 7/16-14 x 4-1/2" Lg.

$

$

Not available

18

Simplicity 2818199

LOCKWASHER, 7/16"

$

$

Not available

19

Simplicity 2170921SM

BELT, "V", Matched Pair

$53.99

$

In Stock, Qty 6

0

20

Simplicity 176216

PULLEY, Input

$

$

Not available

21

Simplicity 2176217SM

SHAFT ASSEMBLY

$312.99

$

Usually ships in 2-12 days

0

22

Simplicity 176221

SPACER

$

$

Not available

23

Simplicity 2108202SM

BEARING

$11.99

$

In Stock, Qty 20+

0

24

Simplicity 2175230SM

COUPLING

$105.99

$

In Stock, only 4 left!

0

25

Simplicity 2172887

LOCKNUT, Washer Base

$

$

Not available

26

Simplicity 176222

ARM, Pivot

$

$

Not available

27

Simplicity 2154289SM

SLEEVE, Bearing

$18.99

$

In Stock, Qty 14

0

28

Simplicity 173042

SHIM

$

$

Not available

29

Simplicity 173043

SHIM

$

$

Not available

30

Simplicity 173760

STOP, Belt

$

$

Not available

31

Simplicity 2817397

CAPSCREW, Hex, 5/16"-18 x 3/4" Lg.

$

$

Not available

32

Simplicity 2817642

WASHER, Plain

$

$

Not available

33

Simplicity 1917356SM

LOCKWASHER
(Superseded to 5025170SM)

$4.49

$

In Stock, only 1 left!

0

34

Simplicity 170932

SUPPORT ASSEMBLY

$

$

Not available

35

Simplicity 172975

SUPPORT ASSEMBLY

$

$

Not available

36

Simplicity 2817400

CAPSCREW, Hex, 3/8"-1-1/4" Lg.

$

$

Not available

37

Simplicity 1916965SM

LOCKWASHER, 3/8"
(Superseded to 703454)

$3.49

$

In Stock, Qty 16

0

38

Simplicity 170958

SHAFT, Pivot

$

$

Not available

39

Simplicity 1729282SM

COLLAR, Set

$16.99

$

Usually ships in 2-12 days

0

40

Simplicity 2828691

SCREW, Set, 5/16"-18 x 5/16"

$

$

Not available

41

Simplicity 170959

BOLT, Eye

$

$

Not available

42

Simplicity 176560

TUBE ASSEMBLY

$

$

Not available

43

Simplicity 2171011SM

SPRING

$80.99

$

In Stock, only 1 left!

0

44

Simplicity 2817421

NUT, Hex, Jam, 3/8"-16

$

$

Not available

45

Simplicity 2157424SM

WASHER, Special

$7.99

$

Usually ships in 2-12 days

0

46

Simplicity 1916965SM

LOCKWASHER, 3/8"
(Superseded to 703454)

$3.49

$

In Stock, Qty 16

0

47

Simplicity 2808127

CAPSCREW, Hex, 3/8"-16 x 7/8" Lg.

$

$

Not available

48

Simplicity 2173026SM

COUPLING

$41.99

$

In Stock, Qty 14

0

49

Simplicity 176209

DRIVE SHAFT ASSEMBLY

$

$

Not available

50

Simplicity 175229

YOKE

$

$

Not available

51

Simplicity 1916965SM

LOCKWASHER, 3/8"
(Superseded to 703454)

$3.49

$

In Stock, Qty 16

0

52

Simplicity 2807731

CAPSCREW, Hex, 3/8"-16 x 1" Lg.

$

$

Not available

53

Simplicity 176223

YOKE, Clamp

$

$

Not available

54

Simplicity 2826269

SCREW, Socket Head, 5/16-18 x 1-1/4" Lg.

$

$

Not available

55

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 5025170SM)

$4.49

$

In Stock, only 1 left!

0

56

Simplicity 2816950SM

NUT, Hex, Full, 3/8"-16
(Superseded to 703457)

$4.49

$

In Stock, only 1 left!

0

57

Simplicity 2820427SM

LOCKWASHER, Shakeproof, 3/8"
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

58

Simplicity 2808127

CAPSCREW, Hex, 3/8"-16 x 7/8" Lg.

$

$

Not available

59

Simplicity 2177943SM

BUSHING

$25.99

$

Usually ships in 2-12 days

0

60

Simplicity 2108412

BOLT, Shoulder

$

$

Not available

61

Simplicity 2817421

NUT, Jam

$

$

Not available

62

Simplicity 177777

PLUG, Hole

$

$

Not available

63

Simplicity 173010

LINE, Fuel

$

$

Not available

64

Simplicity 177134

PLUG

$

$

Not available

65

Simplicity 2812808SM

FITTING, Grease

$4.99

$

In Stock, Qty 20+

0

66

Simplicity 172266

WASHER

$

$

Not available
