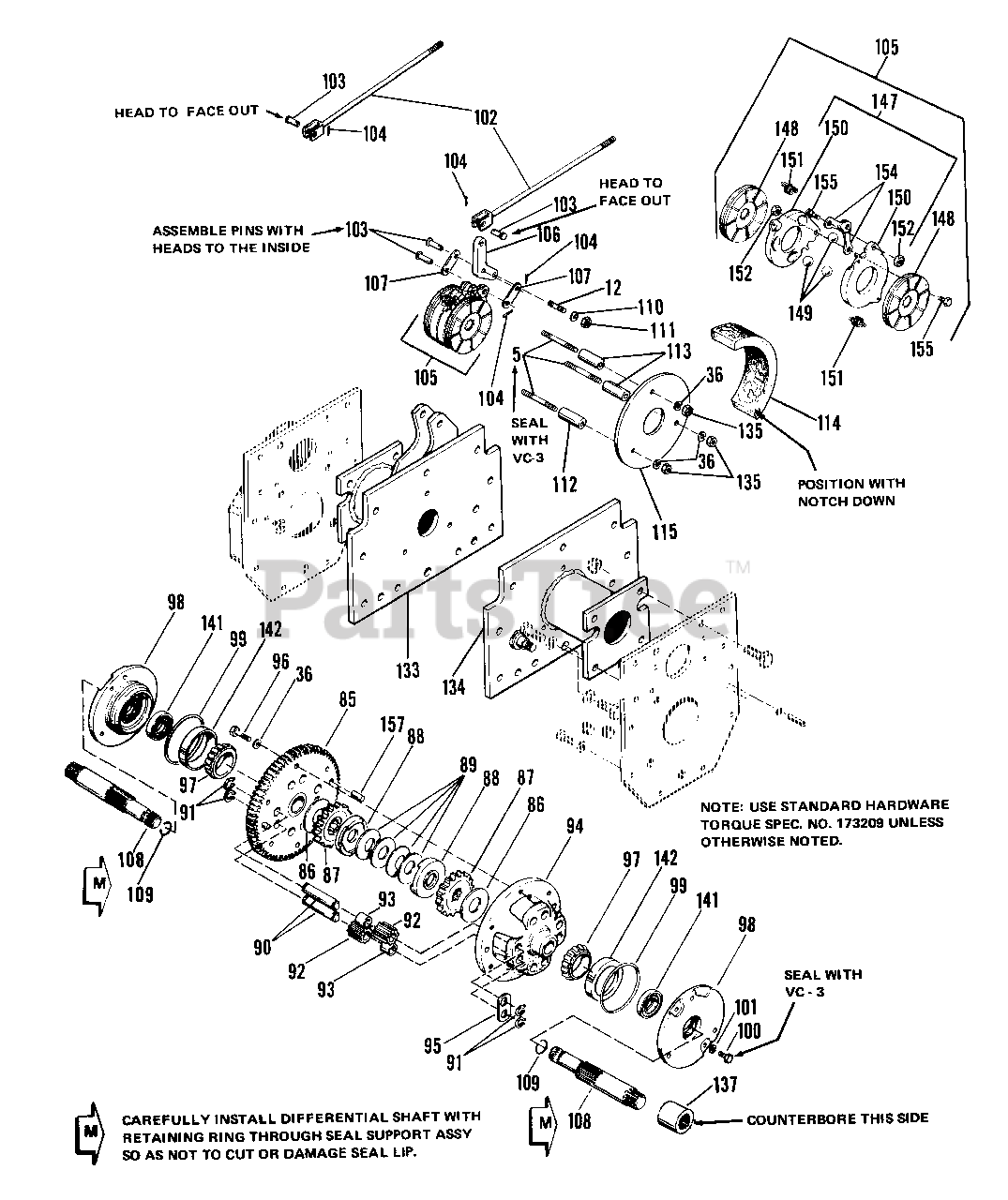

9020 (1690283) - Simplicity Power Max Garden Tractor, 19.5hp Transmission Group - Diagram 3 Parts Diagram

Power Max Garden Tractor, 19.5hp

Transmission Group - Diagram 3 Parts Diagram

  • Title

5

Simplicity 170806

STUD

$

$

Not available

12

Simplicity 170803

STUD

$

$

Not available

36

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

Note: QTY. 33 USED ON MFG. NO. 1690230

$3.49

$

In Stock, Qty 7

0

85

Simplicity 168015

GEAR ASSY, Differential

$

$

Not available

86

Simplicity 168028

WASHER, Thrust

$

$

Not available

87

Simplicity 168023

GEAR, Differential

$

$

Not available

88

Simplicity 168024

CLUTCH, Differential

$

$

Not available

89

Simplicity 2168025SM

WASHER, Spring

$14.99

$

Usually ships in 2-12 days

0

90

Simplicity 168010

SHAFT, Pinion

$

$

Not available

91

Simplicity 927728

RING, Retaining

$

$

Not available

92

Simplicity 168011

GEAR, Pinion

$

$

Not available

93

Simplicity 168012

SPACER

$

$

Not available

94

Simplicity 168009

CARRIER, Gear

$

$

Not available

95

Simplicity 168013

PLATE, Locking

$

$

Not available

96

Simplicity 2828726

CAPSCREW: Hex, 3/8-16 x 1-1/4

$

$

Not available

97

Simplicity 168008

BEARING, Cup

$

$

Not available

98

Simplicity 176644

SUPPORT ASSY

$

$

Not available

99

Snapper 2170839SM

O-RING

$

$

Not available

100

Simplicity 2817397

CAPSCREW, Hex, 5/16-18 x 3/4

$

$

Not available

101

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 5025170SM)

$4.49

$

In Stock, only 2 left!

0

102

Simplicity 172900

ROD ASSY, Brake

$

$

Not available

103

Simplicity 2823087

PIN, 3/8

$

$

Not available

104

Simplicity 2818447

PIN, Cotter, 3/4 x 3/32

$

$

Not available

105

Simplicity 168063

BRAKE ASSY, Disc.

$

$

Not available

106

Simplicity 1652831

LEVER, Brake

$

$

Not available

107

Simplicity 170802

PLATE, Link

$

$

Not available

108

Simplicity 2168027SM

SHAFT, Differential

$378.99

$

Usually ships in 2-12 days

0

109

Simplicity 170924

RING, Retaining

$

$

Not available

110

Simplicity 2817642

WASHER

$

$

Not available

111

Simplicity 2828731

NUT, Hex, Lock, Jam, 3/8-16

$

$

Not available

112

Simplicity 170813

SPACER

$

$

Not available

113

Simplicity 170814

SPACER

$

$

Not available

114

Simplicity 2176528

PAD

$

$

Not available

115

Simplicity 171562

PLATE, Shim

$

$

Not available

133

Simplicity 1657201

AXLE EXTENSION ASSY, L.H.

$

$

Not available

134

Simplicity 1657202

AXLE EXTENSION ASSY, R.H.

$

$

Not available

135

Simplicity 2816950SM

NUT, Hex, 3/8-16
(Superseded to 703457)

Note: QTY. 6 USED ON MFG. NO. 1690230

$4.49

$

In Stock, only 1 left!

0

137

Simplicity 168050

COUPLING, Axle

$

$

Not available

141

Simplicity 2168006SM

SEAL, Brake

$

$

Not available

142

Simplicity 168007

BEARING, Cone

$

$

Not available

147

Simplicity 174669

ACTUACTING DISC ASSY

$

$

Not available

148

Simplicity 2174668SM

MIDDLE DISC ASSY

$334.99

$

Usually ships in 2-12 days

0

149

Simplicity 174670

BALL

$

$

Not available

150

Simplicity 174671

DISC., Actuating

$

$

Not available

151

Simplicity 2174672SM

SPRING

$

$

Not available

152

Simplicity 174673

NUT, Hex, Jam

$

$

Not available

154

Simplicity 174675

LINK, Actuating

$

$

Not available

155

Simplicity 174676

STUD

$

$

Not available

157

Simplicity 168005

PIN, Dowel

$

$

Not available
