902018 (FT 524) - Ariens 24" Front Tine Tiller, 5hp Briggs & Stratton (SN: 018501 - 028800) Frame & Handlebar Assembly Parts Diagram

24" Front Tine Tiller, 5hp Briggs & Stratton

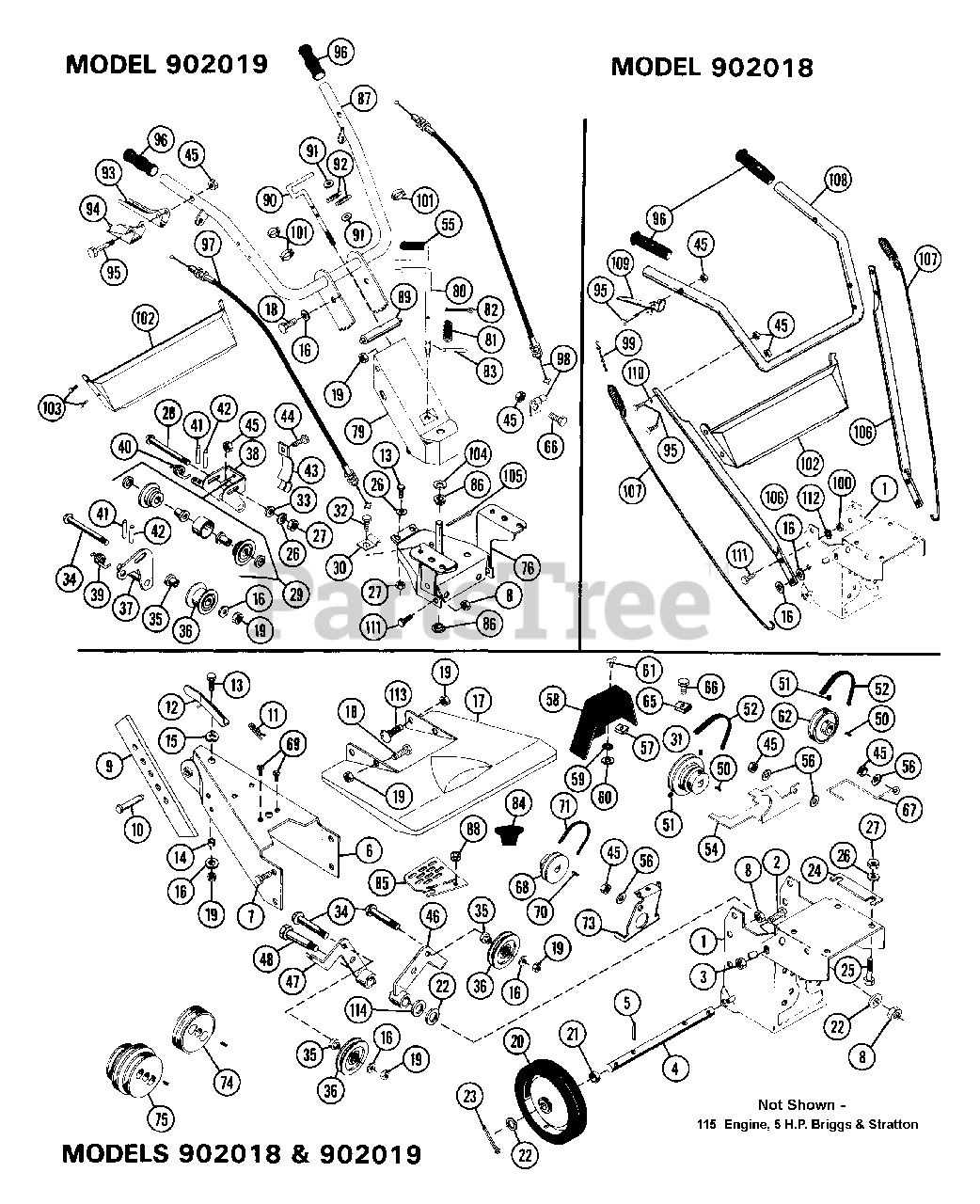

Frame & Handlebar Assembly Parts Diagram

  • Title

1

Ariens 00219000

FRAME
(Superseded to 00242959)

$

$

Not available

2

Ariens 05915200

BLT-HEX .38-16X2.50 PL GR5
(Superseded to 05958400)

Note: (Used Only On Model(s): 902019).

$3.99

$

In Stock, Qty 20+

0

2

Ariens 05915400

BLT-HEX .38-16X.75 PL GR5
(Superseded to 05959400)

Note: (Used Only On Model(s): 902018).

$1.49

$

In Stock, only 2 left!

0

3

Ariens 06512200

NUT-LK TOP .375-16 GR C YWZC

$2.49

$

Usually ships in 4-12 days

0

4

Ariens 00229300

AXLE ROD

$48.99

$

Usually ships in 4-12 days

0

5

Ariens 05800200

PIN-ROLL .125X1.38

$3.99

$

Usually ships in 4-12 days

0

6

Ariens 00231700

DEPTH STICK HOLDER
(Superseded to 50203500)

$

$

Not available

7

Ariens 05902300

BLT-HEX .38-16X.75 PL GR2
(Superseded to 05959400)

$1.49

$

In Stock, only 2 left!

0

8

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

Note: (Used Only On Model(s): 902018).

$1.49

$

In Stock, Qty 20+

0

8

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

Note: (Used Only On Model(s): 902019).

$1.49

$

In Stock, Qty 20+

0

9

Ariens 00229800

DEPTH STICK
(Superseded to 00229851)

$54.99

$

Usually ships in 4-12 days

0

10

Ariens 00220000

CLEVIS PIN .437/.431X1.50 YWZC
(Superseded to 06815600)

$3.99

$

Usually ships in 4-12 days

0

11

Ariens 06701500

PIN-HAIR INT .12X2.75
(Superseded to 06711900)

$2.99

$

In Stock, only 3 left!

0

12

Ariens 00231000

RETAINER CLIP
(Superseded to 00231059)

$

$

Not available

13

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

Note: (Used Only On Model(s): 902018).

$1.49

$

In Stock, Qty 12

0

13

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

Note: (Used Only On Model(s): 902019).

$1.49

$

In Stock, Qty 12

0

14

Ariens 00607100

SPACER BUSHING .5 X .32 X .21

Note: (Used Only On Model(s): 902018).

$14.99

$

Usually ships in 4-12 days

0

14

Ariens 00607100

SPACER BUSHING .5 X .32 X .21

Note: (Used Only On Model(s): 902019).

$14.99

$

Usually ships in 4-12 days

0

15

Ariens 01022900

WAVE WASHER .515 X 1.00 X .125

$

$

Not available

16

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

Note: (Used Only On Model(s): 902018).

$1.49

$

In Stock, Qty 16

0

16

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

Note: (Used Only On Model(s): 902019).

$1.49

$

In Stock, Qty 16

0

17

Ariens 00229200

TINE HOOD
(Superseded to 50203600)

$

$

Not available

18

Ariens 05900200

BLT-HEX .31-18X.63 PL GR 2
(Superseded to 05952200)

Note: (Used Only On Model(s): 902018).

$1.49

$

Usually ships in 4-12 days

0

18

Ariens 05900200

BLT-HEX .31-18X.63 PL GR 2
(Superseded to 05952200)

Note: (Used Only On Model(s): 902019).

$1.49

$

Usually ships in 4-12 days

0

19

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

Note: (Used Only On Model(s): 902018).

$1.49

$

In Stock, Qty 20+

0

19

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

Note: (Used Only On Model(s): 902019).

$1.49

$

In Stock, Qty 20+

0

20

Ariens 07104000

WHL

$

$

Not available

21

Ariens 00229400

SPACER .76 X .51 X .56

$19.99

$

Usually ships in 4-12 days

0

22

Ariens 06400300

WSHR-FL-STL .531X1.062X.095 PL
(Superseded to 06441900)

Note: (Used Only On Model(s): 902018).

$0.99

$

In Stock, Qty 20+

0

22

Ariens 06400300

WSHR-FL-STL .531X1.062X.095 PL
(Superseded to 06441900)

Note: (Used Only On Model(s): 902019).

$0.99

$

In Stock, Qty 20+

0

23

Ariens 06701400

PIN-COTR .12 X 1.25 PL
(Superseded to 06712600)

$0.99

$

In Stock, Qty 8

0

24

Ariens 00215700

SHIM
(Superseded to 00247700)

Note: (Used Only On Model(s): 902018).

$5.99

$

Usually ships in 4-12 days

0

24

Ariens 00215700

SHIM
(Superseded to 00247700)

Note: (Used Only On Model(s): 902019).

$5.99

$

Usually ships in 4-12 days

0

25

Ariens 05907300

BLT-HEX .31-18X1.75 PL GR2
(Superseded to 05957400)

$2.99

$

In Stock, Qty 12

0

26

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

Note: (Used Only On Model(s): 902018).

$0.99

$

In Stock, only 4 left!

0

26

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

Note: (Used Only On Model(s): 902019).

$0.99

$

In Stock, only 4 left!

0

27

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

Note: (Used Only On Model(s): 902018).

$0.99

$

In Stock, Qty 16

0

27

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

Note: (Used Only On Model(s): 902019).

$0.99

$

In Stock, Qty 16

0

28

Ariens 05907400

BLT-HEX .31-18X2.75 PL GR2
(Superseded to 05960600)

$2.49

$

Usually ships in 4-12 days

0

29

Ariens 50200700

IDLER ASSEMBLY

$96.99

$

Usually ships in 4-12 days

0

30

Ariens 06900300

CABLE CLAMP

$

$

Not available

31

Ariens 00211800

ENGINE SHEAVE
(Superseded to 50201500)

$

$

Not available

32

Ariens 07405400

SCR-TAP 10-24X.375 HWH PL TR
(Superseded to 07412100)

$0.99

$

Usually ships in 4-12 days

0

33

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$1.49

$

In Stock, only 2 left!

0

34

Ariens 06204800

BLT-RDHDSQNK .31-18X1.25 SHTPL
(Superseded to 06212100)

Note: (Used Only On Model(s): 902018).

$1.49

$

In Stock, Qty 9

0

34

Ariens 06204800

BLT-RDHDSQNK .31-18X1.25 SHTPL
(Superseded to 06212100)

Note: (Used Only On Model(s): 902019).

$1.49

$

In Stock, Qty 9

0

35

Ariens 01213100

SPCR, BRG .315X.50X.688X.281

Note: (Used Only On Model(s): 902018).

$3.49

$

In Stock, Qty 6

0

35

Ariens 01213100

SPCR, BRG .315X.50X.688X.281

Note: (Used Only On Model(s): 902019).

$3.49

$

In Stock, Qty 6

0

36

Ariens 01213200

IDLER
(Superseded to 52007000)

Note: (Used Only On Model(s): 902018).

$39.99

$

In Stock, Qty 15

0

36

Ariens 01213200

IDLER
(Superseded to 52007000)

Note: (Used Only On Model(s): 902019).

$39.99

$

In Stock, Qty 15

0

37

Ariens 00232100

REVERSE IDLER ARM

Note: (Used Only On Model(s): 902019).

$

$

Not available

38

Ariens 00232200

FORWARD IDLER BRACKET

Note: (Used Only On Model(s): 902019).

$

$

Not available

39

Ariens 08317300

SG-TORS .072X.52X.75

Note: (Used Only On Model(s): 902019).

$

$

Not available

40

Ariens 08317400

SG-TORS .072X.50X.520

Note: (Used Only On Model(s): 902019).

$

$

Not available

41

Ariens 05803000

PIN-ROLL .188X1.50

Note: (Used Only On Model(s): 902019).

$0.99

$

In Stock, Qty 20+

0

42

Ariens 05803400

PIN-ROLL .125X.75

Note: (Used Only On Model(s): 902019).

$0.99

$

In Stock, Qty 9

0

43

Ariens 00213000

BRACKET

Note: (Used Only On Model(s): 902019).

$

$

Not available

44

Ariens 05908000

BLT-HEX .25-20X.63 PL GR2
(Superseded to 05932000)

Note: (Used Only On Model(s): 902019).

$1.99

$

In Stock, only 1 left!

0

45

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

Note: (Used Only On Model(s): 902018).

$0.99

$

In Stock, Qty 20+

0

45

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

Note: (Used Only On Model(s): 902019).

$0.99

$

In Stock, Qty 20+

0

46

Ariens 00229000

IDLER ARM FWD

Note: (Used Only On Model(s): 902018).

$

$

Not available

47

Ariens 00229100

IDLER ARM REV.

Note: (Used Only On Model(s): 902018).

$

$

Not available

48

Ariens 00240400

WHEEL SHOULDER BOLT
(Superseded to 07014000)

Note: (Used Only On Model(s): 902018).

$7.99

$

Usually ships in 4-12 days

0

50

Ariens 06601300

KEY-SQ .188X1.0X.188 SAE 8630

$1.49

$

In Stock, Qty 5

0

51

Ariens 06000400

SET SCREW
(Superseded to 06005500)

$2.99

$

In Stock, Qty 17

0

52

Ariens 07205600

V-BELT, 4L-WRAPPED

$31.99

$

In Stock, Qty 5

0

54

Ariens 00232400

FWD BELT FINGER

Note: (Used Only On Model(s): 902019).

$

$

Not available

55

Ariens 07509800

GRIP
(Superseded to 07514800)

Note: (Used Only On Model(s): 902019).

$8.99

$

In Stock, only 1 left!

0

56

Ariens 06412700

WSHR-FL-STL.281X.62X.065 PL
(Superseded to 06437300)

$0.99

$

In Stock, Qty 16

0

57

Ariens 07004900

NUT-SPEED 1/4 TURN SOUTHCO

Note: (Used Only On Model(s): 902019).

$

$

Not available

58

Ariens 00229700

BELT COVER

$69.99

$

Usually ships in 4-12 days

0

59

Ariens 07005000

NUT-RETNR

Note: (Used Only On Model(s): 902019).

$3.99

$

Usually ships in 4-12 days

0

60

Ariens 06400100

WSHR-FL-STL .250X.562X.049 PL
(Superseded to 06442300)

Note: (Used Only On Model(s): 902019).

$1.99

$

In Stock, only 2 left!

0

61

Ariens 07005100

SCR-WING .25 TURN SOUTHCO

Note: (Used Only On Model(s): 902019).

$14.99

$

Usually ships in 4-12 days

0

62

Ariens 00231200

ENGINE SHEAVE
(Superseded to 50201600)

Note: (Used Only On Model(s): 902018).

$

$

Not available

65

Ariens 06513000

NUT-SPEED U-TYPE .250-20

Note: (Used Only On Model(s): 902018).

$

$

Not available

66

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

$0.99

$

In Stock, Qty 5

0

67

Ariens 00231300

FWD BELT FINGER
(Superseded to 00237400)

Note: (Used Only On Model(s): 902018).

$

$

Not available

68

Ariens 00240700

REVERSE SHEAVE
(Superseded to 50201700)

$

$

Not available

69

Ariens 07005300

BLT-SERRDHD SL .31-18X.75 YZ
(Superseded to 07028700)

Note: (Used Only On Model(s): 902019).

$5.99

$

In Stock, Qty 13

0

70

Ariens 06601500

KEY-WDRF .125X.625X.250 SAE5

$2.49

$

In Stock, only 1 left!

0

71

Ariens 07208500

V-BELT, 3L-WRAPPED

Note: (Used Only On Model(s): 902018).

$23.99

$

Usually ships in 4-12 days

0

71

Ariens 07204300

V-BELT, 3L-WRAPPED

Note: (Used Only On Model(s): 902019).

$20.99

$

Usually ships in 4-12 days

0

73

Ariens 00231100

REVERSE BELT FINGER

$

$

Not available

74

Ariens 07307800

PLY-DBLV 5.50 X.75 W/KEY SALEM

Note: (Used Only On Model(s): 902018).

$

$

Not available

75

Ariens 07304700

PLY-TRPY 5.50 X .75 W/KEY

Note: (Used Only On Model(s): 902019).

$

$

Not available

76

Ariens 00231800

SWING HANDLE BRACKET

Note: (Used Only On Model(s): 902019).

$

$

Not available

79

Ariens 00232600

HANDLE BAR SWIVEL

Note: (Used Only On Model(s): 902019).

$

$

Not available

80

Ariens 00234200

SWIVEL PIN

Note: (Used Only On Model(s): 902019).

$

$

Not available

81

Ariens 08317500

SG-COMP .062X.64X3.40 WLD 10

Note: (Used Only On Model(s): 902019).

$

$

Not available

82

Ariens 06700200

PIN-COTR .09X1.0 PL

Note: (Used Only On Model(s): 902019).

$0.99

$

Usually ships in 4-12 days

0

83

Ariens 05800200

PIN-ROLL .125X1.38

Note: (Used Only On Model(s): 902019).

$3.99

$

Usually ships in 4-12 days

0

84

Ariens 07509700

KNOB W/10-24 TAPPED METAL INSE

$

$

Not available

85

Ariens 00234100

MUFFLER SHIELD

$

$

Not available

86

Ariens 05503900

BSHG-FLG .750X1.000X.625X1.250

Note: (Used Only On Model(s): 902019).

$12.99

$

In Stock, Qty 9

0

87

Ariens 00232800

HANDLEBAR

Note: (Used Only On Model(s): 902019).

$

$

Not available

88

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

Note: (Used Only On Model(s): 902019).

$1.49

$

In Stock, only 2 left!

0

89

Ariens 00232900

HANDLE LOCK

Note: (Used Only On Model(s): 902019).

$

$

Not available

90

Ariens 00233000

HANDLE

Note: (Used Only On Model(s): 902019).

$

$

Not available

91

Ariens 06400800

WSHR-FL-STL .438X1.0X.083 PL
(Superseded to 06435900)

Note: (Used Only On Model(s): 902019).

$1.49

$

In Stock, only 2 left!

0

92

Ariens 05806700

PIN-GRV .125X1.00 TP E

Note: (Used Only On Model(s): 902019).

$

$

Not available

93

Ariens 00211300

HANDLE

Note: (Used Only On Model(s): 902019).

$

$

Not available

94

Ariens 00212900

HANDLE ADAPTER

Note: (Used Only On Model(s): 902019).

$

$

Not available

95

Ariens 05905000

BLT-HEX .25-20X1.50 PL GR5
(Superseded to 05952500)

Note: (Used Only On Model(s): 902018).

$1.49

$

In Stock, Qty 8

0

95

Ariens 05905000

BLT-HEX .25-20X1.50 PL GR5
(Superseded to 05952500)

Note: (Used Only On Model(s): 902019).

$1.49

$

In Stock, Qty 8

0

96

Ariens 07500600

GRIP
(Superseded to 07500113)

$

$

Not available

97

Ariens 06911700

CLUTCH CABLE

Note: (Used Only On Model(s): 902019).

$

$

Not available

98

Ariens 06911800

CLUTCH CABLE

Note: (Used Only On Model(s): 902019).

$

$

Not available

99

Ariens 00227000

CLUTCH CHAIN

Note: (Used Only On Model(s): 902019).

$9.49

$

In Stock, only 4 left!

0

100

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

Note: (Used Only On Model(s): 902018).

$0.99

$

In Stock, only 2 left!

0

101

Ariens 06901200

CLAMP

Note: (Used Only On Model(s): 902019).

$5.49

$

In Stock, only 1 left!

0

102

Ariens 00231400

HANDLEBAR PANEL

$

$

Not available

103

Ariens 07002200

BLT-SCRHFWH .25-20X.62 PL

Note: (Used Only On Model(s): 902019).

$

$

Not available

104

Ariens 06406400

WSHR-FL-STL .755X1.375X.125 PL
(Superseded to 06403300)

Note: (Used Only On Model(s): 902019).

$3.99

$

In Stock, only 1 left!

0

105

Ariens 06701200

PIN-COTR .18X1.50 PL
(Superseded to 06712800)

Note: (Used Only On Model(s): 902019).

$1.99

$

In Stock, only 3 left!

0

106

Ariens 00203400

LOWER HANDLE BAR
(Superseded to 00203451)

Note: (Used Only On Model(s): 902018).

$77.99

$

In Stock, only 3 left!

0

107

Ariens 08300800

SG-TENS .080X.25X31.6 WLD 35

Note: (Used Only On Model(s): 902018).

$

$

Not available

108

Ariens 00234700

HANDLEBAR
(Superseded to 50203300)

Note: (Used Only On Model(s): 902018).

$

$

Not available

109

Ariens 00203800

CLUTCH HANDLE
(Superseded to 00203851)

Note: (Used Only On Model(s): 902018).

$39.99

$

Usually ships in 4-12 days

0

110

Ariens 06406500

WSHR-FL-STL .268X.562X.046 PL
(Superseded to 06437300)

Note: (Used Only On Model(s): 902018).

$0.99

$

In Stock, Qty 16

0

111

Ariens 05900400

BLT-HEX .38-16X1.00 PL
(Superseded to 05948700)

Note: (Used Only On Model(s): 902018).

$1.49

$

In Stock, Qty 20+

0

111

Ariens 05900400

BLT-HEX .38-16X1.00 PL
(Superseded to 05948700)

Note: (Used Only On Model(s): 902019).

$1.49

$

In Stock, Qty 20+

0

112

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

Note: (Used Only On Model(s): 902018).

$3.49

$

In Stock, Qty 10

0

115

ENGINE, 5 H.P. BRIGGS & STRATTON

$

$

Not available

113

Ariens 06200900

BLT-RDHDSQSHNK .31-18X.50 YZ
(Superseded to 06222000)

Note: (Used Only On Model(s): 902019).

$2.99

$

In Stock, only 4 left!

0

114

Ariens 06418000

WSHR-FL-STL .520X.827X.062 YZ
(Superseded to 06441100)

Note: (Used Only On Model(s): 902019).

$2.49

$

In Stock, Qty 16

0
