90202-0100-01 - Briggs & Stratton Horizontal Engine Carburetor Assembly Parts Diagram

Horizontal Engine

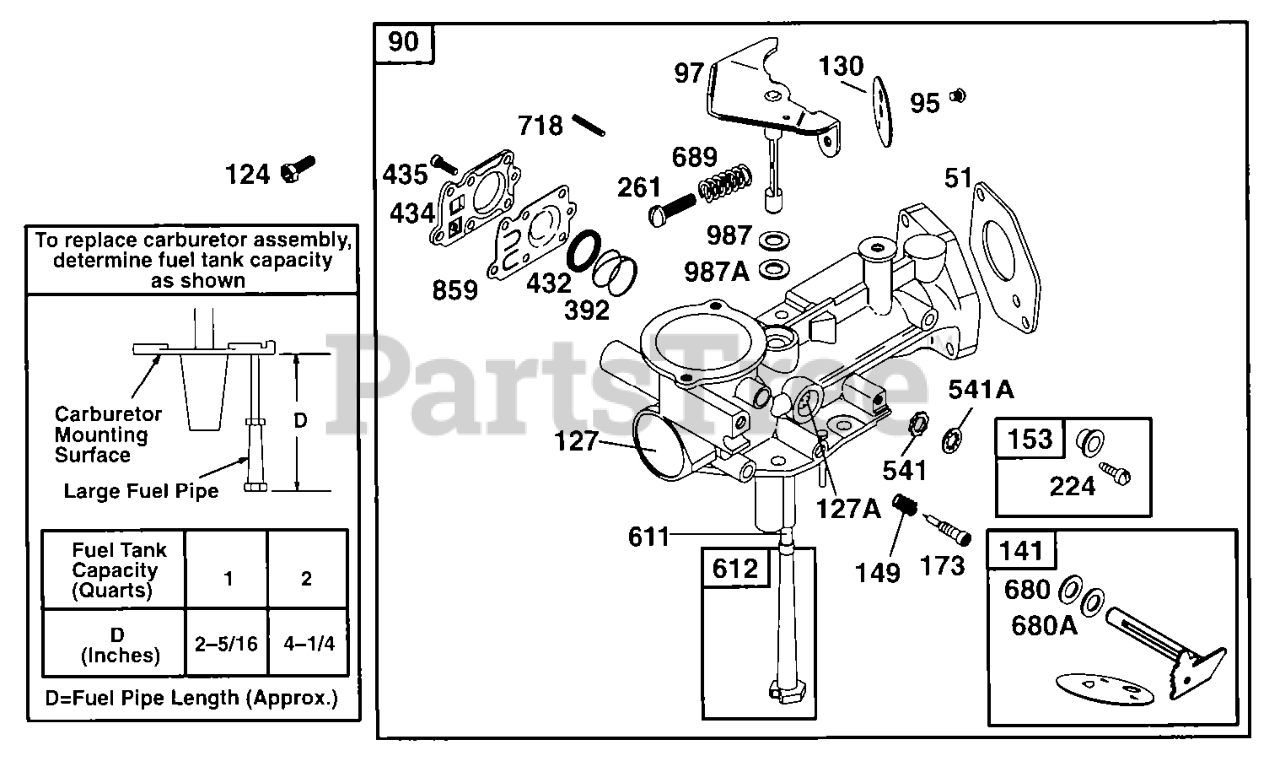

Carburetor Assembly Parts Diagram

  • Title

51

Briggs & Stratton 272585

Gasket, Intake Port (2 Required)
(Superseded to 273113S)

Note: Included in Valve Overhaul Gasket Set-Part 498524. Included in Gasket Set-See Ref. 358

$4.49

$

In Stock, Qty 11

0

51

Briggs & Stratton 273113

Gasket-Intake
(Superseded to 273113S)

Note: Included in Valve Overhaul Gasket Set-Part 498524. Included in Gasket Set-See Ref. 358

$4.49

$

In Stock, Qty 11

0

90

Briggs & Stratton 495459

Carburetor (Air Vane) (For 2 Quart Tank)

$179.99

$

Usually ships in 2-12 days

0

90

Briggs & Stratton 495461

Carburetor (1 Quart Tank)

$

$

Not available

95

Briggs & Stratton 93499

Screw, Sem Pan Head (Throttle Valve)
(Superseded to 691437)

$3.99

$

In Stock, only 2 left!

0

97

Briggs & Stratton 495313

Shaft-Throttle
(Superseded to 692018)

$9.99

$

Usually ships in 2-12 days

0

124

Briggs & Stratton 94913

Screw, Hex Head Tor
(Superseded to 690953)

$5.99

$

In Stock, Qty 19

0

127A

Briggs & Stratton 223789

Plug, Welch
(Superseded to 691742)

$4.99

$

In Stock, only 3 left!

0

127

Briggs & Stratton 220352

Plug-Welch
(Superseded to 691718)

$13.99

$

In Stock, only 4 left!

0

130

Briggs & Stratton 223793

Valve-Throttle
(Superseded to 691743)

$7.49

$

In Stock, only 1 left!

0

141

Briggs & Stratton 491177

Valve-Choke

Note: Used Before Code Date 94090100

$10.99

$

Usually ships in 2-12 days

0

141

Briggs & Stratton 497230

Shaft-Choke Kit

$15.99

$

Usually ships in 2-12 days

0

149

Briggs & Stratton 26336

Spring-Needle Valve
(Superseded to 691592)

$3.99

$

In Stock, Qty 6

0

153

Briggs & Stratton 490501

Screw-Carb. Lever

$4.99

$

Usually ships in 2-12 days

0

173

Briggs & Stratton 231533

Valve-Needle
(Superseded to 691777)

$17.99

$

In Stock, only 1 left!

0

224

Briggs & Stratton 93955

Screw, Hex Head Mac
(Superseded to 690320)

$4.99

$

Usually ships in 2-12 days

0

261

Briggs & Stratton 93527

Screw, Tapping Roun (5-40 X 5/8"})
(Superseded to 691624)

$3.99

$

Usually ships in 2-12 days

0

392

Briggs & Stratton 262328

Spring-Pump Diaphragm
(Superseded to 691823)

$4.99

$

In Stock, Qty 16

0

432

Briggs & Stratton 221377

Cap-Spring
(Superseded to 690766)

$4.99

$

In Stock, Qty 20+

0

434

Briggs & Stratton 213963

Cover-Diaphragm
(Superseded to 691713)

$10.99

$

In Stock, Qty 6

0

435

Briggs & Stratton 93141

Screw, Sem Filliste (Diaphragm Cover)
(Superseded to 691619)

$6.49

$

Usually ships in 2-12 days

0

541A

Briggs & Stratton 92507

Lockwasher, Interna
(Superseded to 690288)

$3.99

$

Usually ships in 2-12 days

0

541

Briggs & Stratton 22398

Washer, Steel Zinc
(Superseded to 5022398)

$3.49

$

Usually ships in 2-12 days

0

541

Briggs & Stratton 93397

Lockwasher, Externa
(Superseded to 690299)

$3.99

$

Usually ships in 2-12 days

0

611

Briggs & Stratton 231067

Pipe-Fuel (For 2 Quart Tank)
(Superseded to 690507)

$7.49

$

Usually ships in 2-12 days

0

612

Briggs & Stratton 391813

Tube-Pick Up (For 2 And 3 Quart Tanks)

$

$

Not available

680A

Briggs & Stratton 221839

Washer, Brass
(Superseded to 690401)

$3.99

$

In Stock, only 1 left!

0

680

Briggs & Stratton 270382

Washer, Felt (Foam)
(Superseded to 691869)

$3.99

$

In Stock, only 3 left!

0

689

Briggs & Stratton 260575

Spring-Throttle Adjustment
(Superseded to 691783)

$7.99

$

In Stock, only 1 left!

0

718

Briggs & Stratton 93265

Pin-Roll
(Superseded to 690296)

$6.49

$

Usually ships in 2-12 days

0

859

Briggs & Stratton 270026

Diaphragm-Pump

Note: Used Before Code Date 92090700

$3.99

$

In Stock, Qty 20+

0

859

Briggs & Stratton 272538

Diaphragm-Pump
(Superseded to 272538S)

$3.99

$

In Stock, Qty 20+

0

987A

Briggs & Stratton 398970

Seal, Throttle Shaf (Lmt 46, 49, 50, 51, 53, 86)
(Superseded to 692279)

$3.99

$

In Stock, only 1 left!

0

987

Briggs & Stratton 271853

Washer, Foam (Foam)
(Superseded to 692279)

$3.99

$

In Stock, only 1 left!

0
