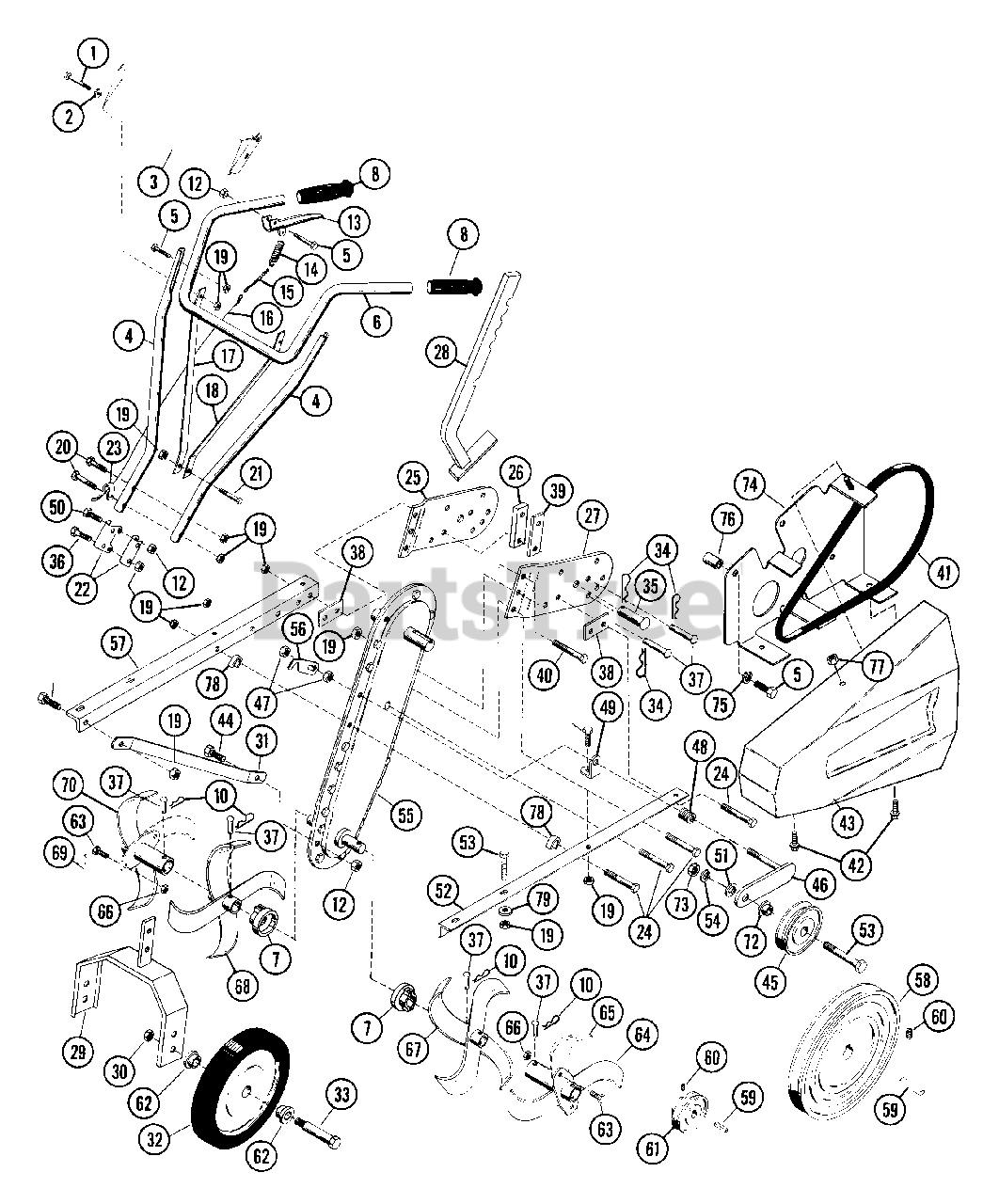

902022 (RT 524 CD) - Ariens 24" Front Tine Tiller, 5hp Briggs & Stratton (SN: 000101 - 003200) Chain Drive Tiller Parts Diagram

24" Front Tine Tiller, 5hp Briggs & Stratton

Chain Drive Tiller Parts Diagram

  • Title

1

Ariens 05906200

BLT-HEX .25-20X1.75 PL GR2
(Superseded to 05964700)

$2.49

$

In Stock, only 3 left!

0

2

Ariens 01019600

HANDLE BAR WASHER

$

$

Not available

3

Ariens 00231400

HANDLEBAR PANEL

$

$

Not available

4

Ariens 00222800

LOWER HANDLE BAR

$

$

Not available

5

Ariens 05905000

BLT-HEX .25-20X1.50 PL GR5
(Superseded to 05952500)

$1.49

$

In Stock, Qty 8

0

6

Ariens 00234700

HANDLEBAR
(Superseded to 50203300)

$

$

Not available

7

Ariens 00234600

DUST CUP

$

$

Not available

8

Ariens 07500600

GRIP
(Superseded to 07500113)

$

$

Not available

10

Ariens 06701000

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.49

$

In Stock, only 2 left!

0

12

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 00203800

CLUTCH HANDLE
(Superseded to 00203851)

$39.99

$

Usually ships in 4-12 days

0

14

Ariens 08309900

SG-TENS .092X.69X1.75 WLD 54

$

$

Not available

15

Ariens 00225900

CHAIN

$

$

Not available

16

Ariens 00226000

CABLE

$

$

Not available

17

Ariens 00223000

SUPPORT

$

$

Not available

18

Ariens 00222700

SUPPORT

$

$

Not available

19

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 05907000

BLT-HEX .31-18X3.25 PL GR2
(Superseded to 05971700)

$

$

Not available

21

Ariens 05913700

BLT-HEX .31-18X2.25 PL GR2
(Superseded to 05963700)

$1.49

$

In Stock, Qty 5

0

22

Ariens 00222900

SPACER

$

$

Not available

23

Ariens 00225800

CABLE GUID
(Superseded to 06908300)

$

$

Not available

24

Ariens 05913100

BLT-HEX .31-18X2.50 PL GR2
(Superseded to 05952600)

$1.49

$

In Stock, only 4 left!

0

25

Ariens 00224500

R H WHEEL BRACKET

$

$

Not available

26

Ariens 00224800

BLOCK

$

$

Not available

27

Ariens 00224600

L H WHEEL BRACKET

$

$

Not available

28

Ariens 00225600

DEPTH BAR

$

$

Not available

29

Ariens 00225100

WHEEL MTG

$

$

Not available

30

Ariens 06506000

NUT-LK-JAM-CTR .375-16 PL
(Superseded to 06537200)

$0.99

$

In Stock, Qty 20+

0

31

Ariens 00234400

ENGINE BRACE

$

$

Not available

32

Ariens 07104000

WHL

$

$

Not available

33

Ariens 00240400

WHEEL SHOULDER BOLT
(Superseded to 07014000)

$7.99

$

Usually ships in 4-12 days

0

34

Ariens 06701300

PIN-HAIR INT .09X.62X2.25
(Superseded to 06712900)

$5.99

$

In Stock, only 4 left!

0

35

Ariens 03105100

PIN-CLEV .494X1.94 YWZC

$

$

Not available

36

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.49

$

In Stock, Qty 12

0

37

Ariens 00212300

CLEVIS PIN

$3.49

$

In Stock, only 3 left!

0

38

Ariens 00224400

SHIM

$

$

Not available

39

Ariens 00224700

BLOCK

$

$

Not available

40

Ariens 05906900

BLT-HEX .31-18X1.25 PL GR2
(Superseded to 05947500)

$2.49

$

In Stock, only 2 left!

0

41

Ariens 07207300

V-BELT, 4L-WRAPPED

$21.99

$

Usually ships in 4-12 days

0

42

Ariens 07001500

BLT-SERHFWH .25-20X.50 PL
(Superseded to 07049300)

$2.49

$

Usually ships in 4-12 days

0

43

Ariens 00214800

BELT COVER

$

$

Not available

44

Ariens 05908300

BLT-HEX .25-20X1.00 PL GR5
(Superseded to 05947700)

$1.49

$

In Stock, Qty 7

0

45

Ariens 01213200

IDLER
(Superseded to 52007000)

$39.99

$

In Stock, Qty 15

0

46

Ariens 00225200

IDLER ARM

$

$

Not available

47

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, only 2 left!

0

48

Ariens 08309800

SG-COMP .041X.50X.56 WLD2

$

$

Not available

49

Ariens 00225000

IDLER ARM

$6.99

$

Usually ships in 4-12 days

0

50

Ariens 05900100

BLT-HEX .25-20X.75 PL GR2
(Superseded to 05946800)

$0.99

$

In Stock, Qty 12

0

51

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 14

0

52

Ariens 00224300

LH FRAME

$

$

Not available

53

Ariens 05904500

BLT-HEX .31-18X1.50 PL GR2
(Superseded to 05952400)

$1.49

$

Usually ships in 4-12 days

0

54

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, only 4 left!

0

55

Ariens 60207600

CHAIN CASE ASSEMBLY
(Superseded to 50201400)

$

$

Not available

56

Ariens 00225300

LEVER CABL

$

$

Not available

57

Ariens 00224200

RH FRAME

$

$

Not available

58

Ariens 00225500

DRIVE SHEAVE

$

$

Not available

59

Ariens 06601300

KEY-SQ .188X1.0X.188 SAE 8630

$1.49

$

In Stock, Qty 5

0

60

Ariens 06001200

SCR-SET .32-18X.38 SKHCUPNL OH
(Superseded to 06005500)

$2.99

$

In Stock, Qty 17

0

61

Ariens 00234500

ENGINE SHEAVE
(Superseded to 50202000)

$

$

Not available

62

Ariens 05502100

BSHG-FLG .500X.625X.500X.750

$3.99

$

In Stock, Qty 9

0

63

Ariens 05902600

BLT-HEX .44-14X1.00 GR5
(Superseded to 05958700)

$2.99

$

In Stock, only 1 left!

0

64

Ariens 00130100

L H OUTER TINE SPOOL
(Superseded to 00238400)

$

$

Not available

65

Ariens 00208500

L H TURBO-TINE
(Superseded to 00238051)

$27.99

$

Usually ships in 4-12 days

0

66

Ariens 06501900

NUT-LK-TOP .437-14 GR C PL
(Superseded to 06536400)

$2.99

$

Usually ships in 4-12 days

0

67

Ariens 00125900

L H INNER TINE SPOOL
(Superseded to 00238300)

$94.99

$

In Stock, only 1 left!

0

68

Ariens 00125800

R H INNER TINE SPOOL
(Superseded to 50203100)

$

$

Not available

69

Ariens 00208400

R H TURBO-TINE
(Superseded to 00238151)

$

$

Not available

70

Ariens 00130200

R H OUTER TINE SPOOL
(Superseded to 00238500)

$121.99

$

In Stock, only 1 left!

0

72

Ariens 01213100

SPCR, BRG .315X.50X.688X.281

$3.49

$

In Stock, Qty 6

0

73

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 16

0

74

Ariens 00217900

RETAINER

$

$

Not available

75

Ariens 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

$0.99

$

Usually ships in 4-12 days

0

76

Ariens 00223100

SPACER .63 X .28 X .31

$

$

Not available

77

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$0.99

$

In Stock, Qty 17

0

78

Ariens 00224900

U SPACER

$

$

Not available

79

Ariens 06400700

WSHR-FL-STL.312X.734X.065PL
(Superseded to 06435800)

$0.99

$

In Stock, Qty 10

0
