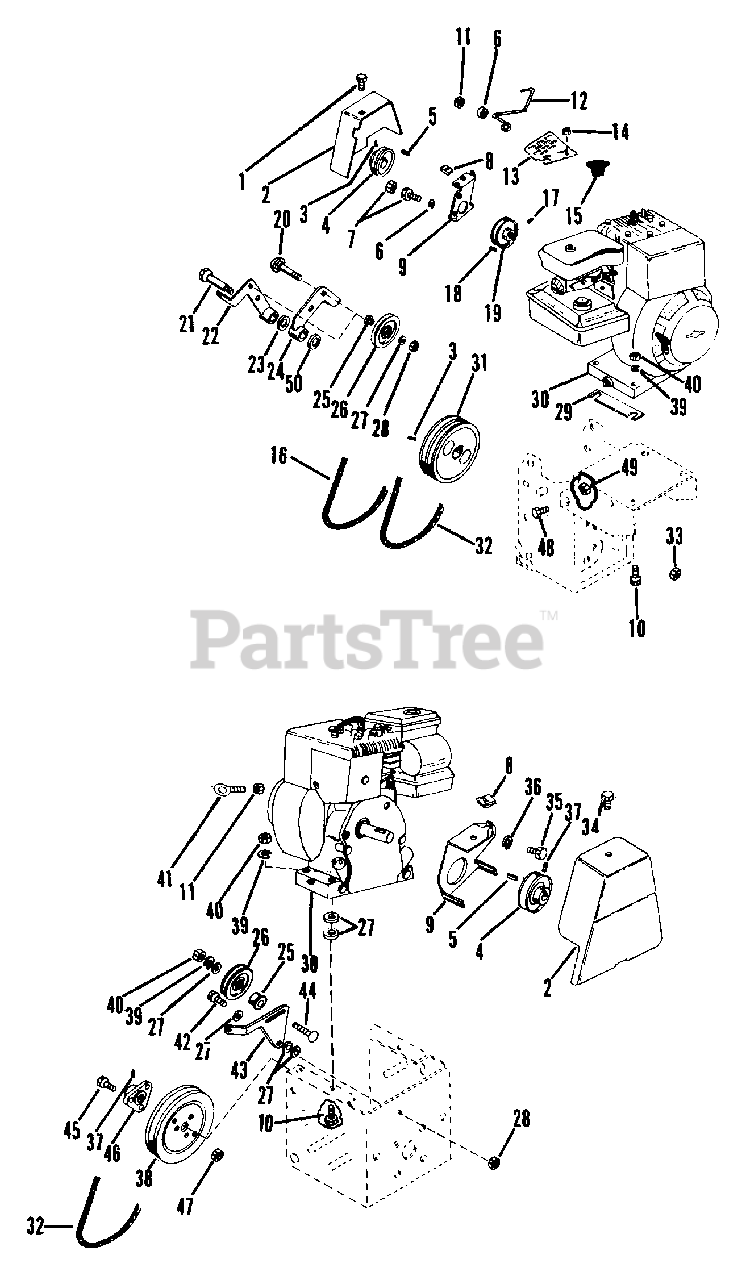

902026 (RT 424) - Ariens 24" Front Tine Tiller, 4hp Briggs & Stratton (SN: 006401 & Above) Engine And Drive Parts Diagram

24" Front Tine Tiller, 4hp Briggs & Stratton

Engine And Drive Parts Diagram

  • Title

1

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

$0.99

$

In Stock, only 3 left!

0

2

Ariens 00229700

BELT COVER

Note: (902026, 028)

$71.99

$

Usually ships in 4-12 days

0

2

Ariens 00280200

BELT COVER

Note: (Used Only On Model(s): 902803).

$27.99

$

In Stock, only 1 left!

0

3

Ariens 06000800

SCR-SET .25-20X.38 SKHCUP OH

$

$

Not available

4

Ariens 00231200

ENGINE SHEAVE
(Superseded to 50201600)

Note: (902026, 028)

$

$

Not available

4

Ariens 00280300

ENGINE SHEAVE
(Superseded to 50201900)

Note: (Used Only On Model(s): 902803).

$

$

Not available

5

Ariens 06601300

KEY-SQ .188X1.0X.188 SAE 8630

$1.99

$

In Stock, Qty 5

0

6

Ariens 06412700

WSHR-FL-STL.281X.62X.065 PL
(Superseded to 06437300)

Note: (26,28,803)

$0.99

$

In Stock, only 3 left!

0

7

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

Note: (902026, 028)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 06508500

NUT-SPEED U-TYPE .312-18
(Superseded to 06513000)

Note: (Used Only On Model(s): 902803).

$

$

Not available

8

Ariens 06513000

NUT-SPEED U-TYPE .250-20

Note: (902026, 028)

$

$

Not available

9

Ariens 00229500

BELT GUARD BRACKET

Note: (902026, 028)

$

$

Not available

9

Ariens 00280100

BELT FINGER & COVER BRACKET

Note: (Used Only On Model(s): 902803).

$

$

Not available

10

Ariens 05907300

BLT-HEX .31-18X1.75 PL GR2
(Superseded to 05957400)

$3.49

$

In Stock, Qty 5

0

11

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 00237400

BELT FINGER

Note: (902026, 028)

$

$

Not available

14

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.99

$

In Stock, Qty 20+

0

16

Ariens 07209900

V-BELT, 3L-WRAPPED

Note: (902026, 028)

$

$

Not available

17

Ariens 06001400

SCR-SET .25-20X.25 SKHCUPNY OH
(Superseded to 06005400)

Note: (902026, 028)

$3.99

$

Usually ships in 4-12 days

0

18

Ariens 06601500

KEY-WDRF .125X.625X.250 SAE5

$2.99

$

In Stock, only 2 left!

0

19

Ariens 00233800

REVERSE SHEAVE
(Superseded to 50201700)

Note: (902026, 028)

$

$

Not available

20

Ariens 06204800

BLT-RDHDSQNK .31-18X1.25 SHTPL
(Superseded to 06212100)

$1.99

$

In Stock, Qty 12

0

21

Ariens 00240400

WHEEL SHOULDER BOLT
(Superseded to 07014000)

Note: (902026, 028)

$

$

Not available

22

Ariens 00229100

IDLER ARM REV.

Note: (902026, 028)

$

$

Not available

23

Ariens 06418000

WSHR-FL-STL .520X.827X.062 YZ
(Superseded to 06441100)

$2.99

$

In Stock, Qty 20+

0

24

Ariens 00229000

IDLER ARM FWD

Note: (902026, 028)

$

$

Not available

25

Ariens 01213100

SPCR, BRG .315X.50X.688X.281

Note: (902026, 028)

$3.99

$

In Stock, Qty 12

0

25

Ariens 01213100

SPCR, BRG .315X.50X.688X.281

Note: (Used Only On Model(s): 902803).

$3.99

$

In Stock, Qty 12

0

26

Ariens 01213200

IDLER
(Superseded to 52007000)

Note: (902028)

$40.99

$

In Stock, only 2 left!

0

26

Ariens 02457400

IDLER
(Superseded to 52007000)

Note: (902026)

$40.99

$

In Stock, only 2 left!

0

26

Idler

Note: (Used Only On Model(s): 902803).

$

$

Not available

27

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.99

$

In Stock, Qty 20+

0

28

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.99

$

In Stock, Qty 20+

0

29

Ariens 00215700

SHIM
(Superseded to 00247700)

Note: (902026, 028)

$5.99

$

Usually ships in 4-12 days

0

30

Ariens 08211300

2 HP B&S ENGINE

Note: (Used Only On Model(s): 902803) No. 60102-1148-01.

$

$

Not available

30

Ariens 08217200

4 HP BRIGGS ENGINE

Note: (902026, 028) No. 112292-0645-01

$

$

Not available

30

Ariens 08225300

4 HP BRIGGS ENGINE

Note: (902026, 028) No. 112292-0812-01

$

$

Not available

31

Ariens 07307800

PLY-DBLV 5.50 X.75 W/KEY SALEM

Note: (902026, 028)

$

$

Not available

32

Ariens 07205600

V-BELT, 4L-WRAPPED

Note: (902026, 028)

$36.99

$

In Stock, only 1 left!

0

32

Ariens 07210900

V-BELT, 4L-RAW EDGE

Note: (Used Only On Model(s): 902803).

$45.99

$

Usually ships in 4-12 days

0

33

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

34

Ariens 05903900

BLT-HEX .31-18X.50 PL GR2
(Superseded to 05947200)

$1.99

$

In Stock, Qty 13

0

35

Ariens 05905200

BLT-HEX .75-16X2.50 PL GR5

$

$

Not available

36

Ariens 06300600

WSHR-LK .500X.151 HVY PL
(Superseded to 06306600)

$2.99

$

Usually ships in 4-12 days

0

37

Ariens 06001200

SCR-SET .32-18X.38 SKHCUPNL OH
(Superseded to 06005500)

$3.49

$

In Stock, only 2 left!

0

38

Ariens 00286100

SHEAVE

Note: (Used Only On Model(s): 902803).

$46.99

$

Usually ships in 4-12 days

0

39

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 5

0

40

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$1.49

$

In Stock, Qty 8

0

41

Ariens 01028900

ROD HANGER EYEBOLT
(Superseded to 00247500)

Note: (Used Only On Model(s): 902803).

$10.99

$

Usually ships in 4-12 days

0

42

Ariens 05900300

BLT-HEX .31-18X1.00 PL GR 2
(Superseded to 05946900)

$1.99

$

In Stock, only 4 left!

0

43

Ariens 00280500

IDLER BRACKET

Note: (Used Only On Model(s): 902803).

$5.99

$

Usually ships in 4-12 days

0

44

Ariens 06202200

BLT-RDHDSQNK .31-18X1.38SHT PL
(Superseded to 06212100)

$1.99

$

In Stock, Qty 12

0

45

Ariens 07005300

BLT-SERRDHD SL .31-18X.75 YZ
(Superseded to 07028700)

$6.49

$

In Stock, only 3 left!

0

46

Ariens 00286200

HUB
(Superseded to 50202100)

Note: (Used Only On Model(s): 902803).

$87.99

$

In Stock, only 2 left!

0

47

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.99

$

In Stock, Qty 20+

0

48

Ariens 05915400

BLT-HEX .38-16X.75 PL GR5
(Superseded to 05959400)

$1.99

$

In Stock, Qty 10

0

49

Ariens 06512200

NUT-LK TOP .375-16 GR C YWZC

$2.99

$

Usually ships in 4-12 days

0

50

Ariens 06400300

WSHR-FL-STL .531X1.062X.095 PL
(Superseded to 06441900)

$1.49

$

In Stock, only 4 left!

0
