902026 (RT 424) - Ariens 24" Front Tine Tiller, 4hp Briggs & Stratton (SN: 006401 & Above) Tiller Gearcase Parts Diagram

24" Front Tine Tiller, 4hp Briggs & Stratton

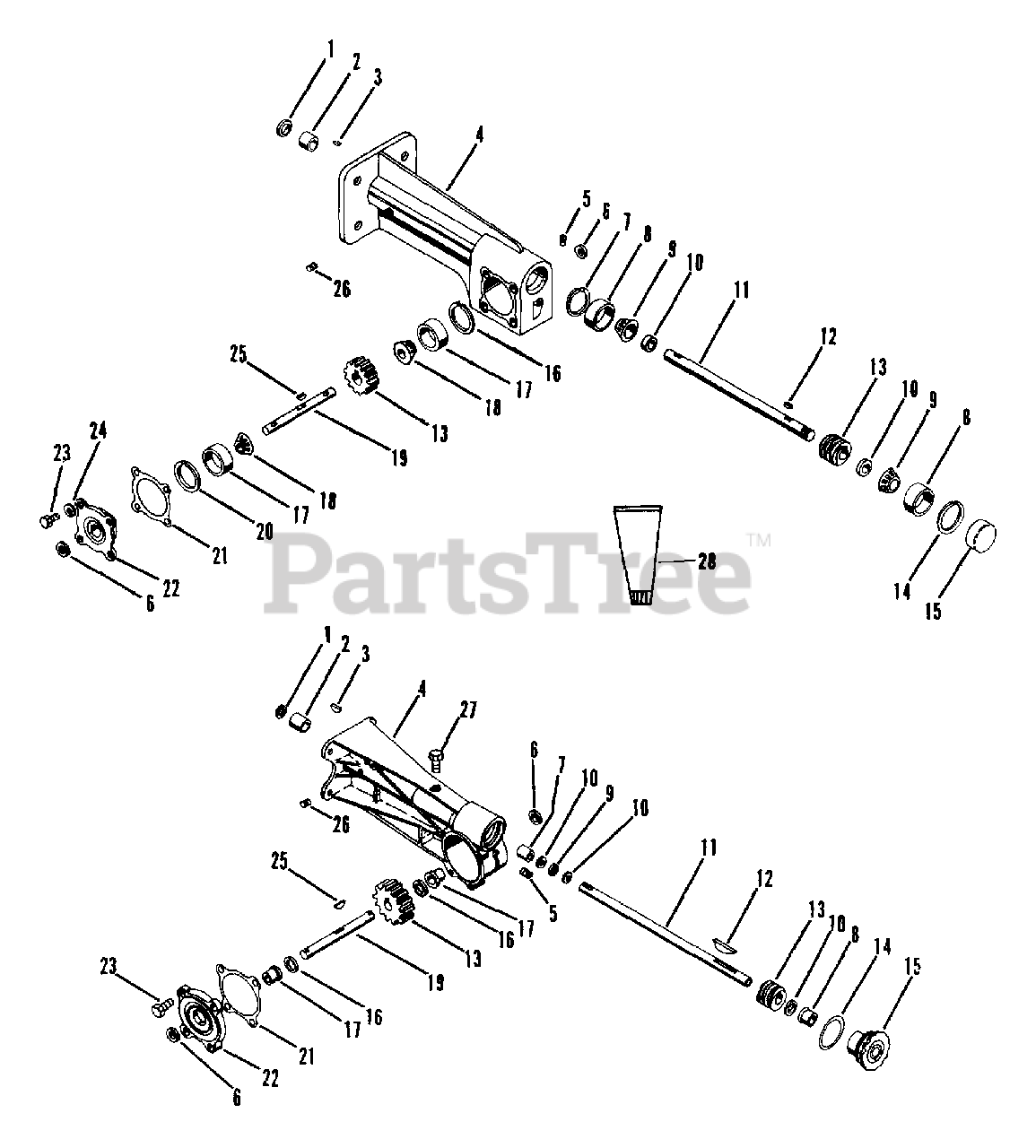

Tiller Gearcase Parts Diagram

  • Title

1

Ariens 05604300

SEAL .750X1.000X.125

$5.99

$

In Stock, Qty 20+

0

2

Ariens 05402200

BRG-NEEDLE .750X1.0X.62

Note: (902028)

$24.99

$

In Stock, only 1 left!

0

2

Ariens 05510300

BSHG-SLV .750X1.000X1.000

Note: (902026,803)

$17.99

$

In Stock, only 2 left!

0

3

Ariens 06600100

KEY-WDRF .188X.875X.375 SAE11

$2.99

$

In Stock, Qty 11

0

4

Ariens 00201400

WORM GEAR HOUSING

Note: (902028)

$

$

Not available

4

Ariens 00287100

GEARCASE - ALUMINUM

Note: (902026,803)

$

$

Not available

5

Ariens 00113800

PIPE PLUG

$5.99

$

Usually ships in 4-12 days

0

6

Ariens 05606600

SEAL 1.000X1.980X.375

$15.99

$

In Stock, only 2 left!

0

7

Ariens 05707500

RG-RTNG-INT 1.781X.062

Note: (902028)

$9.49

$

In Stock, only 1 left!

0

7

Ariens 05500900

BSHG-SLV .750X1.000X.750

Note: (902026,803)

$9.99

$

Usually ships in 4-12 days

0

8

Ariens 05404400

BRG-CUP 1.781X.475

Note: (902028)

$9.49

$

In Stock, Qty 20+

0

8

Ariens 05511500

BSHG-FLG .750X1.000X.750X1.132

Note: (902026,803)

$17.99

$

In Stock, only 1 left!

0

9

Ariens 05404500

BRG-CONE .750X.61

Note: (902028)

$22.99

$

In Stock, Qty 20+

0

9

Ariens 05410400

BRG-N THRST .754X1.24X.078

Note: (902026,803)

$12.99

$

In Stock, Qty 7

0

10

Ariens 00200500

BSHG, SPCR .755X1.12X.50 PM

Note: (902028)

$7.49

$

In Stock, only 2 left!

0

10

Ariens 06416100

WSHR-HDND-THRST .755X1.40X.062

Note: (902026, 803)

$6.99

$

In Stock, only 3 left!

0

11

Ariens 00200300

WORM SHAFT

Note: (902028)

$

$

Not available

11

Ariens 00280700

WORM SHAFT

Note: (902026,803)

$155.99

$

Usually ships in 4-12 days

0

12

Ariens 06601300

KEY-SQ .188X1.0X.188 SAE 8630

Note: (902028)

$1.49

$

In Stock, Qty 5

0

12

Ariens 06603300

KEY-FTHR .188X1.38X.188

$4.99

$

In Stock, only 1 left!

0

13

Ariens 50200900

WORM GEAR AND WORM - KIT

Note: (902028)

$253.99

$

Usually ships in 4-12 days

0

13

Ariens 50201100

WORM & GEAR SET

Note: (902026)

$284.99

$

Usually ships in 4-12 days

0

13

Ariens 50280200

WORM & WORM GEAR SERVICE ASSEM

Note: (Used Only On Model(s): 902803).

$439.99

$

Usually ships in 4-12 days

0

14

Ariens 00285200

GASKET

Note: (902026,803)

$21.99

$

Usually ships in 4-12 days

0

14

Ariens 00237000

SNAP RING KIT
(Superseded to 05702100)

Note: (902028)

$5.99

$

In Stock, Qty 6

0

15

Ariens 00403700

DUST CAP

Note: (902028)

$18.99

$

In Stock, only 1 left!

0

15

Ariens 00285100

ADJUSTMENT PLUG

Note: (902026,803)

$140.99

$

Usually ships in 4-12 days

0

16

Ariens 05708200

RG-RTNG-INT 1.969X.062

Note: (902028)

$11.99

$

Usually ships in 4-12 days

0

16

Ariens 06416600

WSHR-HRD-THRS 1.007X1.542X.062

Note: (902026,803)

$2.99

$

In Stock, Qty 20+

0

17

Ariens 05407000

BRG-CUP1.980X.420

Note: (902028)

$17.99

$

In Stock, Qty 13

0

17

Ariens 05510600

BSHG-FLG 1.000X1.25X.75X1.50

Note: (902026,803)

$15.99

$

Usually ships in 4-12 days

0

18

Ariens 05406900

BRG-CONE 1.0X.58

Note: (902028)

$18.99

$

In Stock, Qty 9

0

19

Ariens 00200700

TINE SHAFT

Note: (902028)

$187.99

$

Usually ships in 4-12 days

0

19

Ariens 00228800

TINE SHAFT

Note: (902026)

$

$

Not available

19

Ariens 00285300

SUB SHAFT

Note: (Used Only On Model(s): 902803).

$

$

Not available

20

Ariens 00236900

SNAP RING KIT
(Superseded to 05708200)

Note: (902028)

$11.99

$

Usually ships in 4-12 days

0

21

Ariens 00200800

GASKET

Note: (902028)

$3.99

$

In Stock, only 3 left!

0

21

Ariens 00287300

GASKET

Note: (902026,803)

$3.99

$

Usually ships in 4-12 days

0

22

Ariens 00201500

BEARING FLANGE

Note: (902028)

$

$

Not available

22

Ariens 00287200

COVER

Note: (902026,803)

$

$

Not available

23

Ariens 05903400

BLT-HEX .31-18X.88 PL GR2
(Superseded to 05947800)

$2.49

$

Usually ships in 4-12 days

0

23

Ariens 07402300

SCR-TAP .312-18X1.0 HWH PL TR
(Superseded to 07413900)

$3.99

$

In Stock, Qty 5

0

24

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, only 4 left!

0

25

Ariens 06600800

KEY-WDRF .25X.875X.375 SAE A

Note: (902028)

$3.99

$

In Stock, only 2 left!

0

25

Ariens 06603700

KEY-WDRF .25X.687X.375
(Superseded to 06600800)

Note: (902026)

$3.99

$

In Stock, only 2 left!

0

25

Ariens 06601400

KEY-WDRF .188X.625X.25 SAE 61

Note: (Used Only On Model(s): 902803).

$2.49

$

In Stock, Qty 10

0

26

Ariens 00200900

BREATHER

$3.49

$

Usually ships in 4-12 days

0

27

Ariens 07401600

SCR-TAP .375-16X .50 HWH PL TR
(Superseded to 07412900)

$1.49

$

In Stock, only 4 left!

0

28

Ariens 00008000

ARIENS 16 OZ.BOTTLE OF L2 LUBE
(Superseded to 00068800)

$17.99

$

In Stock, Qty 13

0
