902418 (FT 524) - Ariens 24" Front Tine Tiller, 5hp Briggs & Stratton (SN: 000101 & Above) Frame And Linkage Parts Diagram

24" Front Tine Tiller, 5hp Briggs & Stratton

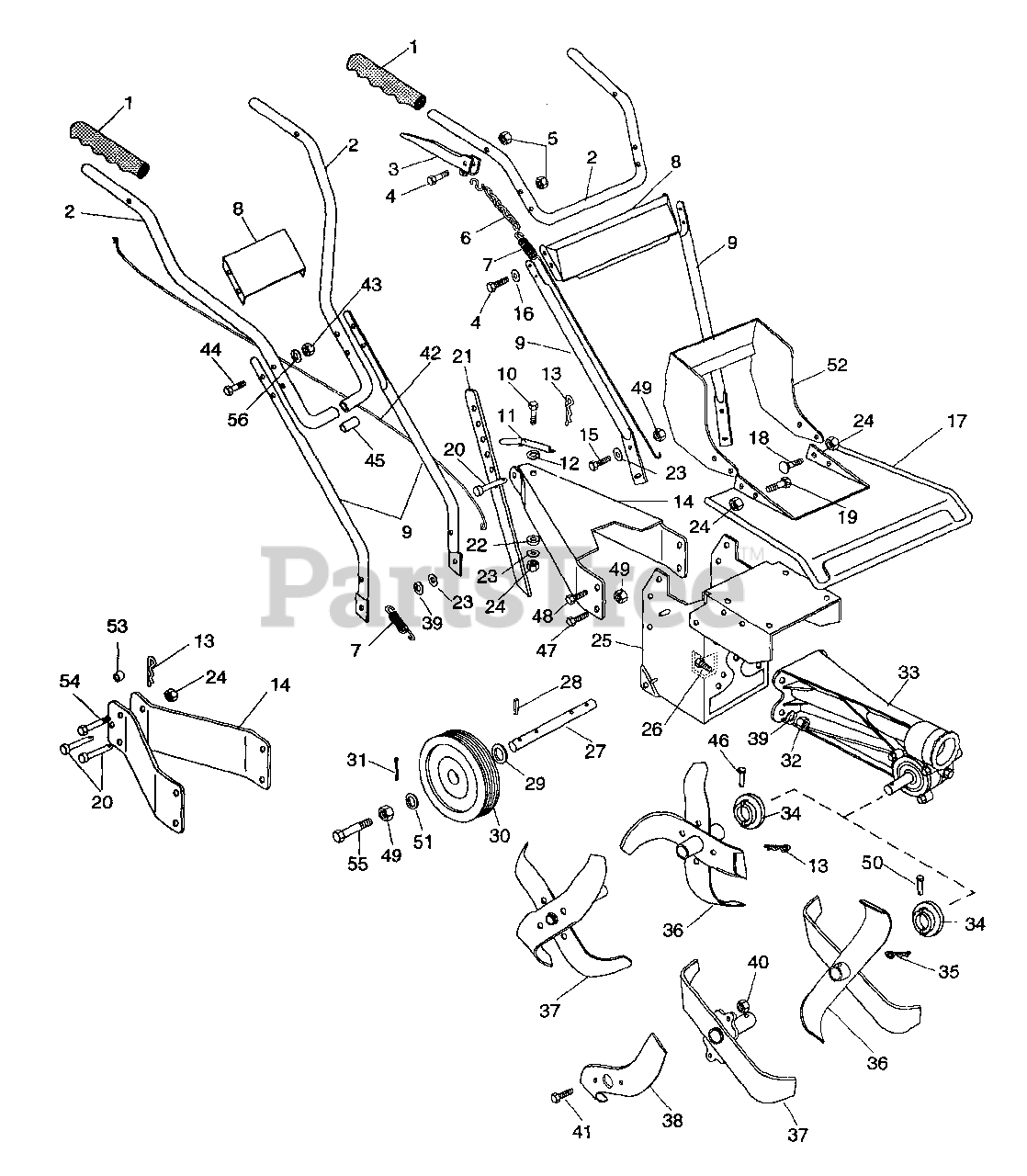

Frame And Linkage Parts Diagram

  • Title

1

Ariens 07500600

GRIP
(Superseded to 07500113)

Note: For models (018,418)

$

$

Not available

1

Ariens 07518600

HANDLE GRIP- BLACK PVC-SM1217

Note: For models (410,808,810)

$15.99

$

Usually ships in 4-12 days

0

2

Ariens 00243251

RIGHT UPPER HANDLEBAR

Note: For models (410,808,810)

$

$

Not available

2

Ariens 00243151

LEFT UPPER HANDLEBAR

Note: For models (410,808,810)

$

$

Not available

2

Ariens 00234700

HANDLEBAR
(Superseded to 50203300)

Note: For model (018)

$

$

Not available

3

Ariens 00203851

CLUTCH HANDLE

Note: For models (018,410,418,810)

$40.99

$

Usually ships in 4-12 days

0

3

Ariens 00203851

CLUTCH HANDLE

Note: For model (808)

$40.99

$

Usually ships in 4-12 days

0

4

Ariens 05905000

BLT-HEX .25-20X1.50 PL GR5
(Superseded to 05952500)

$1.99

$

In Stock, Qty 5

0

5

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 00227000

CLUTCH CHAIN

Note: For models (018,410,418,810)

$21.99

$

In Stock, only 2 left!

0

6

Ariens 00227000

CLUTCH CHAIN

Note: For model (808)

$21.99

$

In Stock, only 2 left!

0

7

Ariens 08300800

SG-TENS .080X.25X31.6 WLD 35

Note: For models (018,418)

$

$

Not available

7

Ariens 08309900

SG-TENS .092X.69X1.75 WLD 54

Note: For models (410,808,810)

$

$

Not available

8

Ariens 00231400

HANDLEBAR PANEL

Note: For models (018,418)

$

$

Not available

8

Ariens 00283800

NAME PLATE

Note: For models (410,810)

$

$

Not available

9

Ariens 00203400

LOWER HANDLE BAR
(Superseded to 00203451)

Note: For models (018,418)

$79.99

$

In Stock, only 2 left!

0

9

Ariens 00234051

L H LOWER HANDLEBAR

Note: For models (410,808,810)

$17.99

$

Usually ships in 4-12 days

0

9

Ariens 00239351

R H LOWER HANDLEBAR

Note: For models (410,808,810)

$

$

Not available

10

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.99

$

In Stock, Qty 20+

0

11

Ariens 00231000

RETAINER CLIP
(Superseded to 00231059)

Note: For models (018,418)

$

$

Not available

12

Ariens 01022900

WAVE WASHER .515 X 1.00 X .125

Note: For models (018,418)

$

$

Not available

13

Ariens 06703700

PIN-HAIR EXT .12X.31X2.37 PL
(Superseded to 06711900)

Note: For models (018,418)

$3.49

$

Usually ships in 4-12 days

0

13

Ariens 06702000

PIN-HAIR INT .08X.18X1.18
(Superseded to 06713500)

Note: For models (410,808,810)

$0.99

$

In Stock, Qty 11

0

14

Ariens 00231700

DEPTH STICK HOLDER
(Superseded to 50203500)

Note: For models (018,418)

$

$

Not available

14

Ariens 00239459

DEPTH STICK HOLDER
(Superseded to 00239400)

Note: For models (410,808,810)

$

$

Not available

15

Ariens 05900400

BLT-HEX .38-16X1.00 PL
(Superseded to 05948700)

$1.99

$

In Stock, Qty 17

0

16

Ariens 06406500

WSHR-FL-STL .268X.562X.046 PL
(Superseded to 06437300)

$0.99

$

In Stock, Qty 10

0

17

Ariens 00243659

TINE HOOD
(Superseded to 50203600)

$

$

Not available

18

Ariens 06203300

BLT-RDHDSQNK .312-18X.62SHTPL
(Superseded to 06212200)

$1.99

$

In Stock, Qty 20+

0

19

Ariens 05900200

BLT-HEX .31-18X.63 PL GR 2
(Superseded to 05952200)

$1.99

$

Usually ships in 4-12 days

0

20

Ariens 00220000

CLEVIS PIN .437/.431X1.50 YWZC
(Superseded to 06815600)

Note: For models (018,418)

$

$

Not available

20

Ariens 06811600

PIN-CLEV .438X.958 PL

Note: For models (410,808,810)

$

$

Not available

21

Ariens 00229859

DEPTH STICK
(Superseded to 00229851)

Note: For models (018,418)

$56.99

$

Usually ships in 4-12 days

0

21

Ariens 00239559

DEPTH STICK
(Superseded to 00239500)

Note: For models (410,808,810)

$27.00

$

Usually ships in 4-12 days

0

22

Ariens 00607100

SPACER BUSHING .5 X .32 X .21

Note: For models (018,418)

$

$

Not available

23

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

Note: For models (018,418)

$1.99

$

In Stock, Qty 20+

0

24

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.99

$

In Stock, Qty 20+

0

25

Ariens 00219000

FRAME
(Superseded to 00242959)

Note: For models (018,418)

$

$

Not available

25

Ariens 00242959

FRAME

Note: For models (410,808,810)

$

$

Not available

26

Ariens 05900500

BLT-HEX .38-16X1.25 PL GR 2
(Superseded to 05958000)

Note: For models (018,418)

$1.99

$

In Stock, Qty 10

0

26

Ariens 07004100

SCREW - FLG WIZ LOCK HH PL

Note: For models (410,808,810)

$

$

Not available

27

Ariens 00229300

AXLE ROD

Note: For models (018,418)

$50.99

$

Usually ships in 4-12 days

0

28

Ariens 05800200

PIN-ROLL .125X1.38

Note: For models (018,418)

$3.99

$

Usually ships in 4-12 days

0

29

Ariens 00229400

SPACER .76 X .51 X .56

$19.99

$

Usually ships in 4-12 days

0

30

Ariens 07104000

WHL

Note: For models (018,418)

$

$

Not available

30

Ariens 07126500

T/WHL ASSY
(Superseded to 51116000)

Note: For models (410,808,810)

$75.99

$

In Stock, only 4 left!

0

31

Ariens 06701400

PIN-COTR .12 X 1.25 PL
(Superseded to 06712600)

$0.99

$

In Stock, Qty 8

0

32

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

Note: For models (018,418)

$1.49

$

In Stock, Qty 10

0

32

Ariens 06508000

NUT-LK-FLG .375-16 PL

Note: For models (410,808,810)

$4.99

$

Usually ships in 4-12 days

0

33

Ariens 50202400

GEAR CASE - CAST IRON

Note: For models (018,418)

$

$

Not available

33

Ariens 50202800

GEAR CASE-ALUM-902806,07,08,09

Note: For models (808,810,410,808,810)

$

$

Not available

34

Ariens 00125200

DUST CAP

Note: For models (018,418)

$35.99

$

In Stock, only 3 left!

0

34

Ariens 00283400

DUST CAP

Note: For models (410,808,810)

$10.99

$

Usually ships in 4-12 days

0

35

Ariens 06701000

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.99

$

In Stock, only 2 left!

0

36

Ariens 00238200

RH INNER TINE SPOOL

Note: For models (018,418)

$

$

Not available

36

Ariens 00238300

LH INNER TINE SPOOL

Note: For models (018,018,418)

$96.99

$

Usually ships in 4-12 days

0

36

Ariens 00236800

R.H. INNER TINE SPOOL

Note: For models (410,808,810)

$

$

Not available

36

Ariens 00238600

L.H. INNER TINE SPOOL
(Superseded to 00238651)

Note: For models (410,808,810)

$

$

Not available

37

Ariens 00238400

LH OUTER TINE SPOOL

Note: For models (018,418)

$

$

Not available

37

Ariens 00238500

RH OUTER TINE SPOOL

Note: For models (018,418)

$161.99

$

In Stock, only 1 left!

0

37

Ariens 00238751

R H OUTER TINE SPOOL

Note: For models (410,808,810)

$

$

Not available

37

Ariens 00238851

L H OUTER TINE SPOOL

Note: For models (410,808,810)

$

$

Not available

38

Ariens 00238100

TURBO-TINE
(Superseded to 00238151)

Note: For models (018,418)

$

$

Not available

38

Ariens 00238000

TURBO-TINE
(Superseded to 00238051)

Note: For models (018,418)

$28.99

$

Usually ships in 4-12 days

0

39

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

Note: For models (018,418)

$4.99

$

In Stock, only 4 left!

0

40

Ariens 06501900

NUT-LK-TOP .437-14 GR C PL
(Superseded to 06536400)

$3.49

$

In Stock, Qty 5

0

41

Ariens 05902600

BLT-HEX .44-14X1.00 GR5
(Superseded to 05958700)

$2.99

$

In Stock, only 1 left!

0

42

Ariens 00239600

CLUTCH CABLE FORWARD

Note: For models (410,808,810)

$51.99

$

In Stock, only 1 left!

0

43

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06500938)

Note: For models (410,808,810)

$1.49

$

In Stock, Qty 8

0

44

Ariens 07003600

BLT-CRVD-HD .31-18X1.44 YWZC

Note: For models (410,808,810)

$

$

Not available

45

Ariens 00243300

HANDLEBAR INSERT

Note: For models (808,810)

$

$

Not available

46

Ariens 00283500

PIN, CLEVIS .243/.248X1.50 YWZ

Note: For models (410,808,810)

$3.99

$

Usually ships in 4-12 days

0

47

Ariens 05902300

BLT-HEX .38-16X.75 PL GR2
(Superseded to 05959400)

Note: For models (418,018)

$1.99

$

In Stock, Qty 8

0

47

Ariens 05902300

BLT-HEX .38-16X.75 PL GR2
(Superseded to 05959400)

Note: For models (410,808,810)

$1.99

$

In Stock, Qty 8

0

48

Ariens 05915100

BLT-HEX .38-16X1.50 PL GR5
(Superseded to 05957900)

$1.99

$

In Stock, Qty 5

0

49

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

Note: For models (410,808,810)

$1.49

$

In Stock, Qty 20+

0

50

Ariens 00212300

CLEVIS PIN

Note: For models (018,418)

$3.99

$

In Stock, only 3 left!

0

51

Ariens 06400300

WSHR-FL-STL .531X1.062X.095 PL
(Superseded to 06441900)

$1.49

$

In Stock, Qty 10

0

52

Ariens 00240000

SHIELD

$5.99

$

Usually ships in 4-12 days

0

53

Ariens 00239900

SPACER .333X.520X.340

Note: For models (410,808,810)

$

$

Not available

54

Ariens 05903400

BLT-HEX .31-18X.88 PL GR2
(Superseded to 05947800)

Note: For models (410,808,810)

$2.99

$

In Stock, Qty 6

0

55

Ariens 01117600

SHOULDER BOLT .50 X 1.51 YWZC

Note: For models (410,808,810)

$

$

Not available

56

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

Note: For models (410,808,810)

$0.99

$

In Stock, Qty 8

0
