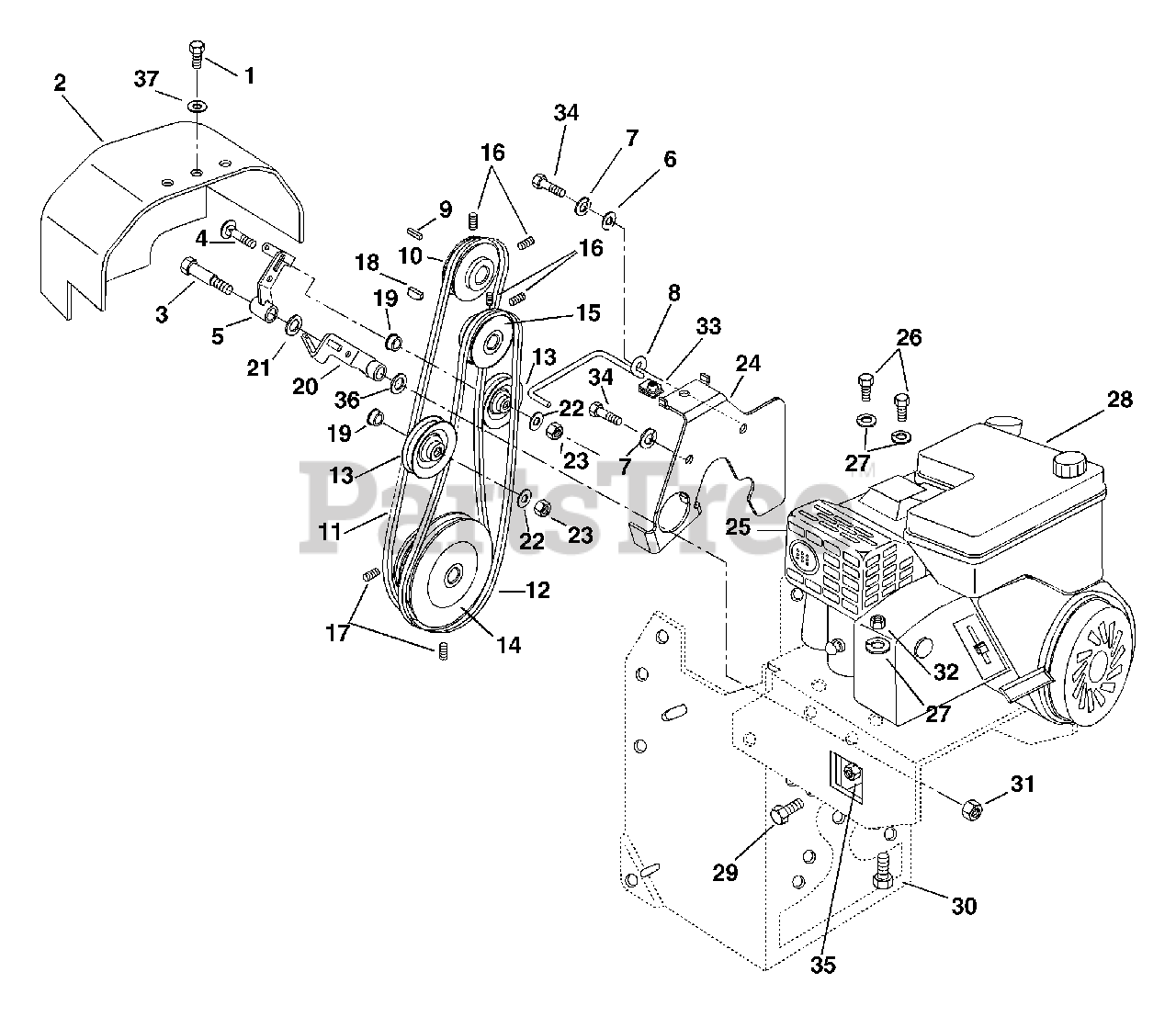

902501 (FT 524 R) - Ariens 24" Front Tine Tiller, 5hp Tecumseh (SN: 000101 & Above) Engine & Drive Parts Diagram

24" Front Tine Tiller, 5hp Tecumseh

Engine & Drive Parts Diagram

  • Title
1

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.79

$

In Stock, Qty 13

0

2

Ariens 00239700

BELT COVER
(Superseded to 50203700)

$

$

Not available

3

Ariens 07014000

SCR-SKTHD SHLDR .38-16X2.25

$7.77

$

Usually ships in 4-12 days

0

4

Ariens 06219200

@BLT-RDHDSQNK .31-18X1.25 G5YZ
(Superseded to 06200407)

$3.99

$

Usually ships in 4-12 days

0

5

Ariens 00229000

IDLER ARM FWD

$

$

Not available

6

Ariens 06435800

@WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$2.52

$

In Stock, Qty 14

0

7

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$2.52

$

In Stock, Qty 20+

0

8

Ariens 00250000

FINGER, BELT

$6.09

$

Usually ships in 4-12 days

0

9

Ariens 06602300

KEY-SQ .188X1.5X.187 SAE 8630
(Superseded to 06609600)

$2.46

$

Usually ships in 4-12 days

0

10

Ariens 50201600

SHEAVE ASSEMBLY

$

$

Not available

11

Ariens 07205600

V-BELT, 4L-WRAPPED

$24.60

$

In Stock, only 1 left!

0

12

Ariens 07237300

V-BELT, 3L-WRAPPED

$27.06

$

Usually ships in 4-12 days

0

13

Ariens 02457400

IDLER
(Superseded to 52007000)

$44.55

$

In Stock, Qty 14

0

14

Ariens 07307800

PLY-DBLV 5.50 X.75 W/KEY SALEM

$128.51

$

Usually ships in 4-12 days

0

15

Ariens 00249800

SHEAVE, .50 ID X 2.00 OD

$24.60

$

Usually ships in 4-12 days

0

16

Ariens 06005400

SCR-SET .25-20X.25 SKHCUPDL

$3.58

$

Usually ships in 4-12 days

0

17

Ariens 06005500

SCR-SET .31-18X.38 SKHCUPDL

$2.80

$

In Stock, Qty 18

0

18

Ariens 06601500

KEY-WDRF .125X.625X.250 SAE5

$2.24

$

In Stock, Qty 5

0

19

Ariens 01213100

SPCR, BRG .315X.50X.688X.281

$3.30

$

In Stock, only 1 left!

0

20

Ariens 00229100

IDLER ARM REV.

$

$

Not available

21

Ariens 06418000

WSHR-FL-STL .520X.827X.062 YZ
(Superseded to 06441100)

$2.24

$

In Stock, Qty 11

0

22

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$2.18

$

In Stock, Qty 20+

0

23

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$2.52

$

In Stock, Qty 20+

0

24

Ariens 00249751

FINGER, BELT

$7.32

$

Usually ships in 4-12 days

0

25

Ariens 00246500

MUFFLER SHIELD CE

$

$

Not available

26

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.96

$

In Stock, Qty 20+

0

27

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$2.52

$

In Stock, Qty 20+

0

28

Ariens 08259800

ENGINE TEC 5HP OHV

$

$

Not available

29

Ariens 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$2.18

$

In Stock, only 3 left!

0

30

Ariens 05957400

@BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$2.80

$

In Stock, Qty 8

0

31

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$2.24

$

In Stock, Qty 20+

0

32

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.96

$

In Stock, Qty 20+

0

33

Ariens 06513000

NUT-SPEED U-TYPE .250-20

$

$

Not available

34

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$2.24

$

In Stock, Qty 20+

0

35

Ariens 06512200

NUT-LK TOP .375-16 GR C YWZC

$2.12

$

Usually ships in 4-12 days

0

36

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$2.52

$

In Stock, Qty 11

0

37

Ariens 06442300

@WSHR-FL-STL.250X.56X.049 YWZC

$1.73

$

In Stock, only 2 left!

0
