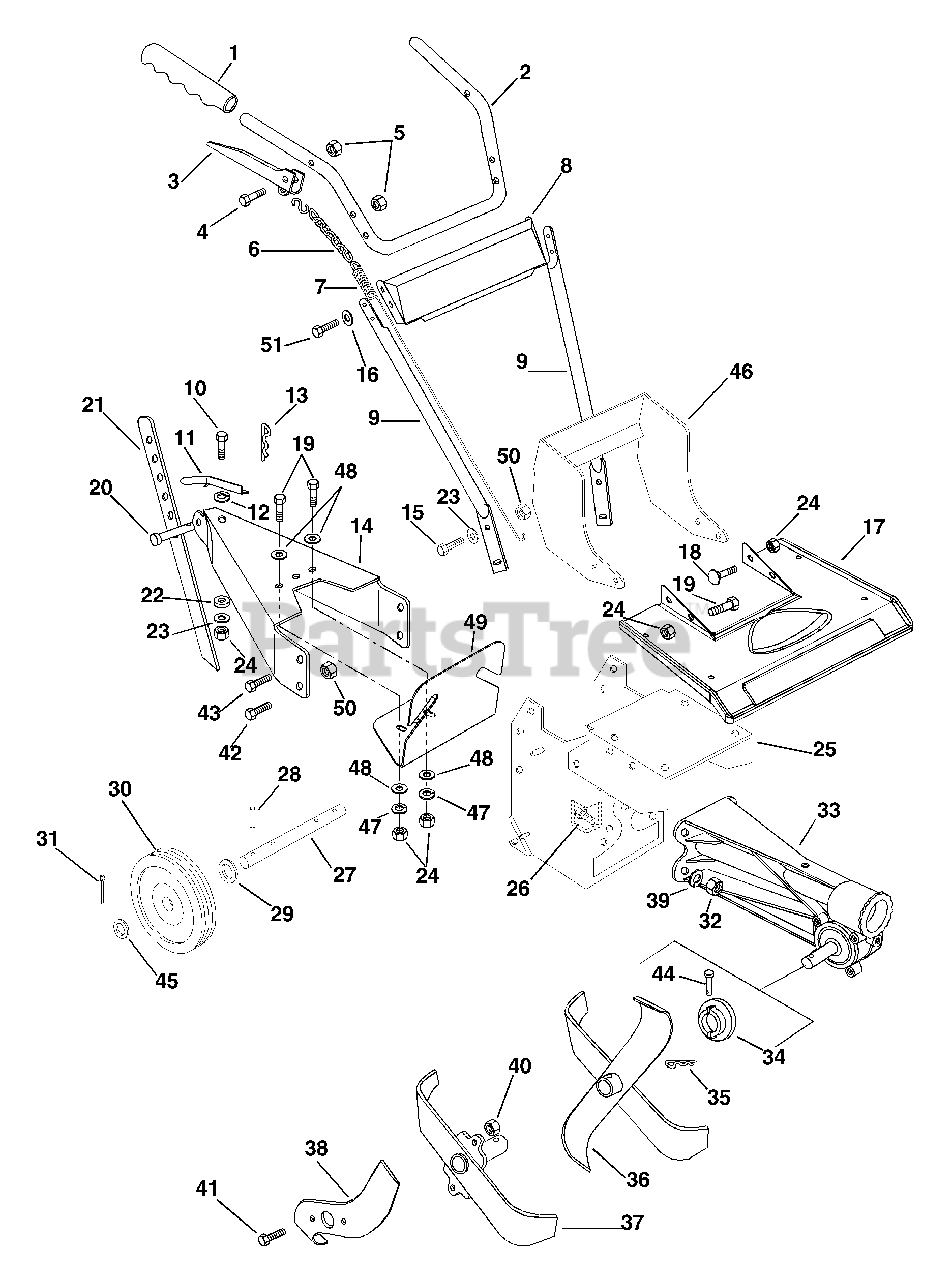

902501 (FT 524 R) - Ariens 24" Front Tine Tiller, 5hp Tecumseh (SN: 000101 & Above) Frame And Linkage Parts Diagram

24" Front Tine Tiller, 5hp Tecumseh

Frame And Linkage Parts Diagram

  • Title

1

Ariens 07500600

GRIP
(Superseded to 07500113)

$

$

Not available

2

Ariens 50203300

HANDLEBAR WITH DECALS - FT524

$

$

Not available

3

Ariens 00248700

HANDLE, CLUTCH

$

$

Not available

4

Ariens 05952500

@BLT-HEX .25-20X1.50 GR5 YWZC
(Superseded to 05901739)

$1.49

$

In Stock, Qty 8

0

5

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 00227000

CLUTCH CHAIN

$9.49

$

In Stock, only 4 left!

0

7

Ariens 08300800

SG-TENS .080X.25X31.6 WLD 35

$

$

Not available

8

Ariens 00231400

HANDLEBAR PANEL

$

$

Not available

9

Ariens 00203400

LOWER HANDLE BAR
(Superseded to 00203451)

$77.99

$

In Stock, only 3 left!

0

10

Ariens 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.49

$

In Stock, only 1 left!

0

11

Ariens 00231000

RETAINER CLIP
(Superseded to 00231059)

$

$

Not available

12

Ariens 00325400

WAVE WASHER .531X.781X.125FH

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06711900

PIN-HAIR-EXT .12X.31X2.37 YWZC

$2.99

$

In Stock, only 3 left!

0

14

Ariens 00231700

DEPTH STICK HOLDER
(Superseded to 50203500)

$

$

Not available

15

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

17

Ariens 00246300

TINE HOOD
(Superseded to 50203600)

$

$

Not available

18

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

19

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 16

0

20

Ariens 00220000

CLEVIS PIN .437/.431X1.50 YWZC
(Superseded to 06815600)

$3.99

$

Usually ships in 4-12 days

0

21

Ariens 00229859

DEPTH STICK
(Superseded to 00229851)

$54.99

$

Usually ships in 4-12 days

0

22

Ariens 00607100

SPACER BUSHING .5 X .32 X .21

$14.99

$

Usually ships in 4-12 days

0

23

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0

24

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 00219000

FRAME
(Superseded to 00242959)

$

$

Not available

26

Ariens 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 7

0

27

Ariens 00247800

AXLE ROD YWZC

$

$

Not available

28

Ariens 05800200

PIN-ROLL .125X1.38

$3.99

$

Usually ships in 4-12 days

0

29

Ariens 00229400

SPACER .76 X .51 X .56

$19.99

$

Usually ships in 4-12 days

0

30

Ariens 07104000

WHL

$

$

Not available

31

Ariens 06712600

@PIN-CTR .12X1.25 EXTPRSQCT YZ
(Superseded to 06700212)

$0.99

$

In Stock, Qty 8

0

32

Ariens 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, only 1 left!

0

33

Ariens 50202400

GEAR CASE - CAST IRON

$

$

Not available

34

Ariens 00125200

DUST CAP

$26.99

$

In Stock, Qty 6

0

35

Ariens 06701000

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.49

$

In Stock, only 2 left!

0

36

Ariens 00238200

RH INNER TINE SPOOL

$

$

Not available

Ariens 00238300

LH INNER TINE SPOOL

$94.99

$

In Stock, only 1 left!

0

37

Ariens 00238400

LH OUTER TINE SPOOL

$

$

Not available

Ariens 00238500

RH OUTER TINE SPOOL

$121.99

$

In Stock, only 1 left!

0

38

Ariens 00238100

TURBO-TINE
(Superseded to 00238151)

$

$

Not available

Ariens 00238000

TURBO-TINE
(Superseded to 00238051)

$27.99

$

Usually ships in 4-12 days

0

39

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 19

0

40

Ariens 06536400

@NUT-LK-CTR .44-14 YWZC
(Superseded to 06500930)

$2.99

$

Usually ships in 4-12 days

0

41

Ariens 05958700

@BLT-HEX .44-14X1.00 GR5 YWZC
(Superseded to 05901913)

$2.99

$

In Stock, only 1 left!

0

42

Ariens 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.49

$

In Stock, only 1 left!

0

43

Ariens 05915100

BLT-HEX .38-16X1.50 PL GR5
(Superseded to 05957900)

$1.49

$

In Stock, Qty 6

0

44

Ariens 00212300

CLEVIS PIN

$3.49

$

In Stock, only 3 left!

0

45

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

46

Ariens 00240000

SHIELD

$5.99

$

Usually ships in 4-12 days

0

47

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

48

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 8

0

49

Ariens 00250151

BRACKET, BELT GUARD

$5.99

$

Usually ships in 4-12 days

0

50

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

51

Ariens 05964700

@BLT-HEX .25-20X1.75 GR5 YWZC
(Superseded to 05901935)

$2.49

$

In Stock, only 3 left!

0
