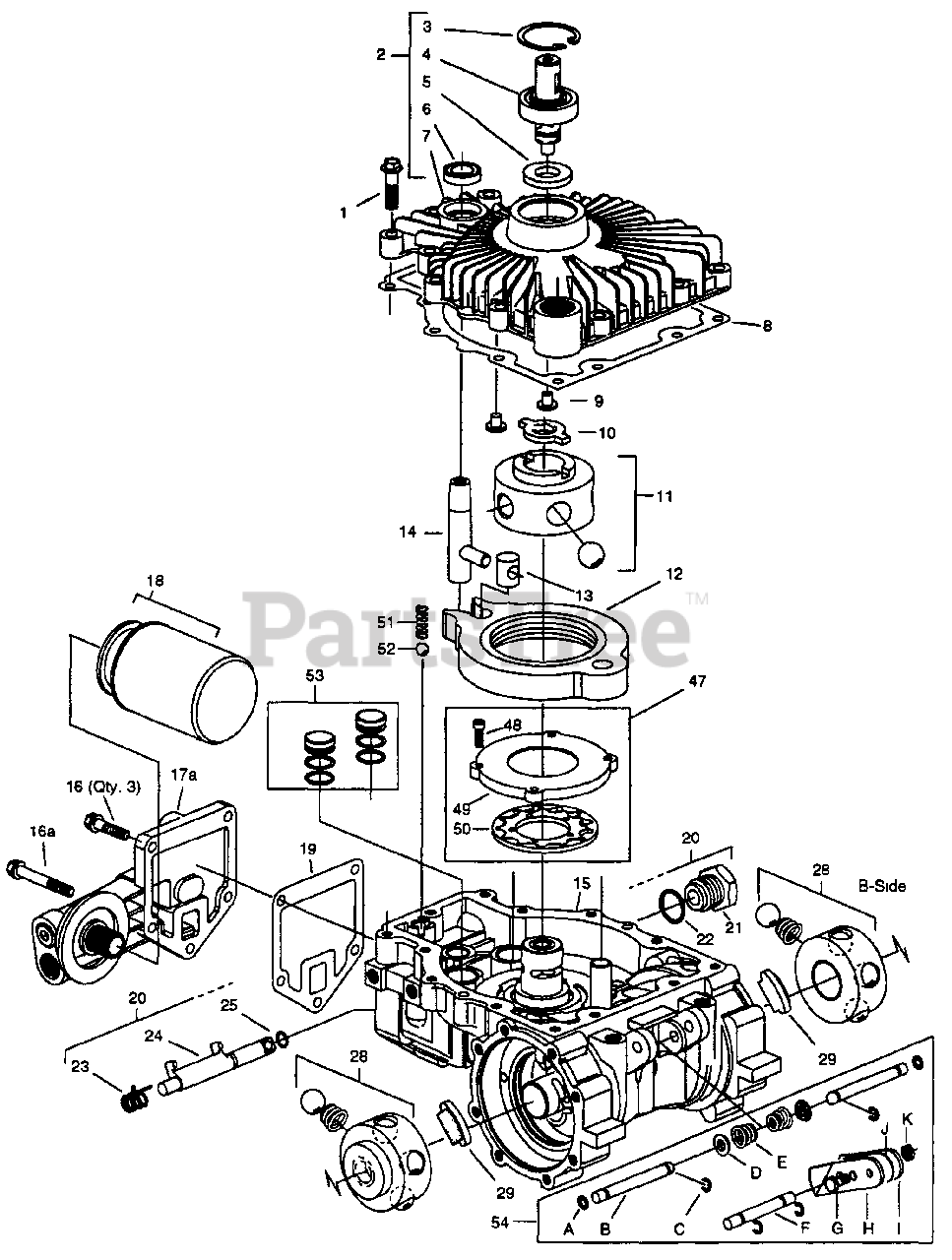

90263 (851-086) - Gravely Eaton Transmission TRANSMISSION Parts Diagram

Eaton Transmission

TRANSMISSION Parts Diagram

  • Title

1

Gravely 051776

SCREW, 1/4-20 SELF TAP.(13)
(Superseded to 03595800)

Note: (13)

$

$

Not available

2

Gravely 051789

ASM, COVER(SA)
(Superseded to 53403700)

Note: (SA)

$

$

Not available

3

Gravely 051747

RING, RETAINING INTERNAL
(Superseded to 03593200)

$

$

Not available

4

Gravely 051803

SHAFT, INPUT(SA)
(Superseded to 53404900)

Note: (SA)

$

$

Not available

5

Gravely 051794

SEAL, INPUT SHAFT
(Superseded to 21005200)

$

$

Not available

6

Gravely 051749

SEAL, CONTROL SHAFT
(Superseded to 03593400)

$

$

Not available

7

Gravely 052694

COVER
(Superseded to 21040400)

$

$

Not available

8

Gravely 051761

GASKET, COVER
(Superseded to 21001900)

$

$

Not available

9

Gravely 051762

BUTTON(2)
(Superseded to 21002000)

Note: (2)

$

$

Not available

10

Gravely 051778

DRIVE
(Superseded to 03596000)

$

$

Not available

11

Gravely 051754

PUMP, ROTOR-BALL-PIN(SA)
(Superseded to 21001200)

Note: (SA)

$

$

Not available

12

Gravely 051755

CAM RING(SA)
(Superseded to 03466000)

Note: (SA)

$

$

Not available

13

Gravely 051756

INSERT
(Superseded to 21001400)

$

$

Not available

14

Gravely 052696

SHAFT, CONTROL EXT. THRD.
(Superseded to 21040500)

$

$

Not available

14A

Gravely 051757

SHAFT, CONTROL
(Superseded to 03594200)

$

$

Not available

15

HOUSING(SA)

Note: (SA)

$

$

Not available

16

Gravely 051765

SCREW, 1/4-20 HEX FLANGE(AR)
(Superseded to 21002300)

Note: (AR)

$

$

Not available

16A

Gravely 052697

SCREW, 1/4-20 HEX FLANGE
(Superseded to 21040600)

$

$

Not available

16B

Gravely 051797

SCREW, 1/4-20 HEX FLANGE(2)
(Superseded to 21005500)

Note: (2)

$

$

Not available

17A

Gravely 052698

BASE, FILTER "U"
(Superseded to 03466500)

$

$

Not available

18

Gravely 047195

FILTER, OIL
(Superseded to 03467800)

$60.99

$

In Stock, only 1 left!

0

19

Gravely 051766

GASKET, FILTER BASE
(Superseded to 21002400)

$

$

Not available

20

Gravely 051796

O-RING, DUMP VALVE NUT
(Superseded to 03598100)

$8.99

$

In Stock, only 1 left!

0

20A

DUMP VALVE PARTS

$

$

Not available

21

Gravely 051800

NUT, DUMP VALVE
(Superseded to 03467600)

$

$

Not available

22

Gravely 051796

O-RING, DUMP VALVE NUT
(Superseded to 03598100)

$8.99

$

In Stock, only 1 left!

0

23

Gravely 051758

SPRING, DUMP VALVE
(Superseded to 21001600)

$14.99

$

Usually ships in 4-12 days

0

24

Gravely 051759

BRACKET, DUMP VALVE
(Superseded to 03466200)

$

$

Not available

25

Gravely 051763

O-RING, DUMP VALVE BRACKET
(Superseded to 21002100)

$

$

Not available

26

Gravely 052701

SCREW, 5/16 HEX FLANGE(16)
(Superseded to 21040800)

Note: (16)

$

$

Not available

27

Gravely 052702

GASKET, AXLE HOUSING(2)
(Superseded to 03463000)

Note: (2)

$

$

Not available

28

Gravely 051793

MOTOR, ROTOR-BALL(2)
(Superseded to 21005100)

Note: (2)

$

$

Not available

29

Gravely 052703

PAD, FRICTION(SA)(2)
(Superseded to 21041000)

Note: (SA)(2)

$59.99

$

Usually ships in 4-12 days

0

30

Gravely 052704

PLATE, REACTION(2)
(Superseded to 21041100)

Note: (2)

$

$

Not available

31

Gravely 052705

PLATE, BACKUP(2)
(Superseded to 21041200)

Note: (2)

$

$

Not available

32

15T SUN GEAR, FIRST(2)

Note: (2)

$

$

Not available

33

GEAR, RING 57T(4)

Note: (4)

$

$

Not available

34

21T PLANET GEAR(SA) FIRST(6)

Note: (SA) FIRST(6)

$

$

Not available

35

Gravely 052706

15T CARRIER, PRIMARY(SA)(2)
(Superseded to 21041300)

Note: (SA)(2)

$

$

Not available

36

15T SUN GEAR, SECOND(2)

Note: (2)

$

$

Not available

36

15T SUN GEAR, SECOND(STEEL)(2)

Note: (STEEL)(2)

$

$

Not available

37

Gravely 052707

21T PLANET GEAR(SA) SECOND(STEEL)(6)
(Superseded to 21041400)

Note: (SA) SECOND(STEEL)(6)

$

$

Not available

38

Gravely 052708

CARRIER, SECONDARY(SA)(2)
(Superseded to 21041500)

Note: (SA)(2)

$

$

Not available

39

Gravely 052709

HOUSING, AXLE(SA) A-SIDE
(Superseded to 21041600)

Note: (SA) A-SIDE

$

$

Not available

39A

Gravely 052710

HOUSING, AXLE(SA) B-SIDE
(Superseded to 21041700)

Note: (SA) B-SIDE

$

$

Not available

40

Gravely 052711

HOUSING, AXLE(2)
(Superseded to 21041800)

Note: (2)

$

$

Not available

41

Gravely 051774

RING, RETAINING EXTERNAL(4)
(Superseded to 21003200)

Note: (4)

$

$

Not available

42

Gravely 051775

WASHER, THRUST(4)
(Superseded to 03595700)

Note: (4)

$

$

Not available

43

Gravely 051770

RING, RETAINING INTERNAL(2)
(Superseded to 21002800)

Note: (2)

$20.99

$

Usually ships in 4-12 days

0

44

Gravely 051773

BEARING, AXLE SHAFT(2)
(Superseded to 03595500)

Note: (2)

$

$

Not available

45

Gravely 051772

SEAL, AXLE SHAFT(2)
(Superseded to 03595400)

Note: (2)

$34.99

$

In Stock, only 1 left!

0

46

Gravely 052712

SHAFT, AXLE A-SIDE
(Superseded to 21041900)

$

$

Not available

46

Gravely 052713

SHAFT, AXLE B-SIDE
(Superseded to 21042000)

$

$

Not available

47

PUMP, CHARGE

$

$

Not available

48

SCREW, CAP, SOCKET(4)

Note: (4)

$

$

Not available

49

PLATE, PUMP(CLASS II)

Note: (CLASS II)

$

$

Not available

50

GEROTOR(CLASS II)

Note: (CLASS II)

$

$

Not available

51

Gravely 051801

SPRING, RELIEF VALVE
(Superseded to 03467700)

$

$

Not available

52

Gravely 051804

BALL, GRADE 200
(Superseded to 03467900)

$

$

Not available

53

PISTON, DAMPENING

$

$

Not available

53

PISTON(SA)(2)

Note: (SA)(2)

$

$

Not available

54

BRAKE LEVER PARTS

$

$

Not available

54A

Gravely 052715

QUAD SEAL(2)
(Superseded to 03477400)

Note: (2)

$

$

Not available

54B

Gravely 052716

ROD, PUSH(2)
(Superseded to 03477500)

Note: (2)

$

$

Not available

54C

Gravely 052717

E-RING(4)
(Superseded to 03477600)

Note: (4)

$

$

Not available

54D

Gravely 052718

SPRING BASE(SA)(2)
(Superseded to 03477700)

Note: (SA)(2)

$

$

Not available

54E

Gravely 052719

SPRING, CONICAL(2)
(Superseded to 03477800)

Note: (2)

$

$

Not available

54F

Gravely 052720

SHAFT, BRAKE
(Superseded to 21042700)

$

$

Not available

54G

Gravely 052721

SCREW, CAP, HEX
(Superseded to 21042800)

$

$

Not available

54H

Gravely 052722

LEVER, BRAKE RH
(Superseded to 21042900)

$

$

Not available

54I

Gravely 052723

LEVER, BRAKE LH
(Superseded to 21043000)

$

$

Not available

54J

Gravely 052724

SHIM(AR)

Note: (AR)

$

$

Not available

54K

Gravely 052725

NUT, HEX, LOCK

$

$

Not available

55

Gravely 052726

.625 STR. FITTING/O-RING
(Superseded to 21043300)

$

$

Not available

Gravely 051796

O-RING, DUMP VALVE NUT
(Superseded to 03598100)

$8.99

$

In Stock, only 1 left!

0
