9027 ST (954223074-A) - Husqvarna 27" Snow Blower (2002-09) Wheels Parts Diagram

27" Snow Blower

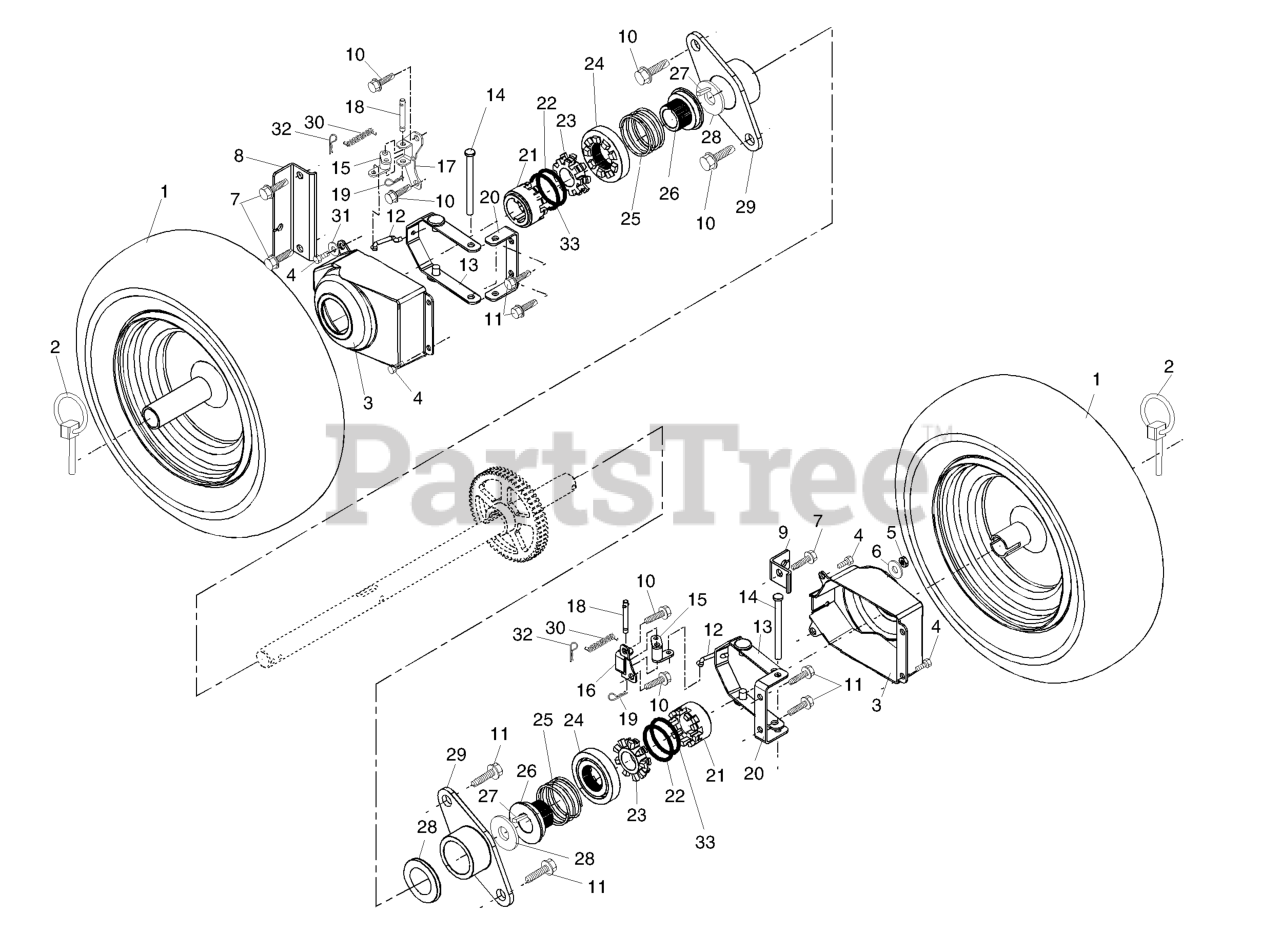

Wheels Parts Diagram

  • Title

1

Husqvarna 532178834

WHEEL ASSEMBLY (16" PWR STEER)
(Superseded to 532198421)

$

$

Not available

2

Husqvarna 532155443

PIN KLIK, 1/4

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532181843

COVER, POWER STEERING
(Superseded to 532405161)

$11.99

$

In Stock, only 2 left!

0

4

Husqvarna 817541008

SCREW

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.49

$

In Stock, Qty 20+

0

6

Husqvarna 532155415

WASHER.20X8.5

$3.49

$

In Stock, only 1 left!

0

7

Husqvarna 871210616

Screw, Hex Head 3/8-16 x 1

$

$

Not available

8

Husqvarna 532184200

BRACKET, STEER CABLE RH
(Superseded to 532185603)

$22.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532184199

BRACKET, STEER CABLE LH

$

$

Not available

10

Husqvarna 532150078

SELF-TAPPING SCREW 5/16-18X3/4
(Superseded to 532428867)

$5.99

$

In Stock, Qty 20+

0

11

Husqvarna 817490508

Screw, Hex Head 5/16-18 x 1/2
(Superseded to 539990858)

$

$

Not available

12

Husqvarna 532184393

LINK
(Superseded to 532405077)

$9.49

$

Usually ships in 3-10 days

0

13

Husqvarna 532184529

LEVER
(Superseded to 532445266)

$22.99

$

In Stock, only 2 left!

0

14

Husqvarna 532182015

PIN, STEERING LEVER

$3.49

$

Usually ships in 3-10 days

0

15

Husqvarna 532184361

BELLCRANK ASSM.
(Superseded to 584375101)

$

$

Not available

16

Husqvarna 532181982

BRACKET ASS. LH STEERING

$

$

Not available

17

Husqvarna 532182063

BRACKET ASSM RH STEERING

$

$

Not available

18

Husqvarna 532181847

PIN, STEERING BELLCRANK

$3.49

$

Usually ships in 3-10 days

0

19

Husqvarna 532085179

RETAINER CLIP PM

$

$

Not available

20

Husqvarna 532184197

BRACKET.STEER.PNT.BLACK

$

$

Not available

21

Husqvarna 532179141

DRIVER, WHEEL

$

$

Not available

22

Husqvarna 532182466

RING, WIRE RETAINER

$3.49

$

In Stock, only 1 left!

0

23

Husqvarna 532179136

LOBE, WHEEL

$

$

Not available

24

Husqvarna 532179138

SLIDE.CLUTCH.SPLINED

$

$

Not available

25

Husqvarna 532179139

SPRING, CLUTCH SLIDE

$5.99

$

In Stock, Qty 8

0

26

Husqvarna 532179137

LOBE.AXLE.SPLINED

$43.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532178879

KEY
(Superseded to 532189282)

$5.99

$

In Stock, only 3 left!

0

28

Husqvarna 532174697

WASHER TRUST 1"
(Superseded to 532007396)

$

$

Not available

29

Husqvarna 532179830

BEARING, AXLE

$22.99

$

In Stock, only 2 left!

0

30

Husqvarna 532182226

SPRING, RETURN
(Superseded to 532406558)

$9.49

$

In Stock, Qty 20+

0

31

Husqvarna 532004802

WASHER

$

$

Not available

32

Husqvarna 532700279

RETAINER CLIP

$3.49

$

Usually ships in 3-10 days

0

33

Husqvarna 812000045

RING

$

$

Not available
