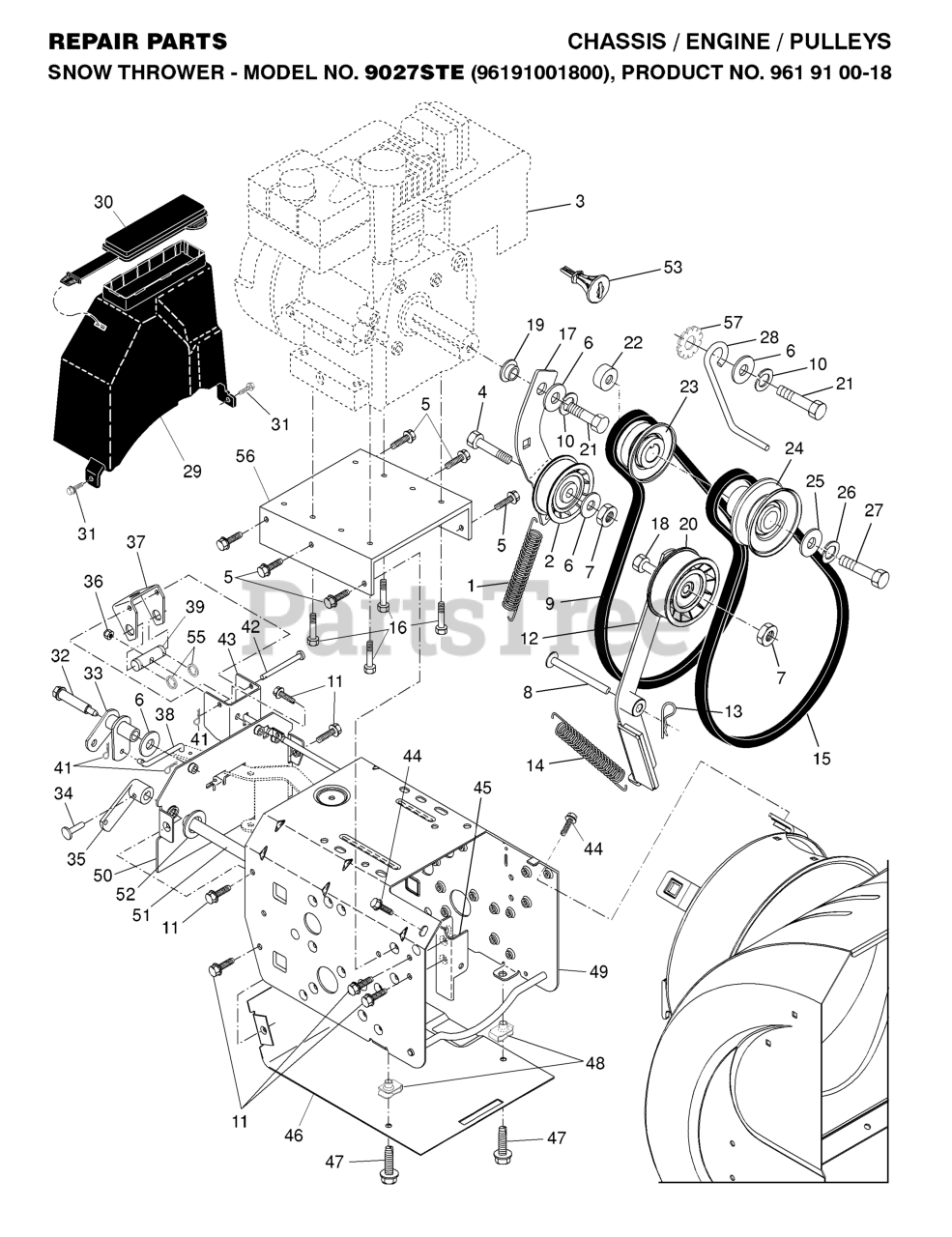

9027 STE (961910018-00) - Husqvarna 27" Snow Blower (2007-07) CHASSIS, ENGINE & PULLEYS Parts Diagram

27" Snow Blower

CHASSIS, ENGINE & PULLEYS Parts Diagram

  • Title

21

Husqvarna 874610516

SCREW

$4.99

$

In Stock, only 4 left!

0

30

Husqvarna 532178830

COVER.STORAGE.SNOW

$

$

Not available

33

Husqvarna 532187853

BELLCRANK SHIFTER

$15.99

$

Usually ships in 3-10 days

0

36

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532192213

COVER.ASM.BELT/STORAGE
(Superseded to 532443030)

$40.99

$

In Stock, only 1 left!

0

41

Husqvarna 532700279

RETAINER CLIP

$6.49

$

Usually ships in 3-10 days

0

6

Husqvarna 532059289

STEEL WASHER

$4.99

$

In Stock, only 3 left!

0

23

Husqvarna 532180478

PULLEY,ENGINE TRACTION DRIVE
(Superseded to 595926601)

$30.99

$

Usually ships in 3-10 days

0

57

Husqvarna 811050500

WASHER EXT TOOTH LOCK 5/16
(Superseded to 810040500)

$3.99

$

In Stock, Qty 18

0

9

Husqvarna 532407908

NEEDS DESCRIPTION

$

$

Not available

28

Husqvarna 532155452

BELT.GUIDE.RH

$6.49

$

In Stock, only 1 left!

0

16

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

In Stock, Qty 10

0

43

Husqvarna 532184085

BRACKET

$

$

Not available

45

Husqvarna 532184074

BRACKET, IDLER PIVOT
(Superseded to 532422762)

$91.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532405485

ARM, AUGER CONTROL

$10.99

$

In Stock, only 1 left!

0

46

Husqvarna 532184084

PAN, FRAME BOTTOM
(Superseded to 532178624)

$

$

Not available

49

Husqvarna 532407863

SWITCH.PTO.T

$40.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532188002

PLATE, FRAME END
(Superseded to 583706301)

$14.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532180523

PULLEY.W/SPACER.2.75

$24.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532192110

TRUNNION, TRACTION

$

$

Not available

42

Husqvarna 532179065

PIN, PIVOT BRACKET

$10.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$3.99

$

In Stock, Qty 20+

0

48

Husqvarna 532181156

NUT.SPEED.5/16-18

$7.49

$

In Stock, only 2 left!

0

51

Husqvarna 532406109

SHAFT, AUGER CONTROL
(Superseded to 532429668)

$47.99

$

In Stock, only 1 left!

0

47

Husqvarna 871020512

Screw, Hex Head 5/16-18 x 3/4

$

$

Not available

44

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 6

0

12

Husqvarna 532410420

ARM PAD ASSY
(Superseded to 532422111)

$15.99

$

In Stock, only 1 left!

0

5

Husqvarna 532150078

SELF-TAPPING SCREW 5/16-18X3/4
(Superseded to 874780512)

$3.99

$

In Stock, Qty 20+

0

34

Husqvarna 532198580

CLEVIS PIN

$6.49

$

Usually ships in 3-10 days

0

24

Husqvarna 532179157

PULLEY, ENGINE IMPELLER DRIVE
(Superseded to 532426491)

$26.99

$

In Stock, only 2 left!

0

31

Husqvarna 817490408

SCREW
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532178828

SPRING, BRAKE

$6.49

$

In Stock, Qty 12

0

37

Husqvarna 532178833

BELLCRANK ASSY.
(Superseded to 532184086)

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532175331

RP BUSHING, IDLER PIVOT
(Superseded to 587343701)

$4.99

$

In Stock, only 1 left!

0

27

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

55

Husqvarna 812000002

RETAINING RING LT

$7.49

$

In Stock, Qty 10

0

18

Husqvarna 874780524

HEX BOLT
(Superseded to 539976935)

$1.49

$

Usually ships in 3-10 days

0

7

Husqvarna 532166785

LOCKNUT 5/16-18
(Superseded to 532426589)

$6.49

$

In Stock, Qty 18

0

32

Husqvarna 532179256

BOLT, SHOULDER 5/16-18

$

$

Not available

22

Husqvarna 532409475

SPACER.ENGINE.PULLEY

$4.99

$

Usually ships in 3-10 days

0

56

Husqvarna 532417071

PLATE.ENGINE.MOUNT.PNT
(Superseded to 583748701)

$30.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532181044

RP SPRING, TRACTION IDLER
(Superseded to 532414557)

$6.49

$

In Stock, only 4 left!

0

10

Husqvarna 810400500

LOCKWASHER
(Superseded to 810040500)

$3.99

$

In Stock, Qty 18

0

53

Husqvarna 532193071

KEY.PUSH/PULL.B&S.283707
(Superseded to 532019371)

$7.49

$

In Stock, Qty 7

0

8

Husqvarna 532175330

PIN, IDLER PIVOT

$3.99

$

In Stock, Qty 18

0

13

Husqvarna 532085179

RETAINER CLIP PM

$7.49

$

Usually ships in 3-10 days

0

38

Husqvarna 532187101

LINK, SPEED CONTROL

$

$

Not available

52

Husqvarna 532057079

THRUST WASHER

$6.49

$

In Stock, Qty 19

0

2

Husqvarna 532180522

PULLEY.W/SPACER.2.25

$31.99

$

Usually ships in 3-10 days

0

4

Husqvarna 874780520

BOLT.5/16-18X1-1/4 FULL.THREAD
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532408007

BELT.V.IMPELLER

$40.99

$

In Stock, Qty 13

0

17

Husqvarna 532184804

IDLER ARM
(Superseded to 585238401)

$44.99

$

In Stock, only 2 left!

0

11

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532400026

WASHER, FLAT 3/8

$4.99

$

In Stock, only 3 left!

0
