9027 STE (961910018-04) - Husqvarna 27" Snow Blower (2008-08) HANDLE & CONTROLS 3 Parts Diagram

27" Snow Blower

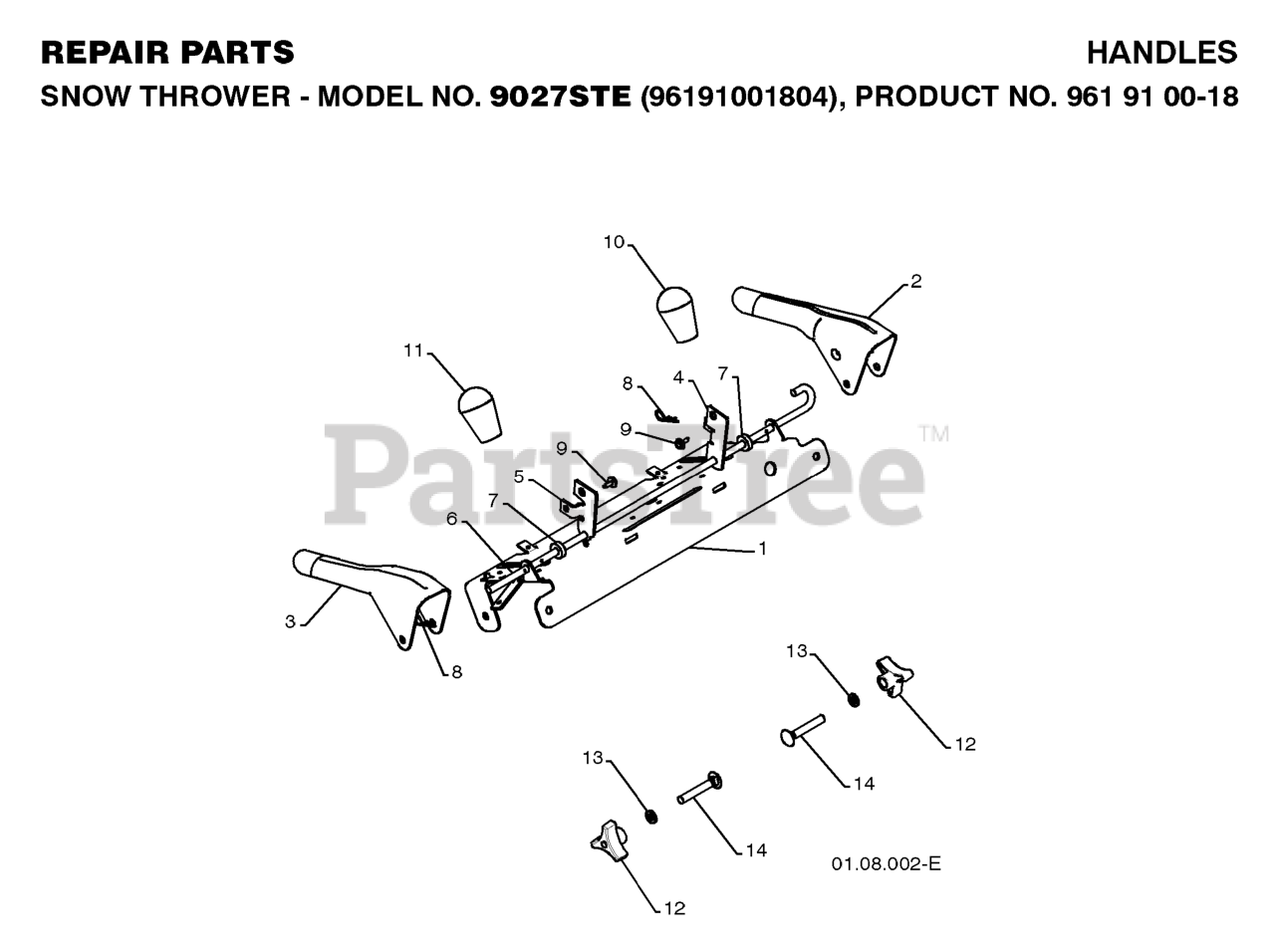

HANDLE & CONTROLS 3 Parts Diagram

  • Title

1

Husqvarna 532415539

PANEL.CONTROL.PNT.BLACK
(Superseded to 585198802)

$

$

Not available

8

Husqvarna 532169675

SPRING RETAINER

$5.99

$

In Stock, only 2 left!

0

4

Husqvarna 532415546

ARM.TRACTION.ROD.YZ

$

$

Not available

11

Husqvarna 532414281

RED KNOB SHIFTER

$28.99

$

Usually ships in 3-10 days

0

13

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.49

$

In Stock, Qty 20+

0

3

Husqvarna 532415542

LEVER.CONTROL.RH.PNT
(Superseded to 580687702)

$56.99

$

Usually ships in 3-10 days

0

9

Husqvarna 817060408

SCREW

$5.99

$

In Stock, only 2 left!

0

12

Husqvarna 532178899

KNOB.HANDLE.3/8.TRI-POINT.BLAC

$5.99

$

In Stock, Qty 10

0

10

Husqvarna 532414280

KNOB LEVER, BLACK

$7.99

$

In Stock, Qty 6

0

2

Husqvarna 532415541

LEVER.CONTROL.LH.PNT
(Superseded to 580687802)

$13.99

$

Usually ships in 3-10 days

0

14

Husqvarna 872120618

BOLT 3/8-16 X 2-1/4

$6.99

$

In Stock, only 4 left!

0

7

Husqvarna 532421613

SPACER.CONTROL.LEVER

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532421492

ARM.IMPELLER.ROD.
(Superseded to 532429098)

$

$

Not available

6

Husqvarna 532412677

BAIL.CONTROL.INTERLOCK

$

$

Not available
