902803 (RT 214) - Ariens 14" Front Tine Tiller, 2hp Briggs & Stratton (SN: 033001 & Above) Frames And Linkage Parts Diagram

14" Front Tine Tiller, 2hp Briggs & Stratton

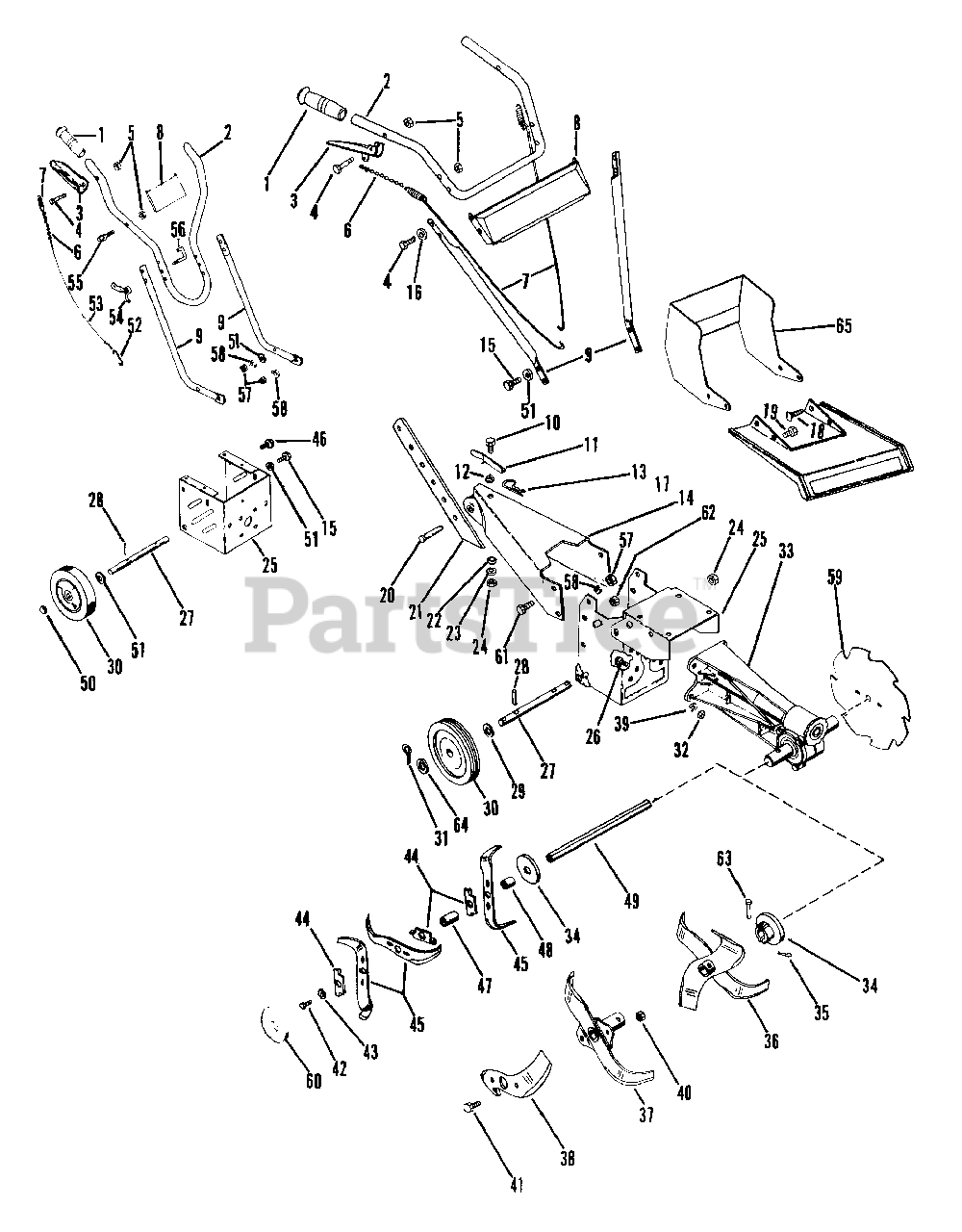

Frames And Linkage Parts Diagram

  • Title

1

Ariens 07500600

GRIP
(Superseded to 07500113)

Note: (902026, 028)

$

$

Not available

1

Ariens 07508100

GRIP
(Superseded to 07518600)

Note: (Used Only On Model(s): 902803).

$15.99

$

Usually ships in 4-12 days

0

2

Ariens 00234700

HANDLEBAR
(Superseded to 50203300)

Note: (902026, 028)

$

$

Not available

2

Ariens 00284100

UPPER HANDLEBAR
(Superseded to 00284151)

Note: (Used Only On Model(s): 902803).

$

$

Not available

3

Ariens 00203800

CLUTCH HANDLE
(Superseded to 00203851)

Note: (902026, 028)

$39.99

$

Usually ships in 4-12 days

0

3

Clutch Handle

Note: (Used Only On Model(s): 902803).

$

$

Not available

4

Ariens 05905000

BLT-HEX .25-20X1.50 PL GR5
(Superseded to 05952500)

$1.49

$

In Stock, Qty 8

0

5

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 00204200

CHAIN & CONNECTOR

Note: (Used Only On Model(s): 902803).

$6.99

$

In Stock, Qty 6

0

6

Ariens 00227000

CLUTCH CHAIN

Note: (902026, 028)

$9.49

$

In Stock, only 4 left!

0

7

Ariens 08300800

SG-TENS .080X.25X31.6 WLD 35

Note: (902026, 028)

$

$

Not available

7

Ariens 08309900

SG-TENS .092X.69X1.75 WLD 54

Note: (Used Only On Model(s): 902803).

$

$

Not available

8

Ariens 00231400

HANDLEBAR PANEL

Note: (902026, 028)

$

$

Not available

8

Ariens 00283800

NAME PLATE

Note: (Used Only On Model(s): 902803).

$

$

Not available

9

Ariens 00203400

LOWER HANDLE BAR
(Superseded to 00203451)

Note: (902026, 028)

$77.99

$

In Stock, only 3 left!

0

9

Ariens 00283900

L H LOWER HANDLEBAR

Note: (Used Only On Model(s): 902803).

$

$

Not available

9

Ariens 00284000

R H LOWER HANDLEBAR
(Superseded to 00284051)

Note: (Used Only On Model(s): 902803).

$

$

Not available

10

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.49

$

In Stock, Qty 16

0

11

Ariens 00231000

RETAINER CLIP
(Superseded to 00231059)

Note: (902026, 028)

$

$

Not available

12

Ariens 01022900

WAVE WASHER .515 X 1.00 X .125

Note: (902026, 028)

$

$

Not available

13

Ariens 06703700

PIN-HAIR EXT .12X.31X2.37 PL
(Superseded to 06711900)

$2.99

$

In Stock, only 3 left!

0

14

Ariens 00231700

DEPTH STICK HOLDER
(Superseded to 50203500)

Note: (902026, 028)

$

$

Not available

15

Ariens 05900400

BLT-HEX .38-16X1.00 PL
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 06406500

WSHR-FL-STL .268X.562X.046 PL
(Superseded to 06437300)

$0.99

$

In Stock, Qty 15

0

17

Ariens 00229200

TINE HOOD
(Superseded to 50203600)

Note: (902026, 028)

$

$

Not available

18

Ariens 06203300

BLT-RDHDSQNK .312-18X.62SHTPL
(Superseded to 06212200)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 05900200

BLT-HEX .31-18X.63 PL GR 2
(Superseded to 05952200)

$1.49

$

Usually ships in 4-12 days

0

20

Ariens 00220000

CLEVIS PIN .437/.431X1.50 YWZC
(Superseded to 06815600)

Note: (902026, 028)

$3.99

$

Usually ships in 4-12 days

0

21

Ariens 00229800

DEPTH STICK
(Superseded to 00229851)

Note: (902026, 028)

$54.99

$

Usually ships in 4-12 days

0

22

Ariens 00607100

SPACER BUSHING .5 X .32 X .21

Note: (902026, 028)

$14.99

$

Usually ships in 4-12 days

0

23

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 14

0

24

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 00219000

FRAME
(Superseded to 00242959)

Note: (902026, 028)

$

$

Not available

25

Ariens 00284900

FRAME
(Superseded to 00288059)

Note: (Used Only On Model(s): 902803).

$22.99

$

Usually ships in 4-12 days

0

26

Ariens 05900500

BLT-HEX .38-16X1.25 PL GR 2
(Superseded to 05958000)

Note: (902028)

$1.49

$

In Stock, Qty 7

0

26

Ariens 07004100

SCREW - FLG WIZ LOCK HH PL

Note: (902026, 803)

$

$

Not available

27

Ariens 00229300

AXLE ROD

Note: (902026, 028)

$48.99

$

Usually ships in 4-12 days

0

27

Ariens 00285500

AXLE ROD
(Superseded to 00247300)

Note: (Used Only On Model(s): 902803).

$

$

Not available

28

Ariens 05800200

PIN-ROLL .125X1.38

Note: (902026, 028)

$3.99

$

Usually ships in 4-12 days

0

28

Ariens 05803400

PIN-ROLL .125X.75

Note: (Used Only On Model(s): 902803).

$0.99

$

In Stock, Qty 9

0

29

Ariens 00229400

SPACER .76 X .51 X .56

Note: (902026, 028)

$19.99

$

Usually ships in 4-12 days

0

30

Ariens 07104000

WHL

Note: (902026, 028)

$

$

Not available

30

Ariens 07112300

TIRE 8X1.75

Note: (Used Only On Model(s): 902803).

$

$

Not available

31

Ariens 06701400

PIN-COTR .12 X 1.25 PL
(Superseded to 06712600)

$0.99

$

In Stock, Qty 8

0

32

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

Note: (902028)

$0.99

$

In Stock, only 2 left!

0

32

Ariens 06508000

NUT-LK-FLG .375-16 PL

Note: (902026, 803)

$3.99

$

Usually ships in 4-12 days

0

33

Ariens 50202400

GEAR CASE - CAST IRON

Note: (902028)

$

$

Not available

33

Ariens 50201200

GEAR CASE - ALUMINUM

Note: (902026)

$678.99

$

Usually ships in 4-12 days

0

33

Ariens 50202300

GEAR CASE - ALUMINUM

Note: (902803)

$

$

Not available

34

Ariens 00125200

DUST CAP

Note: (902026, 028)

$26.99

$

In Stock, Qty 6

0

34

Ariens 00285700

DUST CUP
(Superseded to 00285759)

Note: (Used Only On Model(s): 902803).

$11.99

$

Usually ships in 4-12 days

0

35

Ariens 06701000

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.49

$

In Stock, only 2 left!

0

36

Ariens 00125800

R H INNER TINE SPOOL
(Superseded to 50203100)

Note: (902026, 028)

$

$

Not available

36

Ariens 00125900

L H INNER TINE SPOOL
(Superseded to 00238300)

Note: (902026, 028)

$94.99

$

In Stock, only 1 left!

0

37

Ariens 00130100

L H OUTER TINE SPOOL
(Superseded to 00238400)

Note: (902026, 028)

$

$

Not available

37

Ariens 00130200

R H OUTER TINE SPOOL
(Superseded to 00238500)

Note: (902026, 028)

$121.99

$

In Stock, only 1 left!

0

38

Ariens 00208400

R H TURBO-TINE
(Superseded to 00238151)

Note: (902026, 028)

$

$

Not available

38

Ariens 00208500

L H TURBO-TINE
(Superseded to 00238051)

Note: (902026, 028)

$27.99

$

Usually ships in 4-12 days

0

39

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, Qty 12

0

40

Ariens 06501900

NUT-LK-TOP .437-14 GR C PL
(Superseded to 06536400)

$2.99

$

Usually ships in 4-12 days

0

41

Ariens 05902600

BLT-HEX .44-14X1.00 GR5
(Superseded to 05958700)

$2.99

$

In Stock, only 1 left!

0

42

Ariens 05912700

BLT-HEX .38-24X.75 GR5
(Superseded to 05962600)

$

$

Not available

43

Ariens 06301400

WSHR-LK .375X.130
(Superseded to 06306700)

$3.99

$

In Stock, only 1 left!

0

44

Ariens 00285900

TINE RETAINER
(Superseded to 00285959)

Note: (Used Only On Model(s): 902803).

$34.99

$

Usually ships in 4-12 days

0

45

Ariens 00284700

LEFT HAND TINE
(Superseded to 00284759)

Note: (Used Only On Model(s): 902803).

$27.99

$

In Stock, only 2 left!

0

45

Ariens 00284800

RIGHT HAND TINE
(Superseded to 00284859)

Note: (Used Only On Model(s): 902803).

$27.99

$

Usually ships in 4-12 days

0

46

Ariens 05902700

BLT-HEX .38-16X1.75 PL GR2
(Superseded to 05958500)

$1.49

$

In Stock, only 2 left!

0

47

Ariens 00286000

SPACER .747X1.002X1.562

Note: (Used Only On Model(s): 902803).

$

$

Not available

48

Ariens 00285800

SPACER .747X1.002X1.250

Note: (Used Only On Model(s): 902803).

$

$

Not available

49

Ariens 00285600

HEX TINE SHAFT

Note: (Used Only On Model(s): 902803).

$

$

Not available

49

Ariens 00286600

HEX SHAFT

Note: (Used Only On Model(s): 902803).

$

$

Not available

50

Ariens 01019800

CAP, 3/8 ROD YWZC

Note: (Used Only On Model(s): 902803).

$2.99

$

In Stock, Qty 7

0

51

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

Note: (902026, 028)

$1.49

$

In Stock, Qty 14

0

51

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

Note: (Used Only On Model(s): 902803).

$0.99

$

In Stock, Qty 20+

0

52

Ariens 00214600

LINK

Note: (Used Only On Model(s): 902803).

$17.99

$

Usually ships in 4-12 days

0

53

Ariens 06911400

CLUTCH CABLE

Note: (Used Only On Model(s): 902803).

$

$

Not available

54

Ariens 01101200

WING NUT, .312-18
(Superseded to 07534800)

Note: (Used Only On Model(s): 902803).

$7.99

$

In Stock, Qty 13

0

55

Ariens 01028900

ROD HANGER EYEBOLT
(Superseded to 00247500)

Note: (Used Only On Model(s): 902803).

$9.99

$

Usually ships in 4-12 days

0

56

Ariens 00284200

J BOLT

Note: (Used Only On Model(s): 902803).

$

$

Not available

57

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, only 2 left!

0

58

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, Qty 12

0

59

Ariens 00286500

EDGER
(Superseded to 00286551)

Note: (Used Only On Model(s): 902803).

$

$

Not available

60

Ariens 06407500

WSHR-FL-STL .390X1.500X.125
(Superseded to 06441700)

$3.99

$

In Stock, only 4 left!

0

61

Ariens 05902300

BLT-HEX .38-16X.75 PL GR2
(Superseded to 05959400)

$1.49

$

In Stock, only 1 left!

0

62

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

63

Ariens 00212300

CLEVIS PIN

Note: (902026, 028)

$3.49

$

In Stock, only 3 left!

0

64

Ariens 06400300

WSHR-FL-STL .531X1.062X.095 PL
(Superseded to 06441900)

$0.99

$

In Stock, Qty 20+

0

65

Ariens 00237700

SHIELD
(Superseded to 00240000)

Note: (902026, 028)

$5.99

$

Usually ships in 4-12 days

0
