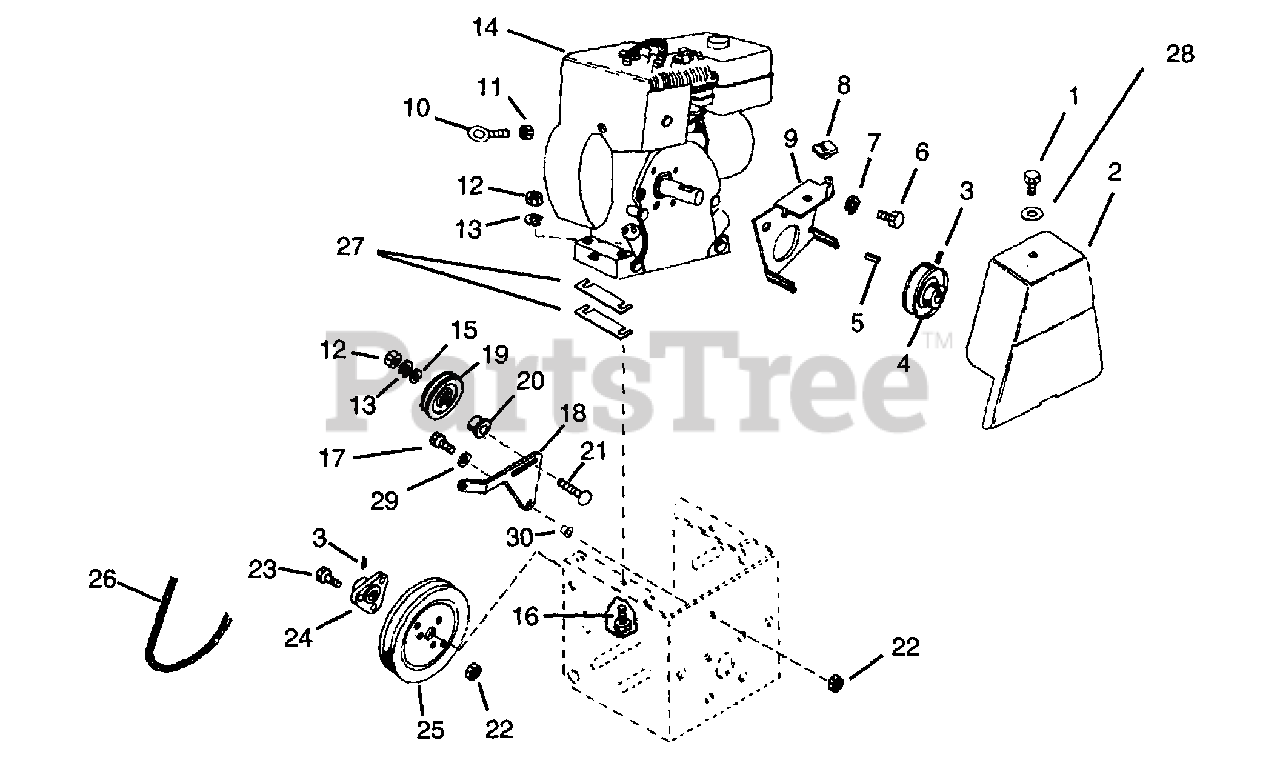

902812 (FT 314) - Ariens 14" Front Tine Tiller, 3hp Tecumseh (SN: 000101 & Above) Engine And Drive Parts Diagram

14" Front Tine Tiller, 3hp Tecumseh

Engine And Drive Parts Diagram

  • Title

1

Ariens 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, only 1 left!

0

2

Ariens 00280200

BELT COVER

$27.99

$

In Stock, only 1 left!

0

3

Ariens 06001200

SCR-SET .32-18X.38 SKHCUPNL OH
(Superseded to 06005500)

$3.49

$

In Stock, only 2 left!

0

4

Ariens 00240900

ENGINE SHEAVE
(Superseded to 50201800)

$

$

Not available

5

Ariens 06601300

KEY-SQ .188X1.0X.188 SAE 8630

$1.99

$

In Stock, Qty 5

0

6

Ariens 05905200

BLT-HEX .75-16X2.50 PL GR5

$

$

Not available

7

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 5

0

8

Ariens 06513000

NUT-SPEED U-TYPE .250-20

$

$

Not available

9

Ariens 00287800

BELT FINGER COVER BRKT (TEC)
(Superseded to 00287851)

$

$

Not available

10

Ariens 00247500

EYEBOLT, ROD HANGER ZC120

$10.99

$

Usually ships in 4-12 days

0

11

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

13

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 5

0

14

Ariens 08253900

ENGINE TECUMSEH 3.5HPCHORE HR

$

$

Not available

15

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

16

Ariens 05957400

@BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$3.49

$

In Stock, only 3 left!

0

17

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

18

Ariens 00248200

ARM, IDLER

$

$

Not available

19

Ariens 02457400

IDLER
(Superseded to 52007000)

$40.99

$

In Stock, only 2 left!

0

20

Ariens 01213100

SPCR, BRG .315X.50X.688X.281

$3.99

$

In Stock, Qty 11

0

21

Ariens 06212100

@BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

$1.99

$

In Stock, Qty 7

0

22

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

23

Ariens 07005300

BLT-SERRDHD SL .31-18X.75 YZ
(Superseded to 07028700)

$6.49

$

In Stock, only 3 left!

0

24

Ariens 00286200

HUB
(Superseded to 50202100)

$87.99

$

In Stock, only 2 left!

0

25

Ariens 00286100

SHEAVE

$46.99

$

Usually ships in 4-12 days

0

26

Ariens 07210900

V-BELT, 4L-RAW EDGE

$45.99

$

Usually ships in 4-12 days

0

27

Ariens 00247700

SHIM YWZC

$5.99

$

Usually ships in 4-12 days

0

28

Ariens 06442300

@WSHR-FL-STL.250X.56X.049 YWZC

$2.49

$

Usually ships in 4-12 days

0

29

Ariens 06439700

WSHR-FL-STL .344X1.375X.075YWZ
(Superseded to 06446900)

$2.99

$

In Stock, Qty 10

0

30

Ariens 05530500

BSHG-FLG .325X.465X.350X.685

$11.99

$

Usually ships in 4-12 days

0
