90367 (851-109) - Gravely Eaton Transmission TRANSMISSION Parts Diagram

Eaton Transmission

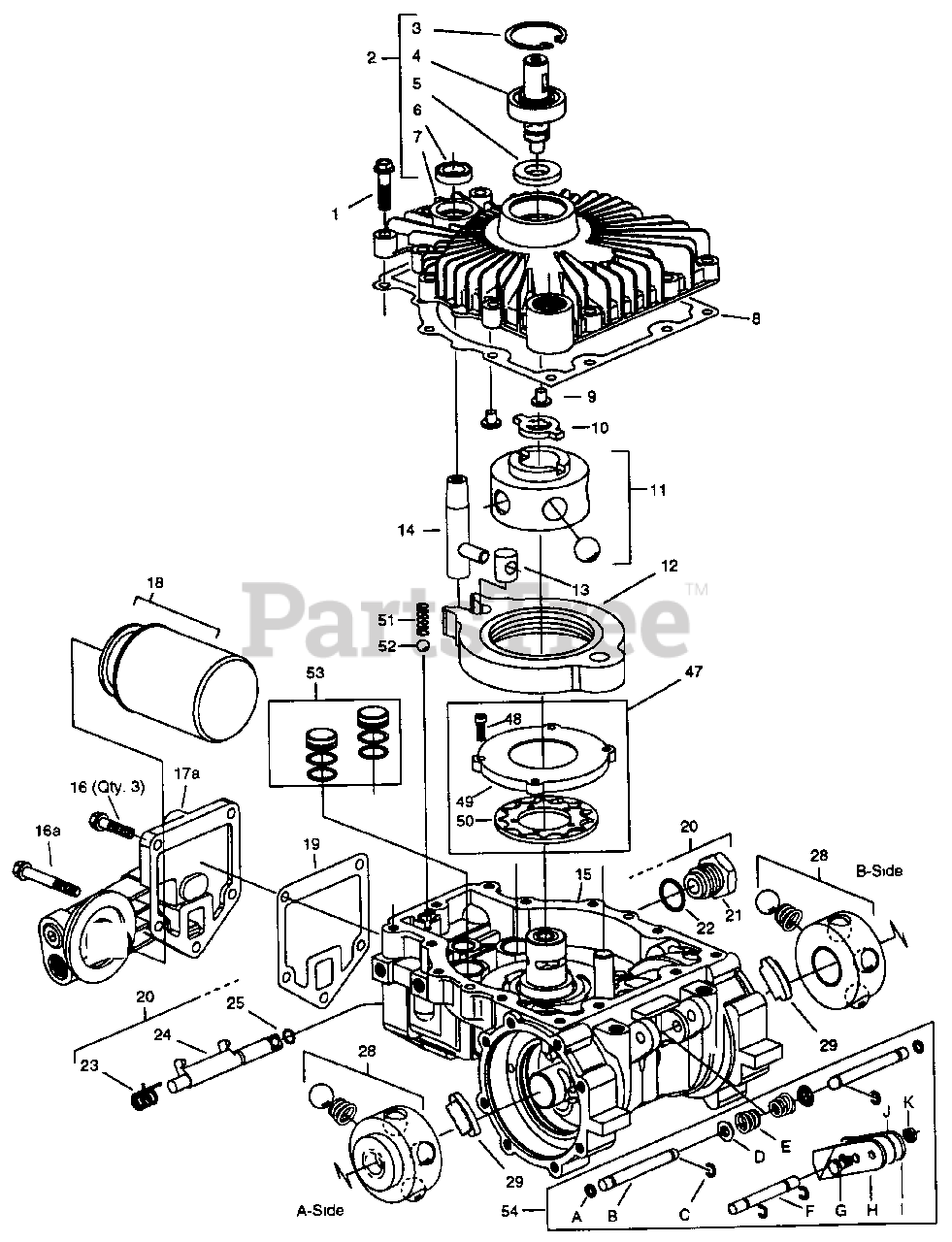

TRANSMISSION Parts Diagram

  • Title

1

Gravely 051776

SCREW, 1/4-20 SELF TAP
(Superseded to 03595800)

Note: (13)

$

$

Not available

2

Gravely 051789

COVER
(Superseded to 53403700)

Note: (SA)

$

$

Not available

3

Gravely 051747

RING RETAINING, INT
(Superseded to 03593200)

$

$

Not available

4

Gravely 051803

INPUT SHAFT
(Superseded to 53404900)

Note: (SA)

$

$

Not available

5

Gravely 051794

SL,INPUT SHAFT
(Superseded to 21005200)

$

$

Not available

6

Gravely 051749

SEAL, CONTROL SHAFT
(Superseded to 03593400)

$

$

Not available

7

Gravely 052694

COVER
(Superseded to 21040400)

$

$

Not available

8

Gravely 051761

GSKT,COVER
(Superseded to 21001900)

$

$

Not available

9

Gravely 051762

BUTTON
(Superseded to 21002000)

Note: (2)

$

$

Not available

10

Gravely 051778

DRIVE
(Superseded to 03596000)

$

$

Not available

11

Gravely 051754

PUMP,ROTOR BALL PIN
(Superseded to 21001200)

Note: (SA)

$

$

Not available

12

Gravely 051755

CAM RING S/A
(Superseded to 03466000)

Note: (SA)

$

$

Not available

13

Gravely 051756

INSERT
(Superseded to 21001400)

$

$

Not available

14

Gravely 052696

SHFT,CONTROL EXT THRD
(Superseded to 21040500)

$

$

Not available

14A

Gravely 051757

CONTROL SHAFT SUBASSEMBLY
(Superseded to 03594200)

$

$

Not available

15

HOUSING(SA)

Note: (SA)

$

$

Not available

16

Gravely 051765

SCR,1/4-20 HEX FLANGE
(Superseded to 21002300)

Note: (AR)

$

$

Not available

16A

Gravely 052697

SCR,1/4-20 HEX FLANGE
(Superseded to 21040600)

$

$

Not available

16B

Gravely 051797

SCR,1/4-20 HEX FLANGE
(Superseded to 21005500)

Note: (2)

$

$

Not available

17A

Gravely 052698

FILTER BASE S/A
(Superseded to 03466500)

$

$

Not available

18

Gravely 047195

FILTER, OIL (WISEAL)
(Superseded to 03467800)

$66.99

$

Usually ships in 4-12 days

0

19

Gravely 051766

GSKT,FILTER BASE
(Superseded to 21002400)

$

$

Not available

20

Gravely 051796

O-RING
(Superseded to 03598100)

$8.99

$

Usually ships in 4-12 days

0

20A

DUMP VALVE PARTS

$

$

Not available

21

Gravely 051800

DUMP VALVE NUT
(Superseded to 03467600)

$

$

Not available

22

Gravely 051796

O-RING
(Superseded to 03598100)

$8.99

$

Usually ships in 4-12 days

0

23

Gravely 051758

SPRG,DUMP VALVE
(Superseded to 21001600)

$14.99

$

Usually ships in 4-12 days

0

24

Gravely 051759

BRACKET, DUMP VALVE
(Superseded to 03466200)

$

$

Not available

25

Gravely 051763

O-RING,DUMP VALVE BRKT
(Superseded to 21002100)

$

$

Not available

26

Gravely 052701

SCR,5/16 HEX FLANGE
(Superseded to 21040800)

Note: (16)

$

$

Not available

27

Gravely 052702

GASKET, AXLE HOUSING
(Superseded to 03463000)

Note: (2)

$

$

Not available

28

Gravely 051793

MOTOR,ROTOR-BALL
(Superseded to 21005100)

Note: (2)

$

$

Not available

29

Gravely 052703

PAD,FRICTION (SA)
(Superseded to 21041000)

Note: (SA)(2)

$59.99

$

Usually ships in 4-12 days

0

30

Gravely 052704

PLT,REACTION
(Superseded to 21041100)

Note: (2)

$

$

Not available

31

Gravely 052705

PLT,BACKUP
(Superseded to 21041200)

Note: (2)

$

$

Not available

32

15T SUN GEAR, FIRST(2)

Note: (2)

$

$

Not available

33

GEAR, RING 57T(2)

Note: (2)

$

$

Not available

33A

GEAR, RING 54T(2)

Note: (2)

$

$

Not available

34

21T PLANET GEAR(SA) FIRST(6)

Note: (SA) FIRST(6)

$

$

Not available

35

Gravely 052706

PRIMARY,15T CARRIER (SA)
(Superseded to 21041300)

Note: (SA)(2)

$

$

Not available

36

15T SUN GEAR, SECOND(2)

Note: (2)

$

$

Not available

36

15T SUN GEAR, SECOND(STEEL)(2)

Note: (STEEL)(2)

$

$

Not available

37

Gravely 052707

21T PLANET GEAR (SA) ST
(Superseded to 21041400)

Note: (SA) SECOND(STEEL)(6)

$

$

Not available

38

Gravely 052708

CARRIER,SECONDARY
(Superseded to 21041500)

Note: (SA)(2)

$

$

Not available

39

Gravely 090369

HOUSING, AXLE (SA) A-SIDE
(Superseded to 09036900)

Note: (SA) A-SIDE

$

$

Not available

39A

Gravely 090370

HOUSING, AXLE (SA) B-SIDE
(Superseded to 09037000)

Note: (SA) B-SIDE

$336.99

$

Usually ships in 4-12 days

0

40

Gravely 052711

HSG,AXLE
(Superseded to 21041800)

Note: (2)

$

$

Not available

41

Gravely 051774

RG,RETAINING EXTERNAL
(Superseded to 21003200)

Note: (4)

$

$

Not available

42

Gravely 051775

WASHER, THRUST
(Superseded to 03595700)

Note: (4)

$

$

Not available

43

Gravely 051770

RG,RETAINING INTERNAL
(Superseded to 21002800)

Note: (2)

$

$

Not available

44

Gravely 051773

BEARING, AXLE SHAFT
(Superseded to 03595500)

Note: (2)

$

$

Not available

45

Gravely 051772

SEAL, AXLE SHAFT
(Superseded to 03595400)

Note: (2)

$35.99

$

In Stock, only 1 left!

0

46

Gravely 090371

SHAFT, AXLE A-SIDE
(Superseded to 09037100)

$

$

Not available

46

Gravely 090372

SHAFT, AXLE B-SIDE
(Superseded to 09037200)

$

$

Not available

47

PUMP, CHARGE

$

$

Not available

48

SCREW, CAP, SOCKET

$

$

Not available

49

PLATE, PUMP(CLASS II)

Note: (CLASS II)

$

$

Not available

50

GEROTOR(CLASS II)

Note: (CLASS II)

$

$

Not available

51

Gravely 051801

SPRING, RELIEF VALVE
(Superseded to 03467700)

$

$

Not available

52

Gravely 051804

BALL, GRADE 200
(Superseded to 03467900)

$

$

Not available

53

PISTON, DAMPENING

$

$

Not available

53

PISTON(SA)(2)

Note: (SA)(2)

$

$

Not available

54

BRAKE LEVER PARTS

$

$

Not available

A

Gravely 052715

QUAD SEAL
(Superseded to 03477400)

Note: (2)

$

$

Not available

B

Gravely 052716

PUSH ROD
(Superseded to 03477500)

Note: (2)

$

$

Not available

C

Gravely 052717

E-RING
(Superseded to 03477600)

Note: (4)

$

$

Not available

D

Gravely 052718

SPRING BASE
(Superseded to 03477700)

Note: (SA)(2)

$

$

Not available

E

Gravely 052719

CONICAL SPRING
(Superseded to 03477800)

Note: (2)

$

$

Not available

F

Gravely 052720

SHFT,BRAKE
(Superseded to 21042700)

$

$

Not available

G

Gravely 052721

SCR,CAP HEX
(Superseded to 21042800)

$

$

Not available

H

Gravely 052722

LVR,BRAKE R.H.
(Superseded to 21042900)

$

$

Not available

I

Gravely 052723

LVR,BRAKE L.H.
(Superseded to 21043000)

$

$

Not available

J

Gravely 052724

SHIM

Note: (AR)

$

$

Not available

K

Gravely 052725

NUT,HEX LOCK

$

$

Not available

55

Gravely 052726

FITTING,.625 STR O-RING
(Superseded to 21043300)

$

$

Not available

Gravely 051796

O-RING
(Superseded to 03598100)

$8.99

$

Usually ships in 4-12 days

0
