907254 (LM 21 SW) - Ariens 21" Self-Propelled Walk-Behind Mower, 6.5hp Briggs & Stratton (SN: 000101 & Above) Handlebar And Controls Parts Diagram

21" Self-Propelled Walk-Behind Mower, 6.5hp Briggs & Stratton

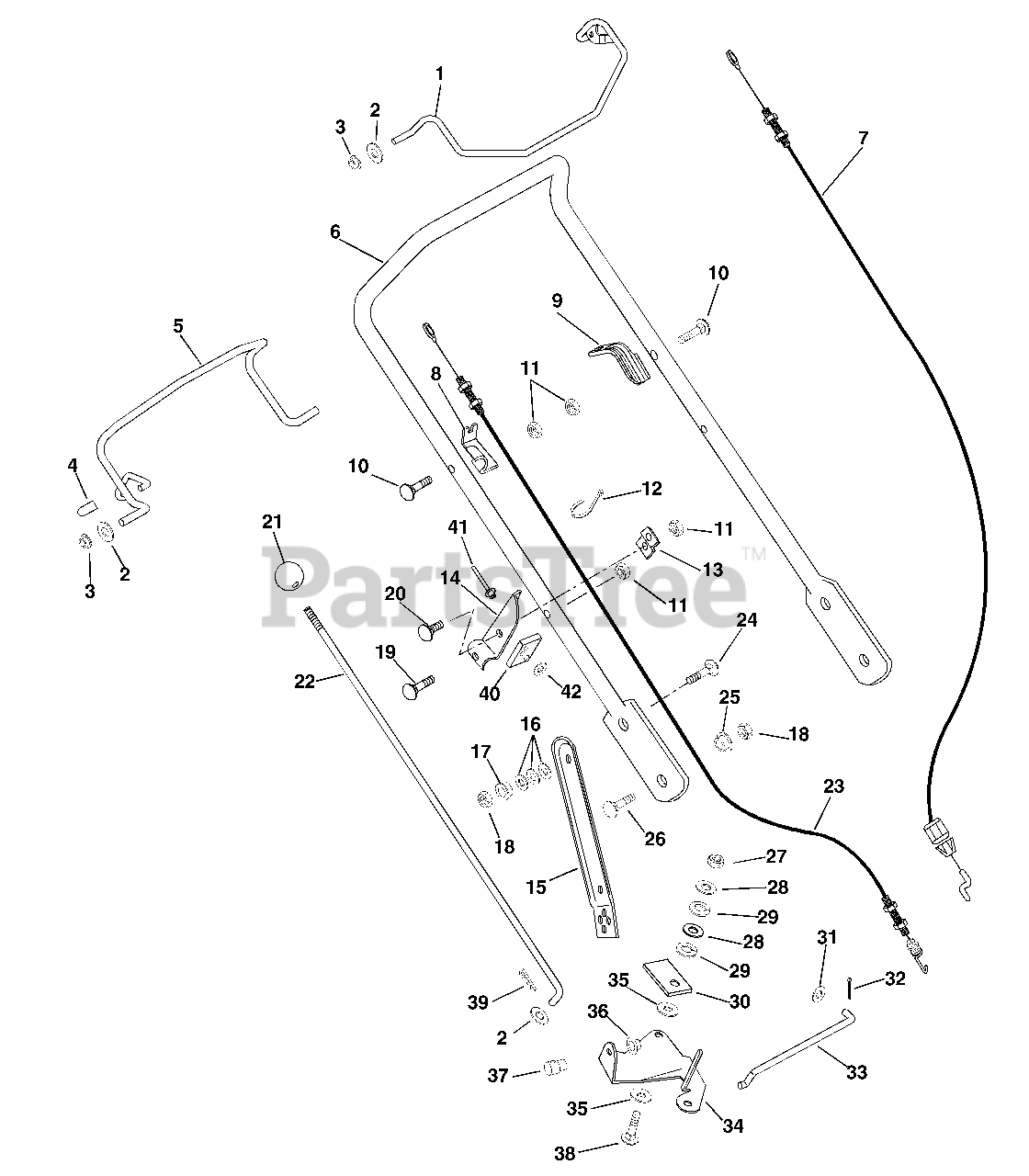

Handlebar And Controls Parts Diagram

  • Title

1

Ariens 01177244

ENGINE BAIL

$

$

Not available

2

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 9

0

3

Ariens 05514500

BSHG-FLG .325X.444X.440X.560

$3.99

$

In Stock, Qty 20+

0

4

Ariens 07517000

CAP, VINYL, .25 ID

$3.49

$

In Stock, Qty 11

0

5

Ariens 01177044

TRACTION BAIL
(Superseded to 51109900)

$190.99

$

Usually ships in 4-12 days

0

6

Ariens 01183144

HANDLEBAR, SELF-PROPELLED
(Superseded to 01245351)

$

$

Not available

7

Ariens 06922000

ENGINE CONTROL CABLE
(Superseded to 06947700)

$22.99

$

Usually ships in 4-12 days

0

8

Ariens 01137544

ANCHOR, CABLE RH

$

$

Not available

9

Ariens 01155700

CABLE ANCHOR-LH
(Superseded to 01245651)

$12.99

$

In Stock, only 1 left!

0

10

Ariens 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5ZC

$2.49

$

In Stock, only 2 left!

0

11

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available

13

Ariens 01141844

BRACE, SPEED CONTROL

$

$

Not available

14

Ariens 01137444

BRACKET, SPEED CONTROL

$

$

Not available

15

Ariens 01150044

LINK, HANDLEBAR ADJUSTMENT LH

$

$

Not available

15

Ariens 01150144

LINK, HANDLEBAR ADJUSTMENT RH

$

$

Not available

16

Ariens 01178700

WASHER, BELLEVILLE YWZC

$2.49

$

Usually ships in 4-12 days

0

17

Ariens 05514900

BSHG-FLG .325X.500X.513X.875

$3.99

$

In Stock, Qty 5

0

18

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 06222300

@BLT-RDHDSQNK .25-20X1.50 G5YZ
(Superseded to 06200331)

$1.49

$

In Stock, Qty 11

0

20

Ariens 06220600

@BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$0.99

$

In Stock, Qty 7

0

21

Ariens 07515900

KNOB, BALL 5/16-18 X 1.5

$21.99

$

In Stock, only 1 left!

0

22

Ariens 01140800

ROD-SPEED CONTROL

$42.99

$

Usually ships in 4-12 days

0

23

Ariens 06921200

TRACTION CABLE

$39.99

$

In Stock, only 4 left!

0

24

Ariens 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.49

$

In Stock, Qty 13

0

25

Ariens 01305900

BSHG, FLG .325X.499X.26X.88

$2.49

$

In Stock, Qty 16

0

26

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 15

0

27

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

28

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

29

Ariens 06306500

WSHR-LK .375X.115 HVY YWZC
(Superseded to 06300120)

$3.49

$

In Stock, Qty 10

0

30

Ariens 01154800

PRESSURE FLANGE

$7.99

$

Usually ships in 4-12 days

0

31

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 16

0

32

Ariens 06712400

@PIN-CTR .06X.50 EXTPRSQCT YWZ

$3.99

$

Usually ships in 4-12 days

0

33

Ariens 01126100

SHIFT LINK

$21.99

$

Usually ships in 4-12 days

0

34

Ariens 01123900

BELL CRANK - SPEED CONTROL
(Superseded to 04756800)

$21.99

$

Usually ships in 4-12 days

0

35

Ariens 01123800

FRICTION WASHER

$3.99

$

In Stock, only 3 left!

0

36

Ariens 01019800

CAP, 3/8 ROD YWZC

$2.99

$

In Stock, Qty 7

0

37

Ariens 01139800

SWIVEL

$16.99

$

Usually ships in 4-12 days

0

38

Ariens 06222200

@BLT-RHDSSQNK .38-16X1.25 G5YZ
(Superseded to 06200236)

$2.49

$

In Stock, Qty 10

0

39

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 16

0

40

Ariens 01173800

SUPPORT PAD
(Superseded to 04760400)

$3.49

$

Usually ships in 4-12 days

0

41

Ariens 06815700

RVT .187X.575 DOME AL BLACK

$1.49

$

In Stock, only 2 left!

0

42

Ariens 06442700

@WSHR-FL-STL.219X.50X.049 YWZC
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0
