907254 (LM 21 SW) - Ariens 21" Self-Propelled Walk-Behind Mower, 6.5hp Briggs & Stratton (SN: 000101 & Above) Mower Pan And Bag Parts Diagram

21" Self-Propelled Walk-Behind Mower, 6.5hp Briggs & Stratton

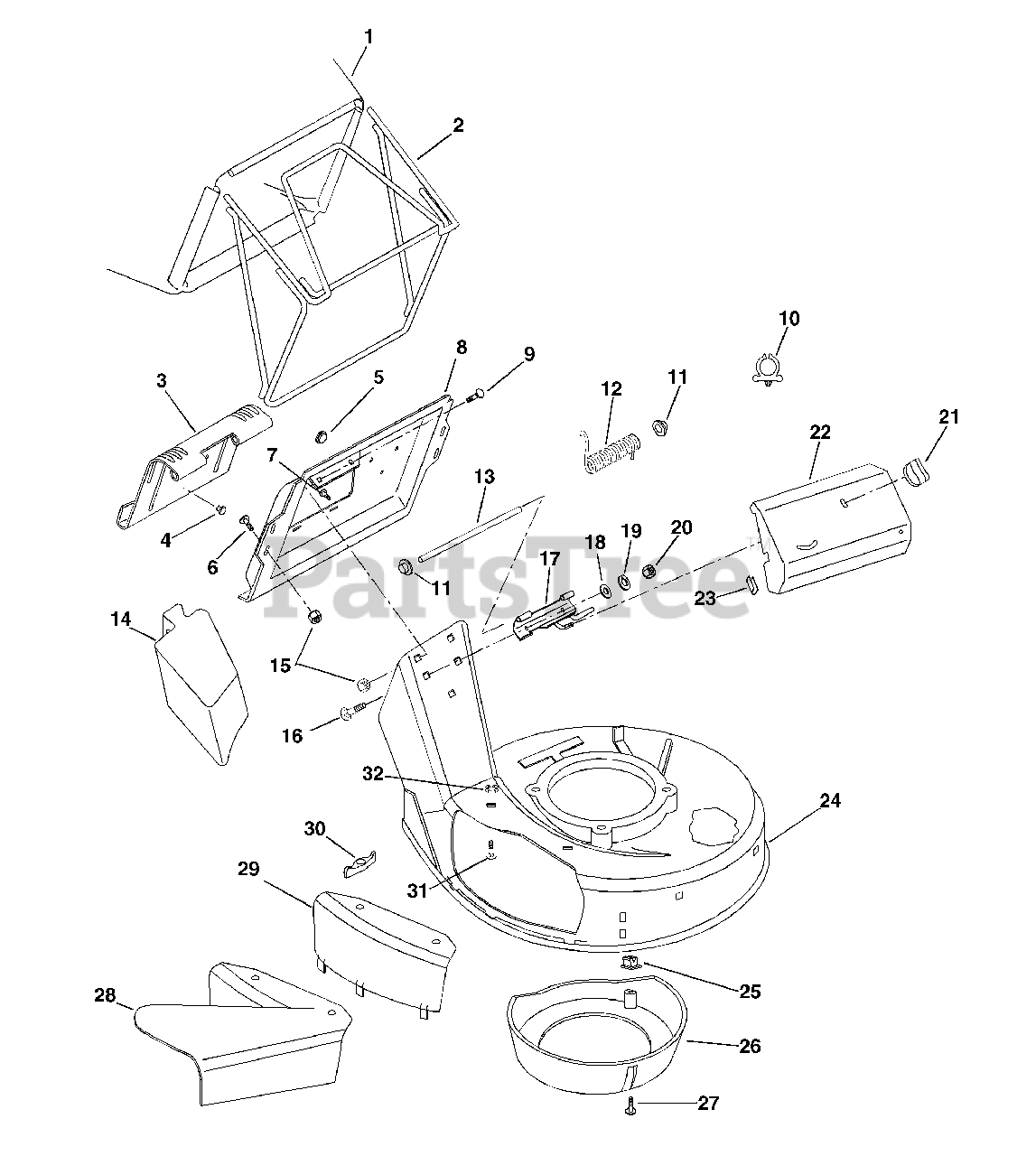

Mower Pan And Bag Parts Diagram

  • Title

1

Ariens 01180500

BAG, CONSUMER BLACK 15 OZ/YD2

$78.57

$

In Stock, only 1 left!

0

2

Ariens 01138751

FRAME, BAGGER
(Superseded to 01241851)

$122.92

$

Usually ships in 4-12 days

0

3

Ariens 01136545

CATCHER PLATE DOOR

$

$

Not available

4

Ariens 07516000

BUTTON BUMPER

$3.63

$

In Stock, only 3 left!

0

5

Ariens 07511800

BUMPER

$3.30

$

Usually ships in 4-12 days

0

6

Ariens 07411900

@SCR-TAP 12-24X.50 HWH TR YWZC
(Superseded to 07400136)

$1.99

$

In Stock, Qty 18

0

7

Ariens 07414900

SCR-TAP 10-24X.375 TORX PHD YZ

$3.30

$

Usually ships in 4-12 days

0

8

Ariens 01159745

CATCHER PLATE
(Superseded to 01159759)

$81.11

$

Usually ships in 4-12 days

0

9

Ariens 06203900

@BLT-RHDSSQNK .25-20X.38 G2YZ

$3.58

$

Usually ships in 4-12 days

0

10

Ariens 01166500

SNAP-IN CLIP

$

$

Not available

11

Ariens 02215300

PUSH NUT, .25

$1.68

$

In Stock, Qty 20+

0

12

Ariens 08322400

SG-TORS .120X.68X3.09

$6.76

$

Usually ships in 4-12 days

0

13

Ariens 01141000

DOOR PIN

$13.36

$

Usually ships in 4-12 days

0

14

Ariens 71102700

MULCH MASTER MULCHER ACCESSORY

$36.23

$

In Stock, only 2 left!

0

15

Ariens 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$1.96

$

In Stock, Qty 20+

0

16

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.96

$

In Stock, Qty 19

0

17

Ariens 01155545

HINGE BASE WELDMENT

$33.48

$

Usually ships in 4-12 days

0

18

Ariens 06439100

WSHR-FL-STL .328X.87X.179 YWZC
(Superseded to 06401103)

$3.08

$

In Stock, Qty 20+

0

19

Ariens 06308000

WSHR-LK .250X.077 HVY YWZC

$1.96

$

In Stock, only 2 left!

0

20

Ariens 06533200

@NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$1.96

$

In Stock, Qty 8

0

21

Ariens 01159300

WING - NUT

$5.81

$

In Stock, Qty 6

0

22

Ariens 01158845

COVER, DRIVE

$

$

Not available

23

Ariens 01155400

TRIM BUMPER
(Superseded to 01177300)

$6.65

$

Usually ships in 4-12 days

0

24

Ariens 50700500

MOWER PAN W/SFTY DCLS SCOTTS

$

$

Not available

25

Ariens 07507600

PLASTIC GROMMET

$3.30

$

In Stock, Qty 5

0

26

Ariens 01173700

CENTER BAFFLE

$44.72

$

Usually ships in 4-12 days

0

27

Ariens 07415000

SCR-TAP 10-16X.62 SLPH AB YWZC

$1.68

$

In Stock, only 4 left!

0

28

Ariens 01180200

SIDE DISCHARGE ASSEMBLY

$35.16

$

In Stock, only 3 left!

0

29

Ariens 01180351

COVER, SIDE DISCHARGE

$35.16

$

In Stock, only 3 left!

0

30

Ariens 07531700

KNOB - WING .312-18 UNC
(Superseded to 07534800)

$9.89

$

In Stock, Qty 11

0

31

Ariens 06214100

BLT-RDHDSQSHK.31-18X.75 GR2 YW
(Superseded to 06200309)

$2.80

$

In Stock, Qty 20+

0

32

Ariens 06514900

NUT-PUSH .312

$1.96

$

In Stock, Qty 17

0
