9075 - Paramount Edger, Cordless EDGER/BRUSHCUTTER ASSEMBLY Parts Diagram

Edger, Cordless

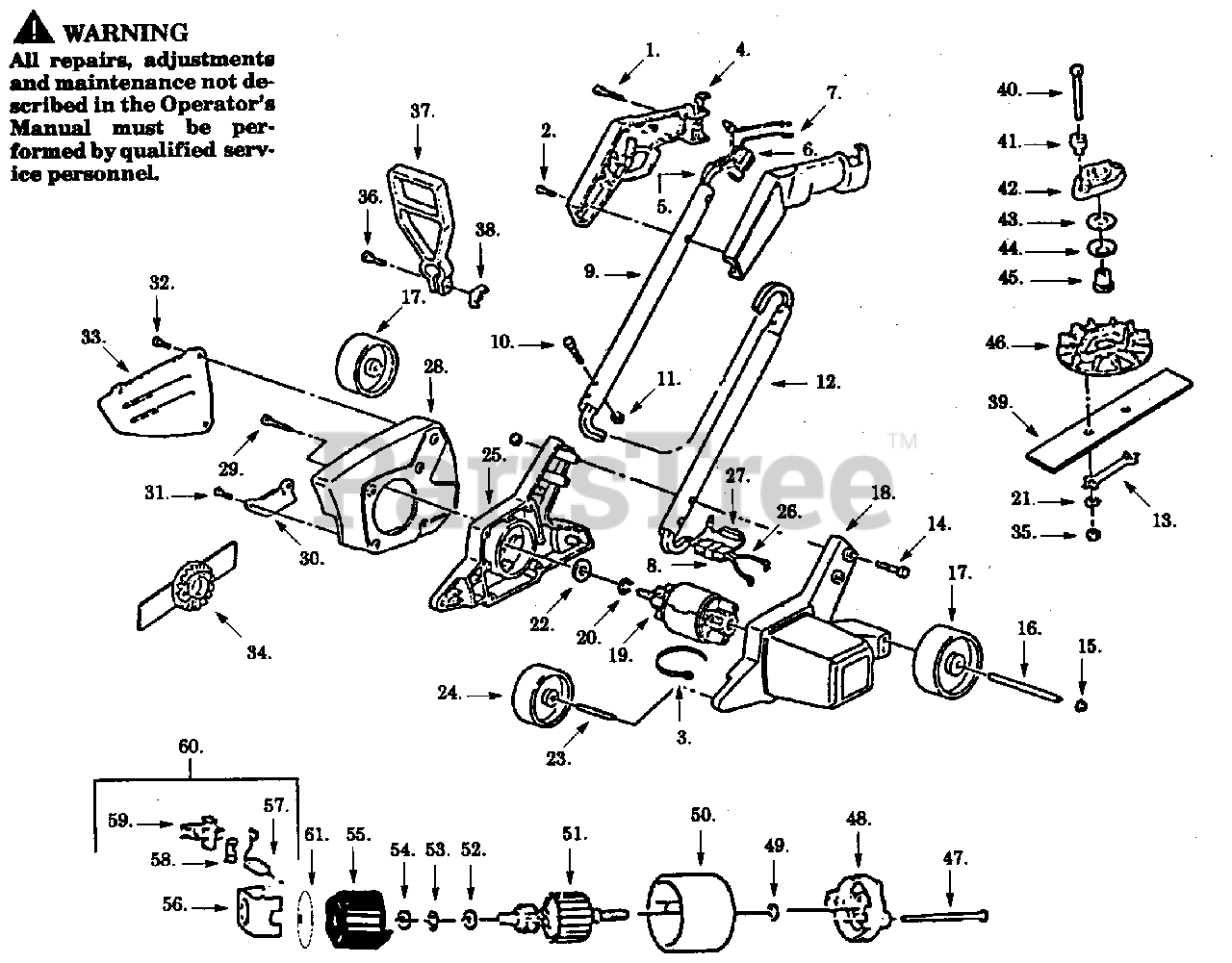

EDGER/BRUSHCUTTER ASSEMBLY Parts Diagram

  • Title

1

Poulan 534826802

Screw

$

$

Not available

2

Poulan 534826801

Screw

$

$

Not available

3

Poulan 534134700

Tie Strap

$

$

Not available

4

Poulan 534826522

Model 970

$

$

Not available

4

Poulan 534826525

Model 9075

$

$

Not available

5

Poulan 534844603

Harness Ass'y.

$

$

Not available

6

Poulan 534193004

Trigger Switch

$

$

Not available

7

Poulan 534936001

Power Plug

$

$

Not available

8

Poulan 534954300

Shield

$

$

Not available

9

Poulan 534840201

Upper Tube

$

$

Not available

10

Poulan 534829600

Screw

$

$

Not available

11

Poulan 534828300

Locknut

$

$

Not available

12

Poulan 534840501

Lower Tube

$

$

Not available

13

Poulan 534135700

Lock Strap

$3.49

$

Usually ships in 3-10 days

0

14

Poulan 534174501

Screw

$

$

Not available

15

Poulan 534121000

Pushnut

$7.99

$

Usually ships in 3-10 days

0

16

Poulan 534781011

Rear Axle

$

$

Not available

17

Poulan 534240003

Rear Wheel

$

$

Not available

18

Poulan 534323322

Motor Cover

$

$

Not available

19

Poulan 534103630

Motor Ass'y.

$

$

Not available

20

Poulan 534246700

Retaining Ring

$

$

Not available

21

Poulan 534136600

Lockwasher

$

$

Not available

22

Poulan 534758000

Washer

$

$

Not available

23

Poulan 534740002

Front Axle

$

$

Not available

24

Poulan 534730001

Front Wheel

$

$

Not available

25

Poulan 534323222

Frame

$

$

Not available

26

Poulan 534710001

P.C. Board Ass'y.

$

$

Not available

27

Poulan 534134500

Resister

$

$

Not available

28

Poulan 534346702

Housing Guard

$

$

Not available

29

Poulan 534136401

Screw

$

$

Not available

30

Poulan 534323500

Blade Guide

$

$

Not available

31

Poulan 534222403

Screw

$

$

Not available

32

Poulan 534826800

Screw

$3.49

$

In Stock, only 2 left!

0

33

Poulan 534323405

Blade Guard

$

$

Not available

34

Poulan 534135215

Blade Ass'y.

$

$

Not available

35

Poulan 534136200

Nut

$

$

Not available

36

Poulan 534828400

Bolt

$

$

Not available

37

Poulan 534156405

Assist Handle

$

$

Not available

38

Poulan 534828500

Wing Nut

$

$

Not available

39

Poulan 534205301

Blade

$

$

Not available

40

Poulan 534135901

Bolt

$

$

Not available

41

Poulan 534135605

Insulating Sleeve

$

$

Not available

42

Poulan 534135400

Clutch Plate

$

$

Not available

43

Poulan 534136300

Washer

$

$

Not available

44

Poulan 534238900

Spring Washer

$

$

Not available

45

Poulan 534135500

Clutch Sleeve

$

$

Not available

46

Poulan 534135305

Fan

$

$

Not available

47

Poulan 534228700

Screw

$

$

Not available

48

Poulan 534207101

Endbell Ass'y. (Drive)

$

$

Not available

49

Poulan 534228800

Washer

$

$

Not available

50

Poulan 534227001

Field Ass'y.

$

$

Not available

51

Poulan 534225122

Armature Ass'y.

$

$

Not available

52

Poulan 534228802

Washer

$

$

Not available

53

Poulan 534238903

Washer

$

$

Not available

54

Poulan 534747002

Retaining Ring

$

$

Not available

55

Poulan 534227501

Endbell Ass'y. (Brush)

$

$

Not available

56

Poulan 534226000

Insulator

$

$

Not available

57

Poulan 534227800

Carbon Brush

$

$

Not available

58

Poulan 534228000

Spring Brush

$

$

Not available

59

Poulan 534227700

Brush Holder

$

$

Not available

60

Poulan 534450400

Brush Kit

Note: (Incl. 57,58,59)

$

$

Not available

61

Poulan 534103640

Brush Insulator

$

$

Not available

61

, Operator Manual

Note: Not Shown.

$

$

Not available

Poulan 530068204

Model 970

Note: Not Shown.

$

$

Not available

Poulan 534068478

Model 9075

Note: Not Shown.

$

$

Not available

, Carton

Note: Not Shown.

$

$

Not available

Poulan 534061457

Model 970 (Not a serviceable part)

Note: Not Shown.

$

$

Not available

Poulan 534061509

Model 9075 (Not a serviceable part)

Note: Not Shown.

$

$

Not available

Poulan 530500025

Carton Contents Bag

Note: Not Shown.

$

$

Not available

Poulan 534838500

Blade Brake Decal (Not a serviceable part)

Note: Not Shown.

$

$

Not available
