9080E - Task Force Edger, Electric EDGER ASSEMBLY Parts Diagram

Edger, Electric

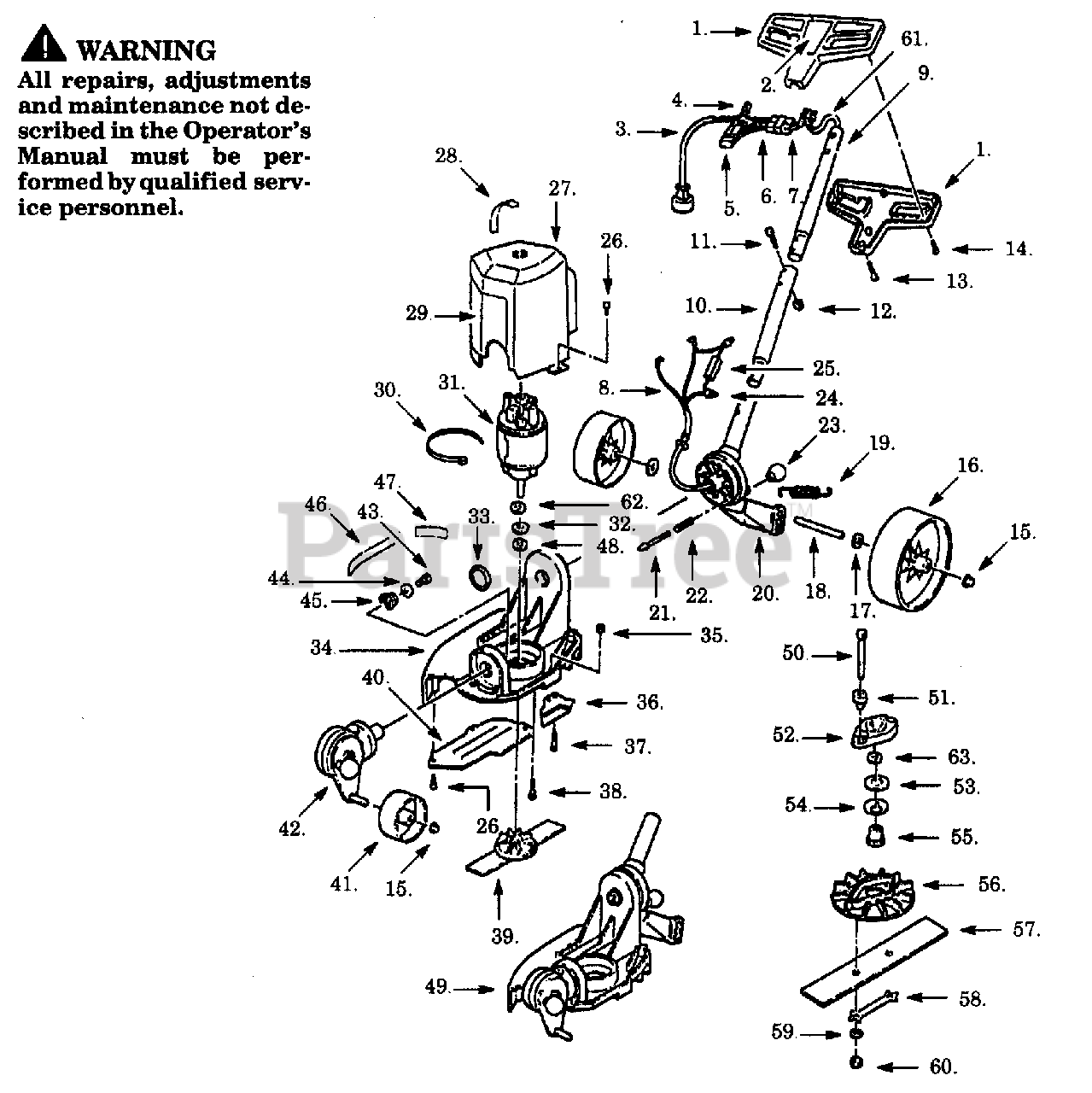

EDGER ASSEMBLY Parts Diagram

  • Title

1

Poulan 534234225

Handle Set

$

$

Not available

2

Poulan 530400710

Handle Label (Not a serviceable part)

$

$

Not available

3

Poulan 534895701

Power Cord

$

$

Not available

4

Poulan 534253201

Wire Nut

$1.49

$

Usually ships in 3-10 days

0

5

Poulan 534193004

Switch

$

$

Not available

6

Poulan 534336501

Bridge Ass'y.

$

$

Not available

7

Poulan 534954300

Insulator Shield

$2.49

$

Usually ships in 3-10 days

0

8

Poulan 534337000

Harness Ass'y.

$42.99

$

Usually ships in 3-10 days

0

9

Poulan 530400701

Upper Tube

$9.99

$

Usually ships in 3-10 days

0

10

Poulan 530400702

Lower Tube

$

$

Not available

11

Poulan 530400705

Screw

$

$

Not available

12

Poulan 534235901

Locknut
(Superseded to 530403094)

$3.99

$

Usually ships in 3-10 days

0

13

Poulan 534790300

Screw

$

$

Not available

14

Poulan 534790302

Screw

$2.49

$

Usually ships in 3-10 days

0

15

Poulan 534121000

Push Nut

$3.99

$

Usually ships in 3-10 days

0

16

Poulan 534236800

Rear Wheel

$

$

Not available

17

Poulan 534137900

Washer

$2.49

$

Usually ships in 3-10 days

0

18

Poulan 534137701

Rear Axle

$

$

Not available

19

Poulan 534121300

Spring

$1.49

$

Usually ships in 3-10 days

0

20

Poulan 534137505

Rear Swivel

$

$

Not available

21

Poulan 534700002

Swivel Lock Shaft

$

$

Not available

22

Poulan 534710000

Swivel Lock Spring

$

$

Not available

23

Poulan 534720001

Knob

$2.49

$

Usually ships in 3-10 days

0

24

Poulan 534561000

Terminal Cap

$

$

Not available

25

Poulan 534134500

Resister

$

$

Not available

26

Poulan 534826800

Screw

$3.99

$

In Stock, only 2 left!

0

27

Poulan 530400703

Motor Cover

$

$

Not available

28

Poulan 530400708

Rear Adjust Label (Not a serviceable part)

$

$

Not available

29

Poulan 530400709

Motor Cover Label (Not a serviceable part)

$

$

Not available

30

Poulan 534134700

Tie Wrap

$1.49

$

Usually ships in 3-10 days

0

31

Poulan 534225022

Motor Ass'y.

$

$

Not available

32

Poulan 534938100

Washer

$2.49

$

Usually ships in 3-10 days

0

33

Poulan 534780000

Retaining Ring

$1.49

$

Usually ships in 3-10 days

0

34

Poulan 534130505

Deck Frame

$

$

Not available

35

Poulan 534315300

Locknut

$2.49

$

Usually ships in 3-10 days

0

36

Poulan 534830000

Blade Guide

$6.49

$

Usually ships in 3-10 days

0

37

Poulan 534315200

Screw

$0.99

$

Usually ships in 3-10 days

0

38

Poulan 534136401

Screw

$2.49

$

Usually ships in 3-10 days

0

39

Poulan 534135205

Blade Ass'y.

$

$

Not available

40

Poulan 534131515

Side Guard Plate

$

$

Not available

41

Poulan 534240003

Front Wheel

$6.49

$

Usually ships in 3-10 days

0

42

Poulan 534130705

Front Swivel Ass'y.

$

$

Not available

43

Poulan 534779000

Screw

$2.49

$

Usually ships in 3-10 days

0

44

Poulan 534778000

Washer

$1.49

$

Usually ships in 3-10 days

0

45

Poulan 534120500

Front Swivel Spring

$2.49

$

Usually ships in 3-10 days

0

46

Poulan 530400706

Dyn Brake Label (Not a serviceable part)

$

$

Not available

47

Poulan 530400707

Warning Label (Not a serviceable part)

$

$

Not available

48

Poulan 534757900

Washer

$2.49

$

Usually ships in 3-10 days

0

49

Poulan 534135185

Edger Frame Ass'y.

$72.99

$

Usually ships in 3-10 days

0

50

Poulan 534135901

Screw

$

$

Not available

51

Poulan 534135605

Insulating Sleeve

$

$

Not available

52

Poulan 534135410

Clutch Plate

$

$

Not available

53

Poulan 534136300

Washer

$

$

Not available

54

Poulan 534238900

Spring Washer

$

$

Not available

55

Poulan 534135500

Clutch Sleeve

$

$

Not available

56

Poulan 534135305

Fan

$

$

Not available

57

Poulan 534205300

Blade

$15.99

$

Usually ships in 3-10 days

0

58

Poulan 534135700

Lock Strap

$3.99

$

In Stock, only 2 left!

0

59

Poulan 534136600

Lockwasher

$3.99

$

Usually ships in 3-10 days

0

60

Poulan 534136200

Locknut

$3.99

$

Usually ships in 3-10 days

0

61

Poulan 534337200

Harness Ass'y.

$

$

Not available

62

Poulan 534246700

Retaining Ring

$1.49

$

Usually ships in 3-10 days

0

63

Poulan 534758000

Washer

$2.49

$

Usually ships in 3-10 days

0

Poulan 530400711

Operator Manual

$

$

Not available

Poulan 530400704

Carton Contents Bag

$

$

Not available

Poulan 530400712

Carton (Not a serviceable part)

$

$

Not available
