9099-1 - Generac 6,000 Watt Portable Generator Cradle No. 78809 Parts Diagram

6,000 Watt Portable Generator

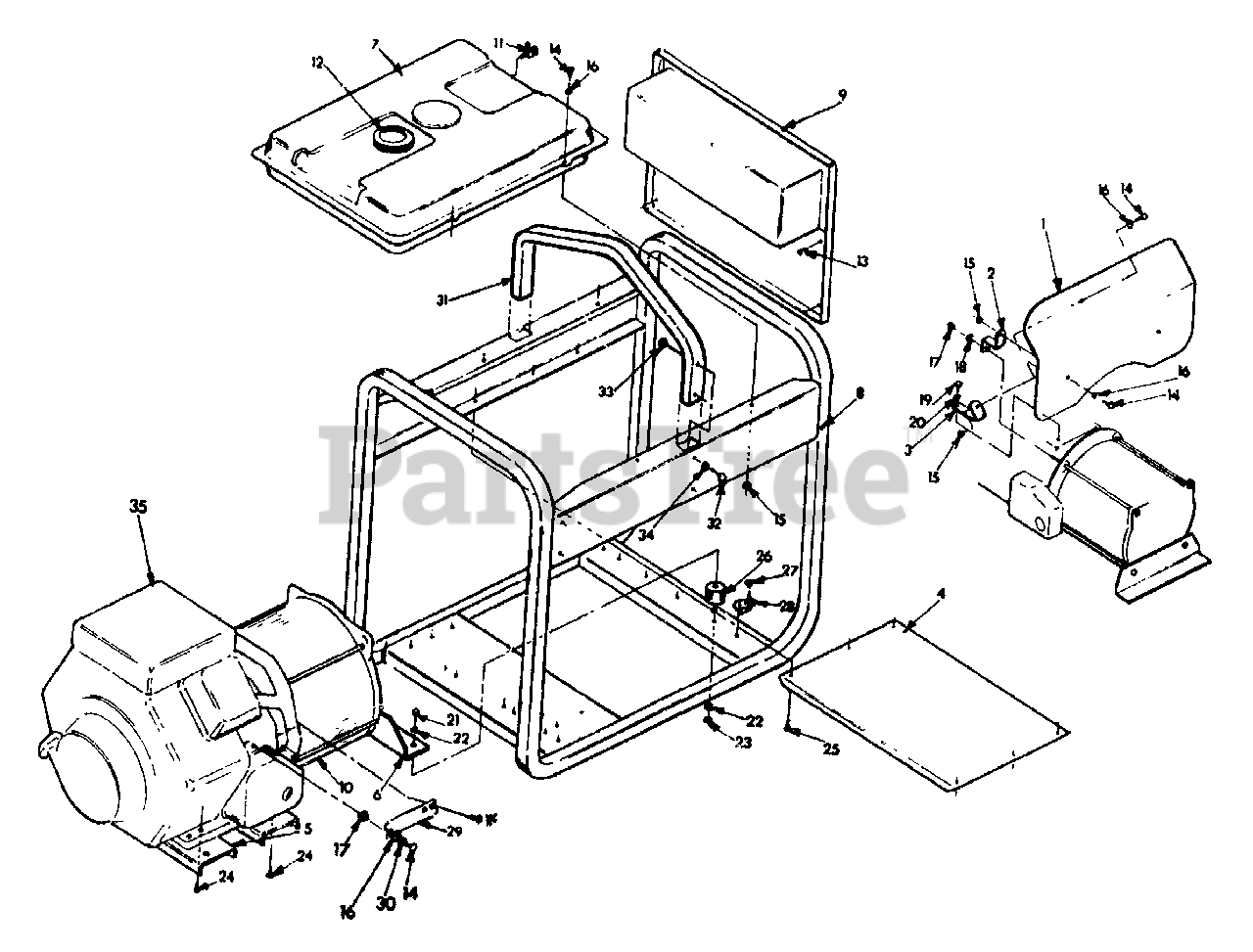

Cradle No. 78809 Parts Diagram

  • Title

1

Briggs & Stratton 77318

SHIELD, HEAT DEFLECTING

$

$

Currently unavailable

2

Briggs & Stratton 77319

BRACKET, HEAT SHIELD

$

$

Currently unavailable

3

Briggs & Stratton 77306

BRACKET, HEAT SHIELD

$

$

Currently unavailable

4

Briggs & Stratton 77316

HEAT SHIELD, (GAS TANK)

$

$

Currently unavailable

5

Briggs & Stratton 77304

SUPPORT, ENGINE

$

$

Not available

6

Briggs & Stratton 77303

SUPPORT, ALTERNATOR

$

$

Currently unavailable

7

Briggs & Stratton 75465

TANK, FUEL
(Superseded to 7075465YP)

$15.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 77300

CRADLE, V-TWIN

$

$

Not available

9

Briggs & Stratton 77307A

CONTROL PANEL COVER ASSEMBLY, 8-KW

$

$

Currently unavailable

9

Briggs & Stratton 77307

CONTROL PANEL COVER ASSEMBLY, 6-KW

$

$

Currently unavailable

10

Briggs & Stratton 77574

EXPLODED VIEW-ALTERNATOR

$

$

Currently unavailable

11

Briggs & Stratton 75938

VALVE, FUEL SHUT-OFF

$

$

Currently unavailable

12

Briggs & Stratton 76272

CAP GAUGE, FUEL

$

$

Not available

13

Briggs & Stratton 75494

SCREW, SELF DRILLING NO. 10-24 x 5/8"

$

$

Not available

14

Briggs & Stratton 42568

CAPSCREW, HEX HEAD-M6 1.0 x 20
(Superseded to 42568GS)

$3.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 52857

NUT, HEX LOCK-M6 1.0
(Superseded to 52857GS)

$3.49

$

Usually ships in 2-12 days

0

16

22473

WASHER, FLAT-1/4

$

$

Not available

17

Briggs & Stratton 24114

NUT, HEX 5/16"-24

$

$

Not available

18

Briggs & Stratton 22129

WASHER, LOCK-5/16"
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

19

Briggs & Stratton 49815

CAPSCREW, HEX HEAD-M5 0.8 x 16
(Superseded to 49815GS)

$3.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 22152

WASHER, LOCK-NO. 10
(Superseded to 5022152)

$32.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 23152

CAPSCREW, HEX HEAD-3/8"-16 x 3/4"
(Superseded to 5101614)

$450.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 22237

WASHER, LOCK 3/8"

$

$

Not available

23

Briggs & Stratton 22241

NUT, HEX 3/8"-16

$

$

Not available

24

Briggs & Stratton 75246

SCREW, SELF TAPPING 3/6"-16 x 1-1/4"
(Superseded to 75246GS)

$3.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 63036

SCREW, CRIMPTITE #8-18 x 1/4"
(Superseded to 63036GS)

$2.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 35097

VIBRATION MOUNT
(Superseded to 35097GS)

$16.99

$

In Stock, only 3 left!

0

27

Briggs & Stratton 56892

SCREW, SELF TAPPING NO. 10-24 x 3/8"
(Superseded to 56892GS)

$3.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 25433

LUG, GROUNDING

$

$

Not available

29

Briggs & Stratton 78807

SHIELD, WIRE

$

$

Currently unavailable

30

Briggs & Stratton 22097

WASHER, LOCK M6
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 77301

LIFTING, BAR

$

$

Currently unavailable

32

Briggs & Stratton 39287

CAPSCREW, HEX HEAD-M8-1.25 x 45
(Superseded to 39287GS)

$3.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 52858

NUT, HEX LOCK-M8-1.25
(Superseded to 52858GS)

$3.99

$

In Stock, only 3 left!

0

34

Briggs & Stratton 22145

WASHER, FLAT-M8

$

$

Not available

35

Briggs & Stratton 78811

ENGINE, V-TWIN 15HP.

$

$

Currently unavailable
