9099-2 - Generac 6,000 Watt Portable Generator Generator Parts Diagram

6,000 Watt Portable Generator

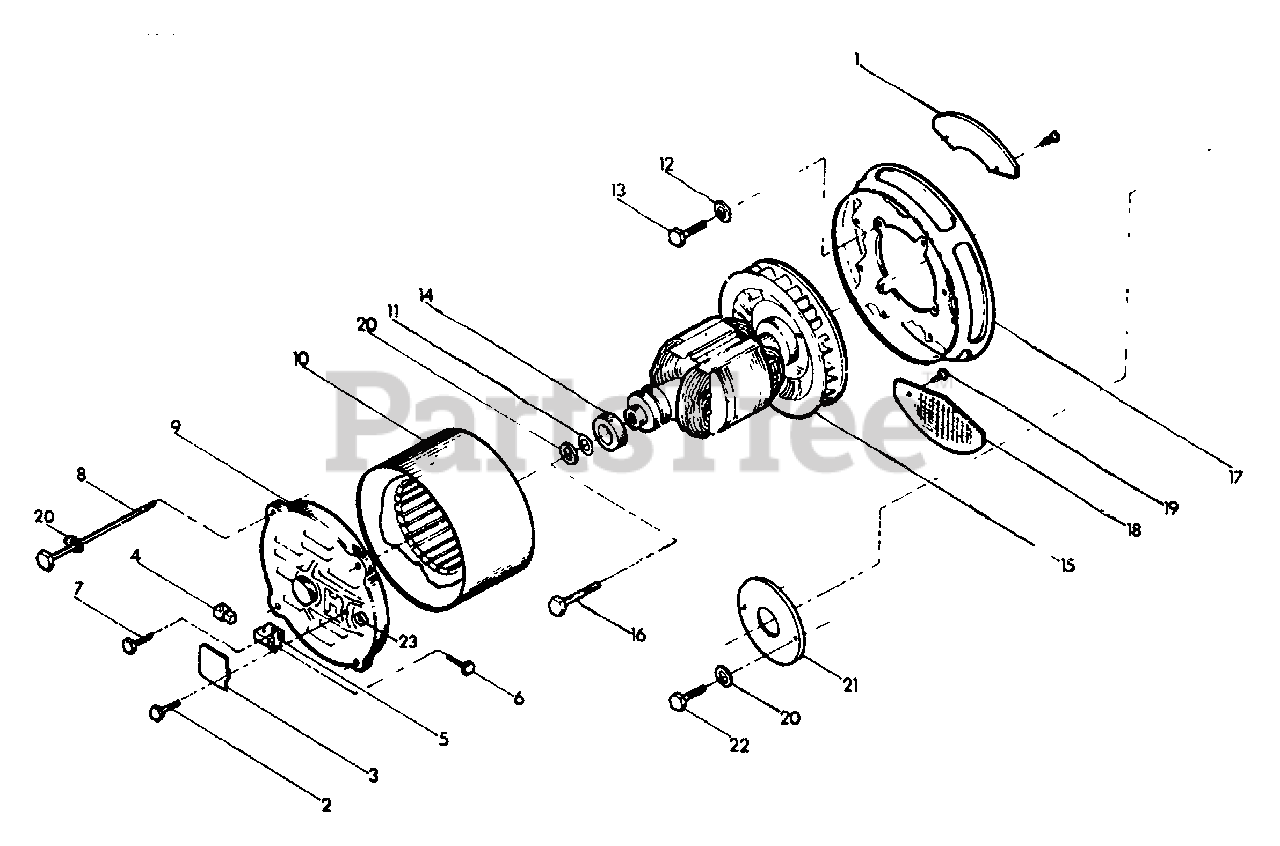

Generator Parts Diagram

  • Title

1

Briggs & Stratton 71791

Cover plate

$

$

Not available

2

Briggs & Stratton 26902

No. 8-32 x 1/4" Screw

$

$

Not available

3

Briggs & Stratton 43844

Inspection cover
(Superseded to 7043844YP)

$34.99

$

In Stock, only 3 left!

0

4

Briggs & Stratton A24044A

Brush
(Superseded to A24044AGS)

$11.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 23877D

Brush holder
(Superseded to 23877DGS)

$11.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 25105

No. 6-32 x 1/4" Screw
(Superseded to 25105GS)

$1.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 24488

No. 8-32 x 5/8" Screw

$

$

Currently unavailable

8

Briggs & Stratton 77324

5/16"-24 x 12-1/4" Hex head capscrew

$

$

Not available

9

Briggs & Stratton 49410

Rear bearing carrier
(Superseded to 49410AGS)

$136.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 77571

Stator assembly

$

$

Currently unavailable

11

Briggs & Stratton 50190

5/16" Flatwasher
(Superseded to 50190GS)

$3.99

$

In Stock, only 1 left!

0

12

Briggs & Stratton 22237

Lockwasher-3/8"

$

$

Not available

13

Briggs & Stratton 23152

3/8"-16 x 3/4" Hex head capscrew
(Superseded to 5101614)

$450.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 24049

Bearing

$

$

Not available

15

Briggs & Stratton 77572

Rotor assembly

$

$

Not available

16

Briggs & Stratton 39654

5/16"-24 x 9-1/2" Hex head capscrew

$

$

Currently unavailable

17

Briggs & Stratton 77305

Adapter casting
(Superseded to 7023418YP)

$39.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 55275

Fan guard

$

$

Not available

19

Briggs & Stratton 46852

No. 10-32 x 1/4" Screw

$

$

Not available

20

Briggs & Stratton 22129

5/16" Lockwasher
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

21

Briggs & Stratton 55277

Center guard

$

$

Not available

22

Briggs & Stratton 22336

5/16"-24 x 3/4" Hex head capscrew

$

$

Not available

23

Briggs & Stratton 38057

Rubber grommet
(Superseded to 38057GS)

$3.49

$

Usually ships in 2-12 days

0
