9099-2 - Generac 6,000 Watt Portable Generator Generator Cradle Assembly No. 78538 Parts Diagram

6,000 Watt Portable Generator

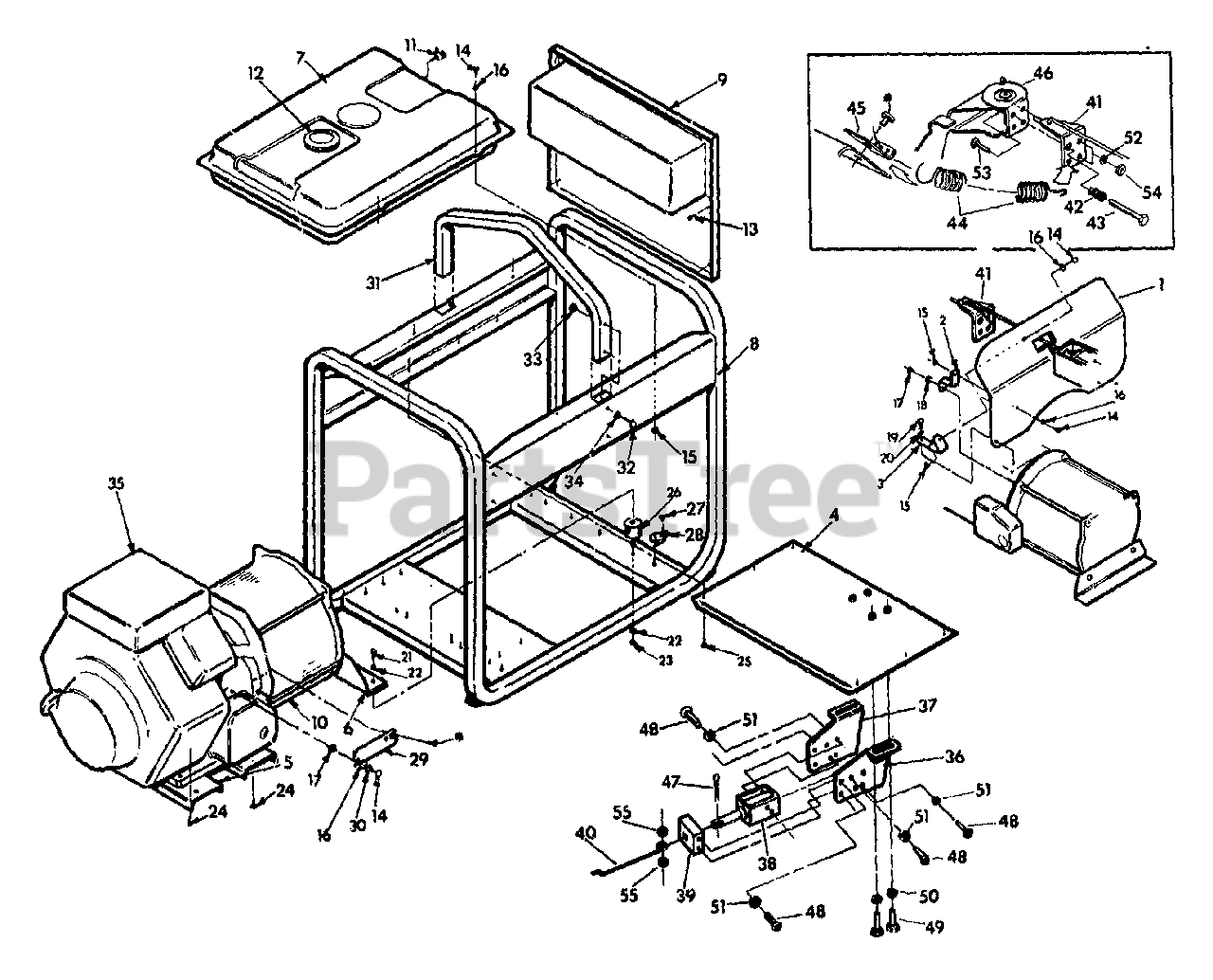

Generator Cradle Assembly No. 78538 Parts Diagram

  • Title
1

Briggs & Stratton Part# 78517

Deflecting heat shield
Usually ships same day

Currently unavailable

$

$

2

Briggs & Stratton Part# 77319

Heat shield bracket
Usually ships same day

Currently unavailable

$

$

3

Briggs & Stratton Part# 77306

Heat shield bracket
Usually ships same day

Currently unavailable

$

$

4

Briggs & Stratton Part# 78518

Fuel tank heat shield
Usually ships same day

Currently unavailable

$

$

Usually ships same day

Not available

$

$

6

Briggs & Stratton Part# 77303

Generator support
Usually ships same day

Currently unavailable

$

$

7

Briggs & Stratton Part# 75465

Fuel tank
(Superseded to 7075465YP)
Usually ships in 6 to 12 days

$

$13.19

0

Usually ships same day

Not available

$

$

9

Briggs & Stratton Part# 78525

Receptacle panel cover
Usually ships same day

Currently unavailable

$

$

10

Part#

Stator assembly

Note: See Exploded View of Generator; Contact Generac for quantity required

Usually ships same day

Not available

$

$

11

Briggs & Stratton Part# 75938

Fuel shutoff valve
Usually ships same day

Currently unavailable

$

$

12

Briggs & Stratton Part# 76272

Fuel tank filler cap
Usually ships same day

Not available

$

$

13

Briggs & Stratton Part# 75494

No. 10-24 x 5/8" Self tapping screw
Usually ships same day

Not available

$

$

14

Briggs & Stratton Part# 42568

M6-1.00 x 20mm Hex head capscrew
(Superseded to 42568GS)
Usually ships in 4 to 8 days

$

$2.52

0

15

Briggs & Stratton Part# 52857

M6-1.00 hex lock nut
(Superseded to 52857GS)
Usually ships in 4 to 8 days

$

$2.68

0

16

Part# 22473

1/4" Flatwasher
Usually ships same day

Not available

$

$

17
Usually ships same day

Not available

$

$

18

Briggs & Stratton Part# 22129

5/16" Lockwasher
(Superseded to 22129GS)
Usually ships in 4 to 8 days

$

$2.26

0

19

Briggs & Stratton Part# 49815

M5-0.80 x 16mm Hex head capscrew
(Superseded to 49815GS)
Usually ships in 4 to 8 days

$

$2.52

0

20

Briggs & Stratton Part# 22152

No. 10 Lockwasher
(Superseded to 5022152)
Usually ships in 6 to 12 days

$

$26.26

0

21

Briggs & Stratton Part# 23152

3/8"-16 x 3/4" Hex head capscrew
Usually ships same day

Not available

$

$

22
Usually ships same day

Not available

$

$

23
Usually ships same day

Not available

$

$

24

Briggs & Stratton Part# 75246

3/8"-16 x 1-1/4" Self tapping screw
(Superseded to 75246GS)
Usually ships in 6 to 12 days

$

$3.57

0

25

Briggs & Stratton Part# 63036

No. 8-18 x 1/4" Screw
(Superseded to 63036GS)
Usually ships same day

Not available

$

$

26

Briggs & Stratton Part# 35097

Vibration mount
(Superseded to 35097GS)
Usually ships in 1 day

$

$12.80

0

27

Briggs & Stratton Part# 56892

No. 10-24 x 3/8" Self tapping screw
(Superseded to 56892GS)
Usually ships in 4 to 8 days

$

$2.85

0

Usually ships same day

Not available

$

$

Usually ships same day

Not available

$

$

30

Briggs & Stratton Part# 22097

M6 Lockwasher
(Superseded to 5022097)
Usually ships same day

Not available

$

$

Usually ships same day

Currently unavailable

$

$

32

Briggs & Stratton Part# 39287

M8-1.25 x 45mm Hex head capscrew
(Superseded to 39287GS)
Usually ships in 1 day

$

$2.68

0

33

Briggs & Stratton Part# 52858

M8-1.25 Hex head capscrew
(Superseded to 52858GS)
Usually ships in 1 day

$

$2.68

0

Usually ships same day

Not available

$

$

35
Usually ships same day

Currently unavailable

$

$

36

Briggs & Stratton Part# 78504

Sole mounting bracket
Usually ships same day

Currently unavailable

$

$

37

Briggs & Stratton Part# 78504A

Sole mounting bracket
Usually ships same day

Currently unavailable

$

$

38

Briggs & Stratton Part# 78520

Idle Control Solenoid
Usually ships same day

Not available

$

$

39
Usually ships same day

Currently unavailable

$

$

40
Usually ships same day

Currently unavailable

$

$

41
Usually ships same day

Currently unavailable

$

$

42

Briggs & Stratton Part# 78529

Linkage mounting bracket spring
Usually ships same day

Currently unavailable

$

$

43

Briggs & Stratton Part# 78530

M4-0.70 x 50mm Hex head capscrew
(Superseded to 78530GS)
Usually ships same day

Not available

$

$

44

Briggs & Stratton Part# 78519

Idle control spring
Usually ships same day

Currently unavailable

$

$

45

Briggs & Stratton Part# 78505

Spring mounting bracket
Usually ships same day

Currently unavailable

$

$

46
Usually ships same day

Currently unavailable

$

$

47

Briggs & Stratton Part# 22268

Cotter pin
(Superseded to 22268GS)
Usually ships in 4 to 8 days

$

$3.35

0

48

Briggs & Stratton Part# 36917

No. 8-32 x 3/8" Pan head machine screw
(Superseded to 797483)
Usually ships in 6 to 12 days

$

$3.46

0

49

Briggs & Stratton Part# 51718

M4-0.70 x 10mm Hex head capscrew
Usually ships same day

Not available

$

$

50

Briggs & Stratton Part# 38150

No. 8 Flatwasher
(Superseded to 38150GS)
Usually ships in 4 to 8 days

$

$2.52

0

51
Usually ships same day

Not available

$

$

Usually ships same day

Currently unavailable

$

$

53

Briggs & Stratton Part# 49819

M4-0.70 x 6mm Hex head capscrew
Usually ships same day

Currently unavailable

$

$

54

Briggs & Stratton Part# 51715

M4-0.70 Hex nut
(Superseded to 51715GS)
Usually ships in 4 to 8 days

$

$2.24

0

55

Briggs & Stratton Part# 25909

Nylon washer
(Superseded to 25909GS)
Usually ships same day

Not available

$

$
