91-11B801 (C-111) - Toro Lawn Tractor (1979) Throttle, Choke And Fuel System Parts Diagram

Lawn Tractor

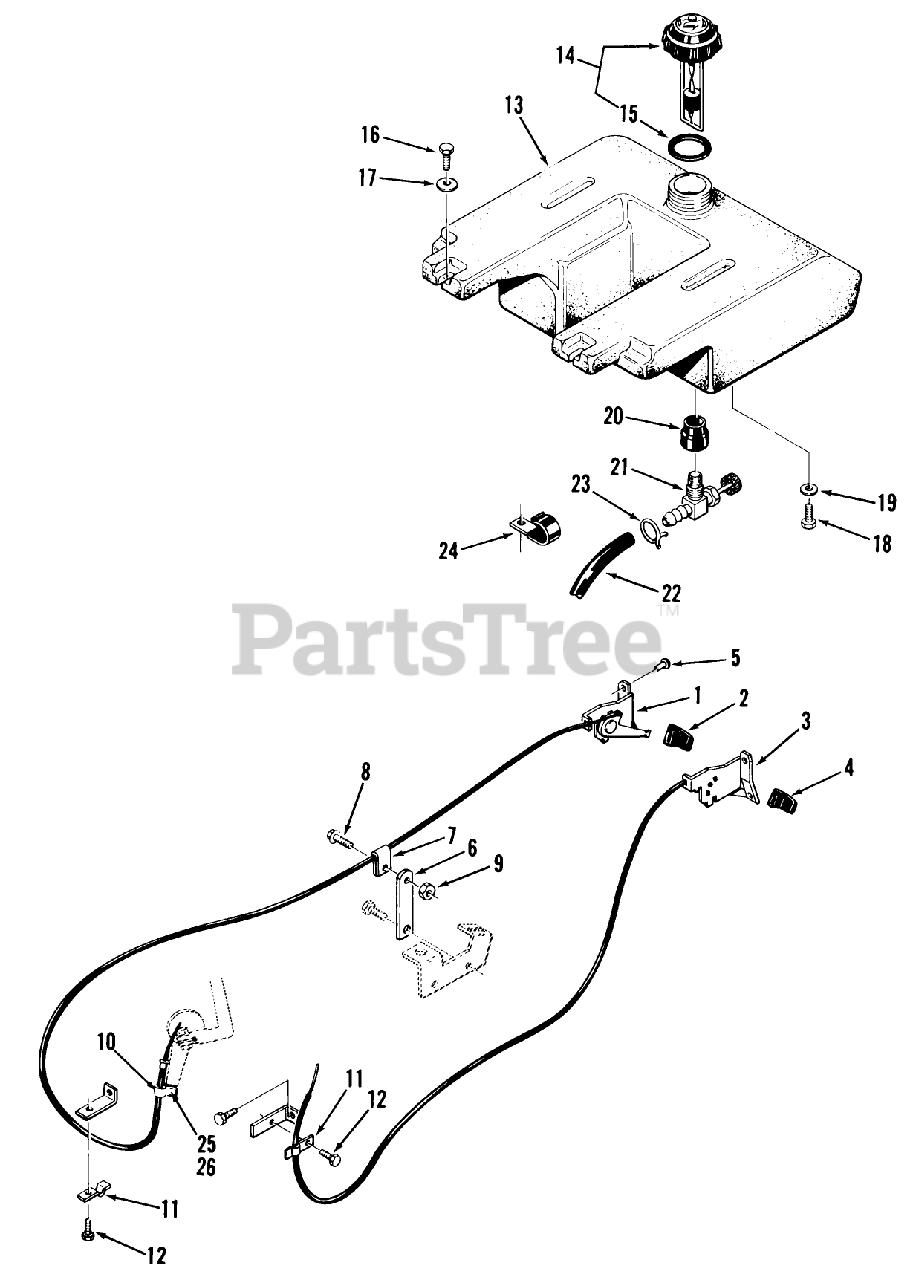

Throttle, Choke And Fuel System Parts Diagram

  • Title

1

Toro 101835

DISCONTINUED

$

$

Not available

1

Toro 101834

THROTTLE CONTROL

$157.99

$

Usually ships in 3-6 days

0

1

Toro 103519

DUP PART SEE $BOOK

$

$

Not available

2

Toro 102185

KNOB-THROTTLE

$19.99

$

In Stock, only 2 left!

0

3

Toro 106752

CONTROL-CHOKE

$

$

Not available

3

Toro 106508

CONTROL-CHOKE

$58.99

$

Usually ships in 3-6 days

0

4

Toro 102186

KNOB-CHOKE

$19.99

$

In Stock, Qty 6

0

5

Toro 932795

Pip Rivet

$

$

Currently unavailable

6

Toro 100452

DISCONTINUED

$

$

Not available

7

Toro 100729

THROTTLE CONTROL CLP

$7.99

$

Usually ships in 3-6 days

0

8

Toro 960151

See Supercession: 3234-13
(Superseded to 3234-13)

$1.49

$

In Stock, only 1 left!

0

9

Toro 915111

See Supercession: 3217-5
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 6

0

11

Toro 105971

CLAMP-CABLE

$2.99

$

In Stock, Qty 5

0

12

Toro 915738

Screw #10-24 X 3/8 C-81 Only

$

$

Currently unavailable

13

Toro 106234

TANK-FUEL

$497.99

$

Usually ships in 3-6 days

0

14

Toro 106945

ASSY-GAUGE CAP

$34.99

$

In Stock, only 2 left!

0

15

Toro 106931

DISCONTINUED

$

$

Not available

16

Toro 926696

See Supercession: 9266964
(Superseded to 9266964)

$

$

Not available

17

Toro 920039

See Supercession: 3256-4
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

18

Toro 908016

See Supercession: 322-2
(Superseded to 322-2)

$2.99

$

In Stock, only 4 left!

0

19

Toro 920082

See Supercession: 3253-4
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

20

Toro 104047

See Supercession: 46-6560
(Superseded to 46-6560)

$6.49

$

In Stock, Qty 20+

0

21

Toro 104048

VALVE-FUEL

$40.99

$

In Stock, only 2 left!

0

22

Toro 106445

See Supercession: 110521
(Superseded to 110521)

$

$

Not available

22

Toro 108085

See Supercession: 110521
(Superseded to 110521)

$

$

Not available

23

Toro 950154

DISCONTINUED

$

$

Not available

24

Toro 8830

CLIP

$2.49

$

In Stock, only 1 left!

0

25

Toro 910792

See Supercession: 910790
(Superseded to 910790)

$0.99

$

In Stock, only 2 left!

0

26

Toro 915538

See Supercession: 3217-26
(Superseded to 3217-26)

$1.99

$

In Stock, Qty 5

0

10

Toro 2879

See Supercession: 7922
(Superseded to 7922)

$4.49

$

Usually ships in 3-6 days

0
