910 (990910) - Simplicity Roticul Reversing Tiller, 8hp Clutch and Belt Group Parts Diagram

Roticul Reversing Tiller, 8hp

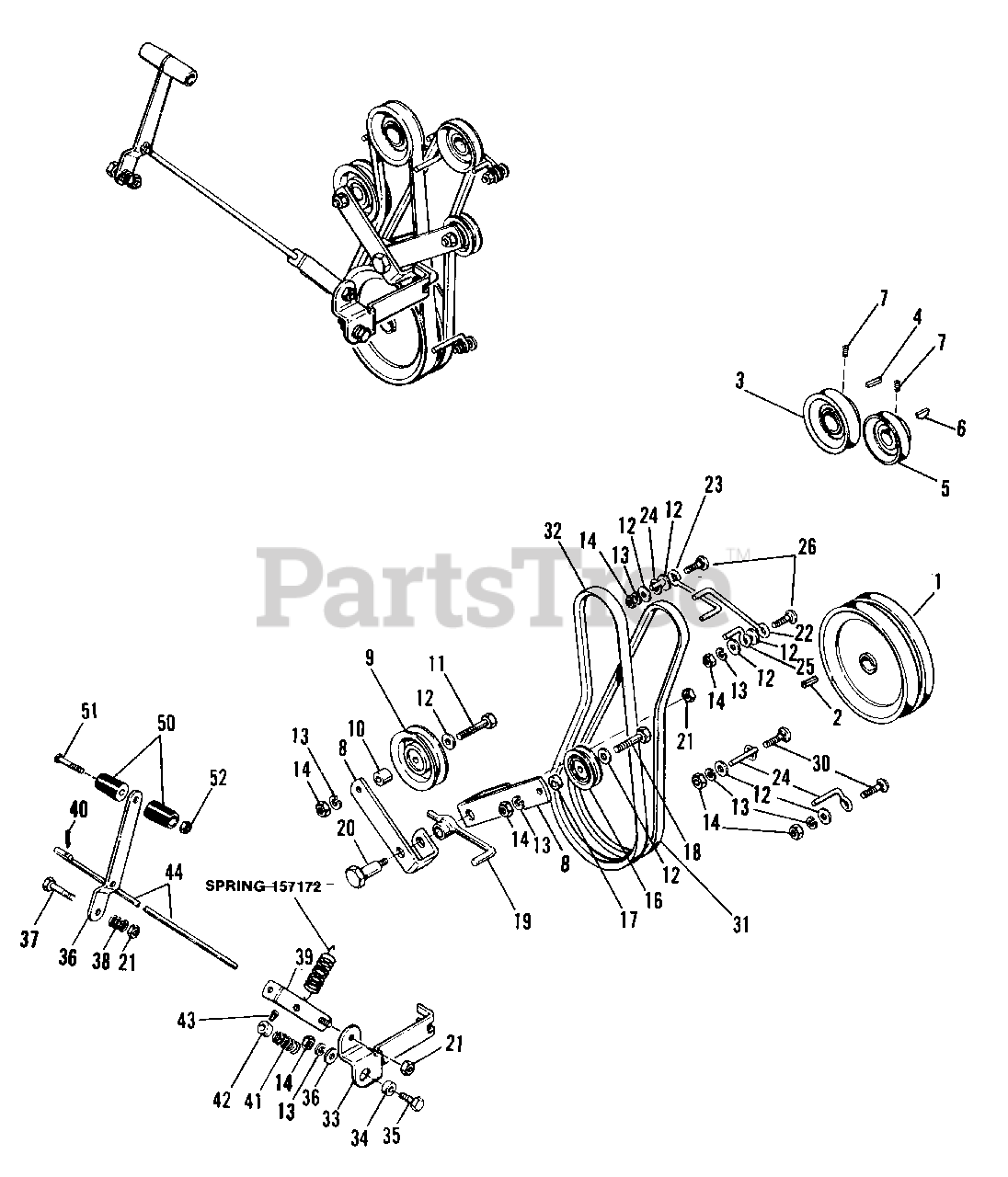

Clutch and Belt Group Parts Diagram

  • Title

1

Simplicity 175964

PULLEY, Driven

$

$

Not available

2

Simplicity 118439

KEY

$

$

Not available

3

Simplicity 176328

PULLEY

$

$

Not available

4

Simplicity 172668

KEY

$

$

Not available

5

Simplicity 118458

PULLEY

$

$

Not available

6

Simplicity 2810224SM

KEY

$3.99

$

Usually ships in 2-12 days

0

7

Simplicity 2828691

SETSCREW, 5/16-18 x 5/16

$

$

Not available

8

Simplicity 175962

LEVER, Idler

$

$

Not available

9

Simplicity 2154534SM

PULLEY, Idler

$32.99

$

In Stock, only 2 left!

0

10

Snapper 2118335SM

SPACER

$8.49

$

Usually ships in 2-12 days

0

11

Simplicity 2819361

CAPSCREW, Hex

$

$

Not available

12

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

13

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 7

0

14

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 10

0

15

Simplicity 930534

SCREW, Machine, 1/4-20 x 1-1/2

$

$

Not available

16

Simplicity 2118414SM

PULLEY, Idler

$26.99

$

Usually ships in 2-12 days

0

17

Simplicity 2174870SM

SPACER

$45.99

$

Usually ships in 2-12 days

0

18

Simplicity 2819360

CAPSCREW, Hex, 3/8-16 x 1-1/2

$

$

Not available

19

Simplicity 176192

PIVOT ASSY

$

$

Not available

20

Simplicity 171337

BOLT, Pivot

$

$

Not available

21

Simplicity 2823362

NUT, Hex, Full, 5/16-18

$

$

Not available

22

Simplicity 121073

STOP, Belt

$

$

Not available

23

Simplicity 2106707SM

STOP, Belt

$

$

Not available

24

Simplicity 106346

STOP, Belt

$

$

Not available

25

Simplicity 106347

STOP, Belt

$

$

Not available

26

Simplicity 2822109

BOLT, Carriage, 3/8-16 x 1-1/4

$

$

Not available

27

Simplicity 2823358

NUT, Hex, Full, 1/4-20

$

$

Not available

28

Simplicity 176892

HANDLE

$

$

Not available

29

Simplicity 176472

ROD

$

$

Not available

30

Simplicity 2822249

BOLT, Carriage, 3/8-16 x 1

$

$

Not available

31

Simplicity 2176393SM

BELT, V, Reverse

$19.99

$

Usually ships in 2-12 days

0

32

Simplicity 2176917SM

BELT, V, Forward

$21.99

$

Usually ships in 2-12 days

0

33

Simplicity 176869

BELLCRANK

$

$

Not available

34

Simplicity 2153081

SPACER

$

$

Not available

35

Simplicity 2821210

CAPSCREW, Hex, 3/8-16 x 1

$

$

Not available

36

Simplicity 176198

LEVER

$

$

Not available

37

Simplicity 2817398

CAPSCREW, Hex, 5/16 x 1-3/4

$

$

Not available

38

Simplicity 2173575SM

SPRING

$13.99

$

Usually ships in 2-12 days

0

39

Simplicity 163100

ROD GUIDE ASSY

$

$

Not available

40

Simplicity 2818447

PIN, Cotter, 3/32 x 3/4

$

$

Not available

41

Simplicity 1729277SM

SPRING

$6.99

$

Usually ships in 2-12 days

0

42

Simplicity 1729276SM

COLLAR, Set

$

$

Not available

43

Simplicity 2828804

SETSCREW, 1/4-20 x 3/8

$

$

Not available
