910 (990910) - Simplicity Roticul Reversing Tiller, 8hp Frame & Handles Parts Diagram

Roticul Reversing Tiller, 8hp

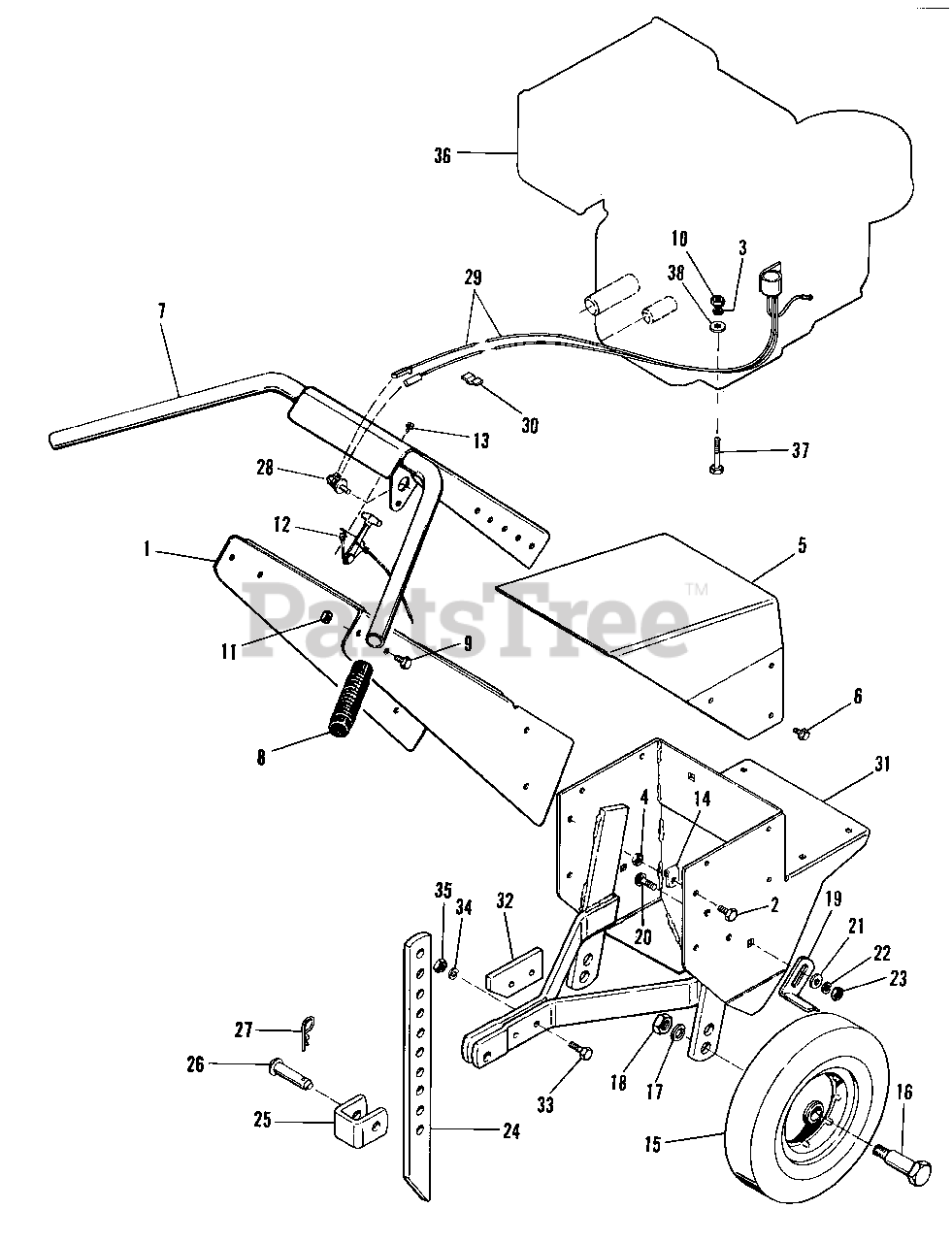

Frame & Handles Parts Diagram

  • Title

1

Simplicity 177696

CHANNEL ASSY

$

$

Not available

2

Simplicity 2715061

SCREW, Hex, Flange, 3/8-16 x 1

$

$

Not available

3

Simplicity 2720001

LOCKWASHER, 5/16

$

$

Not available

4

Simplicity 2718035

LOCKNUT, Flange, 3/8-16

$

$

Not available

5

Simplicity 176859

COVER

$

$

Not available

6

Simplicity 2715067

SCREW, Taptite, 1/4-20 x 3/8

$

$

Not available

7

Simplicity 176853

HANDLE BAR ASSY

$

$

Not available

8

Simplicity 2106558

CLIP

$

$

Not available

9

Simplicity 2715082

SCREW, Hex, Flange, 5/16-18 x 3/4

$

$

Not available

10

Simplicity 2717001

NUT, Hex, Full, 5/16-18

$

$

Not available

11

Simplicity 2718033

LOCKNUT, Flange, 5/16-18

$

$

Not available

12

Simplicity 176473

CONTROL ASSY, Throttle

$

$

Not available

13

Simplicity 2714016

SCREW, Self-Tapping, 1/4-20 x 1/2

$

$

Not available

14

Simplicity 2176523

CLIP

$

$

Not available

15

Simplicity 177124

WHEEL & TIRE ASSY

$

$

Not available

16

Simplicity 176196

BOLT, Shoulder

$

$

Not available

17

Simplicity 2816966

LOCKWASHER, 1/2

$

$

Not available

18

Simplicity 916957

NUT, Hex, Full, 1/2-13

$

$

Not available

19

Simplicity 176364

SCRAPER

$

$

Not available

20

Simplicity 2822249

BOLT, Carriage, 3/8-16 x 1

$

$

Not available

21

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

22

Simplicity 1916965SM

LOCKWASHER, 3/8-16
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

23

Simplicity 2816950SM

NUT, Hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 11

0

24

Simplicity 118081

BAR, Depth

$

$

Not available

25

Simplicity 118371

CLAMP

$

$

Not available

26

Simplicity 2105249SM

PIN

$16.99

$

Usually ships in 2-12 days

0

27

Simplicity 1918196SM

CLIP, Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, only 2 left!

0

28

Simplicity 1609283SM

SWITCH

$

$

Not available

29

Simplicity 177194

IGNITION INTERLOCK

$

$

Not available

30

Simplicity 176912

CLIP, Wire

$

$

Not available

31

Simplicity 1609342

FRAME ASSY

$

$

Not available

32

Simplicity 118207

PLATE, Stop

$

$

Not available

33

Simplicity 2819360

CAPSCREW, Hex, 3/8-16 x 1

$

$

Not available

34

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

35

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 11

0

36

ENGINE, 8 HP, Briggs & Stratton, Model 190492, Type 0794-02

$

$

Not available

37

Simplicity 2817398

CAPSCREW, Hex, 5/16-18 x 1-3/4

$

$

Not available

38

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available
