9100-2 - Generac 8,000 Watt Portable Generator Cradle No. 78531 Parts Diagram

8,000 Watt Portable Generator

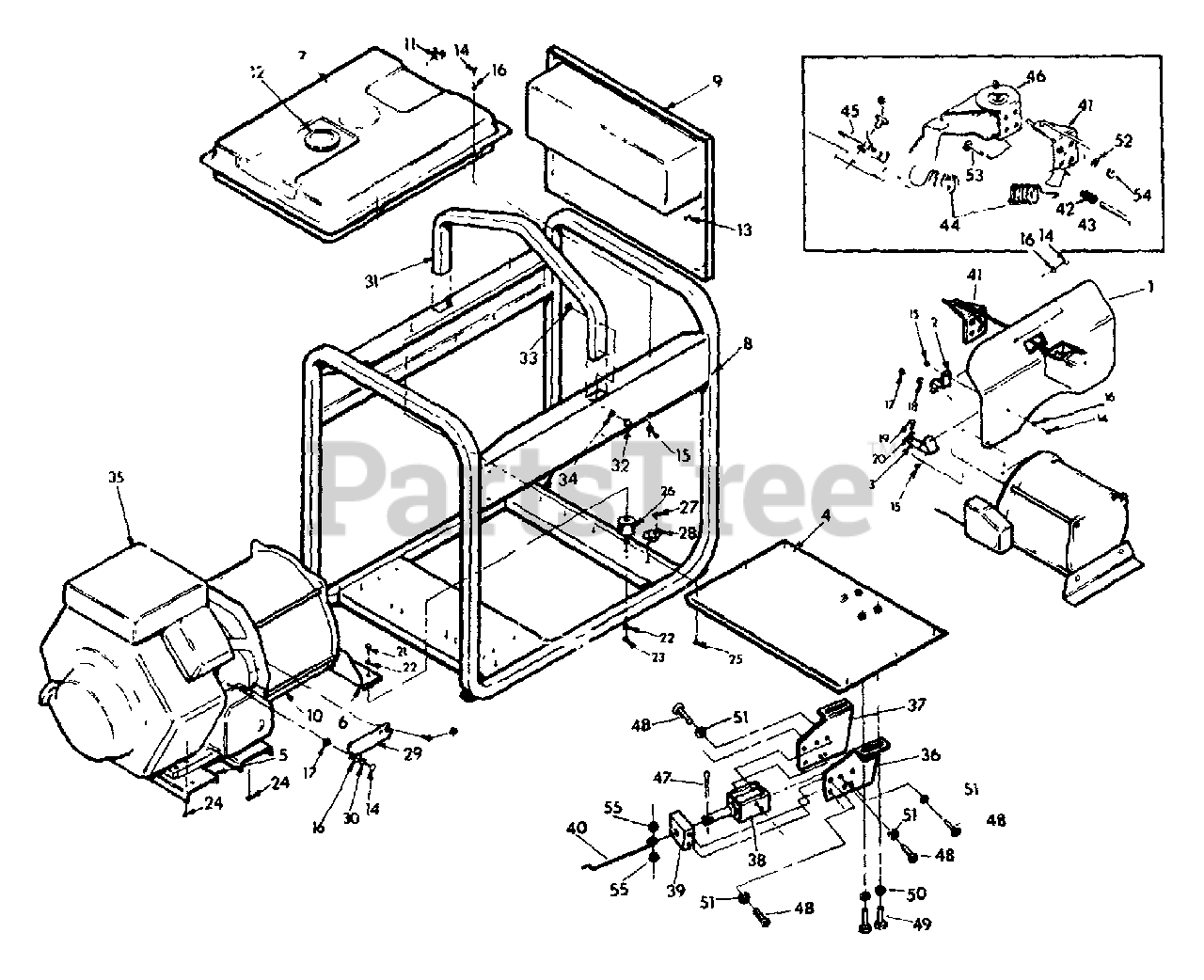

Cradle No. 78531 Parts Diagram

  • Title

1

Briggs & Stratton 78517

Heat deflecting shield

$

$

Currently unavailable

2

Briggs & Stratton 77319

Heat shield bracket

$

$

Currently unavailable

3

Briggs & Stratton 77306

Heat shield bracket

$

$

Currently unavailable

4

Briggs & Stratton 78518

Heat shield (gas tank)

$

$

Currently unavailable

5

Briggs & Stratton 77304

Engine support

$

$

Not available

6

Briggs & Stratton 77303

Alternator support

$

$

Currently unavailable

7

Briggs & Stratton 75465

Fuel tank
(Superseded to 7075465YP)

$15.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 77300

V-Twin cradle

$

$

Not available

9

Briggs & Stratton 78525A

Control panel cover assembly

$

$

Currently unavailable

10

UNKNOWN

$

$

Not available

11

Briggs & Stratton 75938

Fuel shut-off valve

$

$

Currently unavailable

12

Briggs & Stratton 76272

Fuel gauge cap

$

$

Not available

13

Briggs & Stratton 75494

Screw - No. 10-24 x 5/8"

$

$

Not available

14

Briggs & Stratton 42568

Capscrew - M6-1.0 x 20mm
(Superseded to 42568GS)

$3.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 52857

Hex lock nut - M6-1.0
(Superseded to 52857GS)

$3.49

$

Usually ships in 2-12 days

0

16

22473

Flat washer - 1/4"

$

$

Not available

17

Briggs & Stratton 24114

Hex nut - 5/16"-24

$

$

Not available

18

Briggs & Stratton 22129

Lock washer - 5/16"
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

19

Briggs & Stratton 49815

Capscrew - M5-0.8 x 16mm
(Superseded to 49815GS)

$3.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 22152

Lock washer - No. 10
(Superseded to 5022152)

$32.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 23152

Capscrew - 3/8" - 16 x 3/4"
(Superseded to 5101614)

$450.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 22237

Lock washer - 3/8"

$

$

Not available

23

Briggs & Stratton 22241

Hex nut - 3/8"-16

$

$

Not available

24

Briggs & Stratton 75246

Screw - 3/8"-16 x 1-1/4"
(Superseded to 75246GS)

$3.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 63036

Screw - No. 8-18 x 1/4"
(Superseded to 63036GS)

$2.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 35097

Vibration mount
(Superseded to 35097GS)

$16.99

$

In Stock, only 3 left!

0

27

Briggs & Stratton 56892

Screw - No. 10-24 x 3/8"
(Superseded to 56892GS)

$3.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 25433

Grounding lug

$

$

Not available

29

Briggs & Stratton 78807

Wire shield

$

$

Currently unavailable

30

Briggs & Stratton 22097

Lock washer - M6
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 77301

Lifting bar

$

$

Currently unavailable

32

Briggs & Stratton 39287

Capscrew - M8-1.25 x 45mm
(Superseded to 39287GS)

$3.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 52858

Hex lock nut - M8-1.25
(Superseded to 52858GS)

$3.99

$

In Stock, only 3 left!

0

34

Briggs & Stratton 22145

Flat washer - M8

$

$

Not available

35

Briggs & Stratton 78811

V-Twin engine - 15 hp.

$

$

Currently unavailable

36

Briggs & Stratton 78504

Sole mounting bracket

$

$

Currently unavailable

37

Briggs & Stratton 78504A

Sole mounting bracket

$

$

Currently unavailable

38

Briggs & Stratton 78520

Solenoid, D-4HD

$

$

Not available

39

Briggs & Stratton 78524

Solenoid cover

$

$

Currently unavailable

40

Briggs & Stratton 78507

Solenoid linkage

$

$

Currently unavailable

41

Briggs & Stratton 78516

Linkage mounting bracket

$

$

Currently unavailable

42

Briggs & Stratton 78529

Linkage mounting brkt. spring

$

$

Currently unavailable

43

Briggs & Stratton 78530

Capscrew - M4-0.7 x 50mm
(Superseded to 78530GS)

$2.49

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 78519

Idle control spring

$

$

Currently unavailable

45

Briggs & Stratton 78505

Spring mounting bracket

$

$

Currently unavailable

46

Briggs & Stratton 78527

Rework - Gov. control brkt.

$

$

Currently unavailable

47

Briggs & Stratton 22268

Cotter pin
(Superseded to 22268GS)

$3.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 36917

Screw - No. 8-32 x 3/8"
(Superseded to 797483)

$4.49

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 51718

Capscrew - M4-0.7 x 10mm

$

$

Not available

50

Briggs & Stratton 38150

Flat washer - No. 8
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 22264

Lock washer - No. 8

$

$

Not available

52

Briggs & Stratton 43184

Lock washer - 4mm
(Superseded to 5043184B)

$56.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 49819

Capscrew - M4-0.7 x 6 mm

$

$

Currently unavailable

54

Briggs & Stratton 51715

Hex nut - M4-0.7
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 25909

Nylon washer - .14 x .37 x .06
(Superseded to 25909GS)

$2.49

$

Usually ships in 2-12 days

0
