9100 - Paramount Edger, Electric EDGER ASSEMBLY Parts Diagram

Edger, Electric

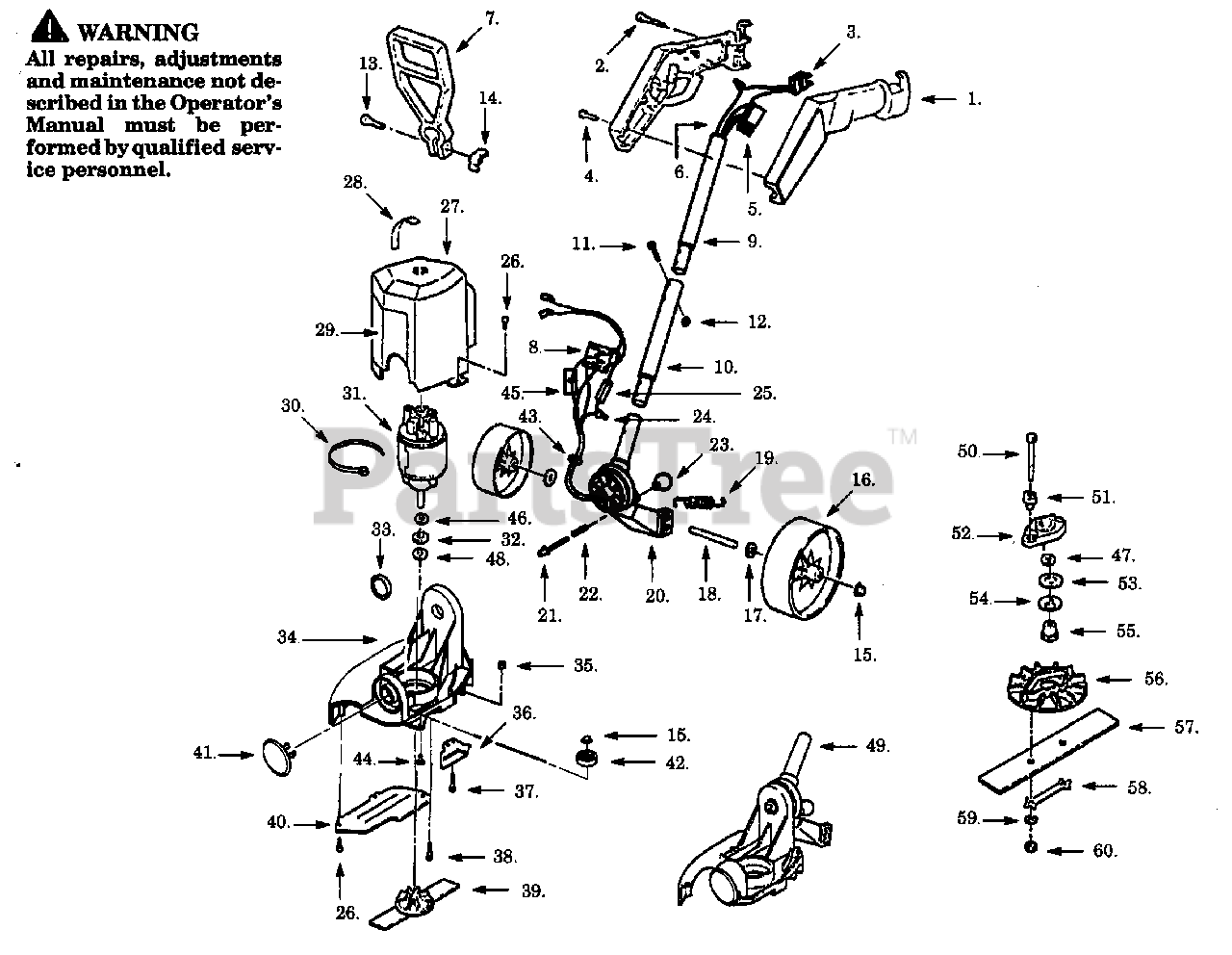

EDGER ASSEMBLY Parts Diagram

  • Title

1

Poulan 534826525

Handle Set

$7.49

$

Usually ships in 3-10 days

0

2

Poulan 534826802

Screw

$

$

Not available

3

Poulan 534936001

Power Plug

$

$

Not available

4

Poulan 534826801

Screw

$

$

Not available

5

Poulan 534193004

Switch

$

$

Not available

6

Poulan 534101163

Harness Ass'y.

$

$

Not available

7

Poulan 534156405

Assist Handle

$

$

Not available

8

Poulan 530400816

Bridge Ass'y.

$

$

Not available

9

Poulan 534838001

Upper Tube

$

$

Not available

10

Poulan 534838101

Lower Tube

$13.99

$

Usually ships in 3-10 days

0

11

Poulan 534829600

Screw

$

$

Not available

12

Poulan 534235901

Locknut
(Superseded to 530403094)

$3.99

$

Usually ships in 3-10 days

0

13

Poulan 534828400

Screw

$2.49

$

Usually ships in 3-10 days

0

14

Poulan 534828500

Wing Nut

$

$

Not available

15

Poulan 534121000

Push Nut

$3.99

$

Usually ships in 3-10 days

0

16

Poulan 534236800

Rear Wheel

$

$

Not available

17

Poulan 534137900

Washer

$2.49

$

Usually ships in 3-10 days

0

18

Poulan 534137701

Rear Axle

$

$

Not available

19

Poulan 534121300

Spring

$1.49

$

Usually ships in 3-10 days

0

20

Poulan 534137505

Rear Swivel

$

$

Not available

21

Poulan 534700002

Swivel Lock Shaft

$

$

Not available

22

Poulan 534710000

Swivel Lock Spring

$

$

Not available

23

Poulan 534720001

Knob

$2.49

$

Usually ships in 3-10 days

0

24

Poulan 534561000

Terminal Cap

$

$

Not available

25

Poulan 534134500

Resister

$

$

Not available

26

Poulan 534826800

Screw

$3.99

$

In Stock, only 2 left!

0

27

Poulan 534824902

Motor Cover

$

$

Not available

28

Poulan 534838800

Rear Adjust Label (Not a serviceable part)

$

$

Not available

29

Poulan 534036731

Motor Cover Label

$

$

Not available

30

Poulan 534134700

Tie Wrap

$1.49

$

Usually ships in 3-10 days

0

31

Poulan 534225015

Motor Ass'y.

$

$

Not available

32

Poulan 534938100

Washer

$2.49

$

Usually ships in 3-10 days

0

33

Poulan 534780000

Retaining Ring

$1.49

$

Usually ships in 3-10 days

0

34

Poulan 534036715

Deck Frame

$

$

Not available

35

Poulan 534315300

Locknut

$2.49

$

Usually ships in 3-10 days

0

36

Poulan 534830000

Blade Guide

$6.49

$

Usually ships in 3-10 days

0

37

Poulan 534315200

Screw

$0.99

$

Usually ships in 3-10 days

0

38

Poulan 534136401

Screw

$2.49

$

Usually ships in 3-10 days

0

39

Poulan 534135205

Blade Ass'y.

$

$

Not available

40

Poulan 534131515

Side Guard Plate

$

$

Not available

41

Poulan 534696005

Plug

$2.49

$

Usually ships in 3-10 days

0

42

Poulan 534615805

Roller

$

$

Not available

43

Poulan 534742400

Washer

$2.49

$

Usually ships in 3-10 days

0

44

Poulan 534642300

Rivet

$2.49

$

Usually ships in 3-10 days

0

45

Poulan 534954300

Shield

$2.49

$

Usually ships in 3-10 days

0

46

Poulan 534246700

Retaining Ring

$1.49

$

Usually ships in 3-10 days

0

47

Poulan 534758000

Washer

$2.49

$

Usually ships in 3-10 days

0

48

Poulan 534757900

Washer

$2.49

$

Usually ships in 3-10 days

0

49

Poulan 534135185

Edger Frame Ass'y.

$72.99

$

Usually ships in 3-10 days

0

50

Poulan 534135901

Screw

$

$

Not available

51

Poulan 534135605

Insulating Sleeve

$

$

Not available

52

Poulan 534135410

Clutch Plate

$

$

Not available

53

Poulan 534136300

Washer

$

$

Not available

54

Poulan 534238900

Spring Washer

$

$

Not available

55

Poulan 534135500

Clutch Sleeve

$

$

Not available

56

Poulan 534135305

Fan

$

$

Not available

57

Poulan 534205300

Blade

$15.99

$

Usually ships in 3-10 days

0

58

Poulan 534135700

Lock Strap

$3.99

$

In Stock, only 2 left!

0

59

Poulan 534136600

Lockwasher

$3.99

$

Usually ships in 3-10 days

0

60

Poulan 534136200

Locknut

$3.99

$

Usually ships in 3-10 days

0

Poulan 534068480

Operator Manual

Note: Not Shown.

$

$

Not available

Poulan 530400743

Carton Contents Bag

Note: Not Shown.

$

$

Not available

Poulan 534061510

Carton (Not a serviceable part)

Note: Not Shown.

$

$

Not available

Poulan 534838500

Dyn Brake Label (Not a serviceable part)

Note: Not Shown.

$

$

Not available

Poulan 534036729

Warning Label

Note: Not Shown.

$

$

Not available
