9101-3 - Generac 8,000 Watt Portable Generator Cradle Parts Diagram

8,000 Watt Portable Generator

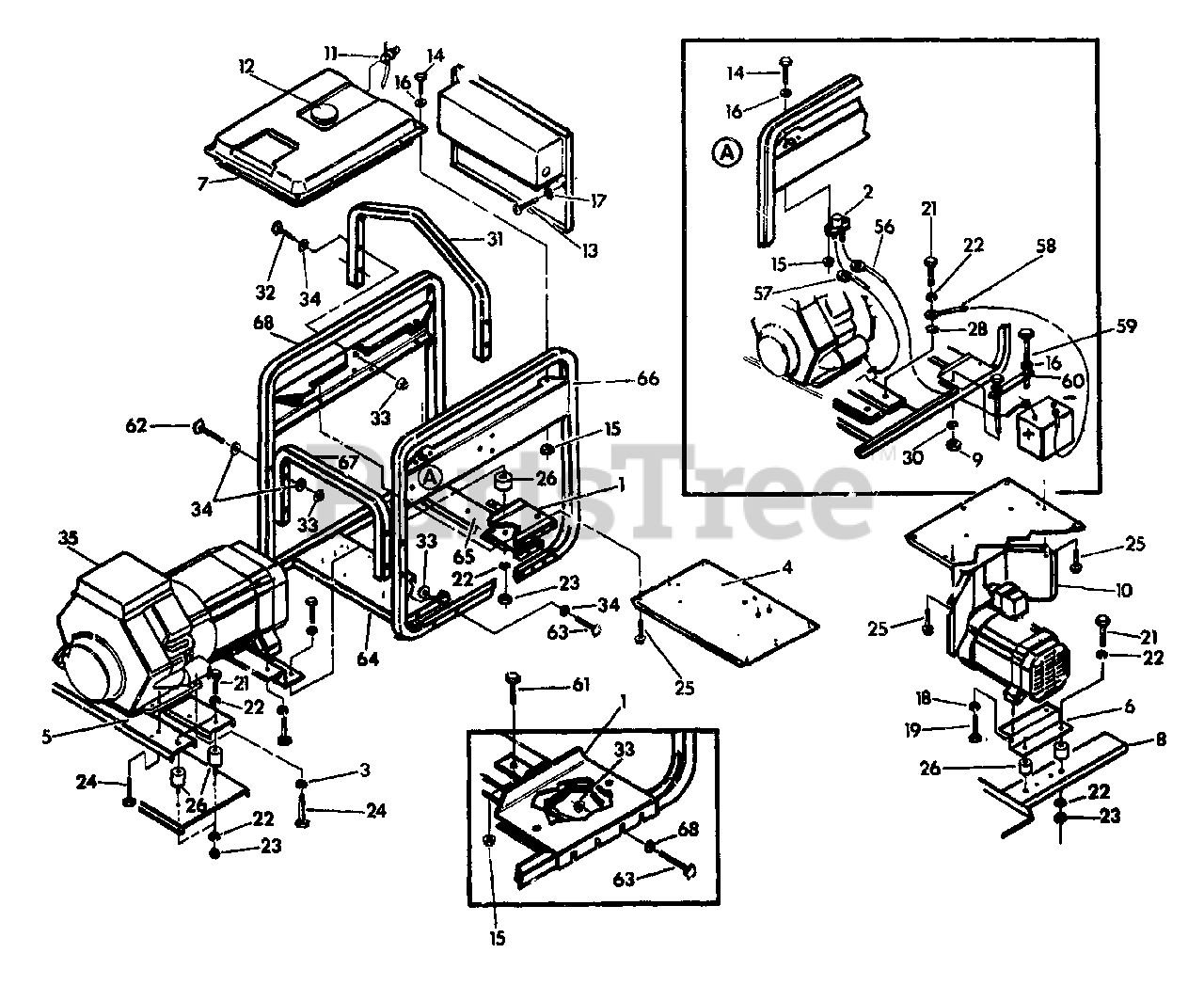

Cradle Parts Diagram

  • Title
1

$

$

Currently unavailable

2

Briggs & Stratton 77282

Starter Switch

$

$

Not available

3

Briggs & Stratton 22261

3/8" Shakeproof Washer
(Superseded to 22261GS)

$3.49

$

In Stock, only 2 left!

0

4

Briggs & Stratton 78518

Gas Tank Heat Shield (I/C models)

$

$

Currently unavailable

4

Briggs & Stratton 77316

Gas Tank Heat Shield (models without I/C)

$

$

Currently unavailable

5

Briggs & Stratton 77304

Engine Support

$

$

Not available

6

Briggs & Stratton 78512

Alternator Support
(Superseded to 78512GS)

$27.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 73715

Fuel Tank
(Superseded to 7073715YP)

$

$

Not available

8

Briggs & Stratton 80943

Manual Start Cradle

$

$

Currently unavailable

8

Briggs & Stratton 80943A

Electric Start Cradle

$

$

Currently unavailable

9

Briggs & Stratton 22127

1/4"-20 Hex Nut

$

$

Not available

10

Briggs & Stratton 78513

Heat Deflecting Shield

$

$

Currently unavailable

11

Briggs & Stratton 75938

Fuel Shutoff Valve

$

$

Currently unavailable

12

Briggs & Stratton 76272

Fuel Cap Gauge

$

$

Not available

13

Briggs & Stratton 75494

No. 10-24 x 5/8" Self-drilling Screw

$

$

Not available

14

Briggs & Stratton 42568

M6-1.0 x 20mm Hex Head Capscrew
(Superseded to 42568GS)

$3.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 42568

M6-1.0 x 20mm Hex Head Capscrew
(Superseded to 42568GS)

$3.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 52857

M6-1.0 x Hex Lock Nut
(Superseded to 52857GS)

$3.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 52857

M6-1.0 x Hex Lock Nut
(Superseded to 52857GS)

$3.49

$

Usually ships in 2-12 days

0

16

22473

1/4" Flat Washer

$

$

Not available

16

22473

1/4" Flat Washer

$

$

Not available

17

Briggs & Stratton 22769

M5 Shakeproof Washer
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 22129

M8 Lock Washer
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

19

Briggs & Stratton 39253

M8-1.25 x 16mm Hex Screw
(Superseded to 39253GS)

$3.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 23152

3/8"-16 x 3/4" Hex Head Capscrew
(Superseded to 5101614)

$450.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 22237

3/8" Lock Washer

$

$

Not available

23

Briggs & Stratton 22241

3/8"-16 Hex Nut

$

$

Not available

24

Briggs & Stratton 75246

3/8"-16 x 1-1/4" Self-tapping Screw
(Superseded to 75246GS)

$3.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 63036

No. 8-18 x 1/4" Crimptite Screw
(Superseded to 63036GS)

$2.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 35097

Vibration Mount
(Superseded to 35097GS)

$16.99

$

In Stock, only 3 left!

0

28

Briggs & Stratton 22261

3/8" Shakeproof Washer
(Superseded to 22261GS)

$3.49

$

In Stock, only 2 left!

0

30

Briggs & Stratton 22097

M6 Lock Washer
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

31

$

$

Currently unavailable

32

Briggs & Stratton 39287

M8-1.25 x 45mm Hex Head Capscrew
(Superseded to 39287GS)

$3.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 52858

M8-1.25 Hex Lock Nut
(Superseded to 52858GS)

$3.99

$

In Stock, only 3 left!

0

34

Briggs & Stratton 50190

1" Flat Washer
(Superseded to 50190GS)

$3.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 85109

15 HP V-Twin Engine (manual start)

$

$

Currently unavailable

35

Briggs & Stratton 85110

15 HP V-Twin Engine (electric start)

$

$

Currently unavailable

56

Briggs & Stratton 53621123

Battery-(+)-to-Switch Assembly Cable

$

$

Currently unavailable

57

Briggs & Stratton 53621122

Starter-to-Switch Assembly Cable

$

$

Currently unavailable

58

Briggs & Stratton 53621124

Ground-to-Battery Cable

$

$

Currently unavailable

59

Briggs & Stratton 45000

1/4"-20 x 7" Bolt
(Superseded to 45000GS)

$11.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 44951

Battery Holddown Bar

$

$

Currently unavailable

61

Briggs & Stratton 47411

M6-1.0 x 16mm Hex Head Capscrew

$

$

Not available

62

Briggs & Stratton 52203

M8-1.25 x 70mm Hex Head Capscrew

$

$

Not available

63

Briggs & Stratton 57821

M8-1.25 x 40mm Hex Head Capscrew

$

$

Not available

64

$

$

Currently unavailable

65

Briggs & Stratton 80947

Alternator Mount

$

$

Currently unavailable

66

$

$

Currently unavailable

67

Briggs & Stratton 80943

Cradle Support

$

$

Currently unavailable

68

Briggs & Stratton 64768

Left Cradle Side

$

$

Currently unavailable
