911006 (LM 21 S) - Ariens 21" Self-Propelled Walk-Behind Mower, 4hp Tecumseh (SN: 000101 - 005500) Drive System 21" Parts Diagram

21" Self-Propelled Walk-Behind Mower, 4hp Tecumseh

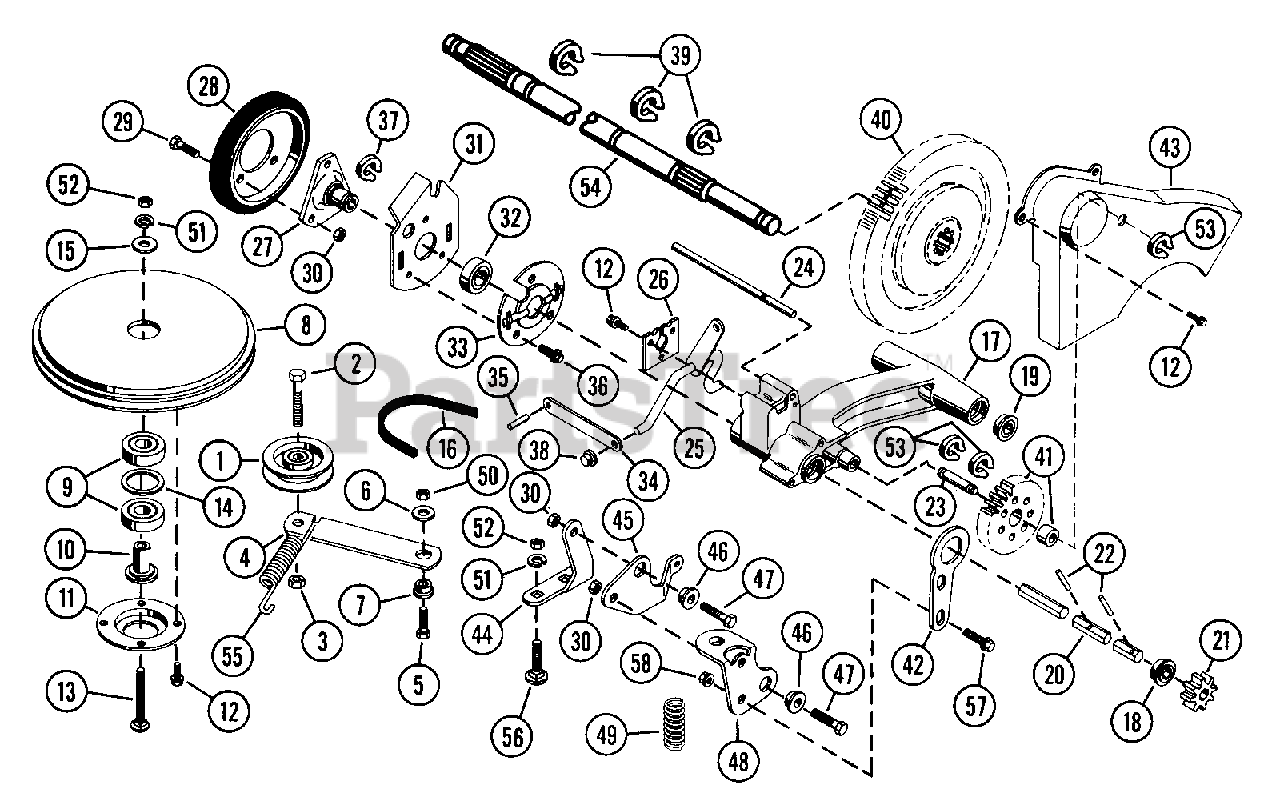

Drive System 21" Parts Diagram

  • Title

1

Ariens 07312800

IDLER-FLAT 1.88 X .38 NWHAMSHR

$

$

Not available

2

Ariens 05900600

BLT-HEX .38-16X1.50 PL GR2
(Superseded to 05957900)

$2.49

$

In Stock, Qty 12

0

3

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.99

$

In Stock, Qty 20+

0

4

Ariens 01123000

IDLER ARM

$

$

Not available

5

Ariens 05900200

BLT-HEX .31-18X.63 PL GR 2
(Superseded to 05952200)

$2.49

$

Usually ships in 4-12 days

0

6

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$1.99

$

Usually ships in 4-12 days

0

7

Ariens 01305900

BSHG, FLG .325X.499X.26X.88

$2.99

$

In Stock, Qty 20+

0

8

Ariens 01127300

FRICTION SHEAVE

$

$

Not available

9

Ariens 05403900

BRG-BALL .625X1.375X.44
(Superseded to 05435100)

$17.99

$

In Stock, Qty 20+

0

10

Ariens 01127400

SPINDLE - BEARING

$20.99

$

In Stock, only 1 left!

0

11

Ariens 01127500

RETAINER - BEARING

$20.99

$

Usually ships in 4-12 days

0

12

Ariens 07404500

SCR-TAP 12-24X.50 HWH PL TR
(Superseded to 07411900)

$3.49

$

In Stock, only 1 left!

0

13

Ariens 06203600

BLT-RDHDSQNK .31-18X1.75 PL
(Superseded to 06220200)

$3.99

$

In Stock, Qty 13

0

14

Ariens 06420200

WSHR-FL-STL 1.062X1.344X.032PL

$4.49

$

Usually ships in 4-12 days

0

15

Ariens 06409000

WSHR-FL-STL .328X.875X.062 PL
(Superseded to 06439400)

$4.99

$

Usually ships in 4-12 days

0

16

Ariens 07213800

V-BELT 3L 32.2
(Superseded to 07217100)

$36.99

$

In Stock, Qty 11

0

17

Ariens 01120600

DRIVE MOUNT
(Superseded to 01140600)

$

$

Not available

18

Ariens 05415400

BRG-RADIAL .562X1.38 HEX
(Superseded to 05413700)

$34.99

$

Usually ships in 4-12 days

0

19

Ariens 05415100

BRG-BALL .750X1.50X.44
(Superseded to 05408900)

$21.99

$

In Stock, only 3 left!

0

20

Ariens 01125700

HEX SHAFT
(Superseded to 01240100)

$72.99

$

In Stock, only 1 left!

0

21

Ariens 02201100

PINION

$11.99

$

Usually ships in 4-12 days

0

22

Ariens 05800500

PIN-ROLL .188X.88

$2.99

$

In Stock, only 1 left!

0

23

Ariens 01125800

SHAFT - IDLER

$5.99

$

Usually ships in 4-12 days

0

24

Ariens 01125100

ROD - GUIDE

$77.99

$

Usually ships in 4-12 days

0

25

Ariens 01123600

SHIFT ARM WELDMENT

$24.99

$

Usually ships in 4-12 days

0

26

Ariens 01125000

RETAINER PLATE

$9.99

$

Usually ships in 4-12 days

0

27

Ariens 01121200

FRICTION WHEEL HUB
(Superseded to 07415100)

$4.99

$

Usually ships in 4-12 days

0

28

Ariens 02201300

FRICTION DISC
(Superseded to 03248300)

$43.99

$

In Stock, Qty 20+

0

29

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

$1.49

$

In Stock, Qty 20+

0

30

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$1.49

$

In Stock, Qty 20+

0

31

Ariens 01119100

BEARING PLATE

$

$

Not available

32

Ariens 05415200

BRG-BALL 1.0X2.0X0188

$7.99

$

Usually ships in 4-12 days

0

33

Ariens 01119200

BEARING RETAINER

$8.49

$

Usually ships in 4-12 days

0

34

Ariens 01124200

SHIFT LINK

$8.49

$

In Stock, Qty 5

0

35

Ariens 05803500

PIN-ROLL .125X.50

$1.49

$

In Stock, Qty 10

0

36

Ariens 07405400

SCR-TAP 10-24X.375 HWH PL TR
(Superseded to 07412100)

$1.49

$

Usually ships in 4-12 days

0

37

Ariens 05706200

RG-RTNG-EXT 1.00X.042

$3.49

$

In Stock, Qty 5

0

38

Ariens 02215300

PUSH NUT, .25

$2.99

$

In Stock, Qty 8

0

39

Ariens 05701200

RG-RTNG-EXT .750X.042
(Superseded to 05700135)

$3.49

$

In Stock, only 2 left!

0

40

Ariens 61101500

DIFFERENTIAL ASSEMBLY
(Superseded to 51101800)

$

$

Not available

41

Ariens 61101600

IDLER GEAR ASSEMBLY
(Superseded to 51101200)

$

$

Not available

Ariens 05415300

BRG-NEEDLE .500X.688X.625

$

$

Not available

42

Ariens 01123200

CLUTCH COLLAR

$

$

Not available

43

Ariens 01121000

GEAR COVER
(Superseded to 01121051)

$42.99

$

Usually ships in 4-12 days

0

44

Ariens 01123300

MOUNTING BRACKET

$

$

Not available

45

Ariens 01123400

CLUTCH ARM

$

$

Not available

46

Ariens 05513400

BSHG-FLG .265X.437X.250X.750

$2.99

$

In Stock, only 2 left!

0

47

Ariens 05908000

BLT-HEX .25-20X.63 PL GR2
(Superseded to 05932000)

$2.99

$

Usually ships in 4-12 days

0

48

Ariens 01123500

ARM

$

$

Not available

49

Ariens 08320600

SG-COMP .086X.625X3.44

$

$

Not available

50

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$2.49

$

In Stock, Qty 20+

0

51

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$1.49

$

In Stock, Qty 20+

0

52

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06500938)

$1.99

$

In Stock, Qty 7

0

53

Ariens 05705900

RG-RTNG-EXT .438X.035

$1.49

$

In Stock, Qty 20+

0

54

Ariens 01121100

REAR AXLE

$

$

Not available

55

Ariens 08317200

SG-TENS .047X.44X3.37 WLD 1.47

$15.99

$

Usually ships in 4-12 days

0

56

Ariens 06203300

BLT-RDHDSQNK .312-18X.62SHTPL
(Superseded to 06212200)

$2.49

$

In Stock, Qty 20+

0

57

Ariens 07001500

BLT-SERHFWH .25-20X.50 PL
(Superseded to 07049300)

$3.49

$

Usually ships in 4-12 days

0

58

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$1.99

$

In Stock, Qty 20+

0
