911006 (LM 21 S) - Ariens 21" Self-Propelled Walk-Behind Mower, 4hp Tecumseh (SN: 005501 - 014100)

21" Self-Propelled Walk-Behind Mower, 4hp Tecumseh

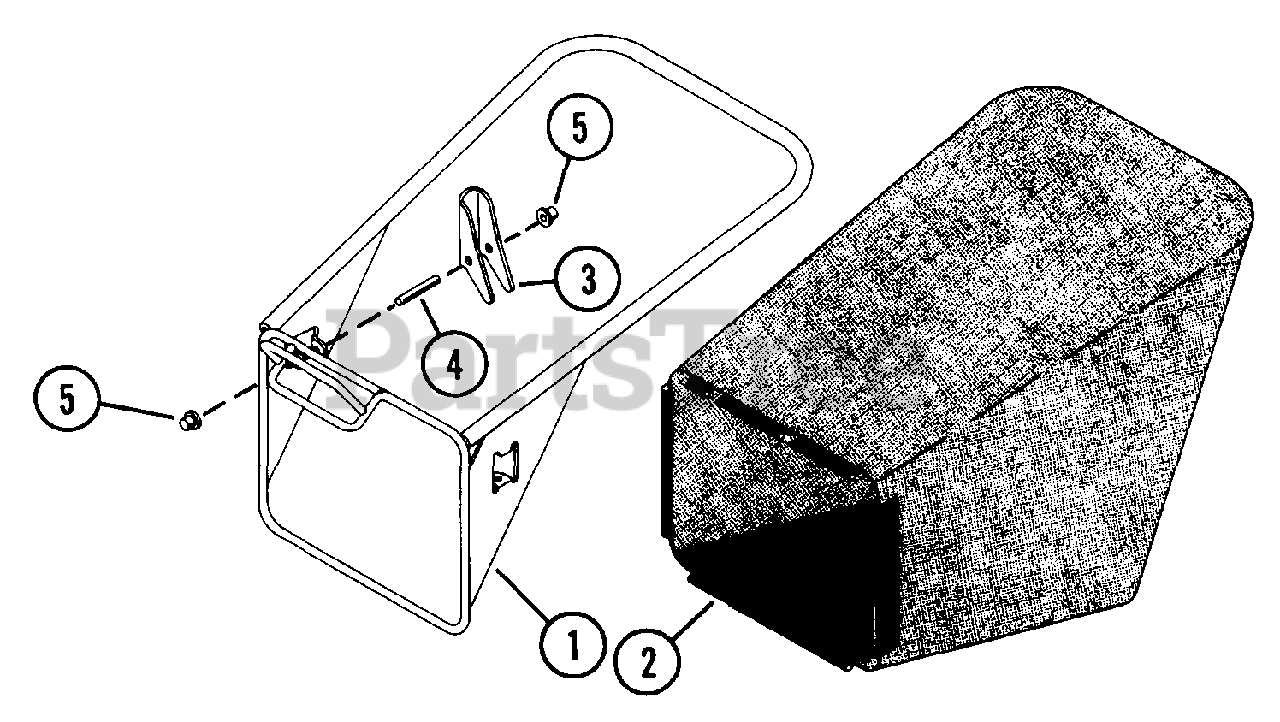

911006 (LM 21 S) - Ariens 21" Self-Propelled Walk-Behind Mower, 4hp Tecumseh (SN: 005501 - 014100) > Parts Diagrams (3) > Bagger

  • Title
01127900

1

CATCHER FRAME

Part# 01127900

OEM Warranty Repair Part for Ariens

Not available

01125500

2

GRASS CATCHER BAG

Part# 01125500

OEM Warranty Repair Part for Ariens

Not available

01128000

3

DISCHARGE DOOR RETAINER

Part# 01128000

OEM Warranty Repair Part for Ariens

Not available

01128100

4

HINGE PIN

Part# 01128100

OEM Warranty Repair Part for Ariens

Not available

01128200

5

PUSH NUT, .188

Part# 01128200

OEM Warranty Repair Part for Ariens

Not available
