911006 (LM 21 S) - Ariens 21" Self-Propelled Walk-Behind Mower, 4hp Tecumseh (SN: 005501 - 014100)

21" Self-Propelled Walk-Behind Mower, 4hp Tecumseh

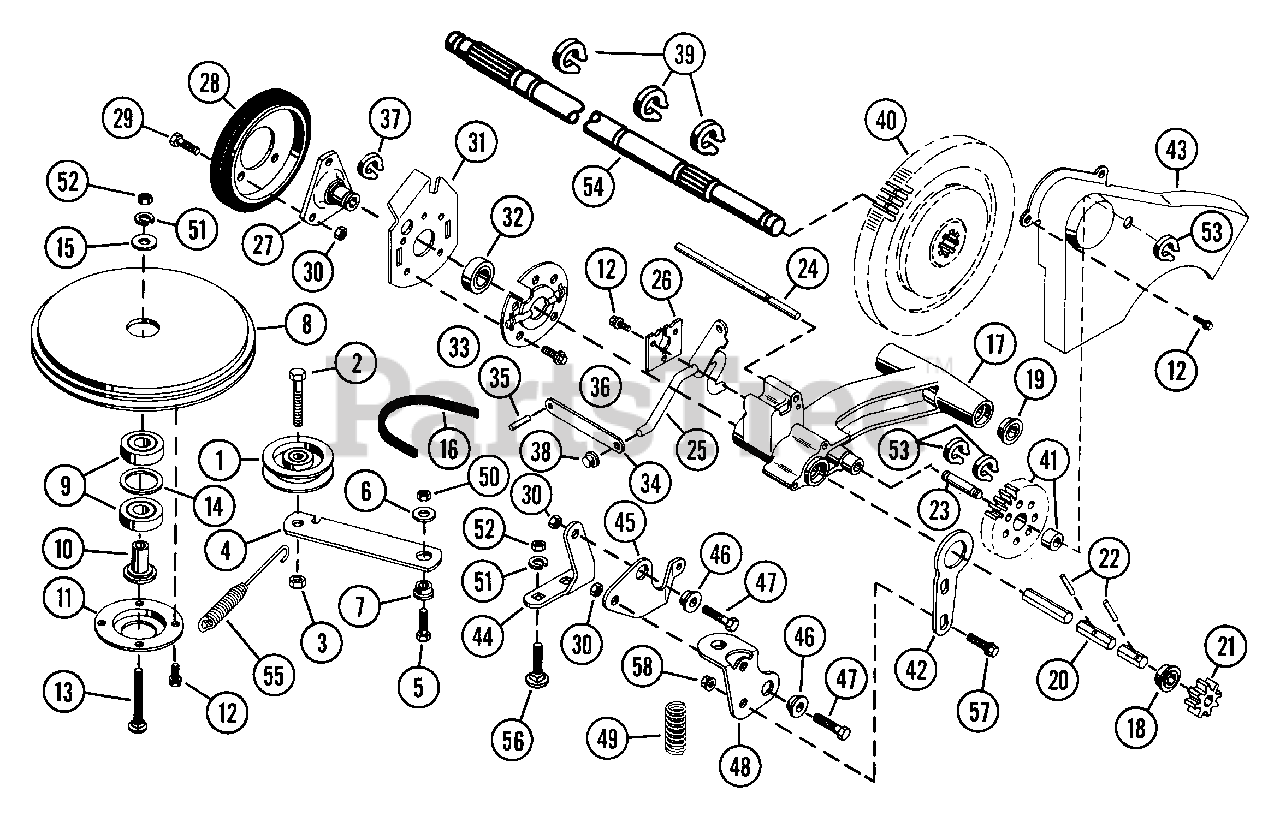

911006 (LM 21 S) - Ariens 21" Self-Propelled Walk-Behind Mower, 4hp Tecumseh (SN: 005501 - 014100) > Parts Diagrams (3) > Drive System 21"

  • Title
07312800

1

IDLER-FLAT 1.88 X .38 NWHAMSHR

Part# 07312800

OEM Warranty Repair Part for Ariens

Not available

05900600

2

BLT-HEX .38-16X1.50 PL GR2

Part# 05900600 (Superseded to 05957900)

OEM Warranty Repair Part for Ariens

Not available

06503900

3

NUT-LK-CTR .375-16 GR A PL

Part# 06503900 (Superseded to 06529600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

01123000

4

IDLER ARM

Part# 01123000

OEM Warranty Repair Part for Ariens

Not available

05902200

5

BLT-HEX .31-18X.75 PL GR2

Part# 05902200 (Superseded to 05947000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06405700

6

WSHR-FL-STL .323X.625X.062 PL

Part# 06405700 (Superseded to 06436700)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

01305900

7

BSHG, FLG .325X.499X.26X.88

Part# 01305900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

01127300

8

FRICTION SHEAVE

Part# 01127300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $73.73

05403900

9

BRG-BALL .625X1.375X.44

Part# 05403900 (Superseded to 05435100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $13.36

01127400

10

SPINDLE - BEARING

Part# 01127400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $14.48

01127500

11

RETAINER - BEARING

Part# 01127500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $13.47

07404500

12

SCR-TAP 12-24X.50 HWH PL TR

Part# 07404500 (Superseded to 07411900)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

06203600

13

BLT-RDHDSQNK .31-18X1.75 PL

Part# 06203600 (Superseded to 06220200)

OEM Warranty Repair Part for Ariens

Not available

06420200

14

WSHR-FL-STL 1.062X1.344X.032PL

Part# 06420200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06409000

15

WSHR-FL-STL .328X.875X.062 PL

Part# 06409000 (Superseded to 06439400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

07213800

16

V-BELT 3L 32.2

Part# 07213800 (Superseded to 07217100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $20.07

01120600

17

DRIVE MOUNT

Part# 01120600 (Superseded to 01140600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $96.15

05415400

18

BRG-RADIAL .562X1.38 HEX

Part# 05415400 (Superseded to 05413700)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $27.89

05415100

19

BRG-BALL .750X1.50X.44

Part# 05415100 (Superseded to 05408900)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $11.12

01125700

20

HEX SHAFT

Part# 01125700 (Superseded to 01240100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $59.48

02201100

21

PINION

Part# 02201100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

05800500

22

PIN-ROLL .188X.88

Part# 05800500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

01125800

23

SHAFT - IDLER

Part# 01125800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

01125100

24

ROD - GUIDE

Part# 01125100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $21.24

01123600

25

SHIFT ARM WELDMENT

Part# 01123600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

01125000

26

RETAINER PLATE

Part# 01125000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.65

01121200

27

FRICTION WHEEL HUB

Part# 01121200

OEM Warranty Repair Part for Ariens

Not available

02201300

28

FRICTION DISC

Part# 02201300 (Superseded to 03248300)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $33.48

05902800

29

BLT-HEX .25-20X.50 PL GR2

Part# 05902800 (Superseded to 05947900)

OEM Warranty Repair Part for Ariens

Not available

06504000

30

NUT-LK-CTR .250-20 PL

Part# 06504000 (Superseded to 06529700)

OEM Warranty Repair Part for Ariens

Not available

01119100

31

BEARING PLATE

Part# 01119100

OEM Warranty Repair Part for Ariens

Not available

05415200

32

BRG-BALL 1.0X2.0X0188

Part# 05415200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

01119200

33

BEARING RETAINER

Part# 01119200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.65

01124200

34

SHIFT LINK

Part# 01124200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.71

05803500

35

PIN-ROLL .125X.50

Part# 05803500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

07405400

36

SCR-TAP 10-24X.375 HWH PL TR

Part# 07405400 (Superseded to 07412100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

05706200

37

RG-RTNG-EXT 1.00X.042

Part# 05706200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

02215300

38

PUSH NUT, .25

Part# 02215300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

05701200

39

RG-RTNG-EXT .750X.042

Part# 05701200 (Superseded to 05700135)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

61101500

40

DIFFERENTIAL ASSEMBLY

Part# 61101500 (Superseded to 51101800)

OEM Warranty Repair Part for Ariens

Not available

61101600

41

IDLER GEAR ASSEMBLY

Part# 61101600 (Superseded to 51101200)

OEM Warranty Repair Part for Ariens

Not available

05415300

41

BRG-NEEDLE .500X.688X.625

Part# 05415300

OEM Warranty Repair Part for Ariens

Not available

01123200

42

CLUTCH COLLAR

Part# 01123200

OEM Warranty Repair Part for Ariens

Not available

01121000

43

GEAR COVER

Part# 01121000 (Superseded to 01121051)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $33.76

01123300

44

MOUNTING BRACKET

Part# 01123300

OEM Warranty Repair Part for Ariens

Not available

01123400

45

CLUTCH ARM

Part# 01123400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $33.48

05513400

46

BSHG-FLG .265X.437X.250X.750

Part# 05513400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

05908000

47

BLT-HEX .25-20X.63 PL GR2

Part# 05908000 (Superseded to 05932000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

01123500

48

ARM

Part# 01123500

OEM Warranty Repair Part for Ariens

Not available

08320600

49

SG-COMP .086X.625X3.44

Part# 08320600

OEM Warranty Repair Part for Ariens

Not available

06504200

50

NUT-LK .312-18 GR A PL

Part# 06504200 (Superseded to 06529800)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06300300

51

WSHR-LK .312X.097 PL HVY

Part# 06300300 (Superseded to 06307400)

OEM Warranty Repair Part for Ariens

Not available

06501500

52

NUT-HEX .312-18

Part# 06501500 (Superseded to 06529200)

OEM Warranty Repair Part for Ariens

Not available

05705900

53

RG-RTNG-EXT .438X.035

Part# 05705900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

01121100

54

REAR AXLE

Part# 01121100

OEM Warranty Repair Part for Ariens

Not available

08321100

55

SG-TENS .043X.44X3.31 WLD 5.8

Part# 08321100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.93

06203300

56

BLT-RDHDSQNK .312-18X.62SHTPL

Part# 06203300 (Superseded to 06212200)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

07001500

57

BLT-SERHFWH .25-20X.50 PL

Part# 07001500 (Superseded to 07049300)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.85

06505600

58

NUT-LK-FLG .250-20 PL

Part# 06505600 (Superseded to 06530100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40
