911007 (LM 21 SE) - Ariens 21" Self-Propelled Walk-Behind Mower, 4hp Tecumseh (SN: 002501 - 009100) Self Propelled Mower 21" Parts Diagram

21" Self-Propelled Walk-Behind Mower, 4hp Tecumseh

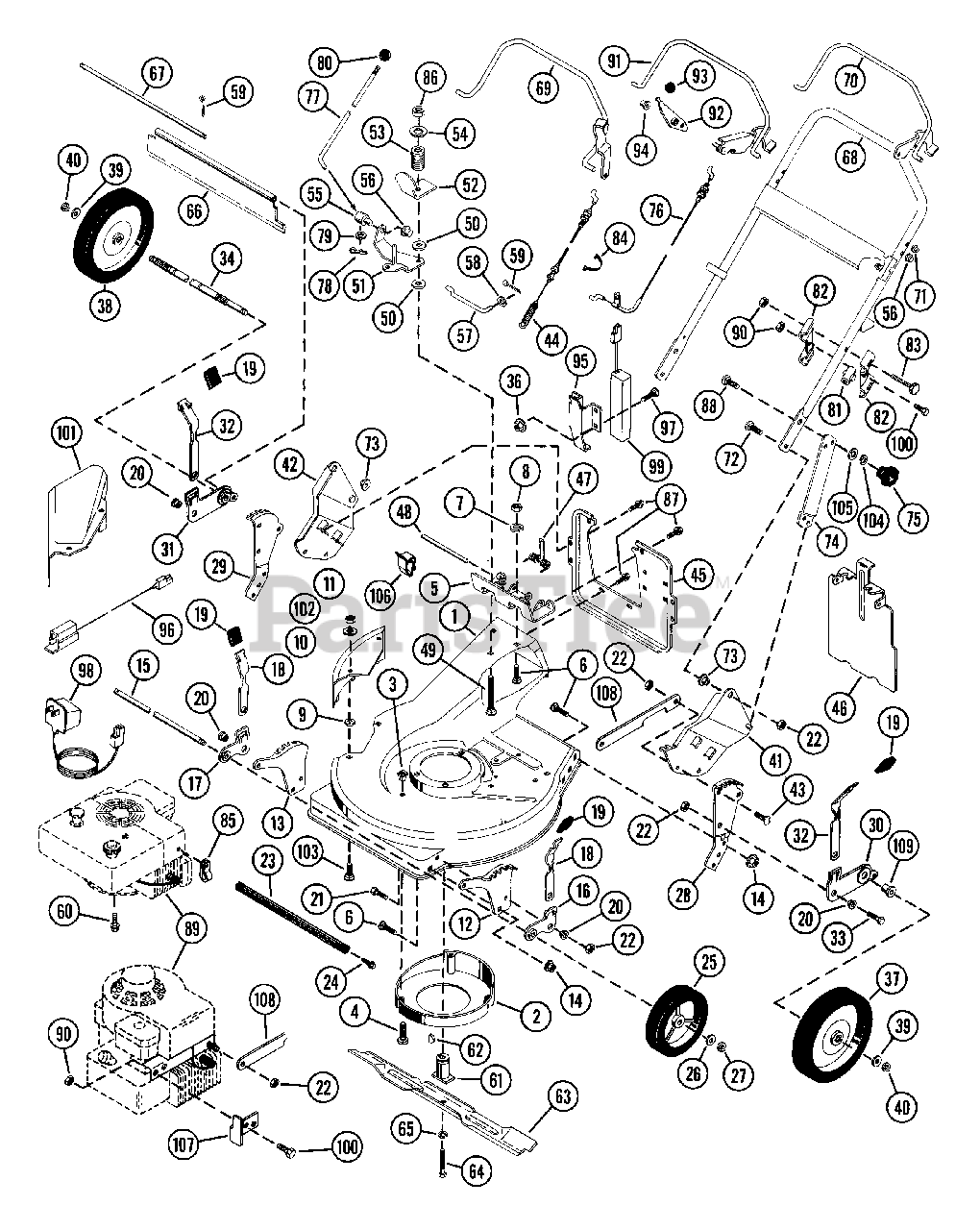

Self Propelled Mower 21" Parts Diagram

  • Title

1

Ariens 51100800

21 INCH MOWER PAN W/DECALS

$

$

Not available

2

Ariens 01118900

CENTER BAFFLE
(Superseded to 01173700)

$45.99

$

Usually ships in 4-12 days

0

3

Ariens 07507600

PLASTIC GROMMET

$0.99

$

In Stock, Qty 5

0

4

Ariens 07407400

SCR-TAP 10-16X.62 SLPH PL AB
(Superseded to 07415000)

$1.99

$

In Stock, only 4 left!

0

5

Ariens 01119300

HINGE PLATE

$

$

Not available

6

Ariens 06203300

BLT-RDHDSQNK .312-18X.62SHTPL
(Superseded to 06212200)

$1.99

$

In Stock, Qty 20+

0

7

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, only 2 left!

0

8

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 5

0

10

Ariens 01118800

SIDE DISCHARGE COVER
(Superseded to 01180351)

$35.99

$

In Stock, Qty 6

0

11

Ariens 06506200

NUT-LK-NYL.312-18 PL
(Superseded to 06530200)

$2.49

$

In Stock, Qty 20+

0

12

Ariens 01119500

LEFT FRONT QUADRANT

$22.99

$

Usually ships in 4-12 days

0

13

Ariens 01119600

RIGHT FRONT QUADRANT

$12.99

$

Usually ships in 4-12 days

0

14

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.49

$

In Stock, Qty 12

0

15

Ariens 01122200

FRONT AXLE

$

$

Not available

16

Ariens 01119800

LEFT ADJUSTOR BRACKET ASSEMBLY

$41.99

$

Usually ships in 4-12 days

0

17

Ariens 01119900

RIGHT ADJUSTOR BRACKET ASSEMBL

$41.99

$

In Stock, only 1 left!

0

18

Ariens 01120000

FRONT HEIGHT ADJUSTMENT LEVER

$20.99

$

In Stock, only 2 left!

0

19

Ariens 07513600

KNOB

$5.99

$

In Stock, only 4 left!

0

20

Ariens 05513300

BSHG-FLG .315X.500X.354X.875
(Superseded to 05514800)

$3.99

$

In Stock, Qty 10

0

21

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$2.49

$

In Stock, Qty 5

0

22

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

Note: (Used Only On Model(s): 911006,911007).

$1.49

$

In Stock, Qty 20+

0

22

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

Note: (Used Only On Model(s): 911009).

$1.49

$

In Stock, Qty 20+

0

23

Ariens 01119400

BUMPER

$

$

Not available

24

Ariens 07003100

BLT-SCRHFWH .38-16X.75 PL
(Superseded to 07028500)

$2.99

$

In Stock, Qty 20+

0

25

Ariens 07113500

T/WHL ASSY 7X1.50
(Superseded to 07114400)

$

$

Not available

26

Ariens 06405600

WSHR-FL-STL .505X.880X.072 PL
(Superseded to 06436600)

$3.99

$

In Stock, Qty 5

0

27

Ariens 05705900

RG-RTNG-EXT .438X.035

$0.99

$

In Stock, only 4 left!

0

28

Ariens 01120400

LEFT REAR QUADRANT

$

$

Not available

29

Ariens 01120500

RIGHT REAR QUADRANT

$

$

Not available

30

Ariens 01122800

REAR ADJUSTMENT BRACKET LH
(Superseded to 05408900)

$14.99

$

In Stock, Qty 9

0

31

Ariens 01120800

REAR BRACKET AND BEARING ASSEM
(Superseded to 01242000)

$25.99

$

In Stock, only 3 left!

0

32

Ariens 01119700

HEIGHT ADJUSTMENT LEVER
(Superseded to 01242000)

$25.99

$

In Stock, only 3 left!

0

33

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$2.49

$

In Stock, Qty 5

0

34

Ariens 01121100

REAR AXLE

$

$

Not available

35

Ariens 07001500

BLT-SERHFWH .25-20X.50 PL
(Superseded to 07049300)

$2.49

$

Usually ships in 4-12 days

0

36

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$0.99

$

In Stock, Qty 20+

0

37

Ariens 61101700

WHEEL ASSEMBLY L.H.
(Superseded to 07115000)

Note: (ORDER 611017 ONLY)

$

$

Not available

37

Ariens 05513500

BSHG-FLG .625X.750X.750X1.125

$

$

Not available

37

Ariens 05513600

BSHG-SLV .625X.750X.500

$

$

Not available

37

Ariens 05603400

SEAL .625X.875X.125

$9.99

$

Usually ships in 4-12 days

0

37

Ariens 01124300

SPACER .75 X .25 X .88

$

$

Not available

38

Ariens 07114000

WHL 10 IN O.D.
(Superseded to 07114300)

$

$

Not available

39

Ariens 06403900

WSHR-FL-STL .630X1.005X.062 PL
(Superseded to 06436100)

$2.49

$

In Stock, Qty 20+

0

40

Ariens 05709300

RG-RTNG-EXT .500X.042

$

$

Not available

41

Ariens 01122700

LH HANDLEBAR MTG BRACKET WELDM
(Superseded to 07411900)

$1.99

$

In Stock, Qty 18

0

42

Ariens 01122600

RH HANDLEBAR MTG BRACKET WELDM
(Superseded to 01137251)

$50.99

$

Usually ships in 4-12 days

0

43

Ariens 06202600

BLT-RDHDSQNK .312-18X.62 PL
(Superseded to 06215700)

$2.49

$

In Stock, Qty 20+

0

44

Ariens 06913800

CABLE - TRACTION CLUTCH

$50.99

$

Usually ships in 4-12 days

0

45

Ariens 01119000

CATCHER MOUNTING PLATE

$

$

Not available

46

Ariens 01118700

DISCHARGE COVER

$

$

Not available

47

Ariens 08320700

SG-TORS .090X.550X2.88

$

$

Not available

48

Ariens 01123700

HINGE PIN

$

$

Not available

49

Ariens 06203200

BLT-RDHDSQNK .38-16X2.00 SHTYW
(Superseded to 06200323)

$3.99

$

In Stock, only 1 left!

0

50

Ariens 01123800

FRICTION WASHER

$3.99

$

In Stock, only 2 left!

0

51

Ariens 01123900

BELL CRANK - SPEED CONTROL
(Superseded to 04756800)

$21.99

$

Usually ships in 4-12 days

0

52

Ariens 01124000

PRESSURE FLANGE

$

$

Not available

53

Ariens 08320900

SG-COMP .187X.56X1.62

$7.99

$

In Stock, Qty 7

0

54

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

55

Ariens 01124100

SWIVEL

$51.99

$

Usually ships in 4-12 days

0

56

Ariens 01019800

CAP, 3/8 ROD YWZC

$2.99

$

In Stock, Qty 19

0

57

Ariens 01126100

SHIFT LINK

$21.99

$

Usually ships in 4-12 days

0

58

Ariens 06412700

WSHR-FL-STL.281X.62X.065 PL
(Superseded to 06437300)

$0.99

$

In Stock, Qty 12

0

59

Ariens 06700300

PIN-COTR .06X.50
(Superseded to 06712400)

$3.99

$

Usually ships in 4-12 days

0

60

Ariens 07004100

SCREW - FLG WIZ LOCK HH PL

Note: (Used Only On Model(s): 911006, 7).

$

$

Not available

61

Ariens 01121700

BLADE ADAPTER

$77.99

$

Usually ships in 4-12 days

0

62

Ariens 06600900

KEY-WDRF .156X.625X.25 SAE 6

$2.49

$

In Stock, only 1 left!

0

63

Ariens 01128500

21" MOWER BLADE
(Superseded to 01137000)

$23.99

$

In Stock, Qty 20+

0

64

Ariens 05909400

BLT-HEX .38-24X2.00 PL GR5
(Superseded to 05958600)

$2.99

$

In Stock, only 3 left!

0

65

Ariens 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$0.99

$

In Stock, Qty 14

0

66

Ariens 07513800

REAR PROTECTIVE GUARD

$

$

Not available

67

Ariens 01124400

ROD

$

$

Not available

68

Ariens 51100300

HANDLEBAR W/DECAL

Note: (Used Only On Model(s): 911007).

$

$

Not available

68

Ariens 51100400

HANDLEBAR W/DECAL

Note: (Used Only On Model(s): 911006, 911009).

$

$

Not available

69

Ariens 01124700

DRIVE-BAIL WELDMENT
(Superseded to 01133700)

$14.99

$

Usually ships in 4-12 days

0

70

Ariens 01122400

START BAIL - RECOIL
(Superseded to 01133200)

Note: (Used Only On Model(s): 911006,911009).

$

$

Not available

71

Ariens 07008200

NUT-PUSH .312 DIA. PAL

$2.49

$

In Stock, Qty 20+

0

72

Ariens 06201100

BLT-RDHDSQNK .31-18X.75 GR5 PL
(Superseded to 06215700)

$2.49

$

In Stock, Qty 20+

0

73

Ariens 01305900

BSHG, FLG .325X.499X.26X.88

$2.49

$

In Stock, Qty 8

0

74

Ariens 01125400

HANDLEBAR BRACKET
(Superseded to 01158651)

$20.99

$

Usually ships in 4-12 days

0

75

Ariens 07513000

FLUTED WING
(Superseded to 07534800)

$7.99

$

In Stock, Qty 14

0

76

Ariens 06913900

CABLE - ENGINE

Note: (Used Only On Model(s): 911006,911007).

$

$

Not available

76

Ariens 06914100

ENGINE CABLE

Note: (Used Only On Model(s): 911009).

$

$

Not available

77

Ariens 01124500

ROD - SPEED CONTROL

$

$

Not available

78

Ariens 06702000

PIN-HAIR INT .08X.18X1.18
(Superseded to 06713500)

$0.99

$

In Stock, Qty 20+

0

79

Ariens 06412300

WSHR-FL-STL.344X.688X.065PL
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0

80

Ariens 07514200

KNOB

$

$

Not available

81

Ariens 07514100

PULL CORD RETAINER

Note: (Used Only On Model(s): 911006,09).

$

$

Not available

82

Ariens 01127600

BRACKET - ROPE GUIDE

Note: (Used Only On Model(s): 911006,09).

$

$

Not available

83

Ariens 05905000

BLT-HEX .25-20X1.50 PL GR5
(Superseded to 05952500)

Note: (Used Only On Model(s): 911006,09).

$1.49

$

In Stock, Qty 20+

0

84

Ariens 07513900

CABLE RETAINER
(Superseded to 07517300)

$

$

Not available

85

Ariens 06914000

CLIP

Note: (Used Only On Model(s): 911006,7).

$

$

Not available

86

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

87

Ariens 07405400

SCR-TAP 10-24X.375 HWH PL TR
(Superseded to 07412100)

$0.99

$

Usually ships in 4-12 days

0

88

Ariens 06204800

BLT-RDHDSQNK .31-18X1.25 SHTPL
(Superseded to 06212100)

$1.49

$

In Stock, only 4 left!

0

89

ENGINE

$

$

Not available

90

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

Note: (Used Only On Model(s): 911006,09).

$0.99

$

In Stock, Qty 20+

0

91

Ariens 01122000

START BAIL WELDMENT - ELECTRIC
(Superseded to 01133300)

Note: (Used Only On Model(s): 911007).

$

$

Not available

92

Ariens 01123100

START LEVER WELDMENT

Note: (Used Only On Model(s): 911007).

$

$

Not available

93

Ariens 07510100

KNOB, CONTROL-THROTTLE

Note: (Used Only On Model(s): 911007).

$14.99

$

Usually ships in 4-12 days

0

94

Ariens 02215300

PUSH NUT, .25

Note: (Used Only On Model(s): 911007).

$1.99

$

In Stock, Qty 20+

0

95

Ariens 01122100

BATTERY BOX

Note: (Used Only On Model(s): 911007).

$

$

Not available

96

Ariens 01124600

POWER CORD

Note: (Used Only On Model(s): 911007).

$

$

Not available

97

Ariens 06205300

BLT-RDHDSQNK .25-20X.50 SHT PL
(Superseded to 06220600)

Note: (Used Only On Model(s): 911007).

$0.99

$

In Stock, Qty 20+

0

98

Ariens 01126000

BATTERY CHARGER

Note: (Used Only On Model(s): 911007).

$

$

Not available

99

Ariens 01121900

BATTERY
(Superseded to 51106400)

Note: (Used Only On Model(s): 911007).

$120.99

$

Usually ships in 4-12 days

0

100

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

Note: (Used Only On Model(s): 911006,09).

$2.49

$

In Stock, Qty 20+

0

101

Ariens 01118600

DISCHARGE CHUTE
(Superseded to 01180200)

$35.99

$

In Stock, Qty 7

0

102

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

103

Ariens 06203400

BLT-RDHDSQNK .31-18X.75 SHT PL
(Superseded to 06214100)

$2.49

$

In Stock, Qty 20+

0

104

Ariens 06300600

WSHR-LK .500X.151 HVY PL
(Superseded to 06306600)

$2.99

$

In Stock, only 4 left!

0

105

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$2.49

$

In Stock, only 3 left!

0

106

Ariens 07008400

CLIP-HARNESS TINNERMAN

Note: (Used Only On Model(s): 911009).

$

$

Not available

107

Ariens 01128600

LEVER GUARD

Note: (Used Only On Model(s): 911009).

$

$

Not available

108

Ariens 01128700

ANTIVIBRATION STRAP
(Superseded to 01154600)

Note: (Used Only On Model(s): 911009).

$

$

Not available

109

Ariens 05415100

BRG-BALL .750X1.50X.44
(Superseded to 05408900)

$14.99

$

In Stock, Qty 9

0
