911008 (LM 21) - Ariens 21" Push Walk-Behind Mower, 3.5hp Briggs & Stratton (SN: 000101 - 002600) Push Mower 21" Parts Diagram

21" Push Walk-Behind Mower, 3.5hp Briggs & Stratton

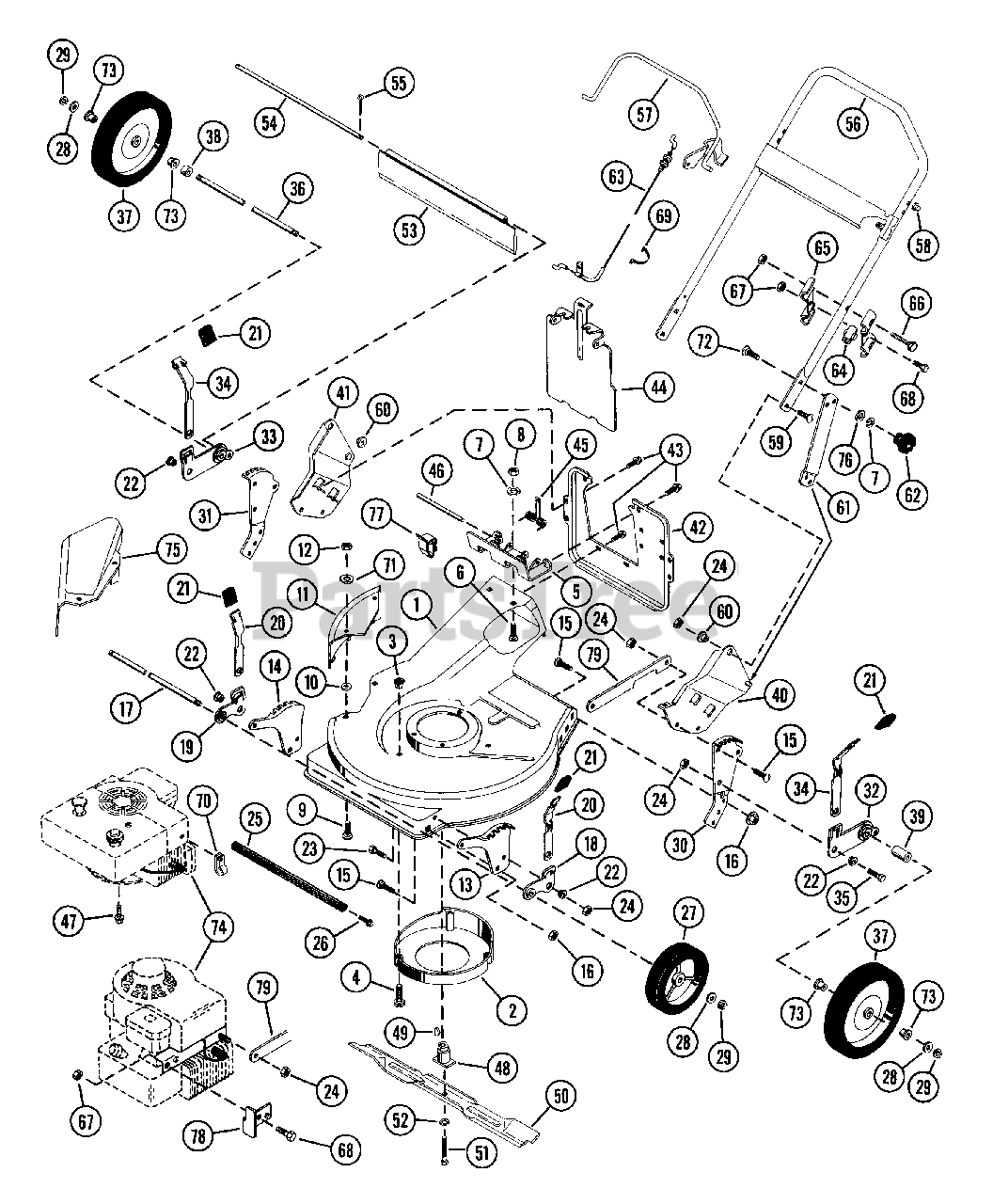

Push Mower 21" Parts Diagram

  • Title

1

Ariens 51100900

21 INCH MOWER PAN W/DECALS
(Superseded to 51104500)

$

$

Not available

2

Ariens 01118900

CENTER BAFFLE
(Superseded to 01173700)

$46.99

$

Usually ships in 4-12 days

0

3

Ariens 07507600

PLASTIC GROMMET

$0.99

$

In Stock, Qty 10

0

4

Ariens 07407400

SCR-TAP 10-16X.62 SLPH PL AB
(Superseded to 07415000)

$2.49

$

Usually ships in 4-12 days

0

5

Ariens 01119300

HINGE PLATE

$

$

Not available

6

Ariens 06203300

BLT-RDHDSQNK .312-18X.62SHTPL
(Superseded to 06212200)

$1.99

$

In Stock, Qty 20+

0

7

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, only 3 left!

0

8

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$1.49

$

In Stock, Qty 9

0

9

Ariens 06203400

BLT-RDHDSQNK .31-18X.75 SHT PL
(Superseded to 06214100)

$2.99

$

In Stock, Qty 20+

0

10

Ariens 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 20+

0

11

Ariens 01118800

SIDE DISCHARGE COVER
(Superseded to 01180351)

$46.99

$

In Stock, only 2 left!

0

12

Ariens 06506200

NUT-LK-NYL.312-18 PL
(Superseded to 06530200)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 01119500

LEFT FRONT QUADRANT

$

$

Not available

14

Ariens 01119600

RIGHT FRONT QUADRANT

$

$

Not available

15

Ariens 06203300

BLT-RDHDSQNK .312-18X.62SHTPL
(Superseded to 06212200)

$1.99

$

In Stock, Qty 20+

0

16

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.99

$

In Stock, Qty 20+

0

17

Ariens 01122200

FRONT AXLE

$

$

Not available

18

Ariens 01119800

LEFT ADJUSTOR BRACKET ASSEMBLY

$85.99

$

Usually ships in 4-12 days

0

19

Ariens 01119900

RIGHT ADJUSTOR BRACKET ASSEMBL

$65.99

$

In Stock, only 1 left!

0

20

Ariens 01120000

FRONT HEIGHT ADJUSTMENT LEVER

$20.99

$

Usually ships in 4-12 days

0

21

Ariens 07513600

KNOB

$8.49

$

In Stock, only 2 left!

0

22

Ariens 05513300

BSHG-FLG .315X.500X.354X.875
(Superseded to 05514800)

$2.49

$

In Stock, Qty 20+

0

23

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.99

$

In Stock, Qty 20+

0

24

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

Note: (Used Only On Model(s): 911005).

$1.99

$

In Stock, Qty 20+

0

24

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

Note: (Used Only On Model(s): 911008).

$1.99

$

In Stock, Qty 20+

0

25

Ariens 01119400

BUMPER

$

$

Not available

26

Ariens 07003100

BLT-SCRHFWH .38-16X.75 PL
(Superseded to 07028500)

$1.99

$

In Stock, only 3 left!

0

27

Ariens 07113500

T/WHL ASSY 7X1.50
(Superseded to 07114400)

$

$

Not available

28

Ariens 06405600

WSHR-FL-STL .505X.880X.072 PL
(Superseded to 06436600)

$3.99

$

In Stock, Qty 20+

0

29

Ariens 05705900

RG-RTNG-EXT .438X.035

$0.99

$

In Stock, Qty 11

0

30

Ariens 01120400

LEFT REAR QUADRANT

$

$

Not available

31

Ariens 01120500

RIGHT REAR QUADRANT

$

$

Not available

32

Ariens 01120100

REAR BRACKET AND BEARING ASSEM

$

$

Not available

33

Ariens 01120200

REAR BRACKET AND BEARING ASSEM

$

$

Not available

34

Ariens 01119700

HEIGHT ADJUSTMENT LEVER
(Superseded to 01242000)

$25.99

$

In Stock, Qty 5

0

35

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.99

$

In Stock, Qty 20+

0

36

Ariens 01122300

REAR AXLE-PUSH MOWER

$

$

Not available

37

Ariens 07114100

WHL 10 IN O.D.
(Superseded to 07114500)

$

$

Not available

38

Ariens 01126500

SPACER .75 X .51 X .50

$

$

Not available

39

Ariens 02714800

TUBE .512 X .747 X 1.25

$

$

Not available

40

Ariens 01122700

LH HANDLEBAR MTG BRACKET WELDM

$

$

Not available

41

Ariens 01122600

RH HANDLEBAR MTG BRACKET WELDM
(Superseded to 01137251)

$52.99

$

In Stock, Qty 5

0

42

Ariens 01119000

CATCHER MOUNTING PLATE

$

$

Not available

43

Ariens 07405400

SCR-TAP 10-24X.375 HWH PL TR
(Superseded to 07412100)

$0.99

$

Usually ships in 4-12 days

0

44

Ariens 01118700

DISCHARGE COVER

$

$

Not available

45

Ariens 08320700

SG-TORS .090X.550X2.88

$

$

Not available

46

Ariens 01123700

HINGE PIN

$

$

Not available

47

Ariens 07004100

SCREW - FLG WIZ LOCK HH PL

Note: (Used Only On Model(s): 911005).

$

$

Not available

48

Ariens 01121800

BLADE ADAPTER
(Superseded to 51109000)

$67.99

$

Usually ships in 4-12 days

0

49

Ariens 06600900

KEY-WDRF .156X.625X.25 SAE 6

$2.49

$

In Stock, Qty 11

0

50

Ariens 01128500

21" MOWER BLADE
(Superseded to 01137000)

$25.99

$

In Stock, Qty 20+

0

51

Ariens 05909400

BLT-HEX .38-24X2.00 PL GR5
(Superseded to 05958600)

$3.49

$

In Stock, only 1 left!

0

52

Ariens 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$1.49

$

In Stock, Qty 19

0

53

Ariens 07514000

REAR PROTECTIVE GUARD

$

$

Not available

54

Ariens 01124400

ROD

$

$

Not available

55

Ariens 06700300

PIN-COTR .06X.50
(Superseded to 06712400)

$3.99

$

Usually ships in 4-12 days

0

56

Ariens 61102200

HANDLE BAR ASSEMBLY
(Superseded to 51100500)

$

$

Not available

57

Ariens 01122400

START BAIL - RECOIL
(Superseded to 01133200)

$

$

Not available

58

Ariens 07008200

NUT-PUSH .312 DIA. PAL

$2.99

$

In Stock, Qty 20+

0

59

Ariens 06201100

BLT-RDHDSQNK .31-18X.75 GR5 PL
(Superseded to 06215700)

$2.99

$

In Stock, Qty 20+

0

60

Ariens 01305900

BSHG, FLG .325X.499X.26X.88

$2.49

$

In Stock, Qty 20+

0

61

Ariens 01125400

HANDLEBAR BRACKET
(Superseded to 01158651)

$21.99

$

Usually ships in 4-12 days

0

62

Ariens 07513000

FLUTED WING
(Superseded to 07534800)

$3.99

$

In Stock, Qty 20+

0

63

Ariens 06913900

CABLE - ENGINE

Note: (Used Only On Model(s): 911005).

$

$

Not available

63

Ariens 06914100

ENGINE CABLE

Note: (Used Only On Model(s): 911008).

$

$

Not available

64

Ariens 07514100

PULL CORD RETAINER

$

$

Not available

65

Ariens 01127600

BRACKET - ROPE GUIDE

$

$

Not available

66

Ariens 05905000

BLT-HEX .25-20X1.50 PL GR5
(Superseded to 05952500)

$1.99

$

In Stock, Qty 5

0

67

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

Note: (Used Only On Model(s): 911005).

$0.99

$

In Stock, Qty 20+

0

67

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

Note: (Used Only On Model(s): 911008).

$0.99

$

In Stock, Qty 20+

0

68

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

$0.99

$

In Stock, Qty 5

0

69

Ariens 07513900

CABLE RETAINER
(Superseded to 07517300)

$

$

Not available

70

Ariens 06914000

CLIP

Note: (Used Only On Model(s): 911005).

$

$

Not available

71

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.99

$

In Stock, Qty 20+

0

72

Ariens 06204800

BLT-RDHDSQNK .31-18X1.25 SHTPL
(Superseded to 06212100)

$1.99

$

In Stock, Qty 13

0

73

Ariens 05502100

BSHG-FLG .500X.625X.500X.750

$3.99

$

In Stock, Qty 20+

0

74

ENGINE

$

$

Not available

75

Ariens 01118600

DISCHARGE CHUTE
(Superseded to 01180200)

$36.99

$

In Stock, Qty 6

0

76

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$1.49

$

Usually ships in 4-12 days

0

77

Ariens 07008400

CLIP-HARNESS TINNERMAN

Note: (Used Only On Model(s): 911008).

$

$

Not available

78

Ariens 01128600

LEVER GUARD

Note: (Used Only On Model(s): 911008).

$

$

Not available

79

Ariens 01128700

ANTIVIBRATION STRAP
(Superseded to 01154600)

Note: (Used Only On Model(s): 911008).

$

$

Not available
