911013 (LM 21 SC) - Ariens 21" Self-Propelled Walk-Behind Mower, 4hp Tecumseh (SN: 000101 & Above) Self Propelled Drive Parts Diagram

21" Self-Propelled Walk-Behind Mower, 4hp Tecumseh

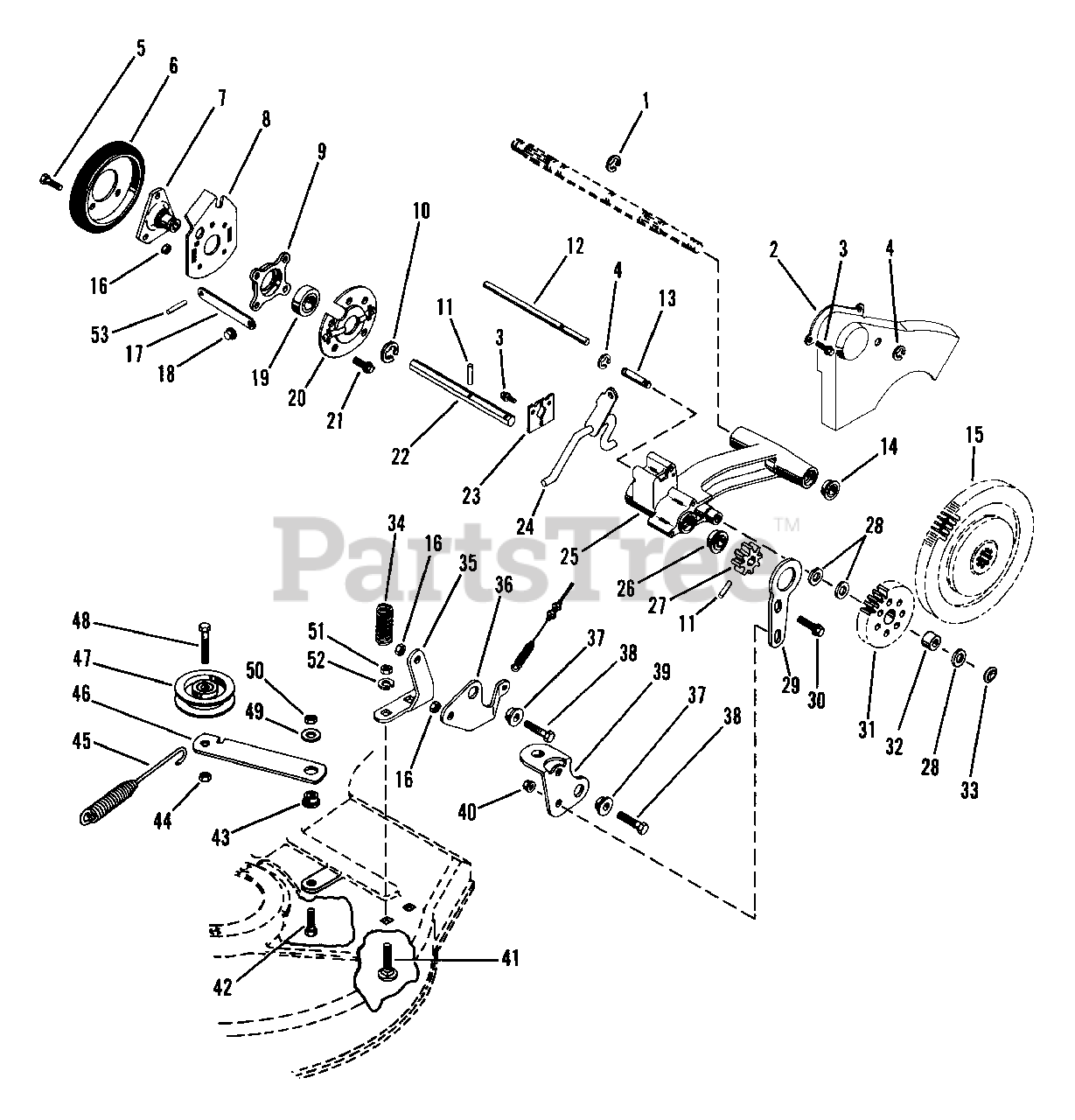

Self Propelled Drive Parts Diagram

  • Title

1

Ariens 05701200

RG-RTNG-EXT .750X.042
(Superseded to 05700135)

$2.49

$

In Stock, Qty 8

0

2

Ariens 01121000

GEAR COVER
(Superseded to 01121051)

$38.99

$

Usually ships in 4-12 days

0

3

Ariens 07404500

SCR-TAP 12-24X.50 HWH PL TR
(Superseded to 07411900)

$2.49

$

In Stock, Qty 12

0

4

Ariens 05705900

RG-RTNG-EXT .438X.035

$0.99

$

In Stock, only 4 left!

0

5

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

$0.99

$

In Stock, Qty 5

0

6

Ariens 02201300

FRICTION DISC
(Superseded to 03248300)

$38.99

$

In Stock, Qty 12

0

7

Ariens 01133500

FRICTION WHEEL HUB

$59.99

$

Usually ships in 4-12 days

0

8

Ariens 01119100

BEARING PLATE

Note: (Used Only On Model(s): 911006,7,9,10,11).

$

$

Not available

8

Ariens 01132700

BEARING PLATE
(Superseded to 00174500)

Note: (Used Only On Model(s): 911013).

$13.99

$

Usually ships in 4-12 days

0

9

Ariens 01131800

BEARING RETAINER

Note: (Used Only On Model(s): 911013).

$20.99

$

Usually ships in 4-12 days

0

10

Ariens 05706200

RG-RTNG-EXT 1.00X.042

$2.49

$

In Stock, only 3 left!

0

11

Ariens 05800500

PIN-ROLL .188X.88

$1.99

$

In Stock, Qty 5

0

12

Ariens 01125100

ROD - GUIDE

$73.99

$

Usually ships in 4-12 days

0

13

Ariens 01125800

SHAFT - IDLER

Note: (Used Only On Model(s): 911006,7,9,10,11).

$5.99

$

Usually ships in 4-12 days

0

13

Ariens 01134700

SHAFT-IDLER

Note: (Used Only On Model(s): 911013).

$

$

Not available

14

Ariens 05415100

BRG-BALL .750X1.50X.44
(Superseded to 05408900)

Note: (Used Only On Model(s): 911006,7,9,10,11).

$18.99

$

In Stock, Qty 9

0

14

Ariens 05408900

BRG-BALL .752X1.50X.50

Note: (Used Only On Model(s): 911013).

$18.99

$

In Stock, Qty 9

0

15

Ariens 61101500

DIFFERENTIAL ASSEMBLY
(Superseded to 51101800)

$

$

Not available

16

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 01124200

SHIFT LINK

$7.99

$

In Stock, Qty 5

0

18

Ariens 02215300

PUSH NUT, .25

$1.99

$

In Stock, Qty 17

0

19

Ariens 05415200

BRG-BALL 1.0X2.0X0188

Note: (Used Only On Model(s): 911006,7,9,10,11).

$6.99

$

Usually ships in 4-12 days

0

19

Ariens 05405200

BRG-BALL 1.0X2.0X.56
(Superseded to 05416000)

Note: (Used Only On Model(s): 911013).

$14.99

$

Usually ships in 4-12 days

0

20

Ariens 01119200

BEARING RETAINER

$7.49

$

Usually ships in 4-12 days

0

21

Ariens 07405400

SCR-TAP 10-24X.375 HWH PL TR
(Superseded to 07412100)

Note: (Used Only On Model(s): 911006,7,9,10,11).

$0.99

$

Usually ships in 4-12 days

0

21

Ariens 07407500

TAPTITE M5-0.8X16MM H-FL-PL
(Superseded to 07415100)

Note: (Used Only On Model(s): 911013).

$3.49

$

Usually ships in 4-12 days

0

22

Ariens 01125700

HEX SHAFT
(Superseded to 01240100)

$66.99

$

Usually ships in 4-12 days

0

23

Ariens 01125000

RETAINER PLATE

$8.49

$

Usually ships in 4-12 days

0

24

Ariens 01123600

SHIFT ARM WELDMENT

$23.99

$

Usually ships in 4-12 days

0

25

Ariens 01120600

DRIVE MOUNT
(Superseded to 01140600)

$111.99

$

In Stock, only 1 left!

0

26

Ariens 05415900

BRG-BALL .562X1.38X.44
(Superseded to 05413700)

Note: (Used Only On Model(s): 911006,7,9,10,11).

$29.99

$

In Stock, only 2 left!

0

26

Ariens 05413700

BRG-BALL .562X1.375X.437

Note: (Used Only On Model(s): 911013).

$29.99

$

In Stock, only 2 left!

0

27

Ariens 02201100

PINION

$10.99

$

In Stock, only 1 left!

0

28

Ariens 06405600

WSHR-FL-STL .505X.880X.072 PL
(Superseded to 06436600)

Note: (Used Only On Model(s): 911013).

$3.99

$

In Stock, only 2 left!

0

29

Ariens 01123200

CLUTCH COLLAR

$

$

Not available

30

Ariens 07001500

BLT-SERHFWH .25-20X.50 PL
(Superseded to 07049300)

$2.49

$

Usually ships in 4-12 days

0

31

Ariens 61101600

IDLER GEAR ASSEMBLY
(Superseded to 51101200)

Note: (Used Only On Model(s): 911006,7,9,10,11)CONTAINS: ITEM 32.

$

$

Not available

31

Ariens 01131700

IDLER GEAR

Note: (Used Only On Model(s): 911013).

$51.99

$

Usually ships in 4-12 days

0

32

Ariens 05415300

BRG-NEEDLE .500X.688X.625

Note: (Used Only On Model(s): 911006,7,9,10,11).

$

$

Not available

32

Ariens 05408000

BRG-BALL .500X1.38X.437

Note: (Used Only On Model(s): 911013).

$5.99

$

In Stock, Qty 20+

0

33

Ariens 01135100

RETAINER

Note: (Used Only On Model(s): 911013).

$12.99

$

In Stock, only 2 left!

0

34

Ariens 08320600

SG-COMP .086X.625X3.44

$

$

Not available

35

Ariens 01123300

MOUNTING BRACKET

$

$

Not available

36

Ariens 01123400

CLUTCH ARM

$

$

Not available

37

Ariens 05513400

BSHG-FLG .265X.437X.250X.750

$2.49

$

In Stock, Qty 9

0

38

Ariens 05908000

BLT-HEX .25-20X.63 PL GR2
(Superseded to 05932000)

$1.99

$

In Stock, only 1 left!

0

39

Ariens 01123500

ARM

$

$

Not available

40

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$0.99

$

In Stock, Qty 17

0

41

Ariens 06203300

BLT-RDHDSQNK .312-18X.62SHTPL
(Superseded to 06212200)

$1.49

$

In Stock, Qty 20+

0

42

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.49

$

In Stock, Qty 16

0

43

Ariens 01305900

BSHG, FLG .325X.499X.26X.88

$2.49

$

In Stock, Qty 16

0

44

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

45

Ariens 08321100

SG-TENS .043X.44X3.31 WLD 5.8

$6.49

$

In Stock, Qty 19

0

46

Ariens 01123000

IDLER ARM

$

$

Not available

47

Ariens 07312800

IDLER-FLAT 1.88 X .38 NWHAMSHR

$

$

Not available

48

Ariens 05900600

BLT-HEX .38-16X1.50 PL GR2
(Superseded to 05957900)

$1.49

$

In Stock, Qty 6

0

49

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$1.49

$

In Stock, only 2 left!

0

50

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

51

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 16

0

52

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, only 4 left!

0

53

Ariens 05803500

PIN-ROLL .125X.50

Note: (Used Only On Model(s): 911006,7,9,10,11).

$0.99

$

In Stock, only 3 left!

0

53

Ariens 05804800

PIN-ROLL .125X.63

Note: (Used Only On Model(s): 911013).

$1.99

$

Usually ships in 4-12 days

0
