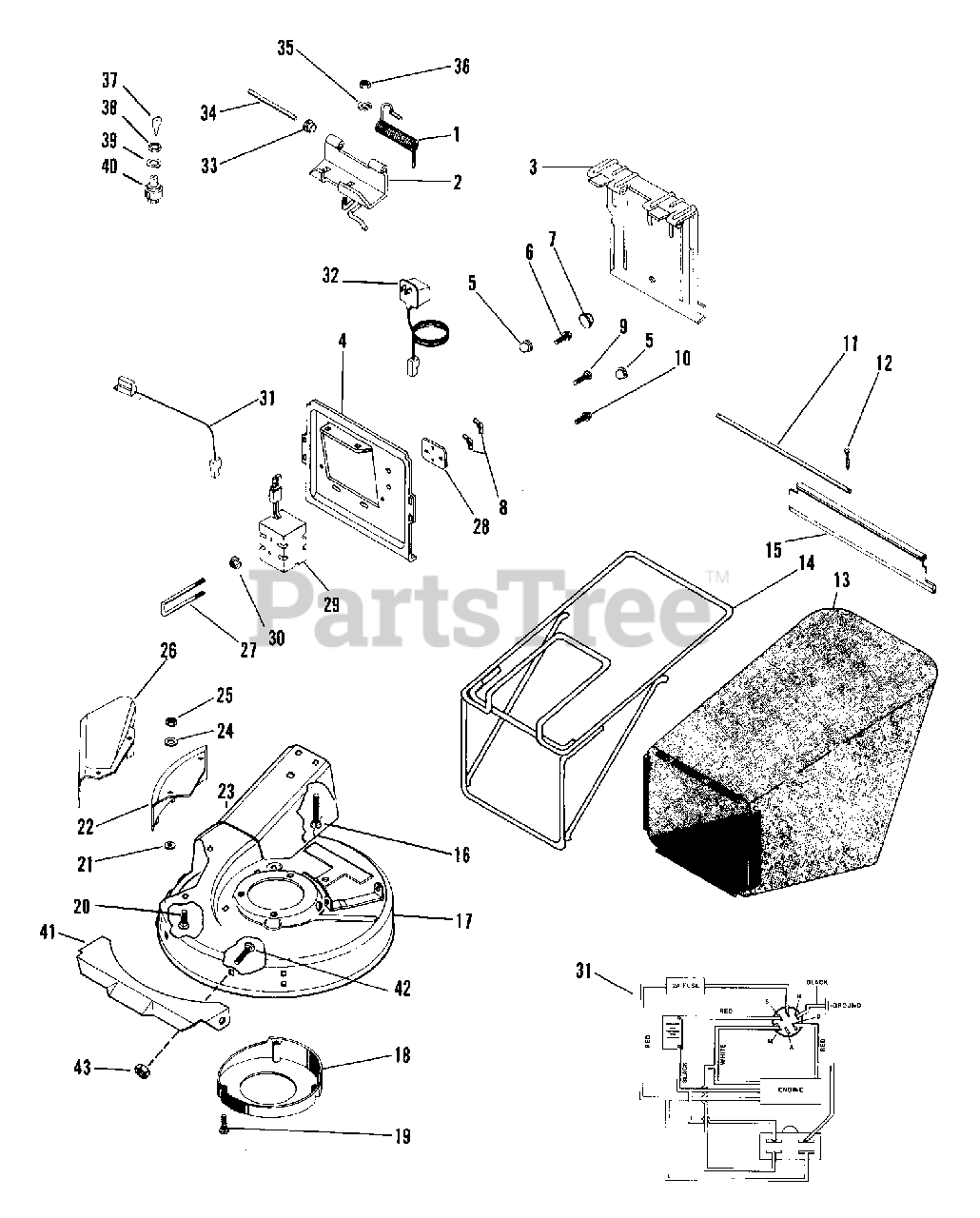

911015 (LM 21) - Ariens 21" Push Walk-Behind Mower, 4hp Sachs (SN: 000101 & Above)

21" Push Walk-Behind Mower, 4hp Sachs

911015 (LM 21) - Ariens 21" Push Walk-Behind Mower, 4hp Sachs (SN: 000101 & Above) > Parts Diagrams (5) > Mower Pan, Battery And Bag

  • Title
08322400

1

SG-TORS .120X.68X3.09

Part# 08322400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.76

08322500

1

SG-TORS .062X.28X1.00

Part# 08322500

Note: (27,31)

OEM Warranty Repair Part for Ariens

Not available

01138200

2

HINGE BASE

Part# 01138200 (Superseded to 01138259)

Note: (14,15,21)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.09

01150900

2

HINGE PLATE WLDMT FOREIGN ELEC

Part# 01150900

Note: (26)

OEM Warranty Repair Part for Ariens

Not available

01155500

2

HINGE BASE WELDMENT

Part# 01155500 (Superseded to 01155559)

Note: (14,15,16,17,18,19,20)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $40.19

01155500

2

HINGE BASE WELDMENT

Part# 01155500 (Superseded to 01155559)

Note: (21,22,23,24,26,27,28,29,30,31,32)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $40.19

01136500

3

CATCHER PLATE DOOR

Part# 01136500 (Superseded to 51108300)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $67.02

01139200

4

CATCHER PLATE

Part# 01139200 (Superseded to 01159759)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $81.11

07511800

5

BUMPER

Part# 07511800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

07407900

6

SCR-TAP 10-24X.375 TORX PHD

Part# 07407900 (Superseded to 07414900)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

07516000

7

BUTTON BUMPER

Part# 07516000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

06515700

8

NUT-WING 8-32

Part# 06515700 (Superseded to 06538100)

Note: (26,31)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

06203900

9

@BLT-RHDSSQNK .25-20X.38 G2YZ

Part# 06203900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

07404500

10

SCR-TAP 12-24X.50 HWH PL TR

Part# 07404500 (Superseded to 07411900)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

01140000

11

ROD

Part# 01140000 (Superseded to 01140067)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $40.53

06700300

12

PIN-COTR .06X.50

Part# 06700300 (Superseded to 06712400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

01152100

13

BAG,CONSUMER BLACK 15 OZ/YD2

Part# 01152100 (Superseded to 01180500)

Note: (14,15,16,17,18,19,20,23,24,26,27,29,31)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $72.52

01151800

13

BAG,COMMERCIAL WHITE

Part# 01151800 (Superseded to 71103000)

Note: (21,22,28,30,32)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $120.90

01138700

14

BAGGER FRAME

Part# 01138700 (Superseded to 71103000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $120.90

07514000

15

REAR PROTECTIVE GUARD

Part# 07514000

Note: (14,15,21)

OEM Warranty Repair Part for Ariens

Not available

07516800

15

REAR PROTECTIVE GUARD, PUSH

Part# 07516800 (Superseded to 07522400)

Note: (14,15)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $35.16

07516800

15

REAR PROTECTIVE GUARD, PUSH

Part# 07516800 (Superseded to 07522400)

Note: (21)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $35.16

07513800

15

REAR PROTECTIVE GUARD

Part# 07513800

Note: (16,17,18,19,20,22)

OEM Warranty Repair Part for Ariens

Not available

07516900

15

REAR PROTECTIVE GUARD, S.P.

Part# 07516900 (Superseded to 07522300)

Note: (16,17,18,19)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $21.07

07516900

15

REAR PROTECTIVE GUARD, S.P.

Part# 07516900 (Superseded to 07522300)

Note: (20,23,24,26,27,29,30,31,32)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $21.07

06201700

16

BLT-RDHDSQNK .25-20X.62 PL

Part# 06201700 (Superseded to 06213800)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

51101900

17

MOWER PAN W/DECALS

Part# 51101900 (Superseded to 51103400)

Note: (14,15,21)

OEM Warranty Repair Part for Ariens

Not available

51102800

17

MOWER PAN W/DECALS

Part# 51102800

Note: (14,15)

OEM Warranty Repair Part for Ariens

Not available

51102000

17

MOWER PAN W/DECALS

Part# 51102000 (Superseded to 51103400)

Note: (16,17,18,19,22)

OEM Warranty Repair Part for Ariens

Not available

51102900

17

MOWER PAN W/DECALS

Part# 51102900

Note: (16,17,18,19)

OEM Warranty Repair Part for Ariens

Not available

51102900

17

MOWER PAN W/DECALS

Part# 51102900

Note: (23,24,26,30,32)

OEM Warranty Repair Part for Ariens

Not available

51102100

17

MOWER PAN W/DECALS

Part# 51102100 (Superseded to 51103400)

Note: (20)

OEM Warranty Repair Part for Ariens

Not available

51102700

17

MOWER PAN W/DECALS

Part# 51102700

Note: (20)

OEM Warranty Repair Part for Ariens

Not available

51102700

17

MOWER PAN W/DECALS

Part# 51102700

Note: (27,29,31)

OEM Warranty Repair Part for Ariens

Not available

01140400

18

CENTER BAFFLE

Part# 01140400

Note: (20,27,29,31)

OEM Warranty Repair Part for Ariens

Not available

01118900

18

CENTER BAFFLE

Part# 01118900 (Superseded to 01173700)

Note: (16,17,18,19,22,23,24,26,28,30,32)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $44.72

07407400

19

SCR-TAP 10-16X.62 SLPH PL AB

Part# 07407400 (Superseded to 07415000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06203400

20

BLT-RDHDSQNK .31-18X.75 SHT PL

Part# 06203400 (Superseded to 06214100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

06514900

21

NUT-PUSH .312

Part# 06514900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

01136400

22

SIDE DISCHARGE COVER

Part# 01136400 (Superseded to 01180351)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $35.16

07507600

23

PLASTIC GROMMET

Part# 07507600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

06400200

24

WSHR-FL-STL .38X.875X.083 PL

Part# 06400200 (Superseded to 06435700)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06506200

25

NUT-LK-NYL.312-18 PL

Part# 06506200 (Superseded to 06530200)

OEM Warranty Repair Part for Ariens

Not available

01118600

26

DISCHARGE CHUTE

Part# 01118600 (Superseded to 01180200)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $35.16

01143200

27

U-BOLT

Part# 01143200

Note: (19,26,29,31)

OEM Warranty Repair Part for Ariens

Not available

01143300

28

BATTERY PLATE

Part# 01143300

Note: (19,26,29,31)

OEM Warranty Repair Part for Ariens

Not available

01141400

29

BATTERY

Part# 01141400 (Superseded to 51106400)

Note: (19)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $108.81

01150200

29

BATTERY,12 VOLT 2.5 AH

Part# 01150200 (Superseded to 51106400)

Note: (19)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $108.81

01150200

29

BATTERY,12 VOLT 2.5 AH

Part# 01150200 (Superseded to 51106400)

Note: (26,29,31)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $108.81

06505600

30

NUT-LK-FLG .250-20 PL

Part# 06505600 (Superseded to 06530100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

01124600

31

POWER CORD

Part# 01124600

Note: (19)

OEM Warranty Repair Part for Ariens

Not available

01151000

31

WIRE HARNESS, FOREIGN

Part# 01151000

Note: (26)

OEM Warranty Repair Part for Ariens

Not available

01157300

31

WIRE HARNESS

Part# 01157300

Note: (26)

OEM Warranty Repair Part for Ariens

Not available

01155900

31

WIRE HARNESS

Part# 01155900

Note: (29,31)

OEM Warranty Repair Part for Ariens

Not available

01136000

32

CAM BRACKET RH

Part# 01136000

Note: (19,29)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $23.37

01136400

32

SIDE DISCHARGE COVER

Part# 01136400 (Superseded to 01180351)

Note: (26,31)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $35.16

02215300

33

PUSH NUT, .25

Part# 02215300

Note: (911023, 026)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

01141000

34

DOOR PIN

Part# 01141000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $13.36

06300200

35

WSHR-LK .250X.077 HVY PL

Part# 06300200 (Superseded to 06308000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06503200

36

NUT-HEX .250-20 PL

Part# 06503200 (Superseded to 06533200)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

01129800

37

KEYS - WITH RING

Part# 01129800

Note: (26)

OEM Warranty Repair Part for Ariens

Not available

01315700

37

KEYS

Part# 01315700 (Superseded to 02460700)

Note: (29,31)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $7.77

06515400

38

NUT .812-20 PL

Part# 06515400

OEM Warranty Repair Part for Ariens

Not available

06507500

38

NUT .625-32 ALUM

Part# 06507500 (Superseded to 06517300)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

06303700

39

WSHR-LK-INT .813X.020 PL

Part# 06303700

OEM Warranty Repair Part for Ariens

Not available

06301900

39

WSHR-LK-INT .625X.045 PL

Part# 06301900 (Superseded to 06306900)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

01134900

40

KEY SWITCH ASSEMBLY

Part# 01134900

Note: (26)

OEM Warranty Repair Part for Ariens

Not available

01155800

40

KEY SWITCH

Part# 01155800

Note: (29,31)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $60.99

01153500

41

FRONT PANEL

Part# 01153500 (Superseded to 01183559)

Note: (14,15,16,17,18,19,20)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $42.99

01153500

41

FRONT PANEL

Part# 01153500 (Superseded to 01183559)

Note: (21,22,23,24,26,27,28,29,30,31,32)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $42.99

06200900

42

BLT-RDHDSQSHNK .31-18X.50 YZ

Part# 06200900 (Superseded to 06222000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

06504200

43

NUT-LK .312-18 GR A PL

Part# 06504200 (Superseded to 06529800)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85
