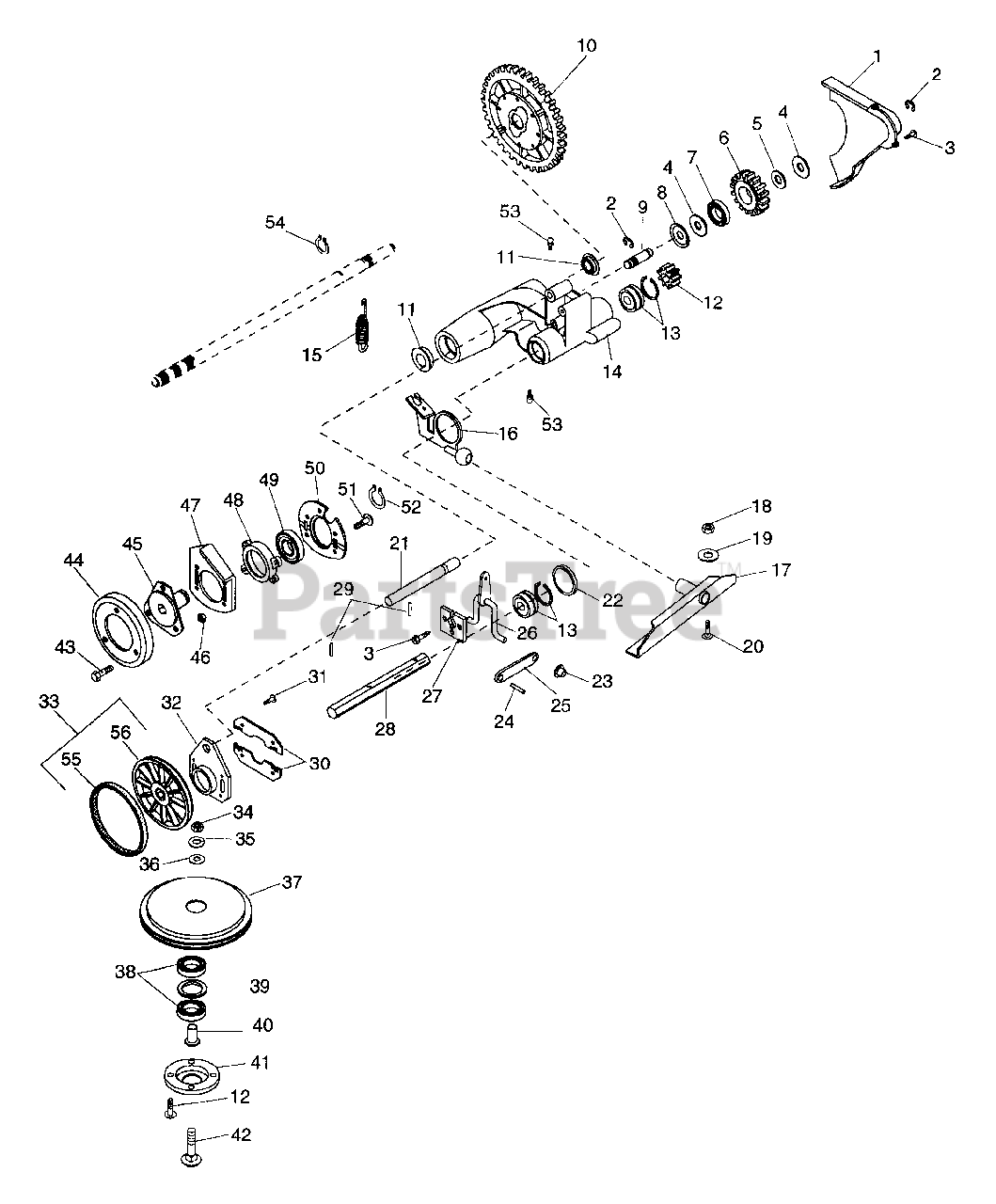

911046 (LM 217 SP) - Ariens 21" Self-Propelled Walk-Behind Mower, 5.5hp Tecumseh (SN: 010001 & Above) > Parts Diagrams (7) > Friction Wheel Drive

  • Title
01121000

1

GEAR COVER

Part# 01121000 (Superseded to 01121051)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $37.12

05705900

2

RG-RTNG-EXT .438X.035

Part# 05705900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

07404500

3

SCR-TAP 12-24X.50 HWH PL TR

Part# 07404500 (Superseded to 07411900)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

06418000

4

WSHR-FL-STL .520X.827X.062 YZ

Part# 06418000 (Superseded to 06441100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06405600

5

WSHR-FL-STL .505X.880X.072 PL

Part# 06405600 (Superseded to 06436600)

OEM Warranty Repair Part for Ariens

Not available

01131700

6

IDLER GEAR

Part# 01131700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $44.66

05408000

7

BRG-BALL .500X1.38X.437

Part# 05408000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $20.07

01135100

8

RETAINER

Part# 01135100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $12.24

01139700

9

IDLER SHAFT

Part# 01139700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.54

51102400

10

DIFFERENTIAL ASSEMBLY

Part# 51102400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $167.64

05417600

11

BRG-BALL .625X1.383X.50

Part# 05417600 (Superseded to 05417500)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $13.36

02201100

12

PINION

Part# 02201100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

05413700

13

BRG-BALL .562X1.375X.437

Part# 05413700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $27.89

01140600

14

DRIVE MOUNT

Part# 01140600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $96.15

08325200

15

SG-TENS .051X.60X2.25 WLD 7.0

Part# 08325200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

01137900

16

DRIVE ACTUATOR WELDMENT

Part# 01137900 (Superseded to 01245700)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $33.76

01161959

17

PIVOT CHANNEL WELDMENT

Part# 01161959 (Superseded to 01161951)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $48.63

06504200

18

NUT-LK .312-18 GR A PL

Part# 06504200 (Superseded to 06529800)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06412300

19

WSHR-FL-STL.344X.688X.065PL

Part# 06412300 (Superseded to 06437200)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06203300

20

BLT-RDHDSQNK .312-18X.62SHTPL

Part# 06203300 (Superseded to 06212200)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

01125100

21

ROD - GUIDE

Part# 01125100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $23.37

06421600

22

WSHR-FL-STL 1.390X2.00X.020 PL

Part# 06421600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $2.18

02215300

23

PUSH NUT, .25

Part# 02215300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

05803500

24

PIN-ROLL .125X.50

Part# 05803500

Note: (Models 44,46,52,62,305,306,307,309,310,311)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

05804800

24

PIN-ROLL .125X.63

Part# 05804800

Note: (Models 61,308)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

01124200

25

SHIFT LINK

Part# 01124200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $7.38

01123600

26

SHIFT ARM WELDMENT

Part# 01123600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $17.39

01125000

27

RETAINER PLATE

Part# 01125000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $7.32

01125700

28

HEX SHAFT

Part# 01125700 (Superseded to 01240100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $65.40

05800500

29

PIN-ROLL .188X.88

Part# 05800500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

01153800

30

THRUST PLATE

Part# 01153800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $20.24

07405400

31

SCR-TAP 10-24X.375 HWH PL TR

Part# 07405400 (Superseded to 07412100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

01153900

32

GUIDE PLATE

Part# 01153900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $29.68

51102500

33

FRICTION WHEEL ASSEMBLY

Part# 51102500 (Superseded to 51109700)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $100.56

06501500

34

NUT-HEX .312-18

Part# 06501500 (Superseded to 06529200)

OEM Warranty Repair Part for Ariens

Not available

06300300

35

WSHR-LK .312X.097 PL HVY

Part# 06300300 (Superseded to 06307400)

OEM Warranty Repair Part for Ariens

Not available

06409000

36

WSHR-FL-STL .328X.875X.062 PL

Part# 06409000 (Superseded to 06439400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

01127300

37

FRICTION SHEAVE

Part# 01127300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $73.73

05403900

38

BRG-BALL .625X1.375X.44

Part# 05403900 (Superseded to 05435100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $13.36

06420200

39

WSHR-FL-STL 1.062X1.344X.032PL

Part# 06420200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

01127400

40

SPINDLE - BEARING

Part# 01127400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $14.48

01127500

41

RETAINER - BEARING

Part# 01127500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.81

06203600

42

BLT-RDHDSQNK .31-18X1.75 PL

Part# 06203600 (Superseded to 06220200)

OEM Warranty Repair Part for Ariens

Not available

05902800

43

BLT-HEX .25-20X.50 PL GR2

Part# 05902800 (Superseded to 05947900)

OEM Warranty Repair Part for Ariens

Not available

02201300

44

FRICTION DISC

Part# 02201300 (Superseded to 03248300)

Note: (Models 61,308)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $36.84

01133500

45

FRICTION WHEEL HUB

Part# 01133500

Note: (Models 61,308)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $51.37

06504000

46

NUT-LK-CTR .250-20 PL

Part# 06504000 (Superseded to 06529700)

OEM Warranty Repair Part for Ariens

Not available

01132700

47

BEARING PLATE

Part# 01132700 (Superseded to 00174500)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $13.47

01131800

48

BEARING RETAINER

Part# 01131800

Note: (Models 61,308)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.07

05405200

49

BRG-BALL 1.0X2.0X.56

Part# 05405200 (Superseded to 05416000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $27.89

01119200

50

BEARING RETAINER

Part# 01119200

Note: (Models 61,308)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $7.32

07407500

51

TAPTITE M5-0.8X16MM H-FL-PL

Part# 07407500 (Superseded to 07415100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

05706200

52

RG-RTNG-EXT 1.00X.042

Part# 05706200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

07012600

53

FTG-LUBE .25-28X.256 YWZC

Part# 07012600

Note: (Models 61,308)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

05701900

54

RG-RTNG-EXT .625X.035

Part# 05701900 (Superseded to 05711900)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

01154400

55

FRICTION RING

Part# 01154400 (Superseded to 01190400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $22.08

01149200

56

FRICTION WHEEL HUB

Part# 01149200 (Superseded to 51109700)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $100.56
