911053 (LM 21 C) - Ariens 21" Push Walk-Behind Mower, 5hp Briggs & Stratton (SN: 000101 & Above) Wheels And Adjusters Parts Diagram

21" Push Walk-Behind Mower, 5hp Briggs & Stratton

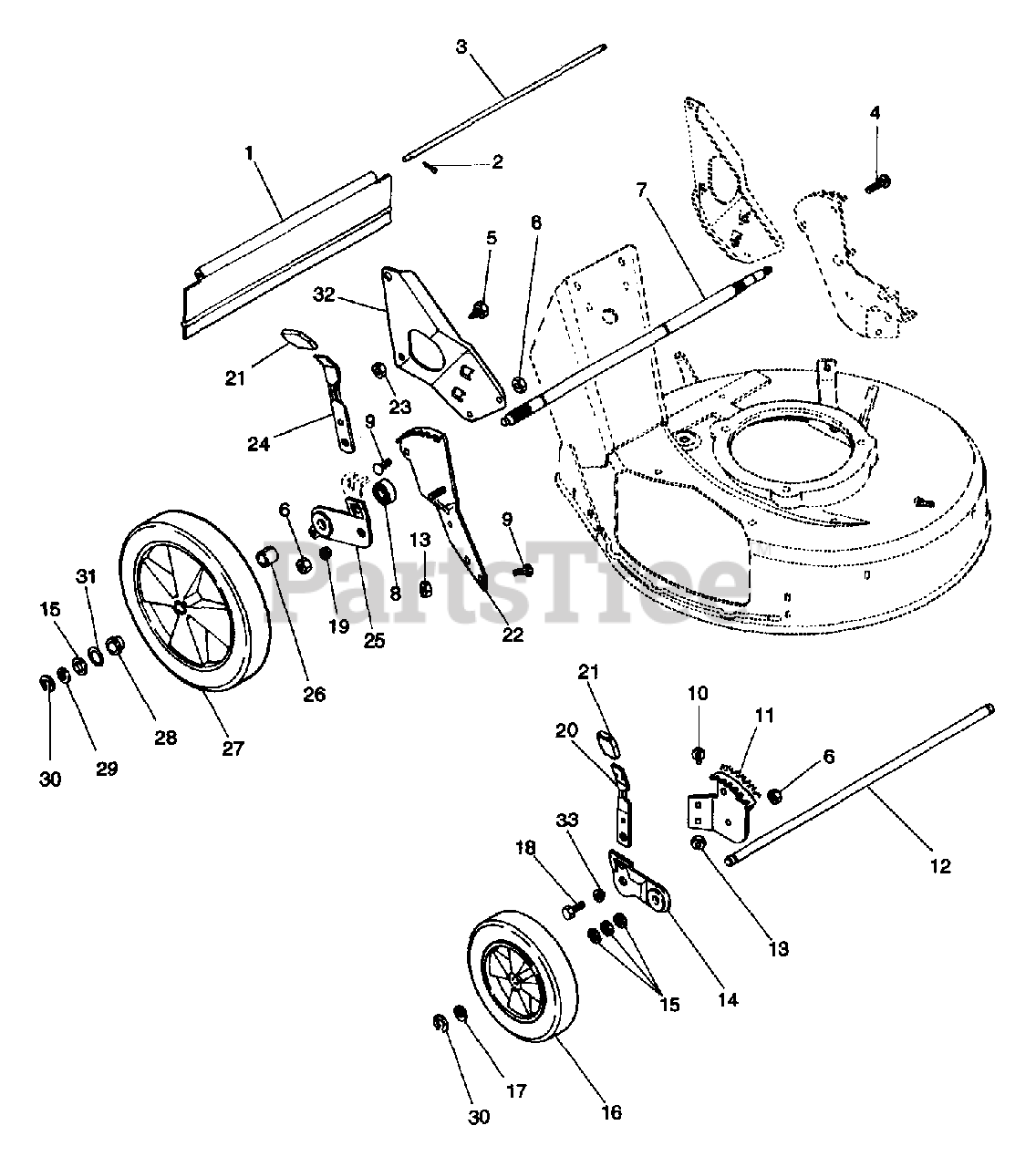

Wheels And Adjusters Parts Diagram

  • Title

1

Ariens 07516800

REAR PROTECTIVE GUARD, PUSH
(Superseded to 07522400)

Note: (42,49,51,53)

$35.99

$

Usually ships in 4-12 days

0

1

Ariens 07516900

REAR PROTECTIVE GUARD, S.P.
(Superseded to 07522300)

Note: (44,45,46,47,48,50,52)

$45.99

$

In Stock, only 2 left!

0

2

Ariens 06700300

PIN-COTR .06X.50
(Superseded to 06712400)

$3.99

$

Usually ships in 4-12 days

0

3

Ariens 01140000

ROD
(Superseded to 01140067)

$46.99

$

Usually ships in 4-12 days

0

4

Ariens 06203100

BLT-RDHDSQNK .31-18X1.0 SHT PL
(Superseded to 06200237)

$2.49

$

In Stock, only 3 left!

0

4

Ariens 06204800

BLT-RDHDSQNK .31-18X1.25 SHTPL
(Superseded to 06212100)

$1.49

$

In Stock, Qty 10

0

5

Ariens 01167100

HANDLEBAR STUD

Note: (42,44,45,46,47,49,50,51,52)

$21.99

$

Usually ships in 4-12 days

0

5

Ariens 05913500

BLT-HEX .31-18X.75 PL GR5
(Superseded to 05947000)

Note: (48,53)

$1.49

$

In Stock, Qty 16

0

6

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 01149500

REAR AXLE,5/8 DIA

Note: (44,45,46,47,48,50,52)

$140.99

$

In Stock, only 1 left!

0

7

Ariens 01168800

REAR AXLE-PUSH MOWER

Note: (42,49,51,53)

$

$

Not available

8

Ariens 05417600

BRG-BALL .625X1.383X.50
(Superseded to 05417500)

Note: (48)

$17.99

$

In Stock, only 4 left!

0

9

Ariens 06203300

BLT-RDHDSQNK .312-18X.62SHTPL
(Superseded to 06212200)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 06200900

BLT-RDHDSQSHNK .31-18X.50 YZ
(Superseded to 06222000)

$2.99

$

In Stock, only 4 left!

0

11

Ariens 01154000

FRONT QUADRANT, L.H.
(Superseded to 01154051)

$51.99

$

In Stock, only 2 left!

0

11

Ariens 01154100

FRONT QUADRANT, R.H.
(Superseded to 01154151)

$39.99

$

In Stock, only 1 left!

0

12

Ariens 01168900

FRONT AXLE

$64.99

$

Usually ships in 4-12 days

0

13

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.49

$

In Stock, only 3 left!

0

14

Ariens 01119800

LEFT ADJUSTOR BRACKET ASSEMBLY

Note: (42,44,45,46,47,48,49,50,53)

$83.99

$

Usually ships in 4-12 days

0

14

Ariens 01119900

RIGHT ADJUSTOR BRACKET ASSEMBL

Note: (42,44,45,46,47,48,49,50,53)

$64.99

$

Usually ships in 4-12 days

0

15

Ariens 06418000

WSHR-FL-STL .520X.827X.062 YZ
(Superseded to 06441100)

$2.49

$

In Stock, Qty 16

0

16

Ariens 07120100

WHEEL
(Superseded to 51116000)

$64.99

$

Usually ships in 4-12 days

0

17

Ariens 06405600

WSHR-FL-STL .505X.880X.072 PL
(Superseded to 06436600)

$3.99

$

In Stock, only 2 left!

0

18

Ariens 05903400

BLT-HEX .31-18X.88 PL GR2
(Superseded to 05947800)

$2.49

$

Usually ships in 4-12 days

0

19

Ariens 05514800

BSHG-FLG .32X.500X.344X.880

$3.99

$

In Stock, Qty 16

0

20

Ariens 01120000

FRONT HEIGHT ADJUSTMENT LEVER

Note: (42,44,45,46,47,48,49,50,53)

$20.99

$

Usually ships in 4-12 days

0

21

Ariens 07513600

KNOB

$7.99

$

In Stock, only 2 left!

0

22

Ariens 01154200

QUADRANT, REAR - L.H.
(Superseded to 01154251)

$62.99

$

In Stock, only 1 left!

0

22

Ariens 01154300

REAR QUADRANT, R.H.
(Superseded to 01154351)

$55.99

$

Usually ships in 4-12 days

0

23

Ariens 06506000

NUT-LK-JAM-CTR .375-16 PL
(Superseded to 06537200)

$0.99

$

In Stock, Qty 20+

0

24

Ariens 01130600

HEIGHT ADJUSTMENT LEVER
(Superseded to 01242000)

$25.99

$

In Stock, only 1 left!

0

25

Ariens 01131300

REAR BRACKET & BEARING ASSEMBL

Note: (42,49,51)

$60.99

$

Usually ships in 4-12 days

0

25

Ariens 01150400

REAR BRACKET & BEARING ASSY RH

Note: (44,45,46,47,50,52)

$112.99

$

Usually ships in 4-12 days

0

25

Ariens 01158100

R.H. REAR ADJUSTOR BRACKET

Note: (48)

$62.99

$

Usually ships in 4-12 days

0

25

Ariens 01168600

REAR BRACKET&BEARING ASSY COMM

Note: (53)

$

$

Not available

25

Ariens 01131200

REAR BRACKET & BEARING ASSEMBL

Note: (42,49,51)

$53.99

$

Usually ships in 4-12 days

0

25

Ariens 01130700

REAR ADJUSTMENT BRACKET L.H.

Note: (44,45,46,47,50,52)

$25.99

$

Usually ships in 4-12 days

0

25

Ariens 01158200

L.H. REAR ADJUSTOR BRACKET

Note: (48)

$54.99

$

Usually ships in 4-12 days

0

25

Ariens 01168700

REAR BRACKET&BEARING ASSY COMM

Note: (53)

$

$

Not available

26

Ariens 01149700

SPACER TUBE,PUSH LH

Note: (42,49,51,53)

$12.99

$

Usually ships in 4-12 days

0

26

Ariens 01149800

SPACER TUBE PUSH RH

Note: (42,49,51,53)

$3.99

$

Usually ships in 4-12 days

0

26

Ariens 01149600

SPACER TUBE, SELF PROPEL

Note: (44,45,46,47,48,50,52)

$3.99

$

Usually ships in 4-12 days

0

27

Ariens 07105100

WHEEL

Note: (42,49,51,53)

$

$

Not available

27

Ariens 07106100

LH WHEEL
(Superseded to 51115900)

Note: (44,45,46,47,48,50,52)

$102.99

$

In Stock, Qty 5

0

27

Ariens 07106300

RH WHEEL
(Superseded to 51115900)

Note: (44,45,46,47,48,50,52)

$102.99

$

In Stock, Qty 5

0

27

Ariens 07103900

10 1/2 TIRE SKIN
(Superseded to 51115900)

$102.99

$

In Stock, Qty 5

0

28

Ariens 05513600

BSHG-SLV .625X.750X.500

$

$

Not available

29

Ariens 06403900

WSHR-FL-STL .630X1.005X.062 PL
(Superseded to 06436100)

$0.99

$

In Stock, Qty 20+

0

30

Ariens 05710200

RG-RTNG-EXT .500X.042 (E)

$0.99

$

In Stock, Qty 20+

0

31

Ariens 05603400

SEAL .625X.875X.125

$9.99

$

Usually ships in 4-12 days

0

32

Ariens 01137200

RH HANDLEBAR MTG. BRKT.
(Superseded to 01137251)

$50.99

$

In Stock, only 1 left!

0

32

Ariens 01137100

LH HANDLEBAR MTG. BRKT.
(Superseded to 01137151)

$55.99

$

In Stock, only 3 left!

0

33

Ariens 05514800

BSHG-FLG .32X.500X.344X.880

Note: (42,44,45,46,47,48,49,50,53)

$3.99

$

In Stock, Qty 16

0
