911054 (AP 21) - Ariens 21" Push Walk-Behind Mower, 4hp Briggs & Stratton (SN: 000101 & Above) Handlebars And Controls Parts Diagram

21" Push Walk-Behind Mower, 4hp Briggs & Stratton

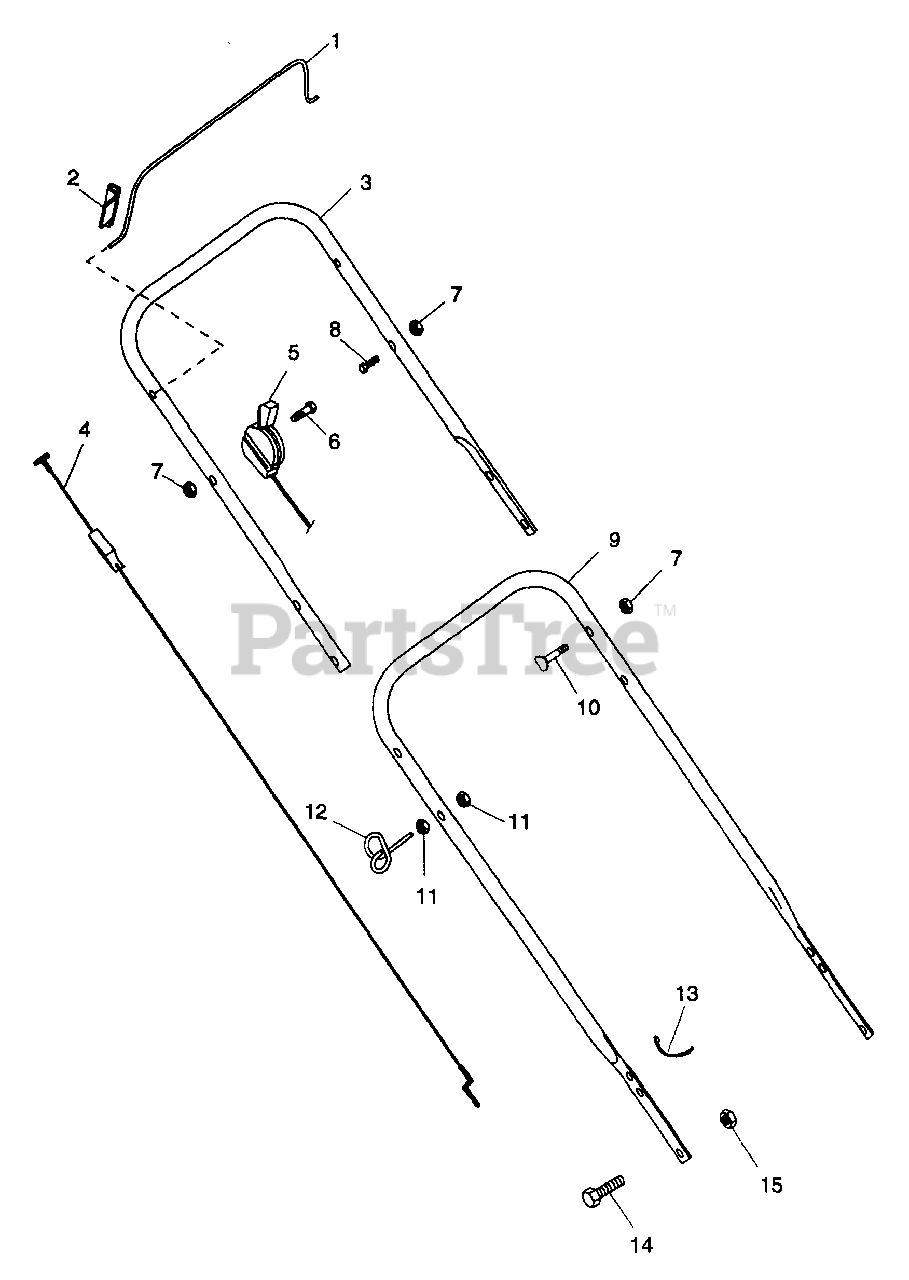

Handlebars And Controls Parts Diagram

  • Title

1

Ariens 01114451

BAIL

$

$

Not available

2

Ariens 01124800

BAIL STOP
(Superseded to 01124851)

$

$

Not available

3

Ariens 01152200

UPPER HANDLEBAR

$

$

Not available

4

Ariens 06924700

CABLE-ENGINE CONTROL

Note: (Used Only On Model(s): 058).

$34.99

$

Usually ships in 4-12 days

0

4

Ariens 06922900

CABLE-ENGINE CONTROL

Note: (Used Only On Model(s): 054).

$

$

Not available

5

Ariens 06923000

CABLE-THROTTLE

Note: (Used Only On Model(s): 054).

$

$

Not available

6

Ariens 05906200

BLT-HEX .25-20X1.75 PL GR2
(Superseded to 05964700)

Note: (Used Only On Model(s): 054).

$2.49

$

In Stock, only 3 left!

0

7

Ariens 06507000

NUT-LK TOP .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

8

Ariens 05905600

BLT-HEX .25-20X1.25 PL GR5
(Superseded to 05947400)

$1.99

$

In Stock, Qty 5

0

9

Ariens 01143100

LOWER HANDLEBAR

$51.99

$

Usually ships in 4-12 days

0

10

Ariens 07003700

BLT-CRVD-HD .25-20X.25 PL

$

$

Not available

11

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$0.99

$

In Stock, Qty 17

0

12

Ariens 01169800

SUPPORT

$

$

Not available

13

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available

14

Ariens 05900200

BLT-HEX .31-18X.63 PL GR 2
(Superseded to 05952200)

$1.49

$

Usually ships in 4-12 days

0

15

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.49

$

In Stock, only 4 left!

0
