911058 (AP 210) - Ariens 21" Push Walk-Behind Mower, 4hp Tecumseh (SN: 000101 & Above)

21" Push Walk-Behind Mower, 4hp Tecumseh

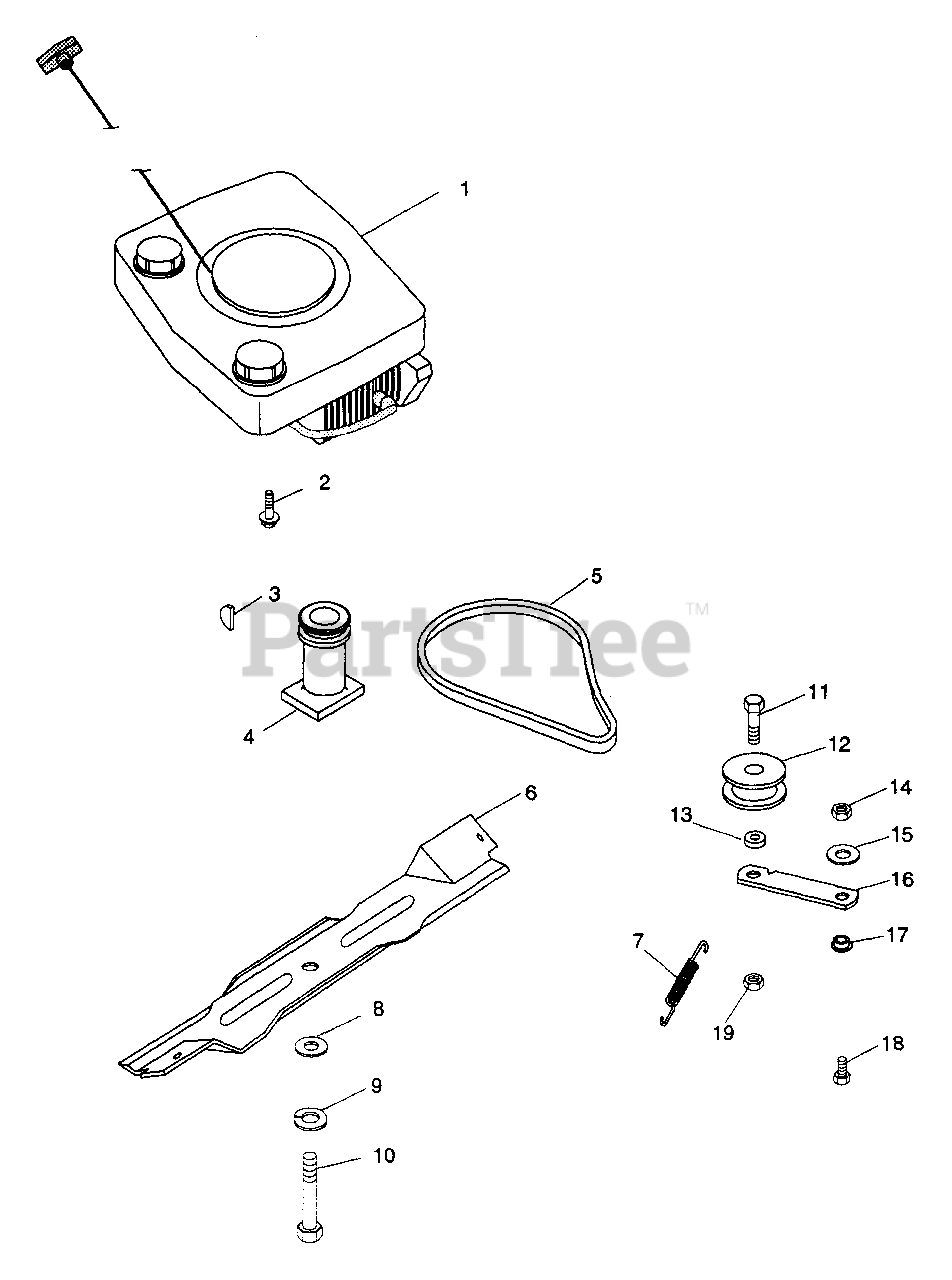

911058 (AP 210) - Ariens 21" Push Walk-Behind Mower, 4hp Tecumseh (SN: 000101 & Above) > Parts Diagrams (4) > Engine, Blade And Belt

  • Title
08233000

1

ENGINE B/S 4HP. QUANTUM

Part# 08233000

Note: (Used Only On Model(s): 054)No. 122702-3200-01.

OEM Warranty Repair Part for Ariens

Not available

08234500

1

ENGINE TEC. 4.5HP. RECL. PREM

Part# 08234500

Note: (Used Only On Model(s): 055)TVS115-57603B.

OEM Warranty Repair Part for Ariens

Not available

08238500

1

ENGINE TEC. 4.5HP. RECL. PREM

Part# 08238500

Note: (Used Only On Model(s): 056)TVS115-57604B.

OEM Warranty Repair Part for Ariens

Not available

08235600

1

ENGINE TEC. 4HP. RECL. PREMIER

Part# 08235600

Note: (Used Only On Model(s): 058)TVS115-56605B.

OEM Warranty Repair Part for Ariens

Not available

07403000

2

SCR-TAP .375-16X1.0 HWH PL TR

Part# 07403000 (Superseded to 07414100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

06600900

3

KEY-WDRF .156X.625X.25 SAE 6

Part# 06600900

Note: (Used Only On Model(s): 054).

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

01121800

4

BLADE ADAPTER

Part# 01121800 (Superseded to 51109000)

Note: (Used Only On Model(s): 054).

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $61.43

01159900

4

BLADE ADAPTER

Part# 01159900

Note: (Used Only On Model(s): 058).

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $88.83

01169900

4

BLADE ADAPTER TECUMSEH

Part# 01169900 (Superseded to 01178200)

Note: (Used Only On Model(s): 055,056).

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $98.33

07217100

5

V-BELT, 3L-COGGED

Part# 07217100

Note: (Used Only On Model(s): 055,056).

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $20.07

01137000

6

21" MOWER BLADE

Part# 01137000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $22.30

08321100

7

SG-TENS .043X.44X3.31 WLD 5.8

Part# 08321100

Note: (Used Only On Model(s): 055,056).

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.93

06424800

8

WSHR-HDND-THR .390X1.50X.125PL

Part# 06424800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

06302100

9

WSHR-LK .375X.094 MED PL

Part# 06302100 (Superseded to 06308800)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

05909400

10

BLT-HEX .38-24X2.00 PL GR5

Part# 05909400 (Superseded to 05958600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

05923000

11

BLT-HEX .44-14X1.25 PL GR2

Part# 05923000 (Superseded to 05963800)

Note: (Used Only On Model(s): 055,056).

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

07313300

12

IDLER-FLAT 1.75 X .47

Part# 07313300

Note: (Used Only On Model(s): 055,056).

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $33.48

01142000

13

SPACER .52 X .45 X .34

Part# 01142000 (Superseded to 51108800)

Note: (Used Only On Model(s): 055,056).

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $18.39

06504200

14

NUT-LK .312-18 GR A PL

Part# 06504200 (Superseded to 06529800)

Note: (Used Only On Model(s): 055,056).

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06405700

15

WSHR-FL-STL .323X.625X.062 PL

Part# 06405700 (Superseded to 06436700)

Note: (Used Only On Model(s): 055,056).

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

01141200

16

IDLER ARM

Part# 01141200

Note: (Used Only On Model(s): 055,056).

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $13.47

05515400

17

BSHG-FLG .325X.501X.250X1.120

Part# 05515400

Note: Bshg-Flg .325 x .301 x .257 x 1.120055,056)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

05902200

18

BLT-HEX .31-18X.75 PL GR2

Part# 05902200 (Superseded to 05947000)

Note: (Used Only On Model(s): 055,056).

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06513200

19

NUT-LK .437-14 GR A PL

Part# 06513200 (Superseded to 06536400)

Note: (Used Only On Model(s): 055,056).

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53
