911058 (AP 210) - Ariens 21" Push Walk-Behind Mower, 4hp Tecumseh (SN: 000101 & Above)

21" Push Walk-Behind Mower, 4hp Tecumseh

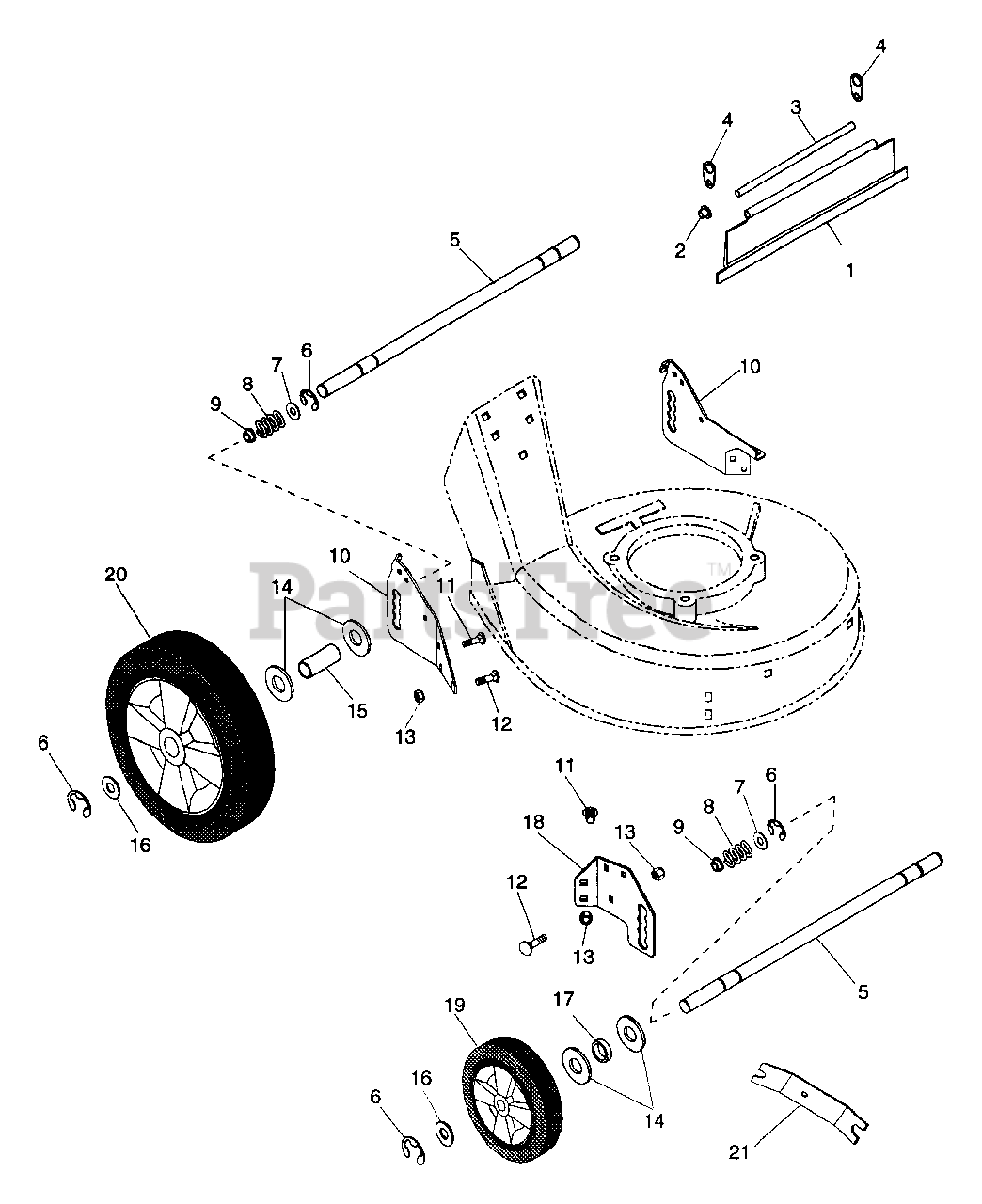

911058 (AP 210) - Ariens 21" Push Walk-Behind Mower, 4hp Tecumseh (SN: 000101 & Above) > Parts Diagrams (4) > Wheels And Adjusters

  • Title
01141700

1

REAR PROTECTIVE GUARD

Part# 01141700

OEM Warranty Repair Part for Ariens

Not available

07008200

2

NUT-PUSH .312 DIA. PAL

Part# 07008200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

01129900

3

ROD

Part# 01129900

OEM Warranty Repair Part for Ariens

Not available

01128800

4

HANGER

Part# 01128800

OEM Warranty Repair Part for Ariens

Not available

01124900

5

AXLE

Part# 01124900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $67.02

05710200

6

RG-RTNG-EXT .500X.042 (E)

Part# 05710200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06403800

7

WSHR-FL-STL .505X.875X.024 PL

Part# 06403800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

08313000

8

SG-COMP .62X.68X1.75

Part# 08313000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

05503100

9

BSHG-FLG.500X.750X.750X1.000BR

Part# 05503100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

01153300

10

LH REAR QUADRANT

Part# 01153300

OEM Warranty Repair Part for Ariens

Not available

01153400

10

RH REAR QUADRANT

Part# 01153400

OEM Warranty Repair Part for Ariens

Not available

06200900

11

BLT-RDHDSQSHNK .31-18X.50 YZ

Part# 06200900 (Superseded to 06222000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

06203300

12

BLT-RDHDSQNK .312-18X.62SHTPL

Part# 06203300 (Superseded to 06212200)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06507800

13

NUT-FLG. .312-18 PL

Part# 06507800 (Superseded to 06530400)

OEM Warranty Repair Part for Ariens

Not available

06400300

14

WSHR-FL-STL .531X1.062X.095 PL

Part# 06400300 (Superseded to 06441900)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

01149700

15

SPACER TUBE,PUSH LH

Part# 01149700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

01149800

15

SPACER TUBE PUSH RH

Part# 01149800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

06405600

16

WSHR-FL-STL .505X.880X.072 PL

Part# 06405600 (Superseded to 06436600)

OEM Warranty Repair Part for Ariens

Not available

00211100

17

BSHG, SPCR.500X.750X.321 PM

Part# 00211100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

01153100

18

REPLACED BY 011711 AND 011712

Part# 01153100

Note: (Used Only On Model(s): 054).

OEM Warranty Repair Part for Ariens

Not available

01153200

18

REPLACED BY 011711 AND 011712

Part# 01153200

Note: (Used Only On Model(s): 054).

OEM Warranty Repair Part for Ariens

Not available

01171100

18

RH FRONT QUADRANT

Part# 01171100

Note: (Used Only On Model(s): 058).

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

01171200

18

LH FRONT QUADRANT

Part# 01171200

Note: (Used Only On Model(s): 058).

OEM Warranty Repair Part for Ariens

Not available

07126800

19

TIRE 7X1.50

Part# 07126800

OEM Warranty Repair Part for Ariens

Not available

07127200

20

TIRE 10X1.75

Part# 07127200 (Superseded to 07138100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $64.92

01171400

21

AXLE TOOL

Part# 01171400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53
